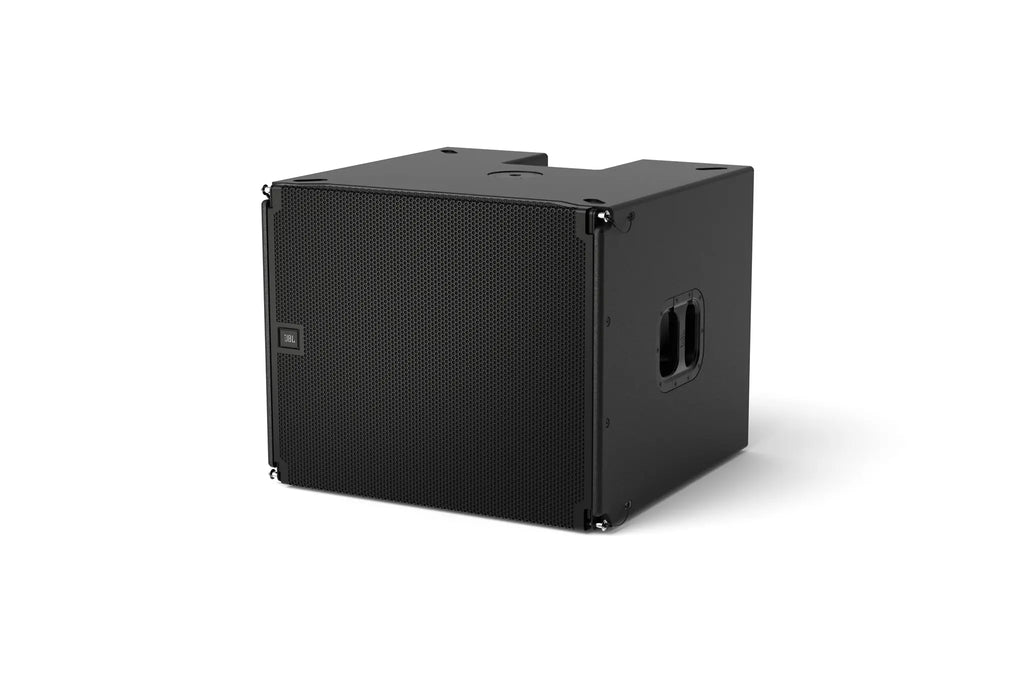

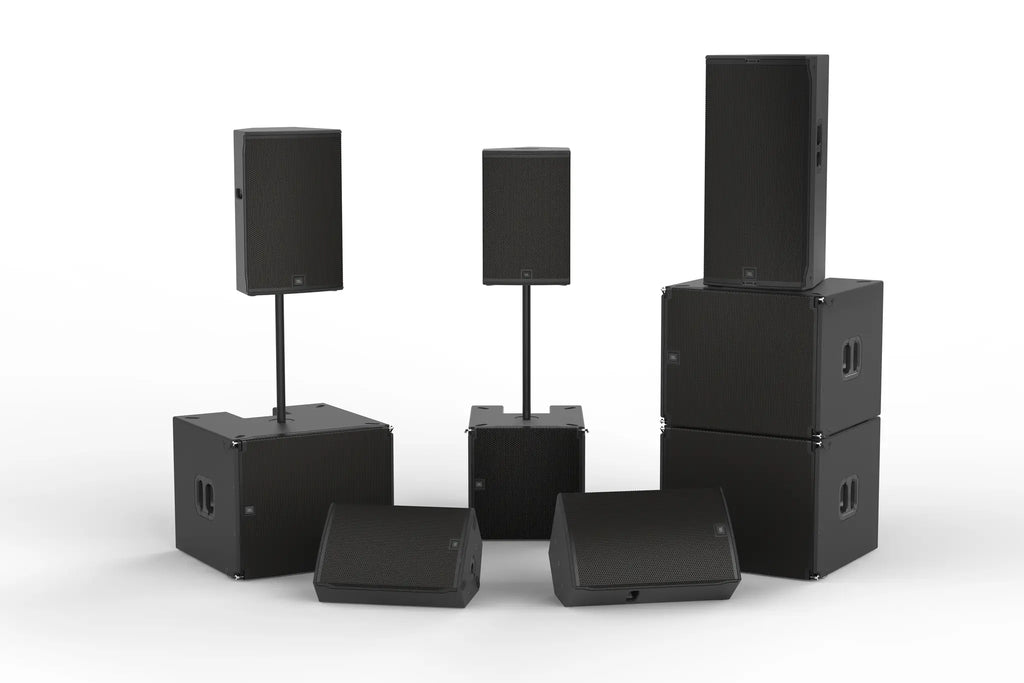

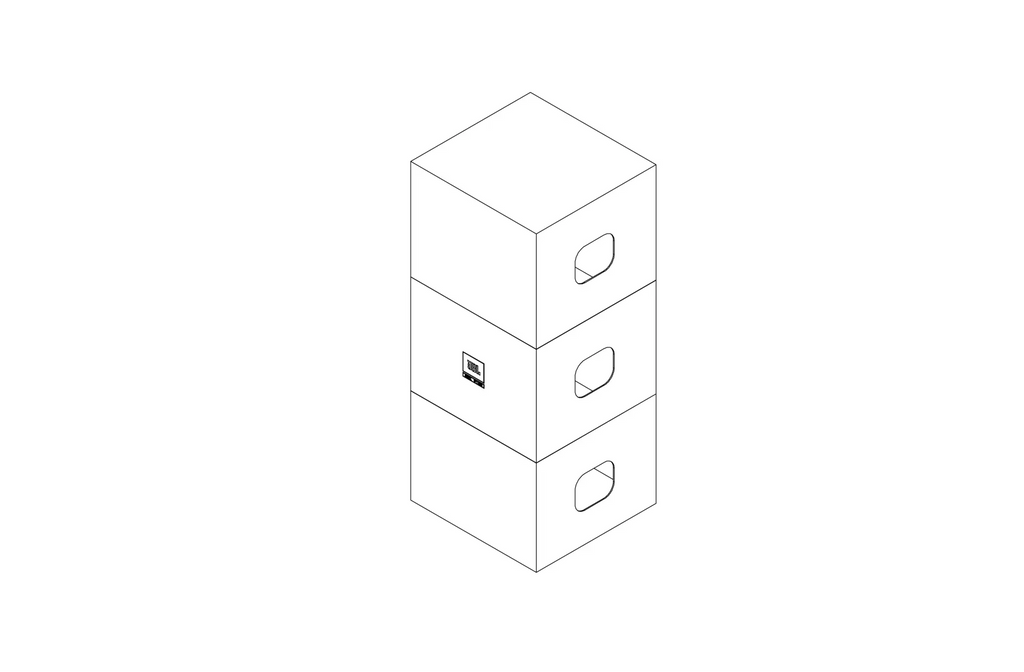

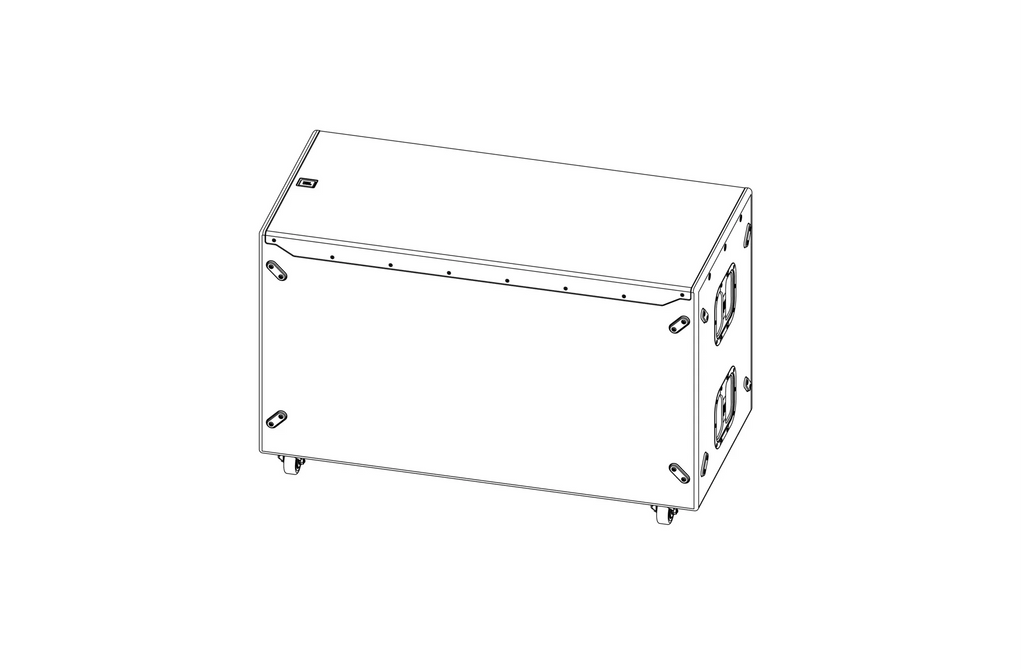

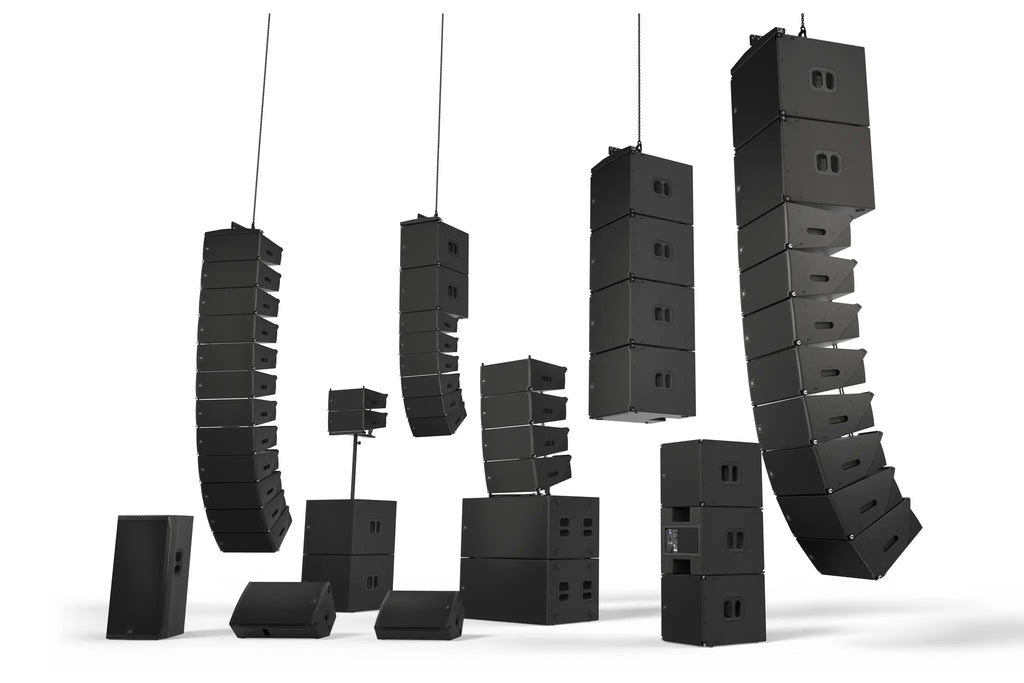

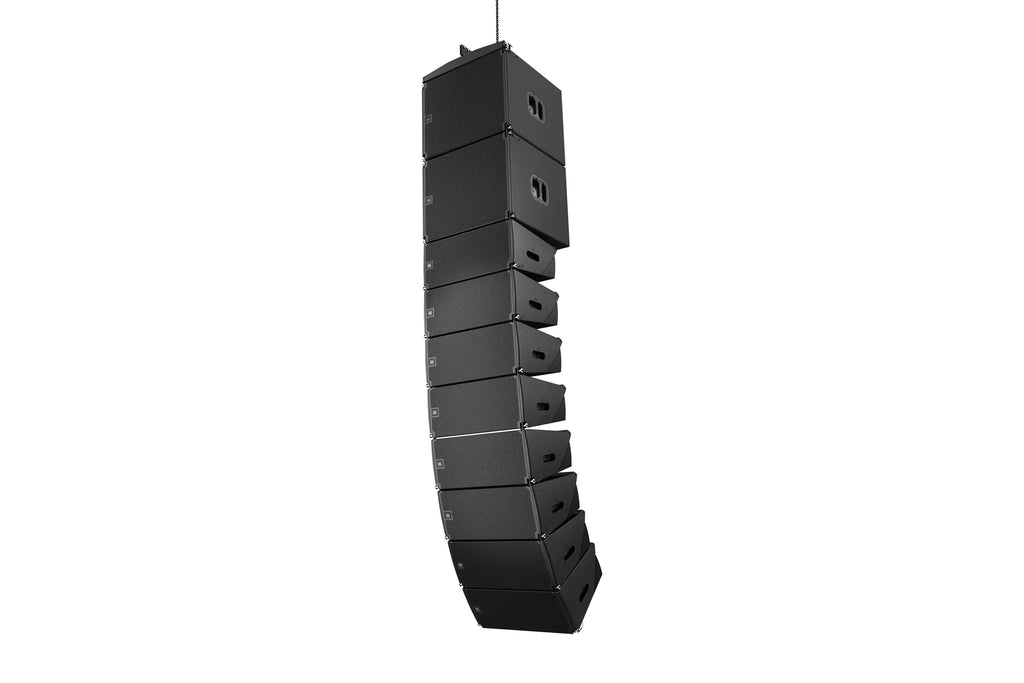

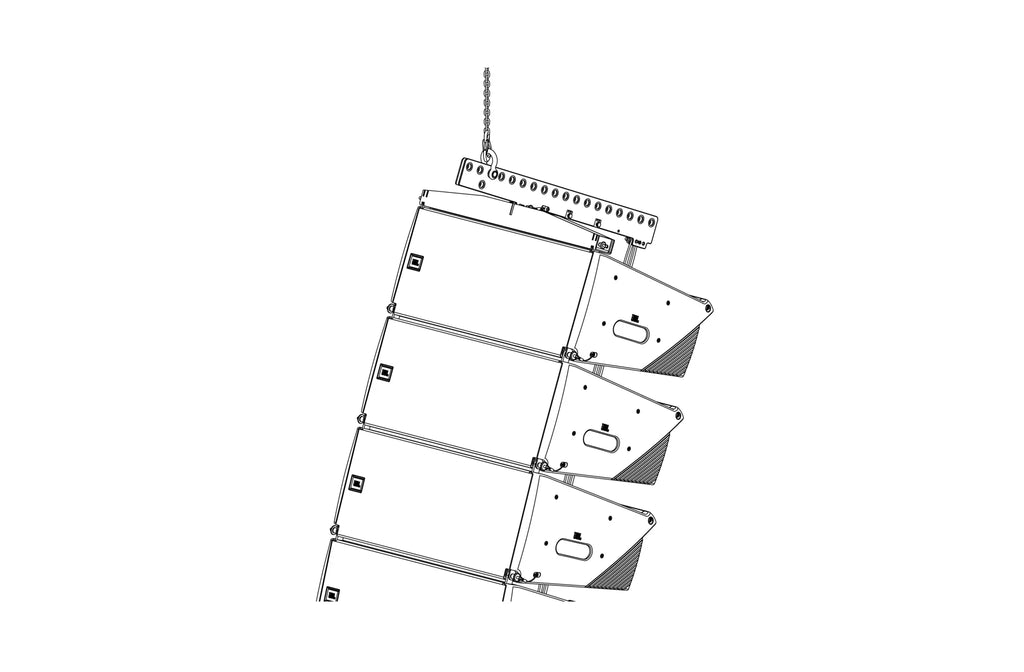

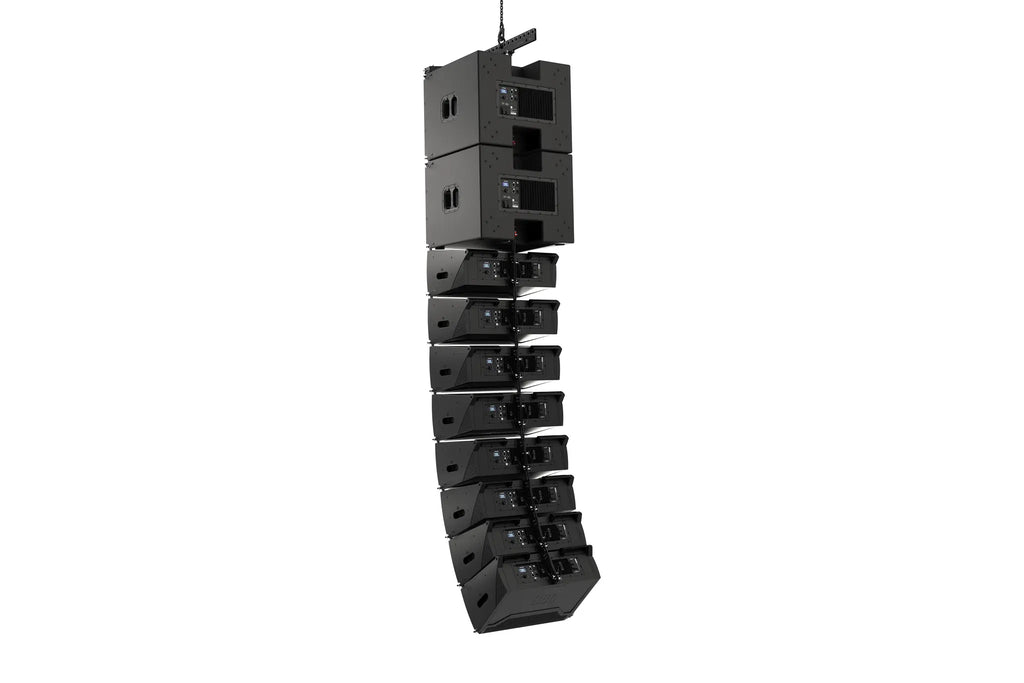

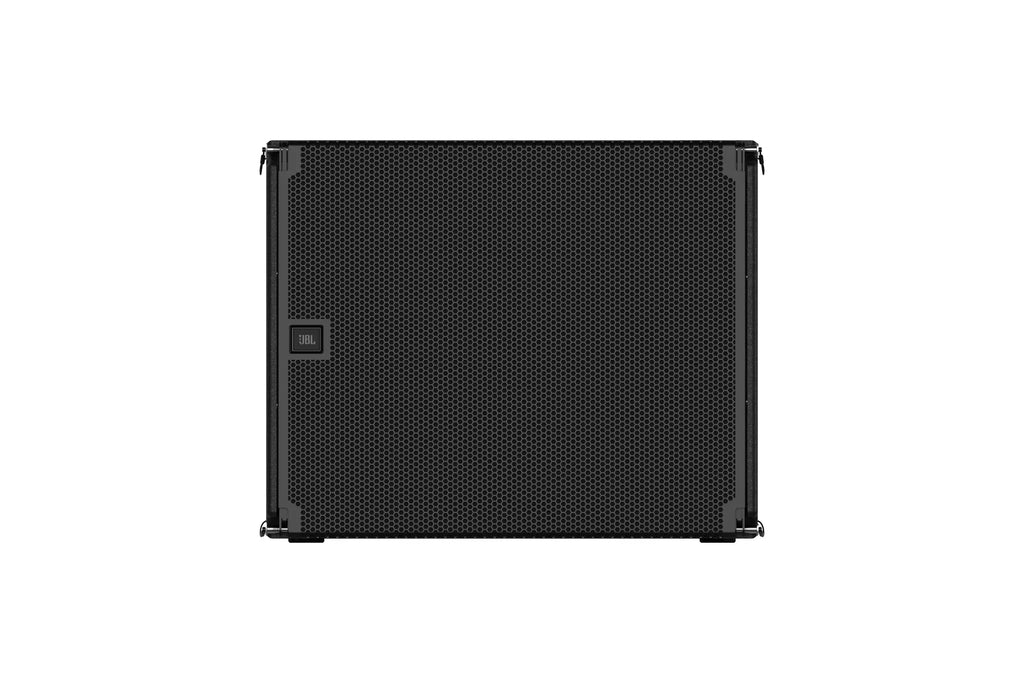

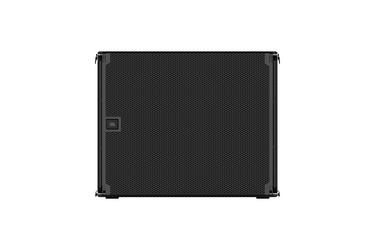

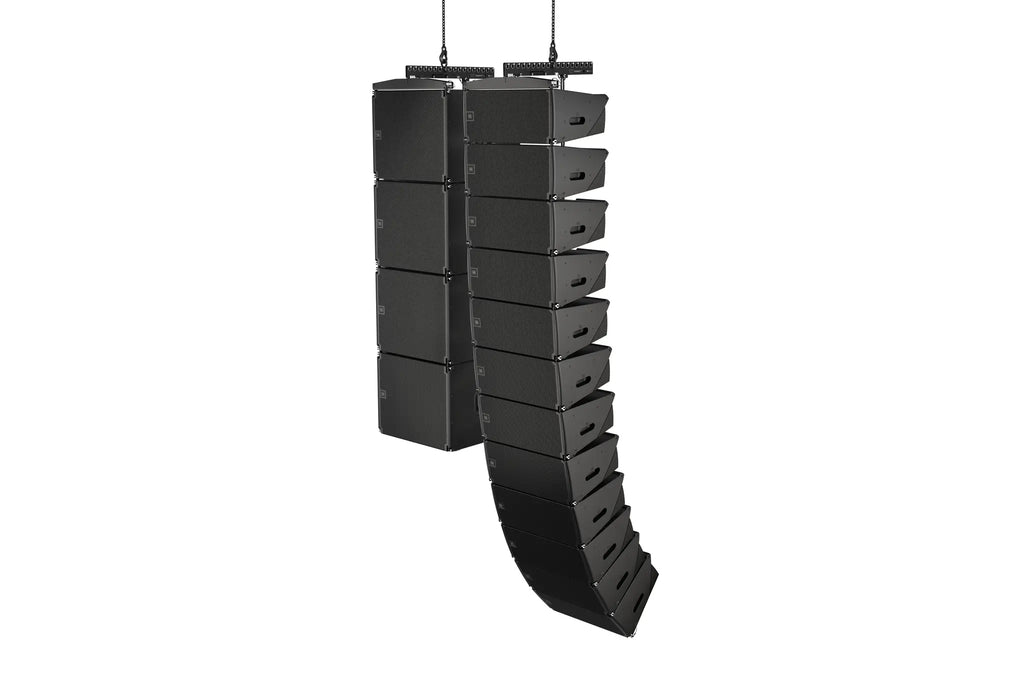

The SRX918SF is a powered, flyable single 18-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX918SF allows units to be suspended in standalone arrays or in combination with SRX910LA cabinets in mixed-array configurations. The subwoofer houses a JBL 2279-1 18-inch woofer featuring Differential Drive® - JBL’s dual voice coil, dual gap technology - to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world. The SRX918SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here .

Features

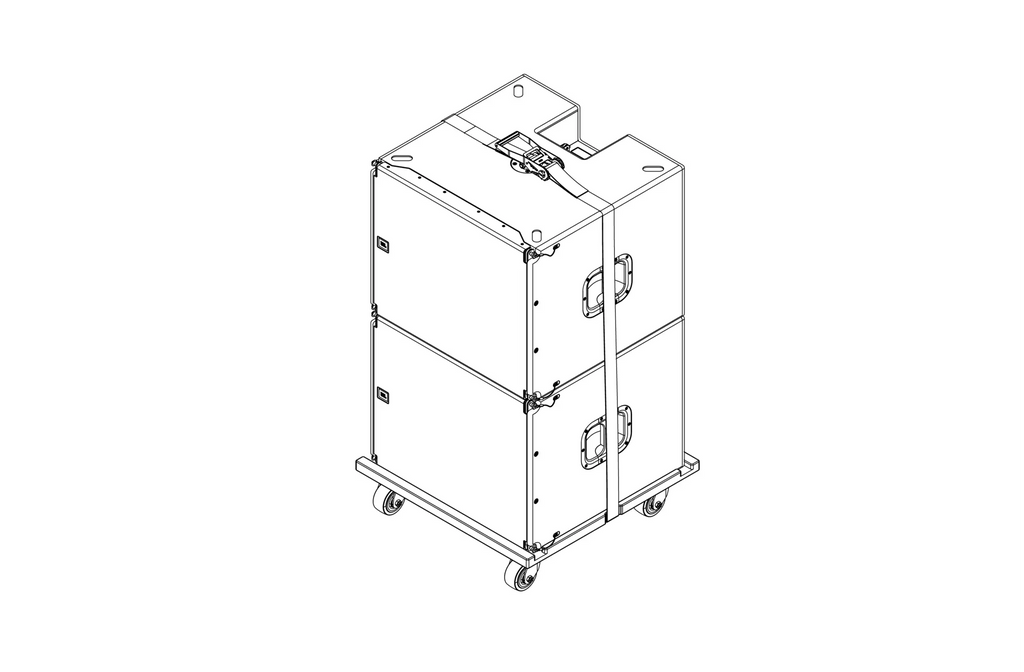

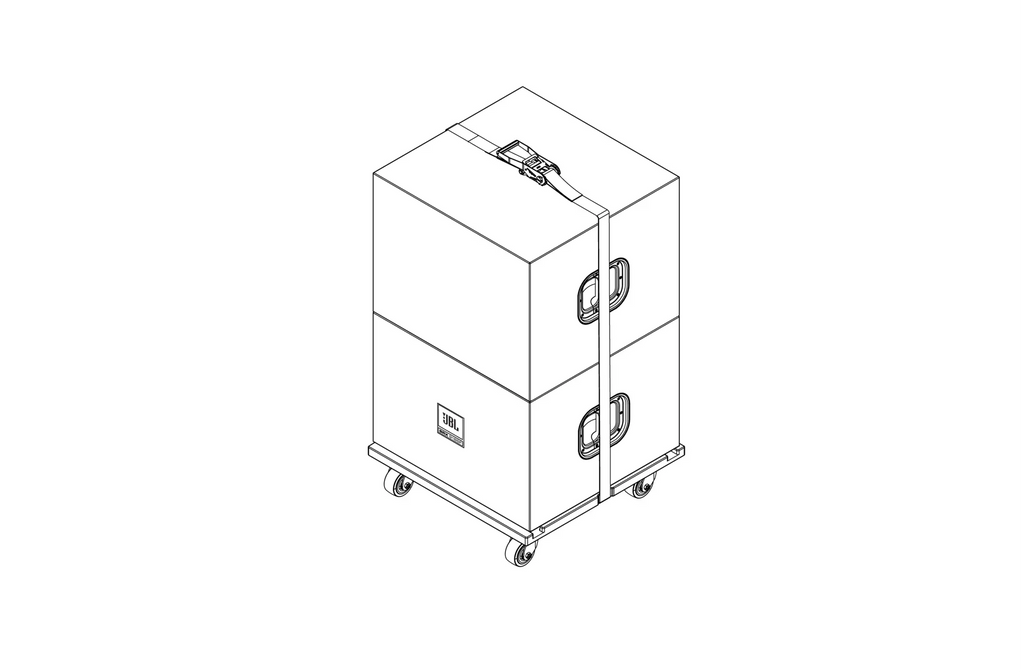

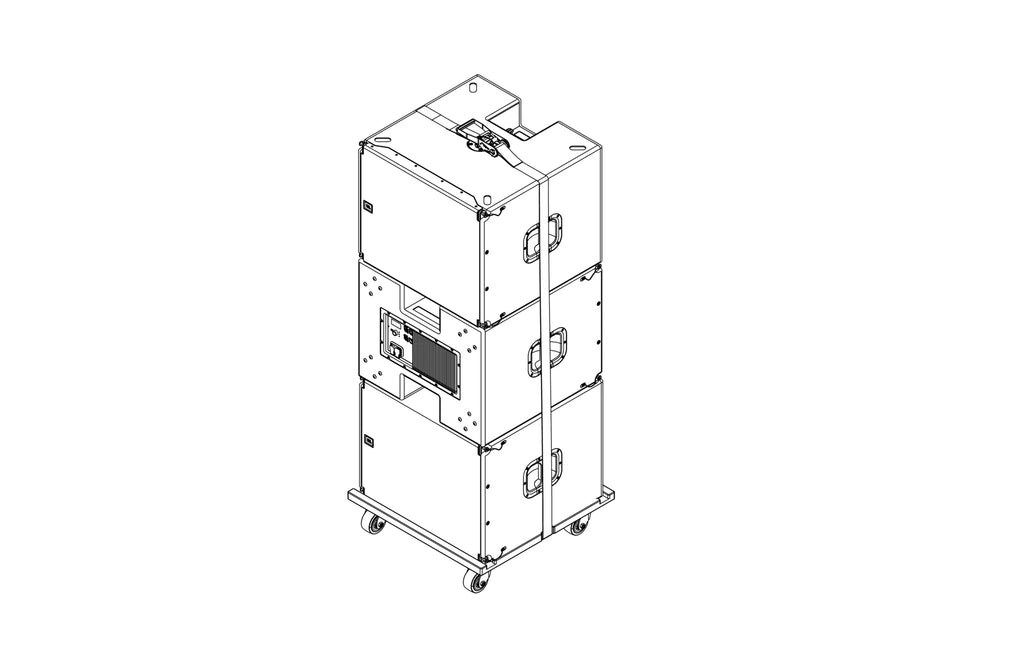

• High-performance, high-density system solution in a truck-pack friendly format
• High-power-handling transducers deliver low distortion and class-leading output

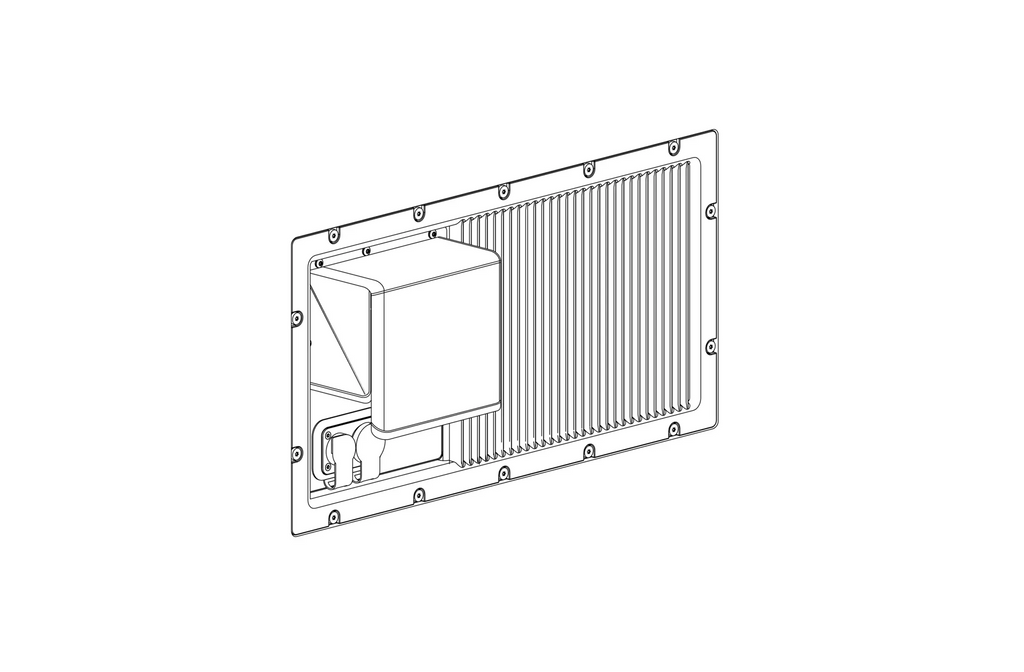

• Built-in, passively-cooled Class D amplification with a universal power supply
• Dual Ethernet ports with Neutrik etherCON connectors
• Complete control and configuration with JBL Performance software over HARMAN's HControl protocol
• User-controllable DSP
• LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
• Rear-panel LCD provides access to control features
• Reinforced birch plywood enclosures
• M20 threaded mount for pole mounting or ground stacking full range components

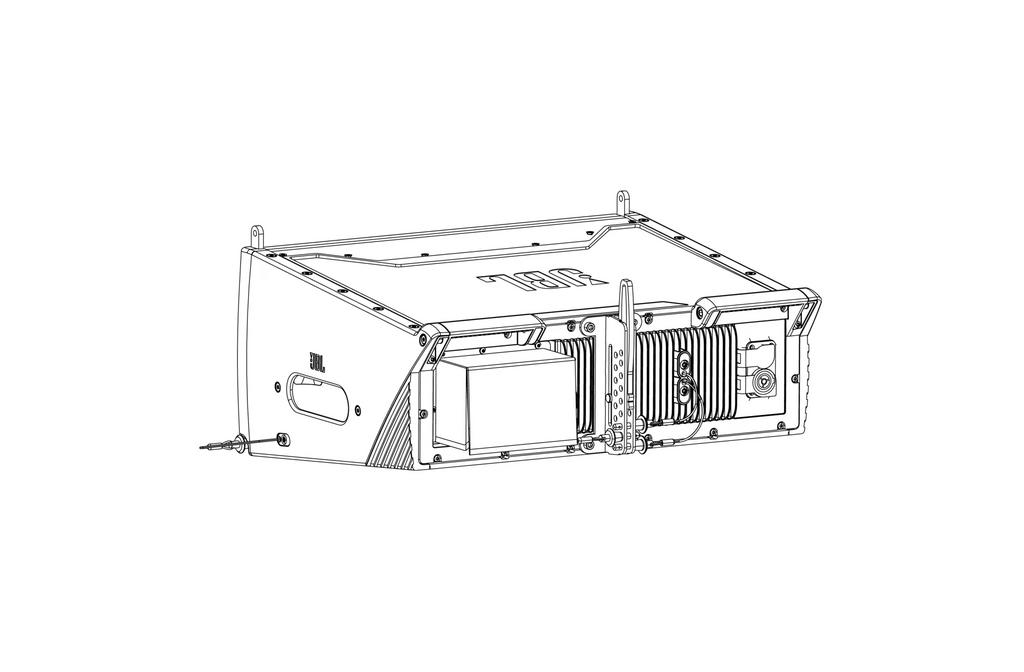

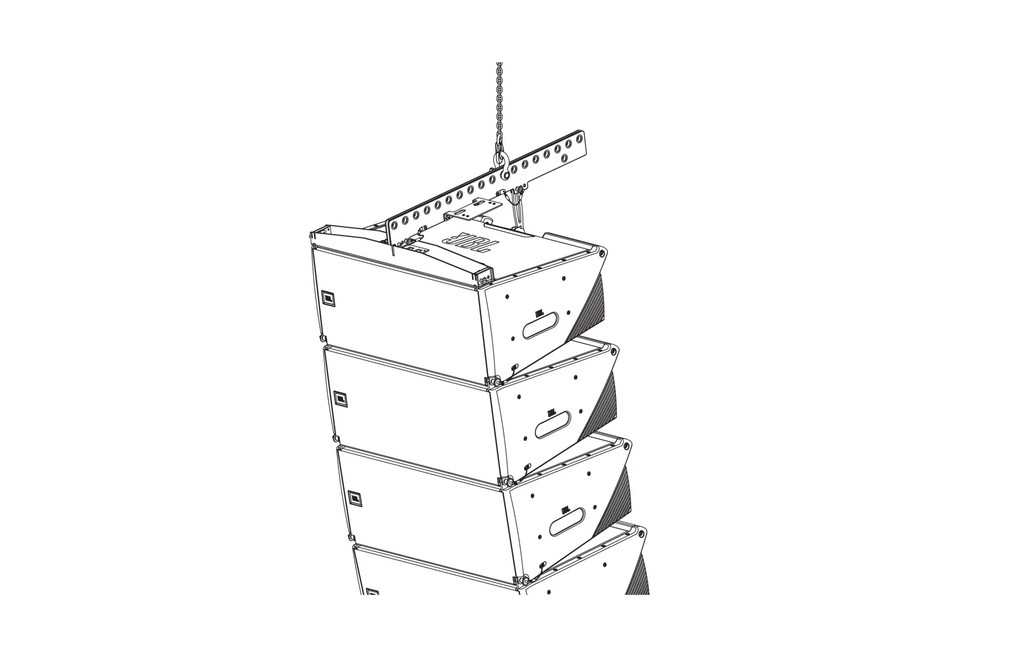

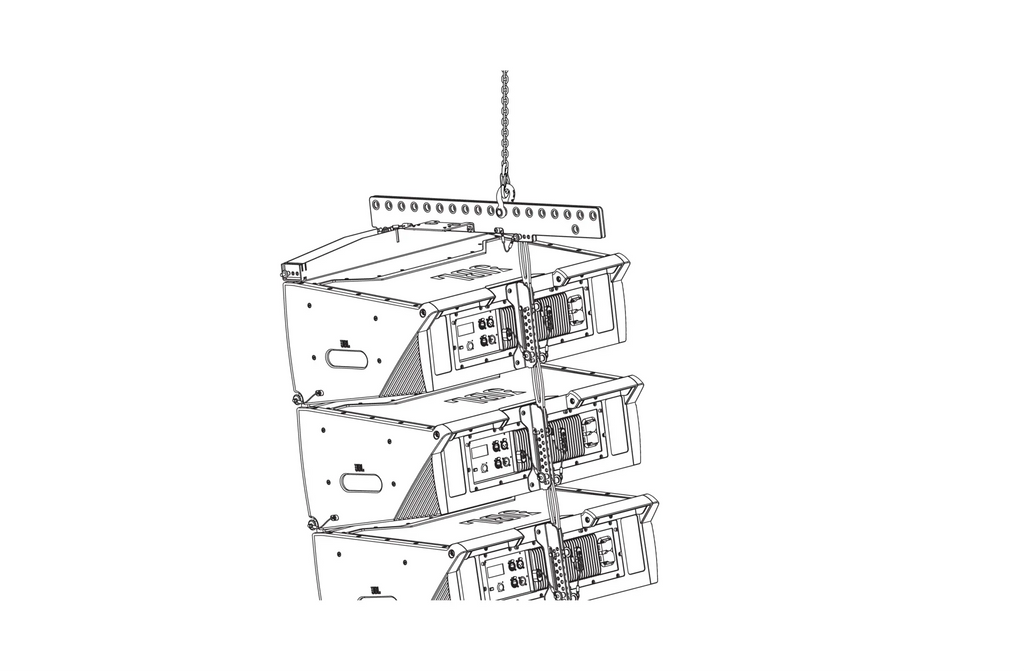

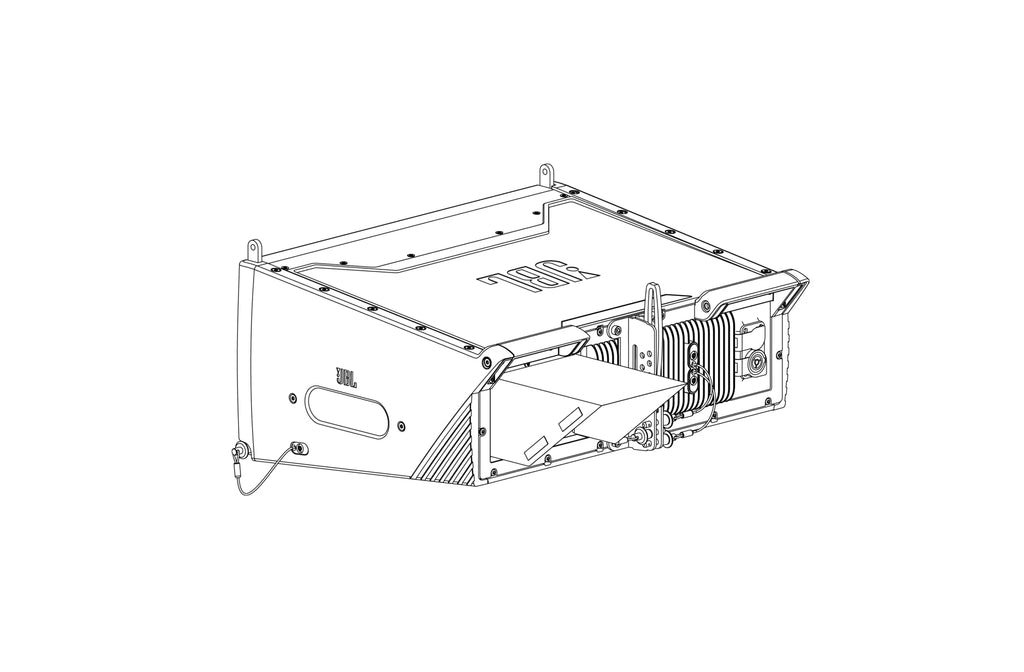

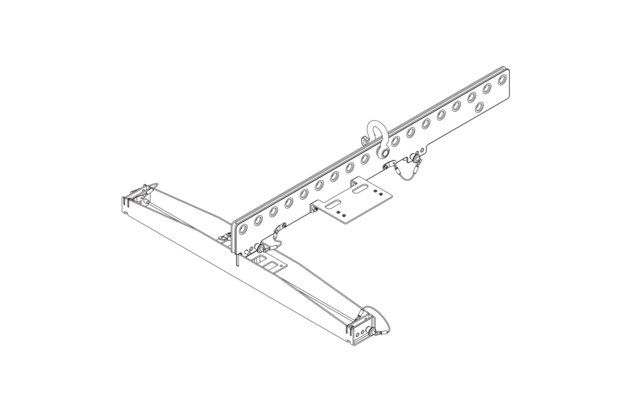

• Integrated three-point rigging system

Specifications

• Model: SRX918SF
• Frequency Range (-10dB): 35 Hz -100 Hz
• Coverage Pattern: Omnidirectional or Cardioid
• Maximum SPL: 134 dB
• System Type: Active Subwoofer
• Amplifier Design: Class-D
• Continuous Power Rating: 1,100 Watts
• LF Driver: (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
• Enclosure: Exterior grade birch plywood, Black DuraFlex finish
• Dimensions (H x W x D): 575 mm x 710 mm x 683 mm (22.6 in x 28.0 in x 26.9 in)
• Net Weight (each): 54.4 kg (120 lbs)
• Weight: 144 lb
• Dimensions (L x W x H): 25.4 x 31.9 x 33.1 in
• UPC: 691991039805
• Country of Origin: MX
