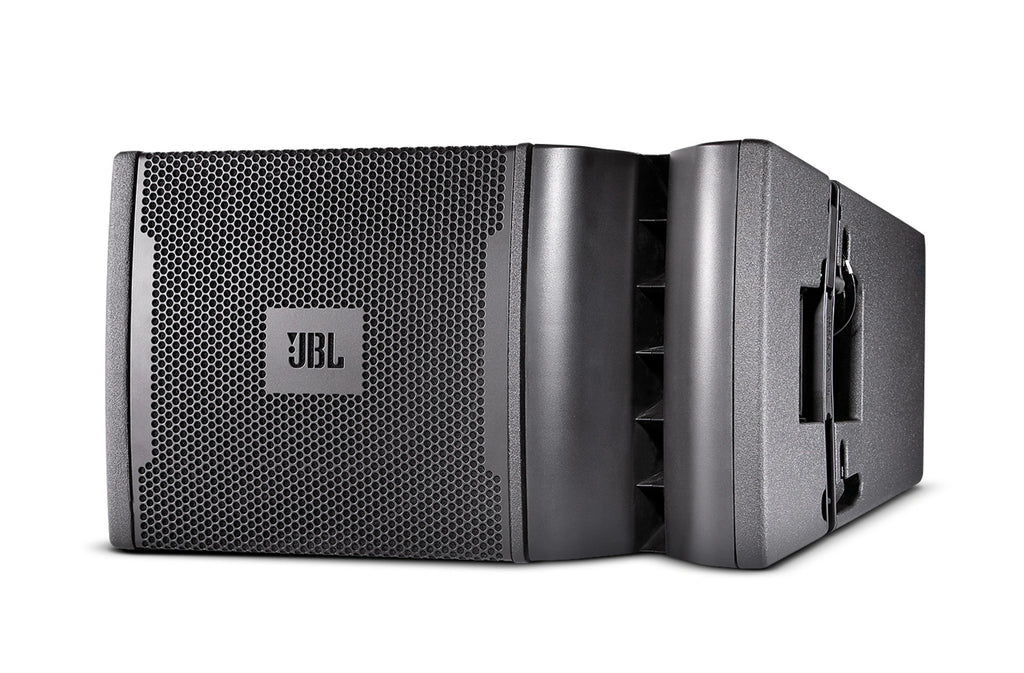

12 in. Two-Way Line Array Loudspeaker System The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.

Features

• JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
• Array Configuration Selector permits “array shading” in passive mode.

Specifications

• Model: VRX932LA-1WH
• Power Rating: 800 W / 1600 W / 3200 W
• Frequency Range (-10dB): 57 Hz - 20 kHz
• Dimensions (H x W x D): 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
• Frequency Response (±3 dB): 75 Hz - 20 Hz
• Coverage Pattern: 100 x 15 nominal
• Crossover Modes: Bi-amp / passive, externally switchable
• Crossover Frequency: 132 dB SPL peak 1.2 kHz
• Maximum SPL (1m): 130 dB SPL peak (passive mode) LF: 130 dB HF: 139 dB
• Sensitivity: Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
• LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
• HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
• Nominal Impedance: Passive = 8 ohm Bi-amp LF = 8 ohm Bi-amp HF = 8 ohm
• Active Tunings: Tunings available at www.jblpro.com
• Enclosure: 18 mm, 11-ply birch plywood
• Suspension / Mounting: Optional VRX932LA-AF line array frame kit
• Finish: Black DuraFlex™ finish
• Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam

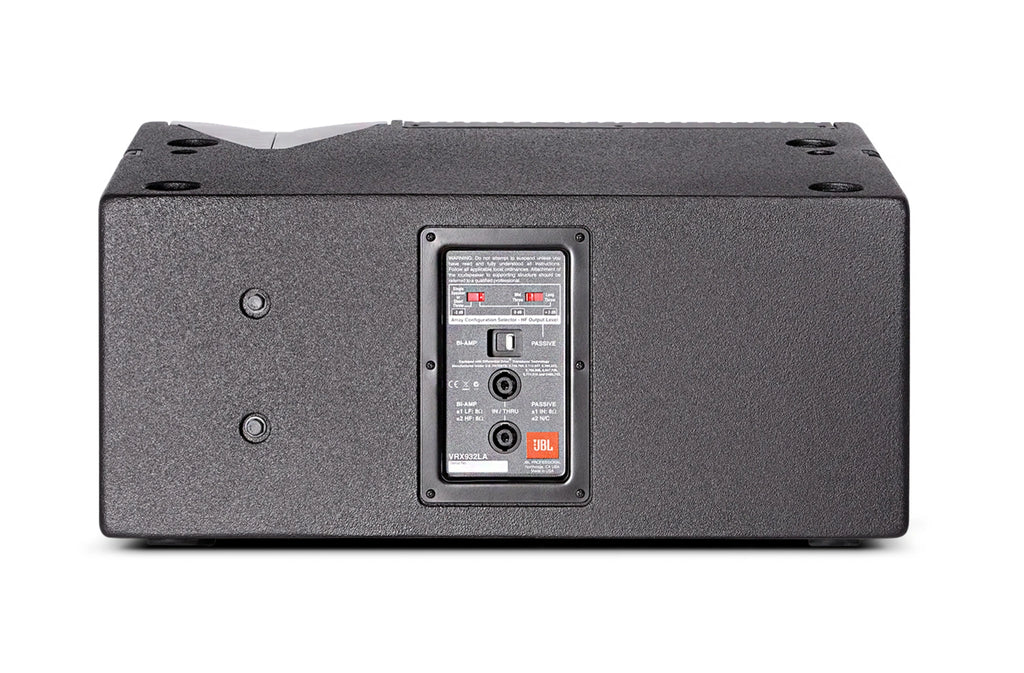

• Inputs: Neutrik® Speakon® NL-4 (x2)
• Net Weight (each): 21 kg (46 lb)

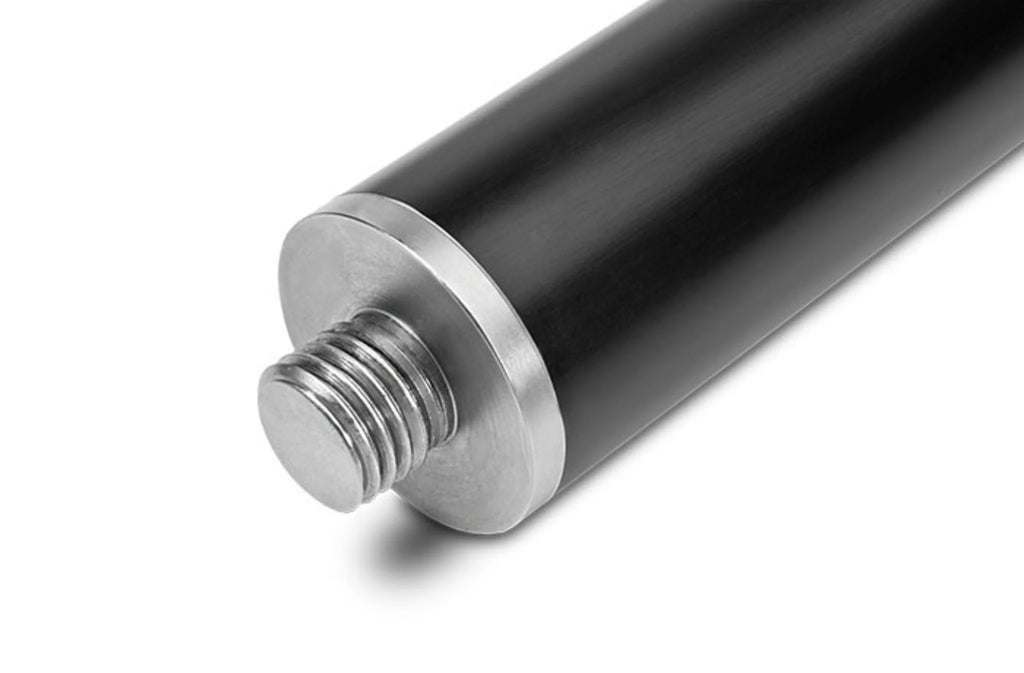

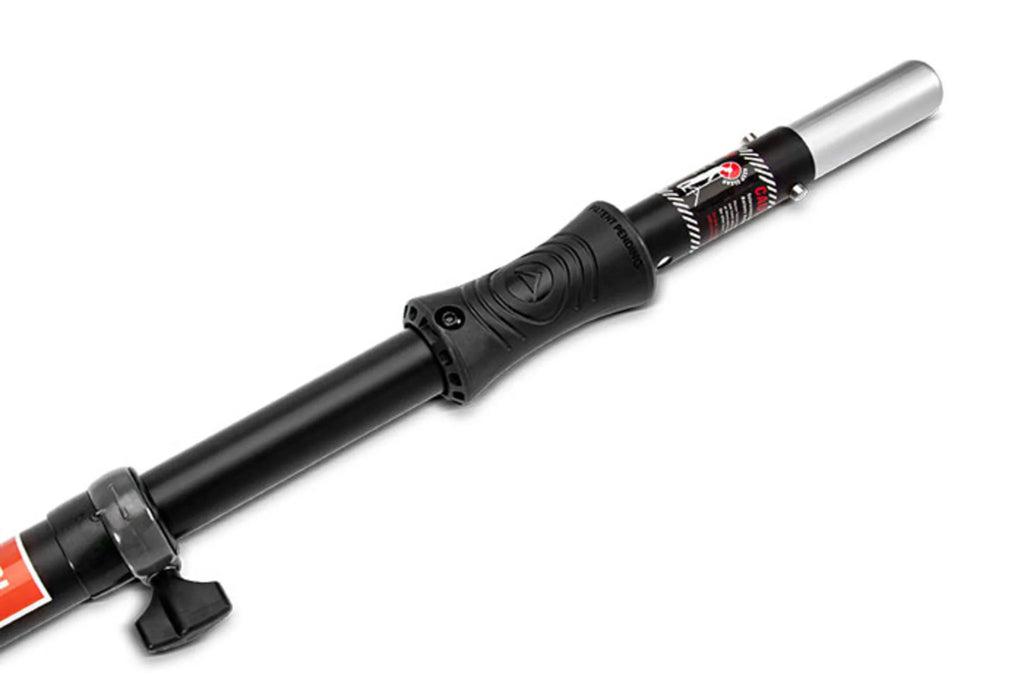

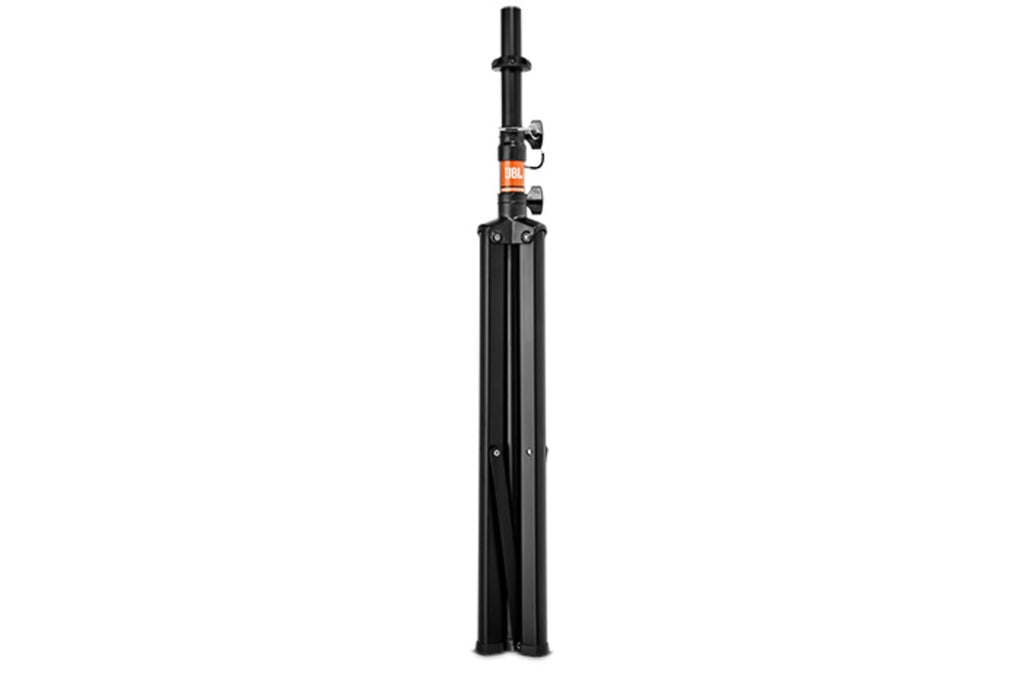

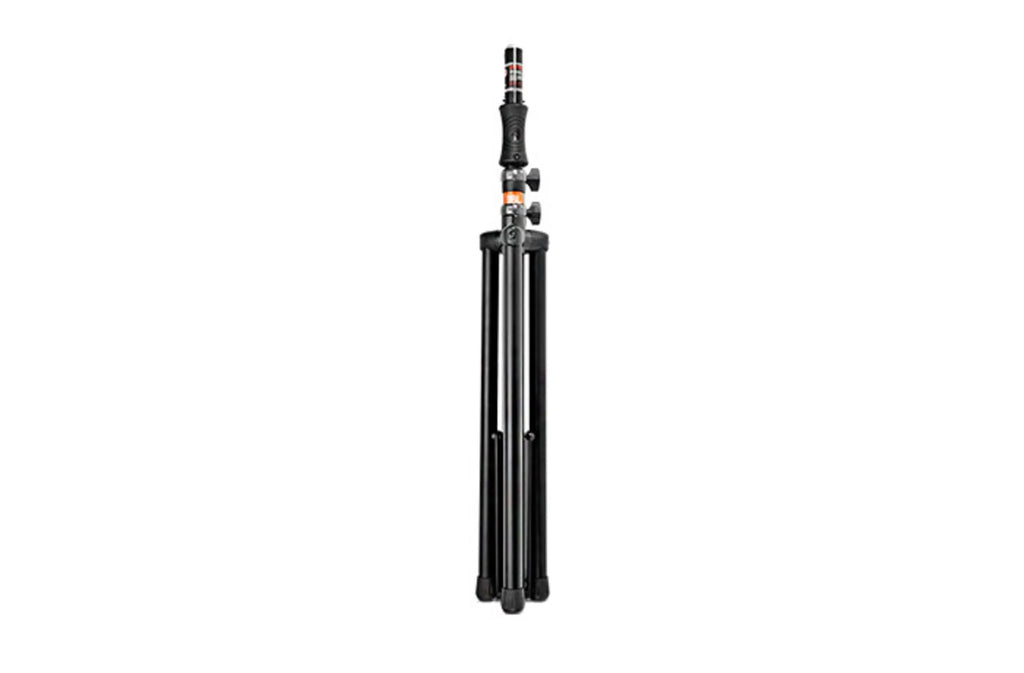

• Optional Accessories: VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
• Outputs: 1 x XLR
• System Type: Constant Curvature 12" Two-Way Line Array System
• Weight: 55.4 lb
• Dimensions (L x W x H): 18 x 18.5 x 26 in
• UPC: 691991003776
• Country of Origin: MX
