Description

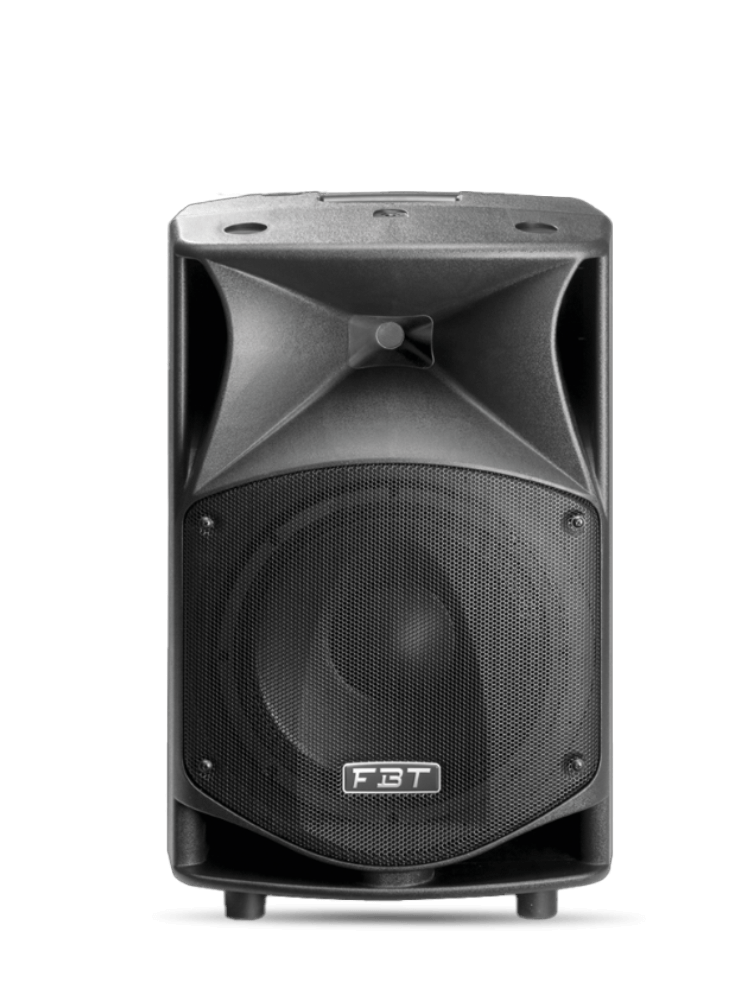

JMAXX 112A is an active 2-way loudspeaker designed to deliver high SPL and consistent tonal balance for both mobile and installed sound systems. It features a 12″ custom woofer with a 2.5″ voice coil and a 1″ B&C compression driver with a 1.4″ voice coil, ensuring articulate mids and defined highs.The integrated bi-amplified Class D module provides 700W RMS for LF and 200W RMS for HF, with a dedicated DSP section offering 4 EQ presets for various applications. The constant directivity horn (90° x 60°) and robust polypropylene enclosure offer flexible installation options and excellent durability, complete with M10 rigging points, ergonomic handles, and a 35mm pole mount.
Technical Specifications
| Code | 42603 |
| Configuration | 2 way |
| Built-in amplifier LF/HF | 700 / 200W RMS |
| Frequency response | 48Hz - 20KHz -6dB |
| Low frequency woofer | 12'' - 2.5'' coil |
| High Frequency driver | 1'' - 1.4'' coil |
| Maximum SPL cont/peak | 125 / 131dB |
| Dispersion | 90° x 60° H x V |
| Input impedance | 22 kOhm |
| Input connector | XLR - Jack |
| Power cord | 5m / 16.4ft |
| Net Dimension (WxHxD) | 402 x 644 x 345 mm / 15.8 x 25.4 x 13.6 inch |
| Net Weight | 16.5 Kg / 36.3 lb |
| Transport Dimension (WxHxD) | 500 x 760 x 445 mm / 19.7 x 29.9 x 17.5 inch |
| Transport Weight | 19.1 Kg / 42.1 lb |
