Description

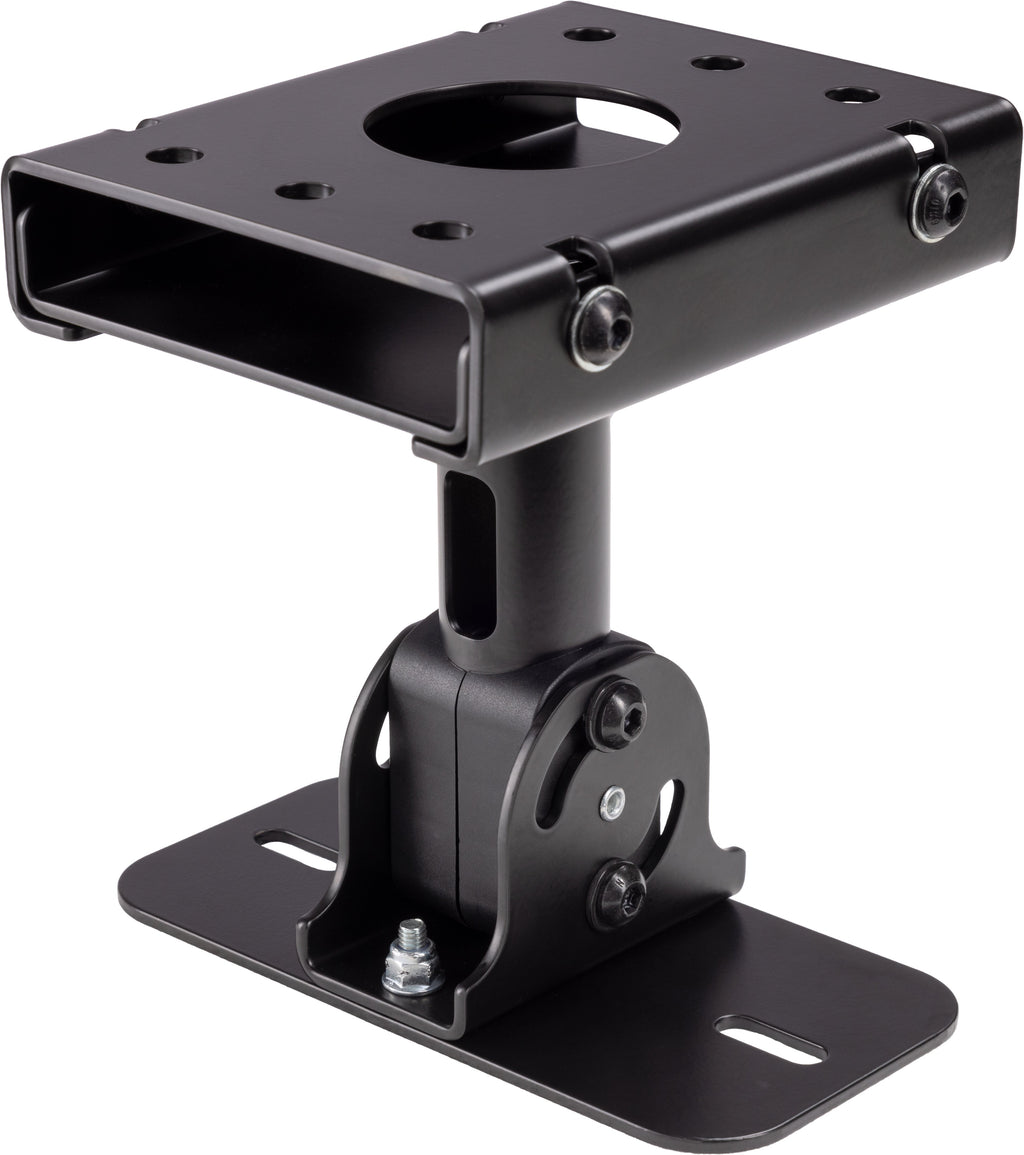

The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking. Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
Specifications
- Adjustment: continuous
- Angle of inclination: 0° to 75°
- Bearing plate: 180 x 90 mm
- Ceiling clearance: 180 mm
- Ceiling mounting plate: 160 x 126 mm
- EAN: 4016842122998
- Weight: 2.2 kg
- Material: steel
- Max. load capacity: 25 kg
- Mounting: attaches to ceilings
- Spacing of holes: 60 - 70 mm or 115 - 150 mm
- Swivel: 90°
- Color/Finish: black
Special Features
- Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
- Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
