Description

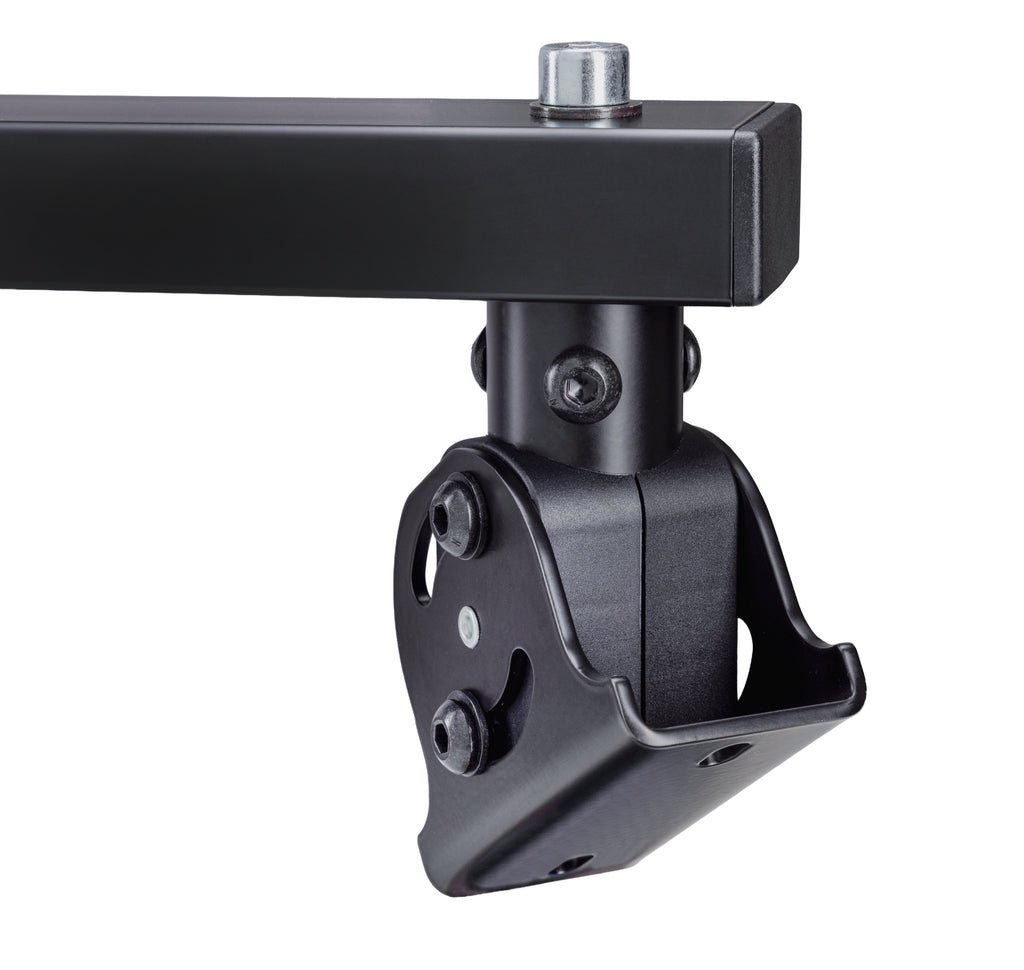

The speaker wall mount allows equipment to be installed on a wall. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking. Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
Specifications
- Adjustment: continuous
- Angle of inclination: -45° to 45°
- Bearing plate: 180 x 90 mm
- EAN: 4016842124060
- Weight: 3.35 kg
- Material: steel
- Max. load capacity: 28 kg
- Mounting: attaches to walls
- Spacing of holes: 60 - 70 mm or 115 - 150 mm
- Swivel: 360°
- Color/Finish: black
- Wall clearance: 400 mm
Special Features
- Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
- Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
