Description

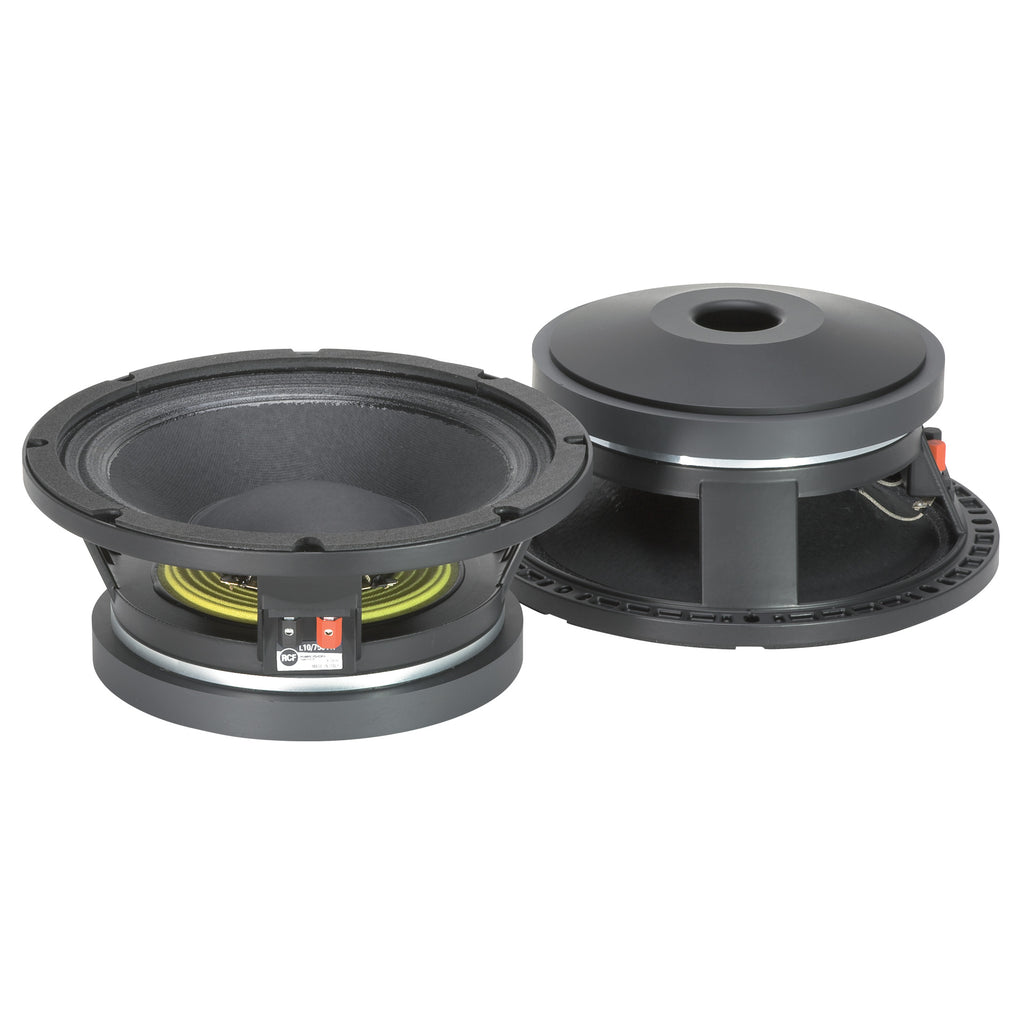

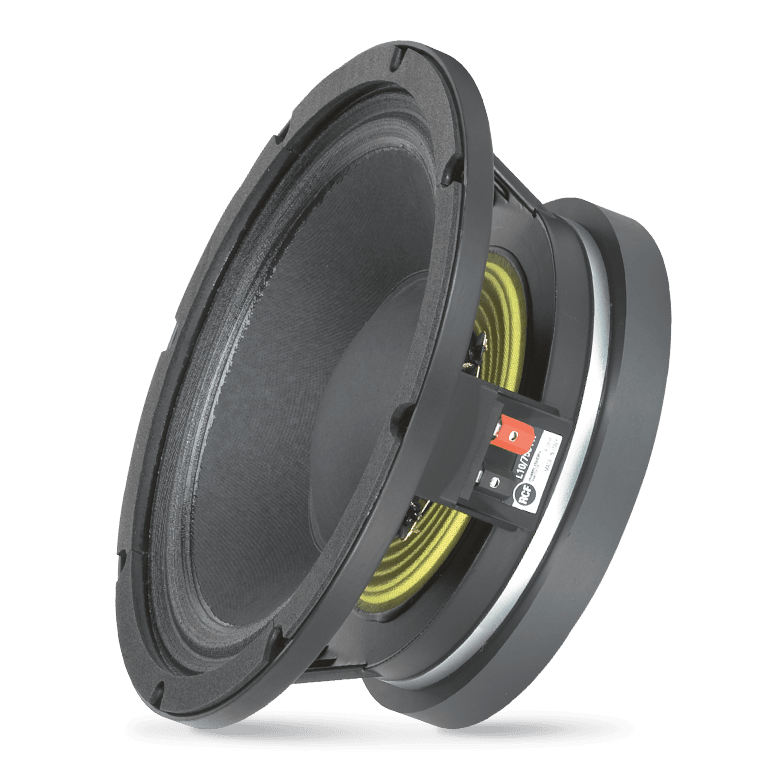

The L10-750YK is a professional mid-bass woofer featuring very high output and dynamics. The mobile equipment, used a 3" coil, fiberglass former and copper wire winding, has enable considerable improvement in transient peak response and has allowed good extension on mid-high frequencies. A specially designed M-roll surround guarantee a very low midrange distortion and perfect damping of the spurious resonances.
Features
- 3-inch, fiberglass inside/outside copper voice coil
- 700W continuous program power handling
- 100 dB Sensitivity
- 70 Hz - 3 kHz Frequency range
- Shaped M-roll damped surround
Specifications
| General specifications | |
| Nominal Diameter | 10 inch / 254 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 700 W |
| Power handling capacity | 350 W |
| Sensitivity | 100.0 dB |
| Frequency range | 70 - 3000 Hz |
| Effective piston diameter | 210 mm / 8.27 inch |
| Max. Excursion Before Damage | 40 mm / 1.57 inch |
| Minimum Impedance (ohm) | 7.0 ohm |
| Voice Coil Diameter | 3.0 inch / 76 mm |
| Voice Coil Winding Material | Copper |
| Voice Coil Length | 9 mm / 0.35 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 9 mm / 0.35 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | M-roll |
| Magnets | Ceramic |
| Spider | 01 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 68 Hz |
| DC resistance (Re) (ohm) | 5.10 ohm |
| Mechanical factor | 4.20 Qms |
| Electrical factor | 0.25 Qes |
| Total factor | 0.24 Qts |
| Bl factor (Bl) (T x m) | 17.50 T x m |
| Effective moving mass (Mms) | 36.0 g |
| Equivalent Cas air loaded (Vas) | 26.0 liters |
| Effective piston area (Sd) | 0.040 m2 |
| Max. linear excursion (Xmax) | 3 mm |
| Voice coil inductance @ 1kHz (Le1k) | 0.50 mH |
| Half-space efficency (Eff) | 3.15% |
| Mounting information | |
| Overall diameter | 260 mm / 10.24 inches |
| Bolt circle diameter | 242-247 mm / 9.53-9.72 inch |
| Bolt hole diameter | 6 mm / 0.24 inch |
| Front mount baffle cut-out | 230 mm / 9.06 inch |
| Rear mount baffle cut-out | 229 mm / 9.02 inch |
| Volume occupied by the driver | 1.2 liters / 0.05 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Color | , Black |
| Size / Weight | |
| Height | 117 mm / 4.61 inches |
| Diameter | 260 mm / 10.24 inches |
| Weight | 7 kg / 15.43 lbs |
| Shipping information | |
| Package Height | 185 mm / 7.28 inches |
| Package Width | 290 mm / 11.42 inches |
| Package Depth | 285 mm / 11.22 inches |
| Package Weight | 7.9 kg / 17.42 lbs |
