Description

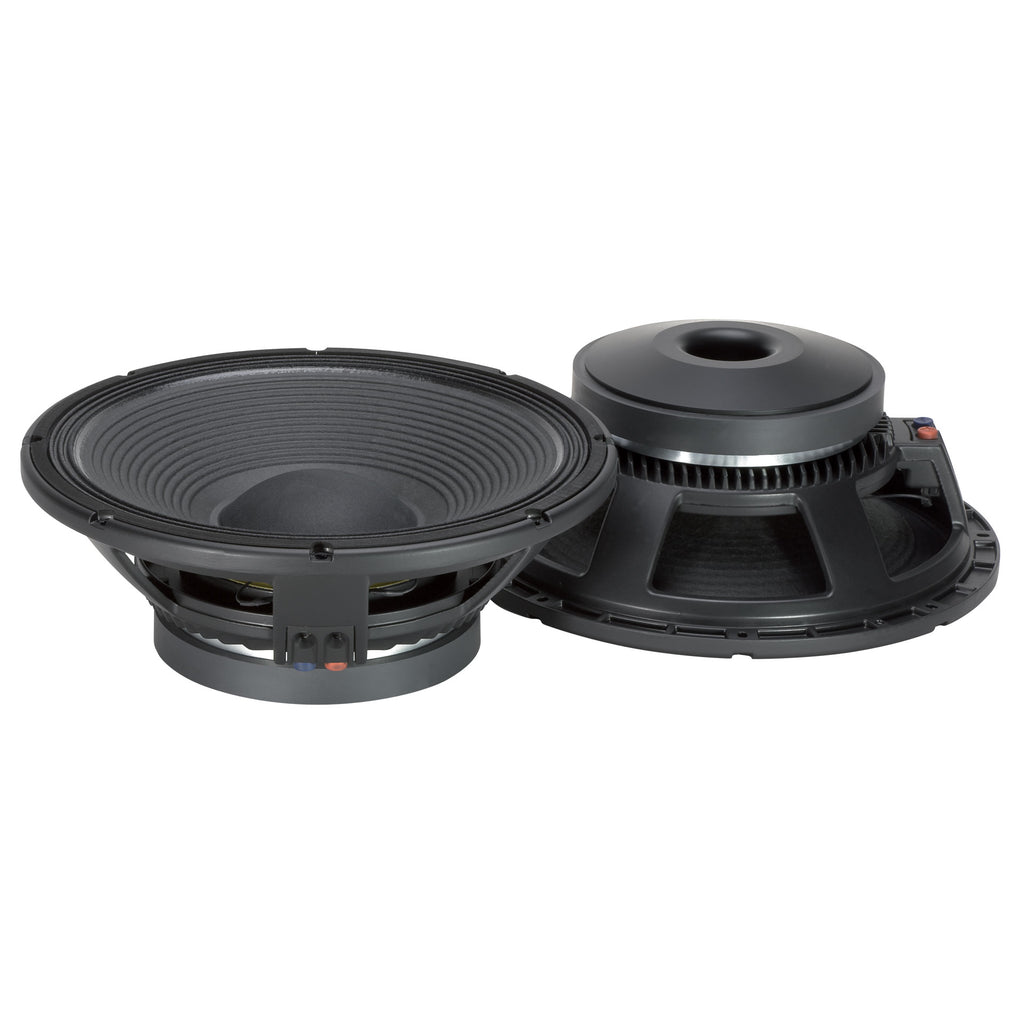

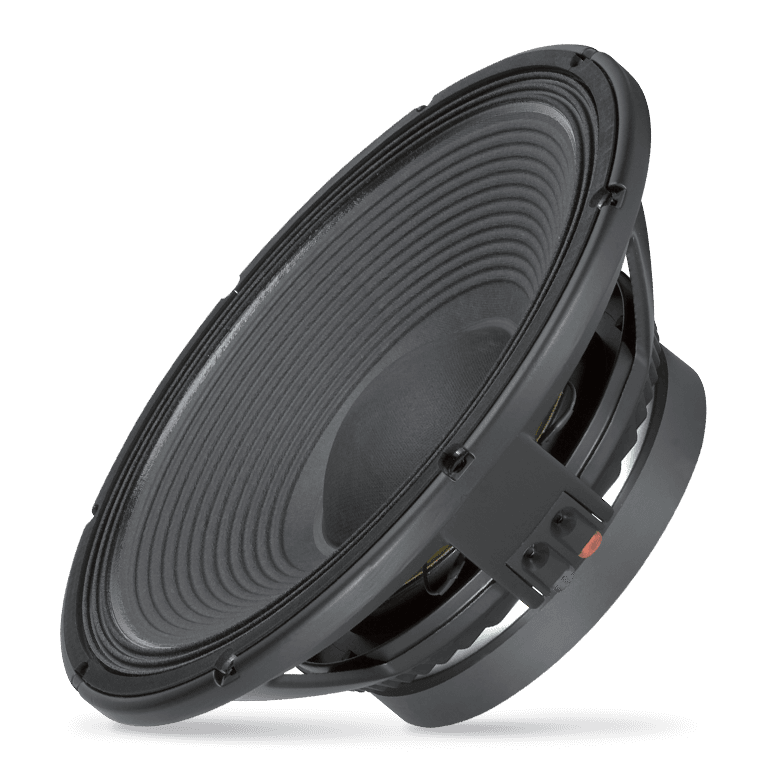

The LF15g401 is a 15-inch woofer with linear frequency response cheracteristics and very high power handling. The LF15G401 uses a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 1600W continuous program power handling
- 97 dB Sensitivity
- 30 Hz - 1.5 kHz Frequency range
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
Specifications
| General specifications | |
| Nominal Diameter | 15 inch / 381 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 1600 W |
| Power handling capacity | 800 W |
| Sensitivity | 97.0 dB |
| Frequency range | 35 - 1500 Hz |
| Effective piston diameter | 340 mm / 13.39 inch |
| Max. Excursion Before Damage | 52 mm / 2.05 inch |
| Minimum Impedance (ohm) | 6.1 ohm |
| Voice Coil Diameter | 4.0 inch / 102 mm |
| Voice Coil Winding Material | Copper |
| Voice Coil Length | 23 mm / 0.91 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 12 mm / 0.47 inch |
| Cone Design | Straight |
| Surround Material | Polycotton |
| Surround Design | Triple roll |
| Magnets | Ceramic |
| Spider | 03 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 36 Hz |
| DC resistance (Re) (ohm) | 4.80 ohm |
| Mechanical factor | 6.20 Qms |
| Electrical factor | 0.27 Qes |
| Total factor | 0.26 Qts |
| Bl factor (Bl) (T x m) | 24.60 T x m |
| Effective moving mass (Mms) | 150.0 g |
| Equivalent Cas air loaded (Vas) | 150.0 liters |
| Effective piston area (Sd) | 0.090 m2 |
| Max. linear excursion (Xmax) | 9 mm |
| Voice coil inductance @ 1kHz (Le1k) | 1.80 mH |
| Half-space efficency (Eff) | 2.50% |
| Mounting information | |
| Overall diameter | 393 mm / 15.47 inches |
| Bolt circle diameter | 371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 352 mm / 13.86 inch |
| Rear mount baffle cut-out | 360 mm / 14.17 inch |
| Volume occupied by the driver | 4.3 liters / 0.17 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 154 mm / 6.06 inches |
| Diameter | 393 mm / 15.47 inches |
| Weight | 13 kg / 28.66 lbs |
| Shipping information | |
| Package Height | 220 mm / 8.66 inches |
| Package Width | 440 mm / 17.32 inches |
| Package Depth | 440 mm / 17.32 inches |
| Package Weight | 14 kg / 30.86 lbs |
