Description

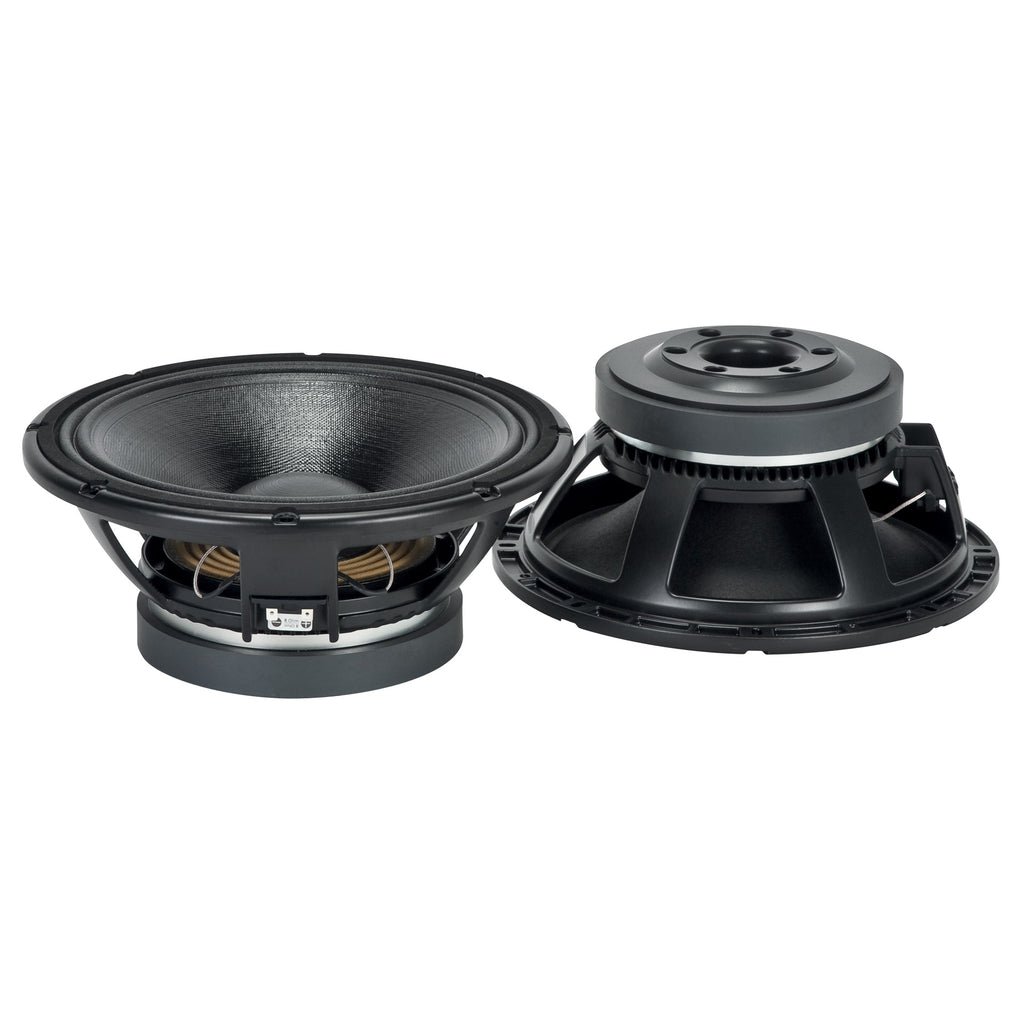

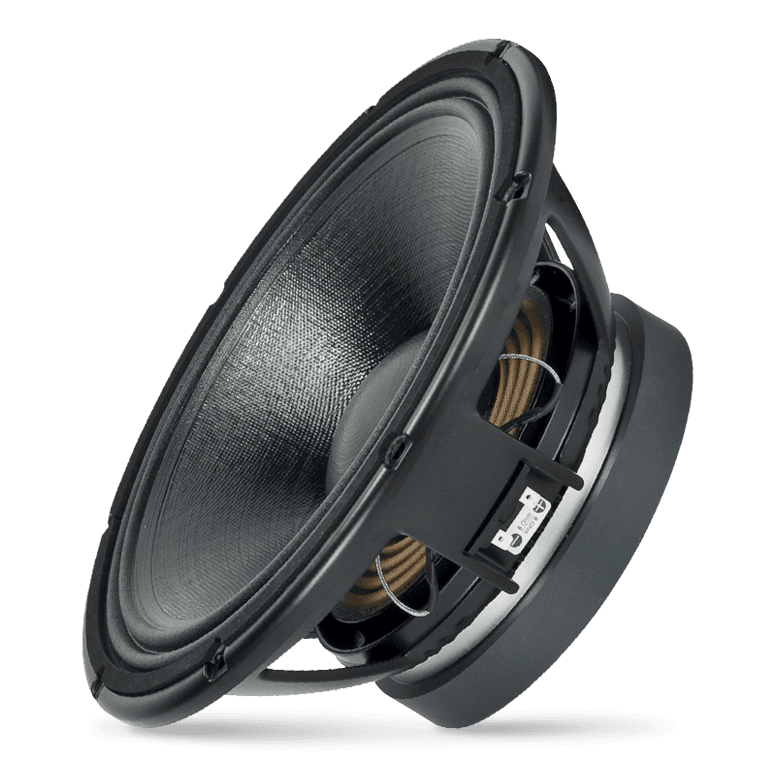

The MB12X351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5" voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1400W continuous program power handling
- 98.5 dB Sensitivity
- 45 Hz - 2.5 kHz Frequency range
Specifications
| General specifications | |
| Nominal Diameter | 12 inch / 305 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 1400 W |
| Power handling capacity | 700 W |
| Sensitivity | 98.5 dB |
| Frequency range | 45 - 2500 Hz |
| Effective piston diameter | 260 mm / 10.24 inch |
| Max. Excursion Before Damage | 40 mm / 1.57 inch |
| Minimum Impedance (ohm) | 7.1 ohm |
| Voice Coil Diameter | 3.5 inch / 89 mm |
| Voice Coil Winding Material | Copper |
| Voice Coil Length | 19 mm / 0.75 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 10 mm / 0.39 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | M-roll |
| Magnets | Ceramic |
| Dual-force air ventilation | Yes |
| Spider | 03 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 55 Hz |
| DC resistance (Re) (ohm) | 5.40 ohm |
| Mechanical factor | 5.90 Qms |
| Electrical factor | 0.27 Qes |
| Total factor | 0.26 Qts |
| Bl factor (Bl) (T x m) | 22.50 T x m |
| Effective moving mass (Mms) | 72.0 g |
| Equivalent Cas air loaded (Vas) | 46.0 liters |
| Effective piston area (Sd) | 0.050 m2 |
| Max. linear excursion (Xmax) | 7 mm |
| Voice coil inductance @ 1kHz (Le1k) | 0.90 mH |
| Half-space efficency (Eff) | 3.00% |
| Mounting information | |
| Overall diameter | 320 mm / 12.6 inches |
| Bolt circle diameter | 293-304 mm / 11.54-11.97 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 282 mm / 11.1 inch |
| Rear mount baffle cut-out | 284 mm / 11.18 inch |
| Volume occupied by the driver | 2.2 liters / 0.09 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 143 mm / 5.63 inches |
| Diameter | 320 mm / 12.6 inches |
| Weight | 7.6 kg / 16.76 lbs |
| Shipping information | |
| Package Height | 194 mm / 7.64 inches |
| Package Width | 354 mm / 13.94 inches |
| Package Depth | 364 mm / 14.33 inches |
| Package Weight | 8.4 kg / 18.52 lbs |
