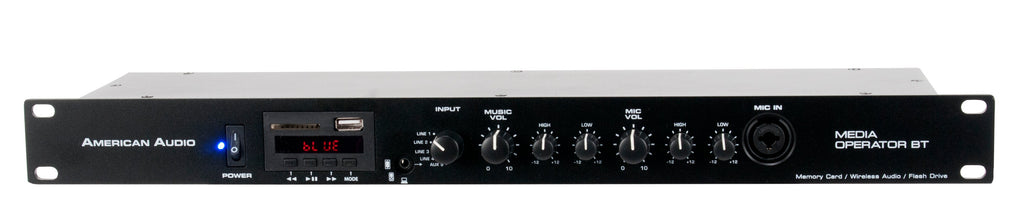

The American Audio Media Operator BT is a fast, simple and reliable all-in-one MP3 and wireless audio media player in a 19 inch 1U rack chassis, designed for installations where easy control of music is a must.

It includes full MP3 playback control from USB 2.0 and memory cards up to 32GB, wireless audio, a combo XLR and 1/4 inch microphone input, master volume control and three line output options. Plug the unit directly into powered speakers, an amplifier or a secondary mixer through the balanced XLR, 1/4 inch or stereo RCA outputs. It also has 4 RCA line inputs and a 3.5mm auxiliary input, plus treble and bass EQ for music and microphone.

The Media Operator BT includes full MP3 playback control as well as a microphone input (XLR / 1/4” combo), master volume control and 3x line output options. Plug the unit directly into powered speakers, an amplifier or secondary mixer through the balanced XLR, 1/4" or stereo RCA outputs.

Specifications

• Memory Card* / USB 2.0 / Wireless Audio full functioning MP3 Player
• Track Time Display
• Track Search Buttons
• Easy-to-use
• Bright LCD Display
• Reads standard or High Capacity Memory cards up to 32GB
• Up to 1000 MP3 songs on a 1G Memory Card** (MP3 recorded at 128bit rate**)
• 4x RCA line Inputs and 1x 35mm Auxiliary Jack Input

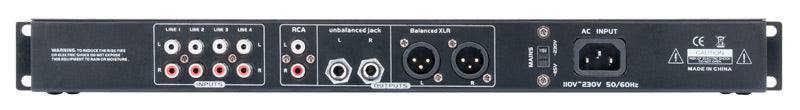

• 1x RCA, 1x L/R Unbalanced 1/4” Jack, 1x L/R Balanced XLR Outputs
• Master music output volume control
• Individual EQ Treble / EQ Bass control for Music
• Combo Mic input: 1/4” jack and XLR
• Master mic output volume control
• Individual EQ Treble / EQ Bass control for Mic
• Voltage Selector Switch: 115V or 230V 50/60Hz
• Dimensions (L x W x H): 19” x 4” x 1.75” in. / 483 x 193 x 44 mm (1 rack space)
• Weight: 4 lb. / 1.7 kg.
• Memory Card is not Included
• *Capacity may vary
