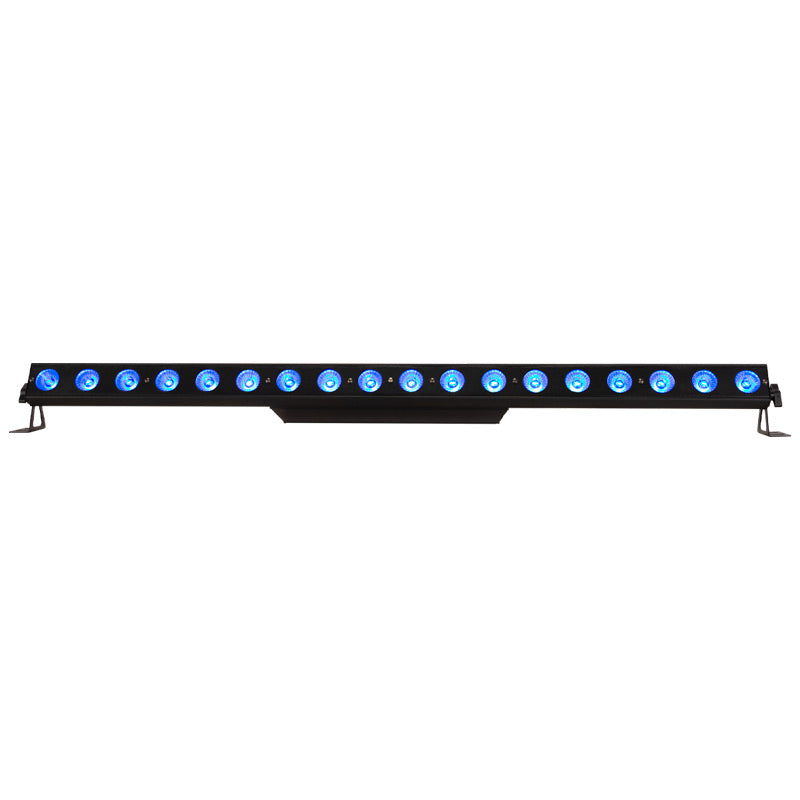

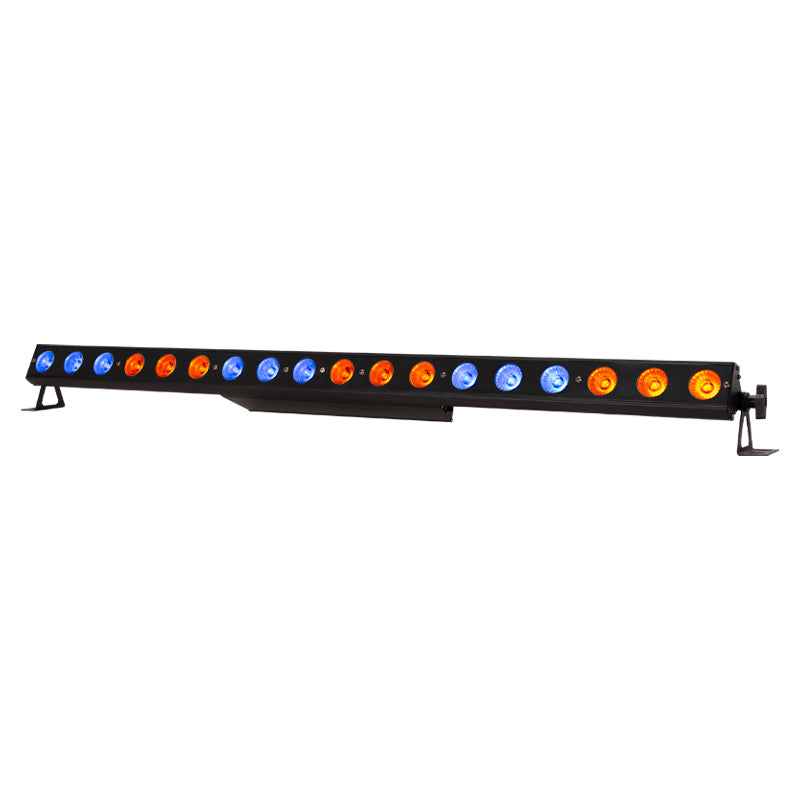

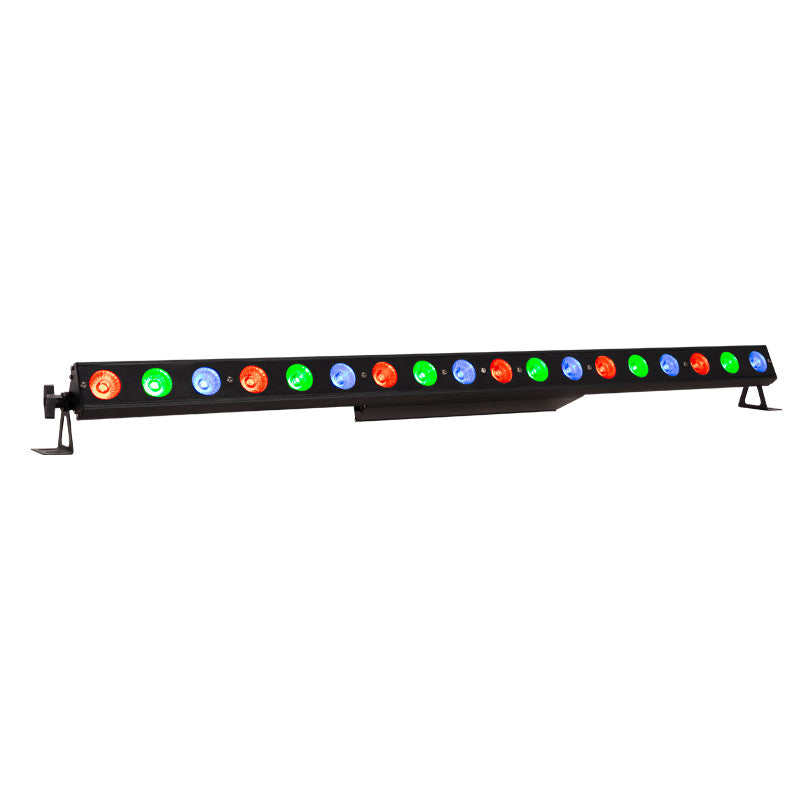

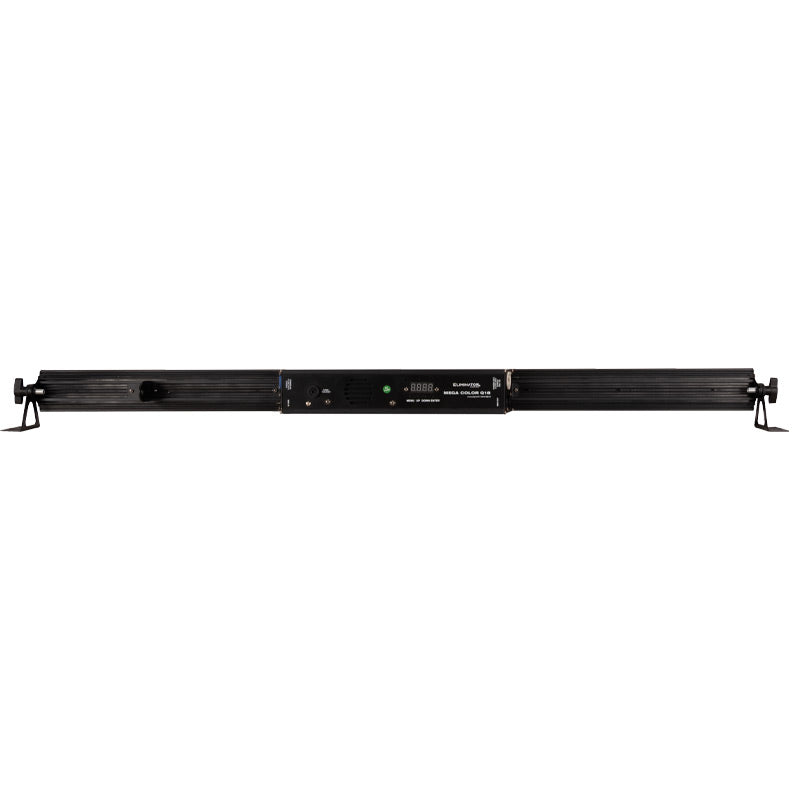

The Eliminator Mega Color Q18 is a versatile 1-meter linear LED wash fixture featuring 18 x 4W RGBA 4-in-1 LEDs with full pixel control for stunning color washes and dynamic chase effects.

The Eliminator Mega Color Q18 is a professional linear LED fixture engineered to create vibrant color washes, animated pixel effects, and dynamic lighting displays for stages, event venues, clubs, houses of worship, and architectural installations. Equipped with 18 high-output 4W RGBA 4-in-1 LED's, the fixture produces rich saturated colors, smooth pastel tones, and warm amber-enhanced color mixing for a wide variety of lighting applications.

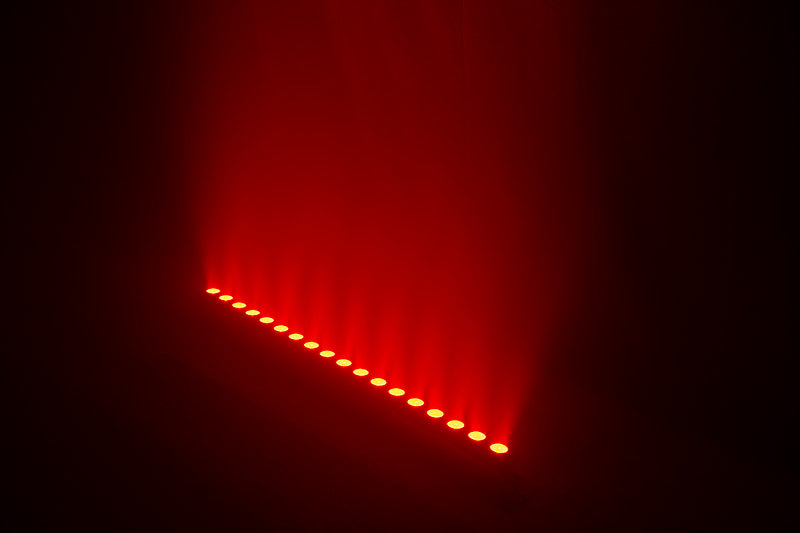

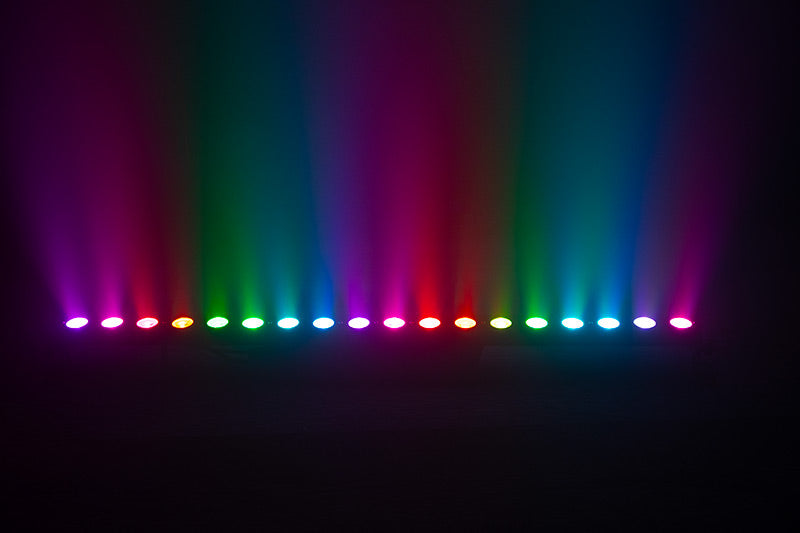

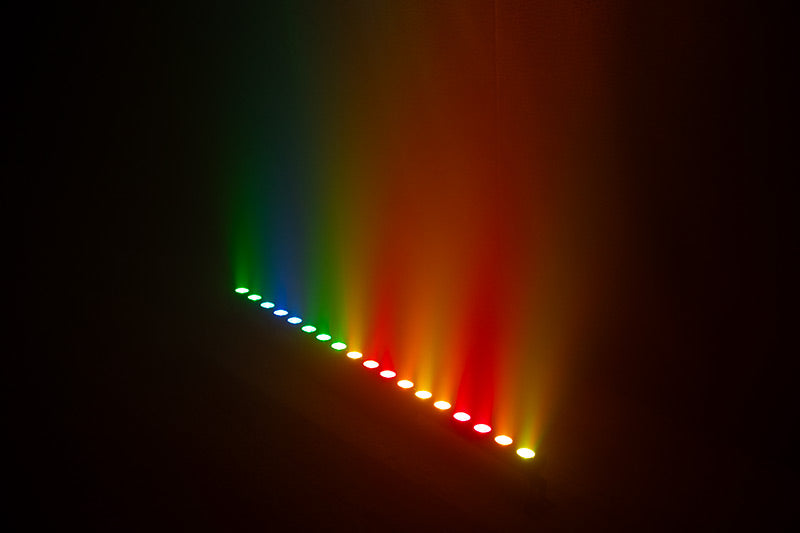

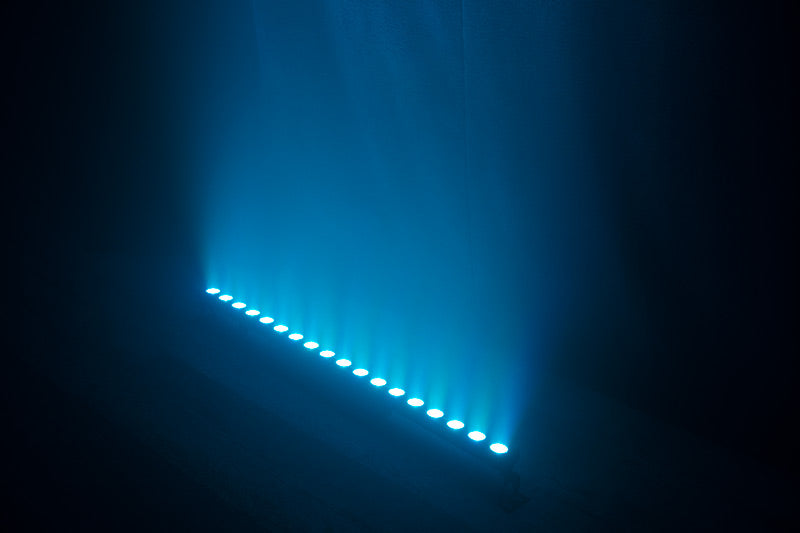

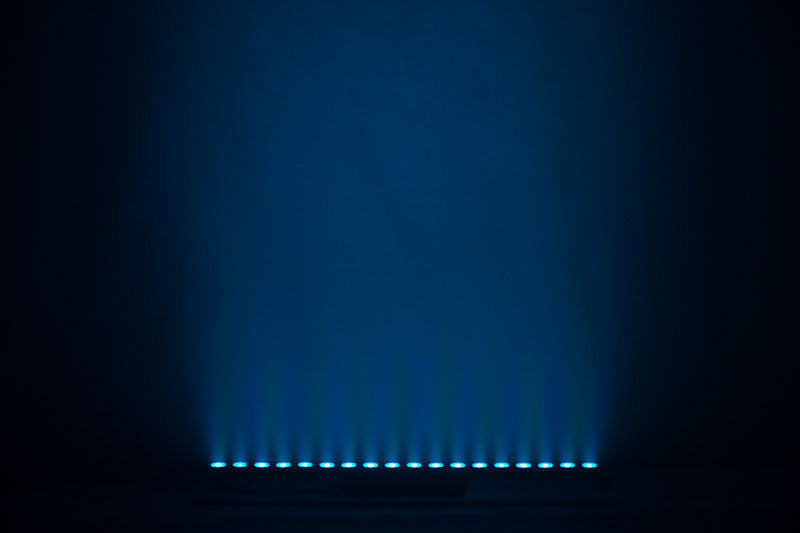

Each LED is fully pixel controllable, allowing designers to create eye-catching chases, animated color patterns, flowing effects, and custom pixel-mapped looks. A 25 degree beam angle provides even wash coverage while maintaining excellent punch for wall washing, stage backdrops, scenic lighting, and decorative installations.

The Mega Color Q18 offers flexible operation with DMX512, Primary-Secondary, Auto Mode, and Sound Active operation. Five DMX channel modes (4, 6, 9, 72, and 74 channels) accommodate everything from simple control to full individual pixel programming. Built-in color programs, color-changing effects, and electronic strobe functions provide impressive standalone performance without the need for an external controller.

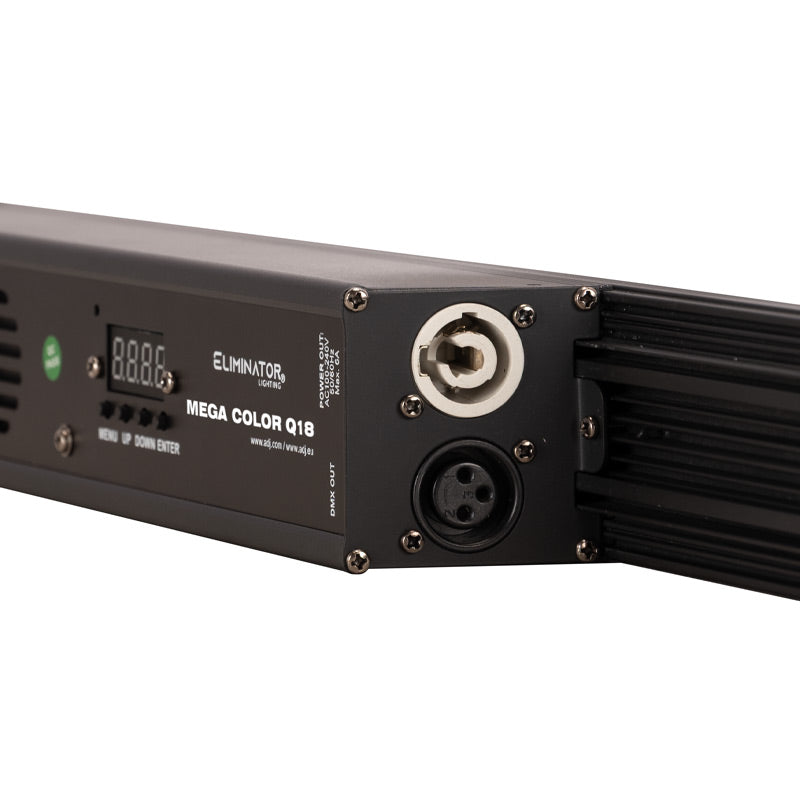

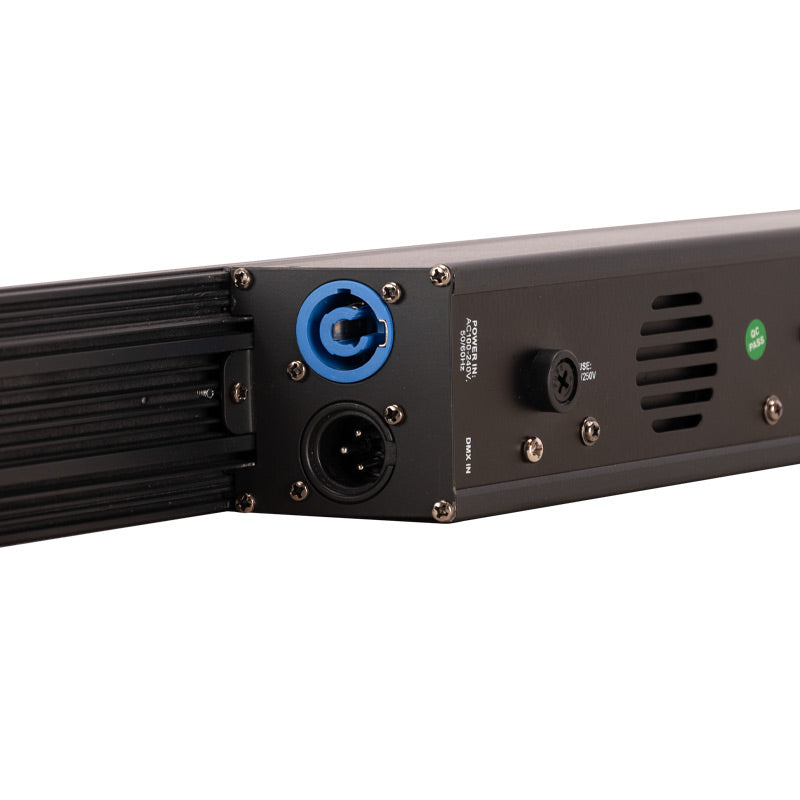

Setup is simple using the onboard 4-digit, 7-segment LED display, while 3-pin XLR DMX and locking power input/output connections allow for easy installation and power linking. Long-life LEDs rated for up to 50,000 hours and a lightweight, streamlined housing make the Mega Color Q18 an excellent solution for touring productions, permanent installations, and mobile lighting professionals.

Specifications

SOURCE:

• 18 x 4W RGBA 4-in-1 LED's
• 50,000 Hour Average LED Life

PHOTOMETRIC DATA:

• 25 Degree Beam Angle
• Pure Color Output
• Excellent Color Mixing
• Smooth Wash Output

COLOR:

• RGBA 4-in-1 Color Mixing
• Fully Pixel Controllable

EFFECTS:

• Built-in Color Programs
• Color Changing Effects
• Electronic Strobe
• Individual Pixel Control

CONTROL / CONNECTIONS:

• 5 DMX Channel Modes (4 / 6 / 9 / 72 / 74 Channels)
• DMX512
• Primary-Secondary Mode
• Auto Mode
• Sound Active Mode
• 4-digit, 7-segment LED Display
• 3-pin XLR DMX In/Out
• Indoor Locking Power In/Out

SIZE / WEIGHT:

• Length: 39.76" (1010mm)
• Width: 2.36" (60mm)
• Height: 3.94" (100mm)
• Weight: 4.62 lbs. (2.1kg)

ELECTRICAL / THERMAL:

• AC 100-240V, 50/60Hz

APPROVALS / RATINGS:

• IP20
