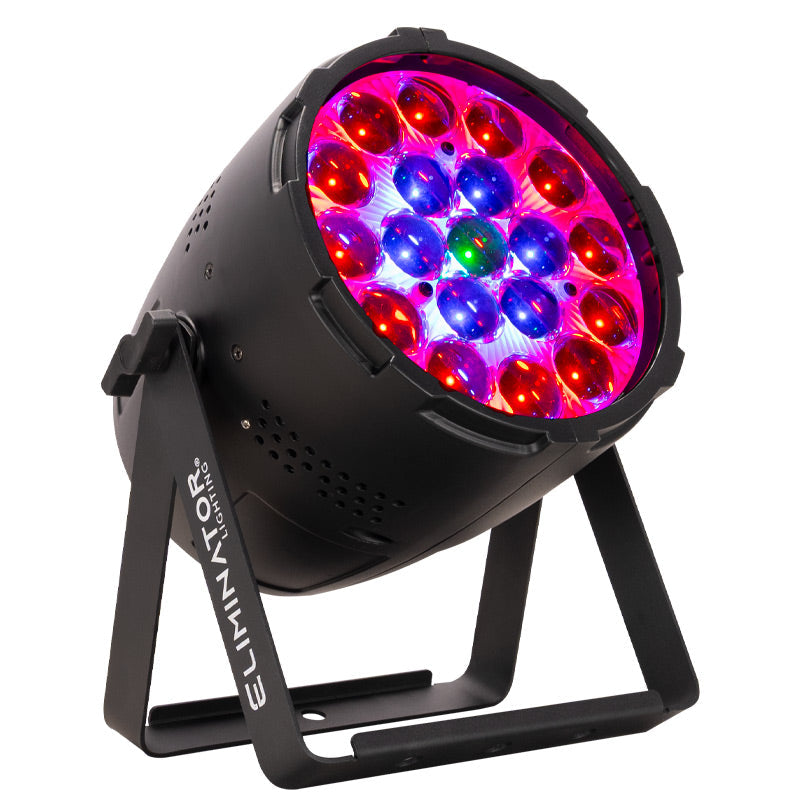

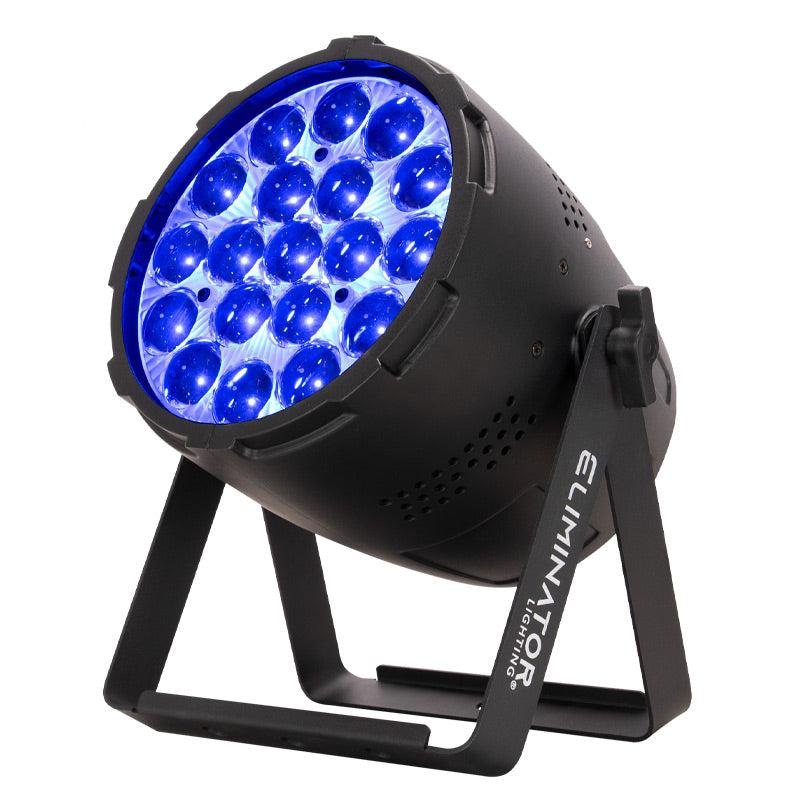

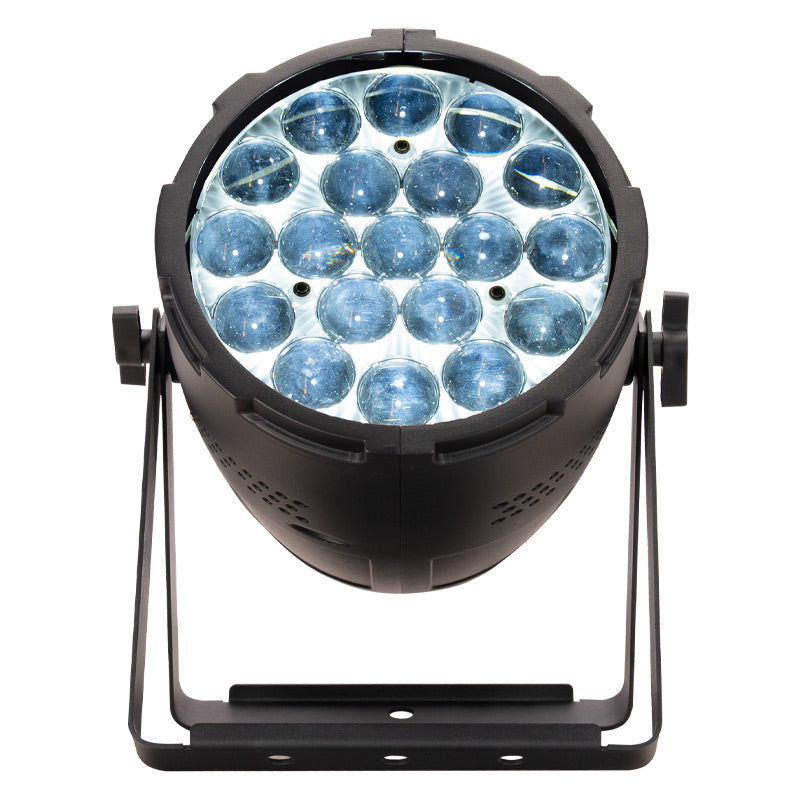

The Eliminator Mega Par Z Wash is a powerful professional LED wash fixture featuring 19 x 15W RGBW LED's, motorized zoom, and three individually controllable color zones. Delivering vibrant color mixing and a versatile 10° to 60° zoom range, it's ideal for stages, mobile entertainers, houses of worship, production companies, and event venues seeking dynamic wash lighting with flexible control options.

The Eliminator Mega Par Z Wash is a feature-packed LED wash fixture designed to provide bright, even color washes with exceptional flexibility. Equipped with 19 high-output 15W RGBW 4-in-1 LED's, it produces rich saturated colors, smooth pastels, and brilliant white tones with excellent color mixing for a wide variety of lighting applications.

Its motorized 10° to 60° zoom allows users to quickly adapt from tight beam effects to wide stage washes, making it equally effective for concerts, theatrical productions, uplighting, and event lighting. Three independently controllable RGBW zones enable creative chases, pixel-style effects, and dynamic color animations without the need for multiple fixtures.

The Mega Par Z Wash offers multiple operating modes including DMX512, Primary-Secondary, Auto, Sound Active, and Static Mode, making it suitable for both programmed lighting systems and standalone operation. Smooth 0-100% linear dimming ensures seamless fades, while the onboard digital display provides easy menu navigation and setup.

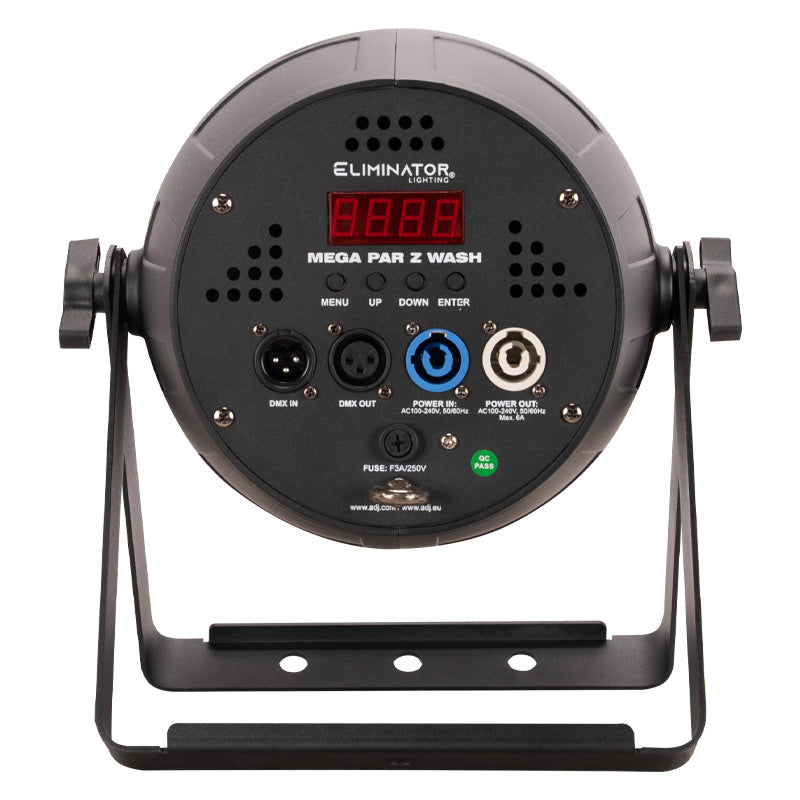

Built for reliable indoor use, the fixture features locking power input/output connections, 3-pin XLR DMX connectivity, universal auto-switching power supply, and a durable compact housing that is ideal for touring, installations, and mobile entertainment professionals.

Specifications

• Specifications

SOURCE:

• 19 × 15W RGBW 4-in-1 LEDs
• 50,000 Hour Average LED Life*
• May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA:

• RGBW Color Mixing
• Pure Color Output
• Smooth Wash Output

COLOR:

• RGBW 4-in-1 LED Color Mixing

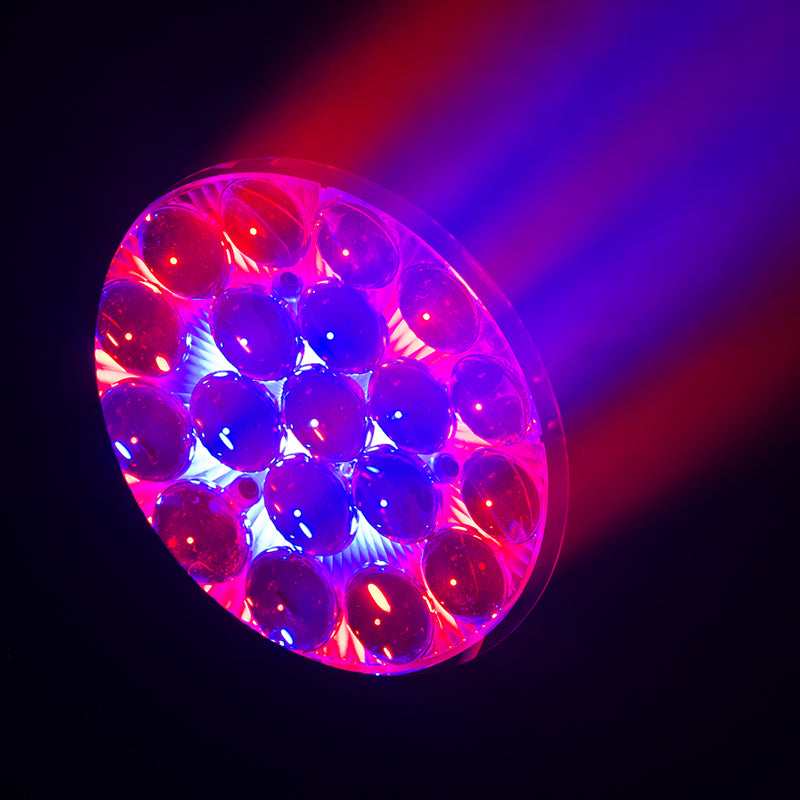

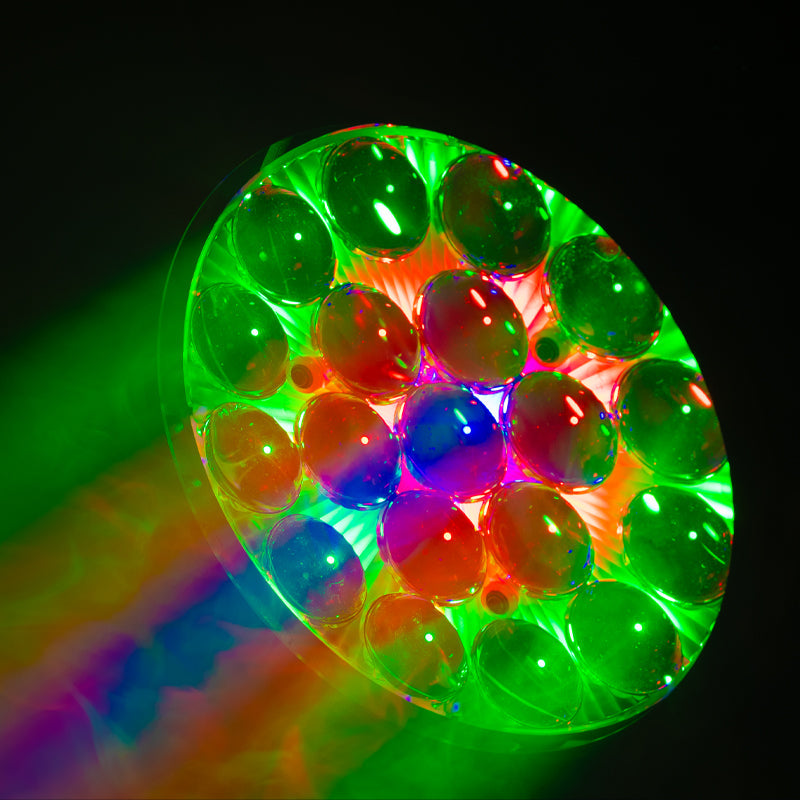

• Three Independently Controllable RGBW Zones

EFFECTS:

• Motorized Zoom: 10° ~ 60°
• 0-100% Linear Electronic Dimming
• Smooth Color Mixing
• Static Color Mode

CONTROL / CONNECTIONS:

• 2 DMX Channel Modes (10 / 18 Channels)
• DMX512
• Primary-Secondary Mode
• Auto Run Mode
• Sound Active Mode
• 4-digit, 7-segment LED display
• 3-pin XLR DMX In/Out
• Indoor Locking Power In/Out

SIZE / WEIGHT:

• Length: 8.9" (225mm)
• Width: 10.8" (275mm)
• Height: 13.3" (337mm)
• Weight: 9.92 lbs. (4.5kg)

ELECTRICAL / THERMAL:

• AC 100-240V, 50/60Hz
• Max Power Consumption: 200W

TECHNICAL DATA:

• Indoor Use Only

APPROVALS / RATINGS:

• IP20

Specifications are subject to change without notice.
