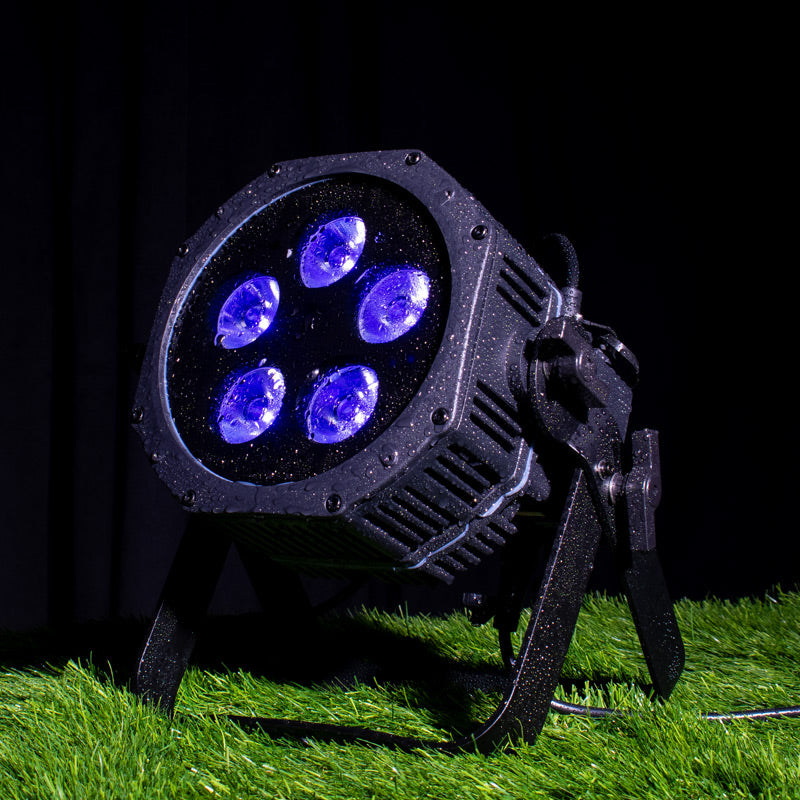

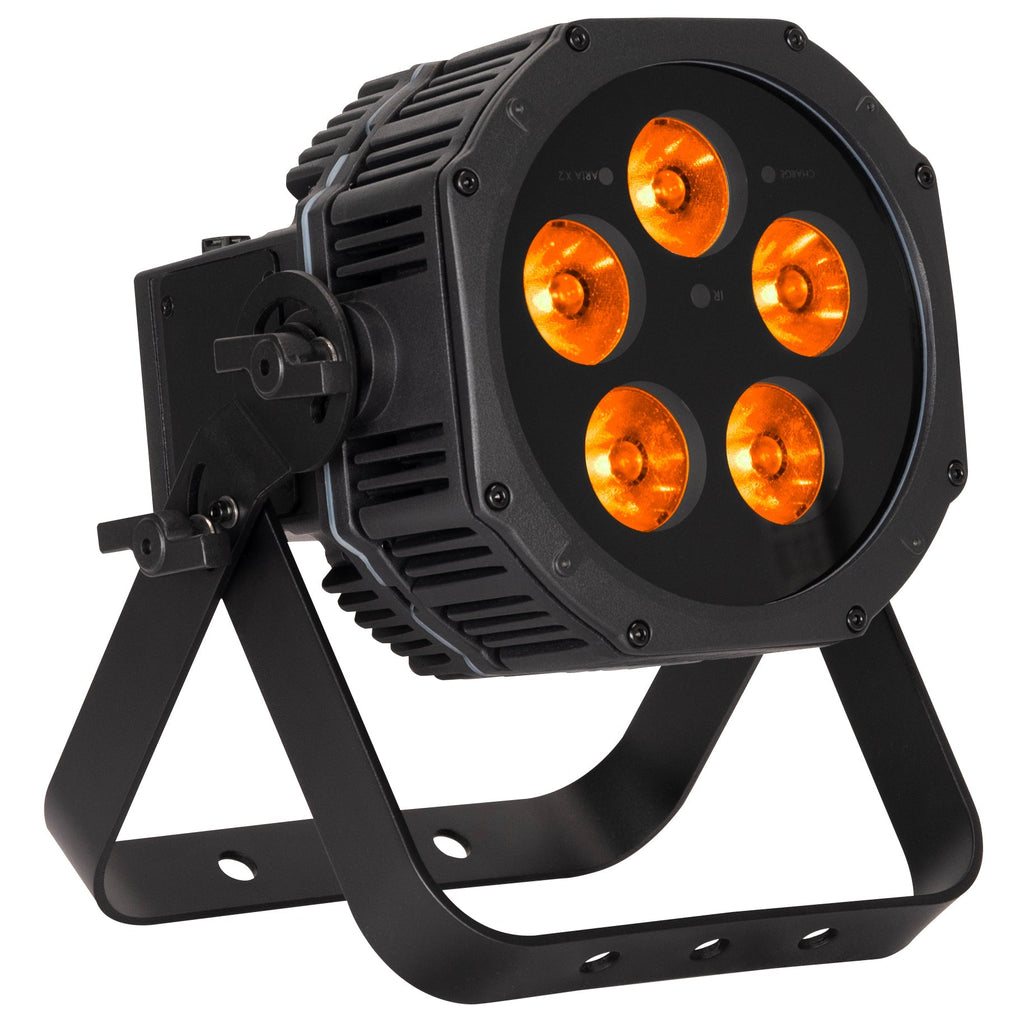

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,700K to 9,900K, the Mirage Par H IP allows access to massive gamut of colors.

This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over the air firmware/software updates, Bluetooth, RDM and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.

Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.

The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options and all-weather protection in one durable package.

Click here to read the Mirage Par H IP press release.

Features:

• 5 Pixel, Hex Color LED (RGBAL+UV) LED Par Battery or Wall Powered

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours

• Built-In Programs

• Variable White Color Temperature Control (2,700K ~ 9,900K)

• User Selectable LED Refresh Rates (900Hz ~ 25K)

• 6 User-Selectable Dim Modes

• 4 User-Selectable Dim Curves

• Electronic Strobe (0.3Hz ~ 11Hz)

• Electronic Dimming

Source:

• (5) 20W Hex Color RGBAL+UV LED's

• 50,000 Hour Average Life

• **may vary depending on several factors, including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Optical:

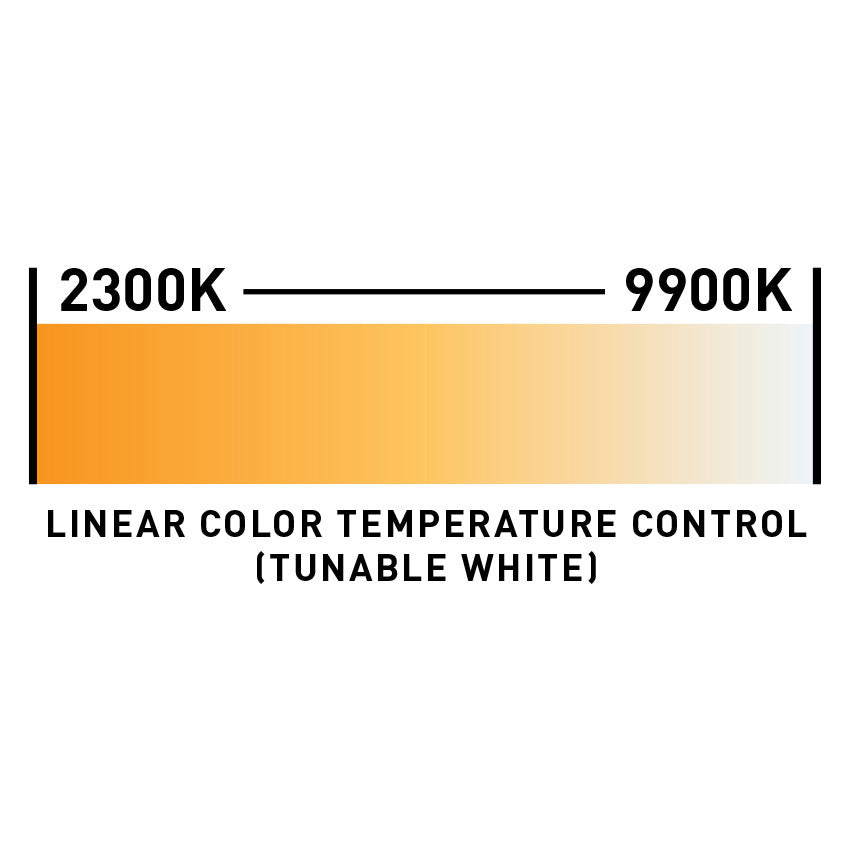

• 2,300K ~ 9,900K White Color Temperature Range

• Beam Angle: 17°


Physical:

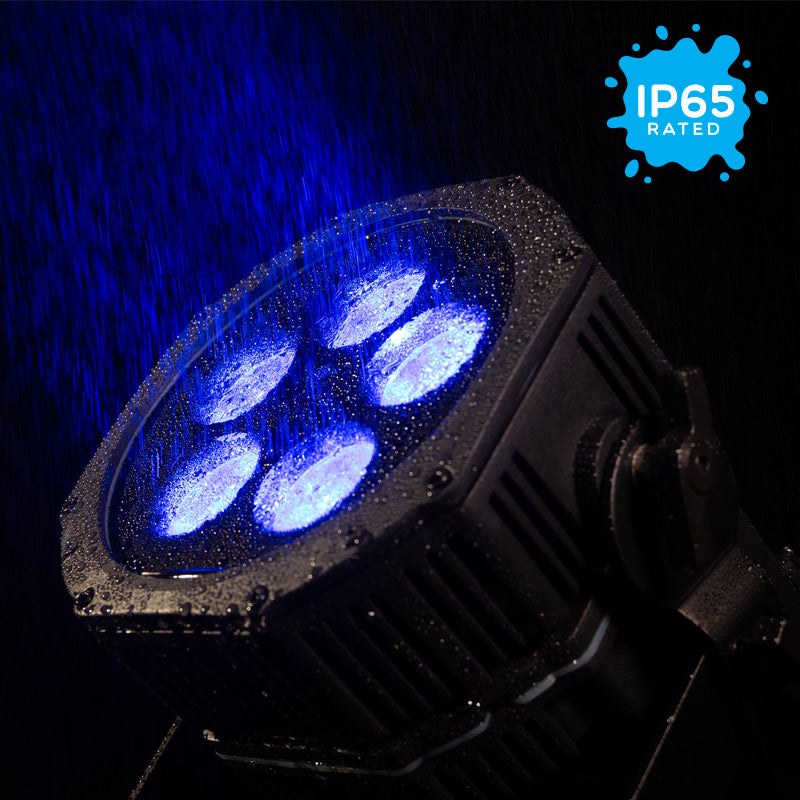

• IP65 Housing

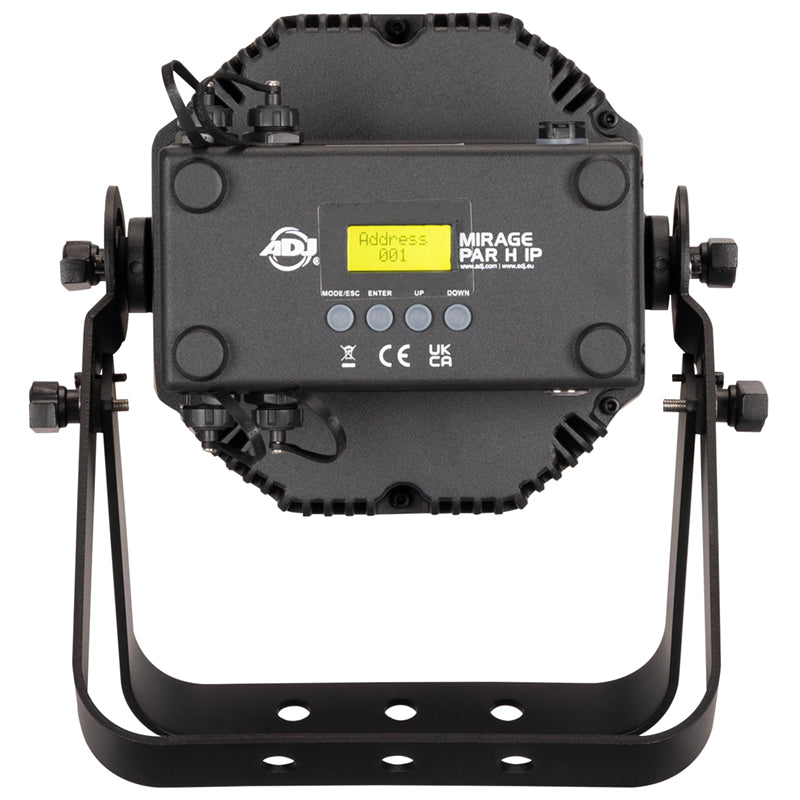

• Digital display

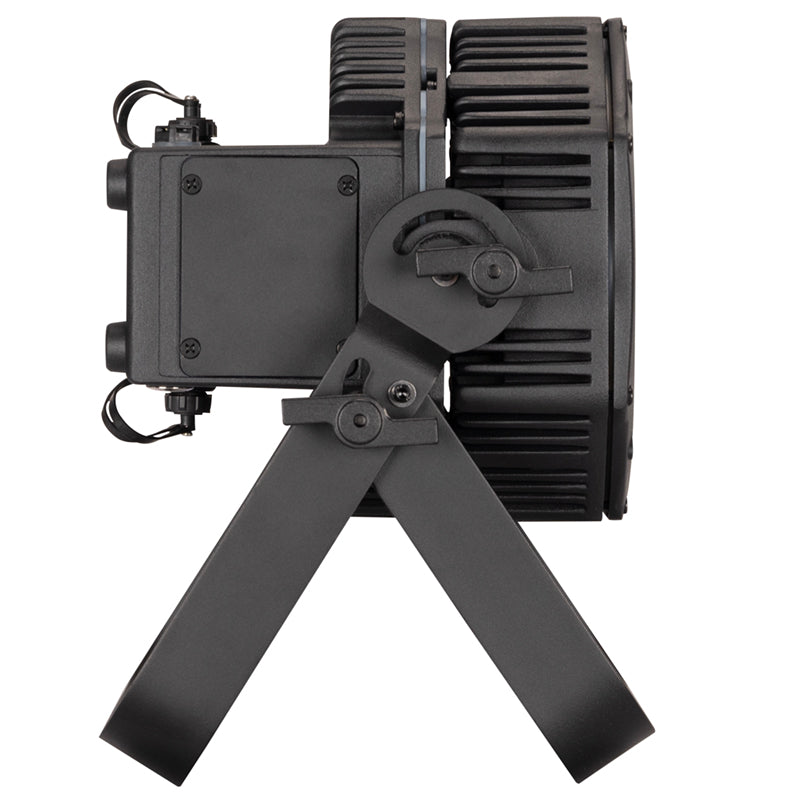

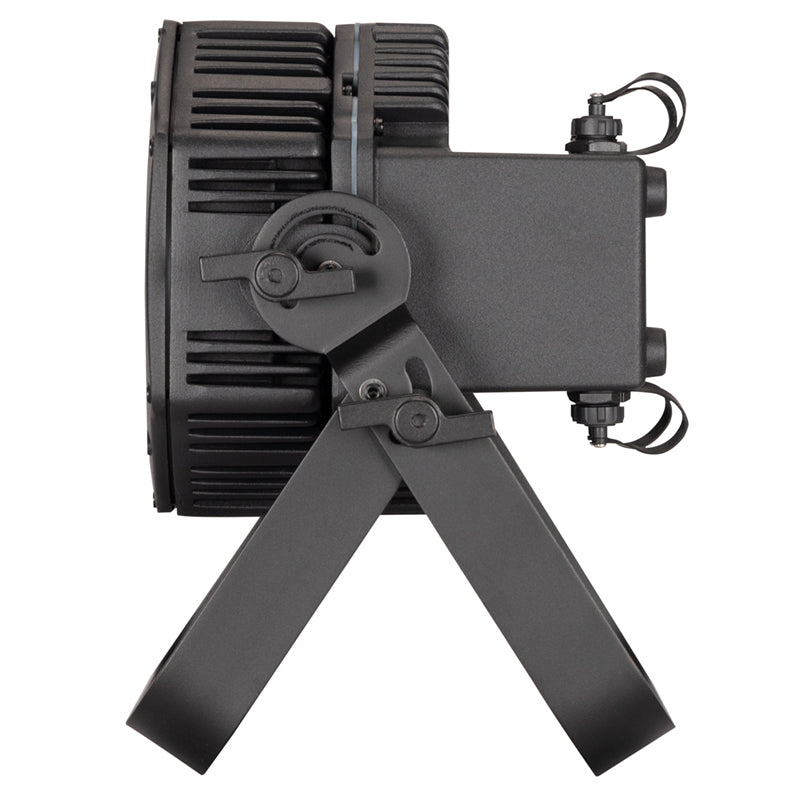

• Adjustable, hanging / kickstand bracket

Control:

• DMX512

• Aria X2 Wireless Management / DMX System

• Bluetooth

• RDM and RDM Net Compatible

• IR (Includes UCIR24 wireless remote)

• (6) DMX Channel Modes (5, 6, 9A, 9B, 15 17 Channel modes)

• On-board Manual Control Mode

• Primary / Secondary Mode

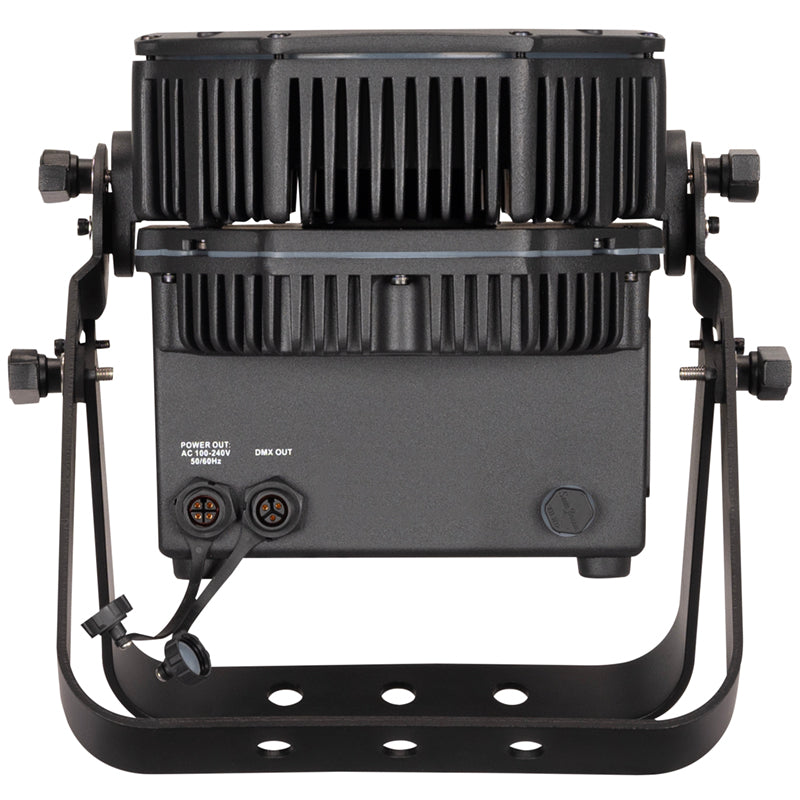

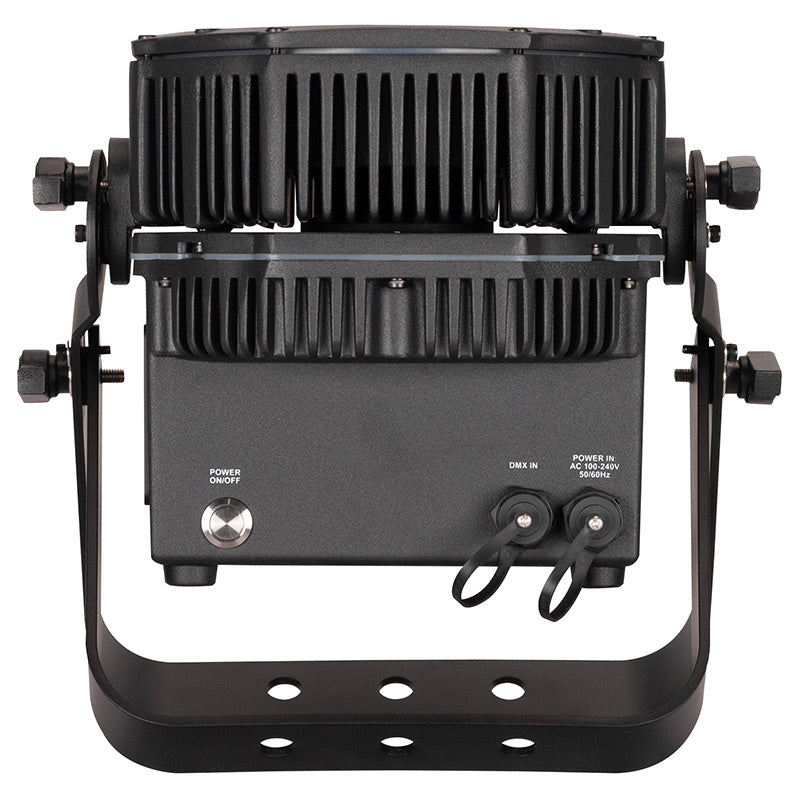

Connections:

• Chogori IP65 data locking connectors

• Chogori IP65 power connectors

Dimensions Weight:

• Length: 11.1" (282mm) x 10.6" (269mm) x 10.4" (265mm)

• Weight: 11.9 lbs. (5.4 kg)


Power:

• AC100-240V/50Hz-60Hz Input

• 60W Power Consumption

• Link 14 pieces @120VAC or 28 pieces @ 230VAC


Battery:

• Rechargeable Lithium-ion

• Battery Capacity: 6,600mAh

• Battery Voltage: 22.2V

• Charge Time: 5 Hours (To Full)

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

• Battery Cycles: 500


Thermal:

• Ambient Operational Temperature: -4°F to 104°F (-20°C to 40°C)

• Storage Temperature: -22°F to 113°F (-30°C to 45°C)


Certifications IP Rating:

• CE

• cETLus (Control # 4002034)

• FCC

• IP65

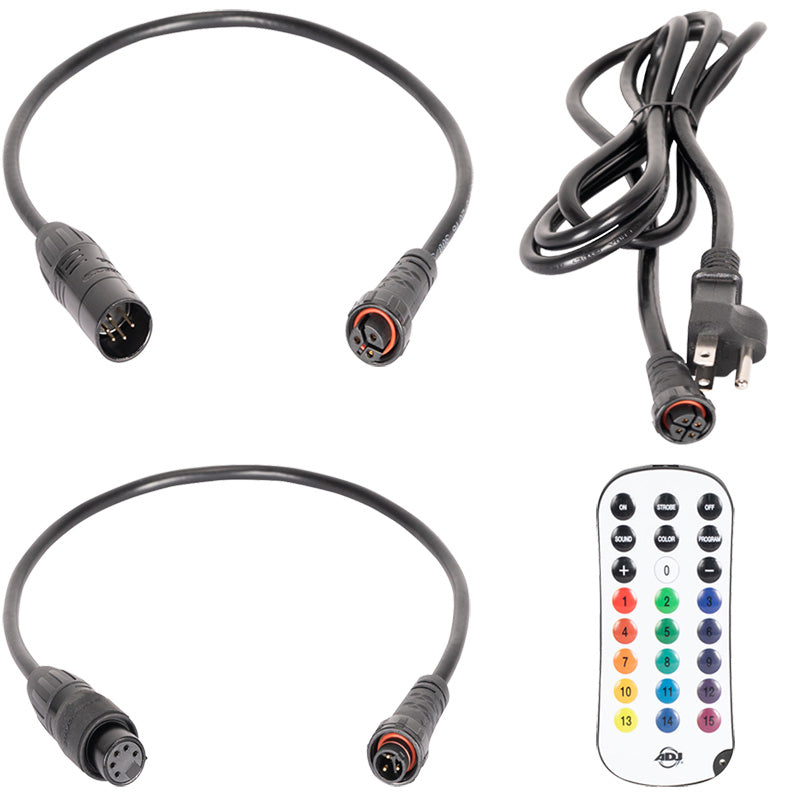

Included Accessories:

• (1) WIF901-POWER CABLE (WIF901-POWER CABLE), IP65 Chogori to Edison Locking Power Cable

• (1) CHS5INDMX (CHS366) - 20" Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable. (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• (1) CHS5OUTDMX (CHS373) - 20" Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable. (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• (1) Floor / Mounting Bracket

• (1) UCIR24 Remote


Optional Accessories:

• CHS5INDMX (CHS366) - Replacement 20" Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable. to Seetronic 5pin IP65 XLR DMX (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

• CHS5OUTDMX (CHS373) - Replacement 20" Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable

• CHSIP65PIN (CHS386) - 10" Chogori locking input connector to Seetronic locking IP65 output power connector cable

• CHSIP65POUT (CHS399) - 10" Chogori locking output connector to Seetronic locking IP65 input power connector cable

• WIF901-POWER CABLE (WIF901-POWER CABLE) - Replacement Chogori Connector to IP65 Locking Power Cable


Specifications and documentation are subject to change without notice.
