Description

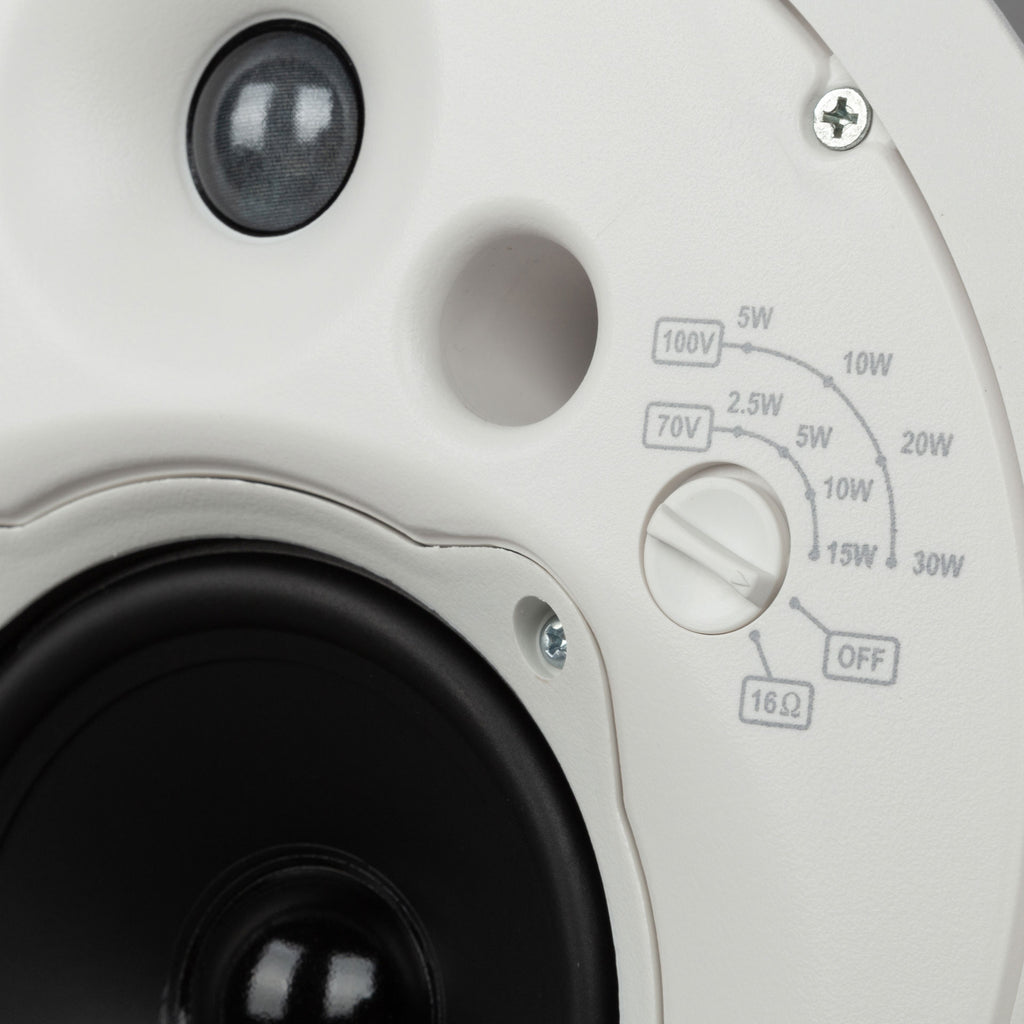

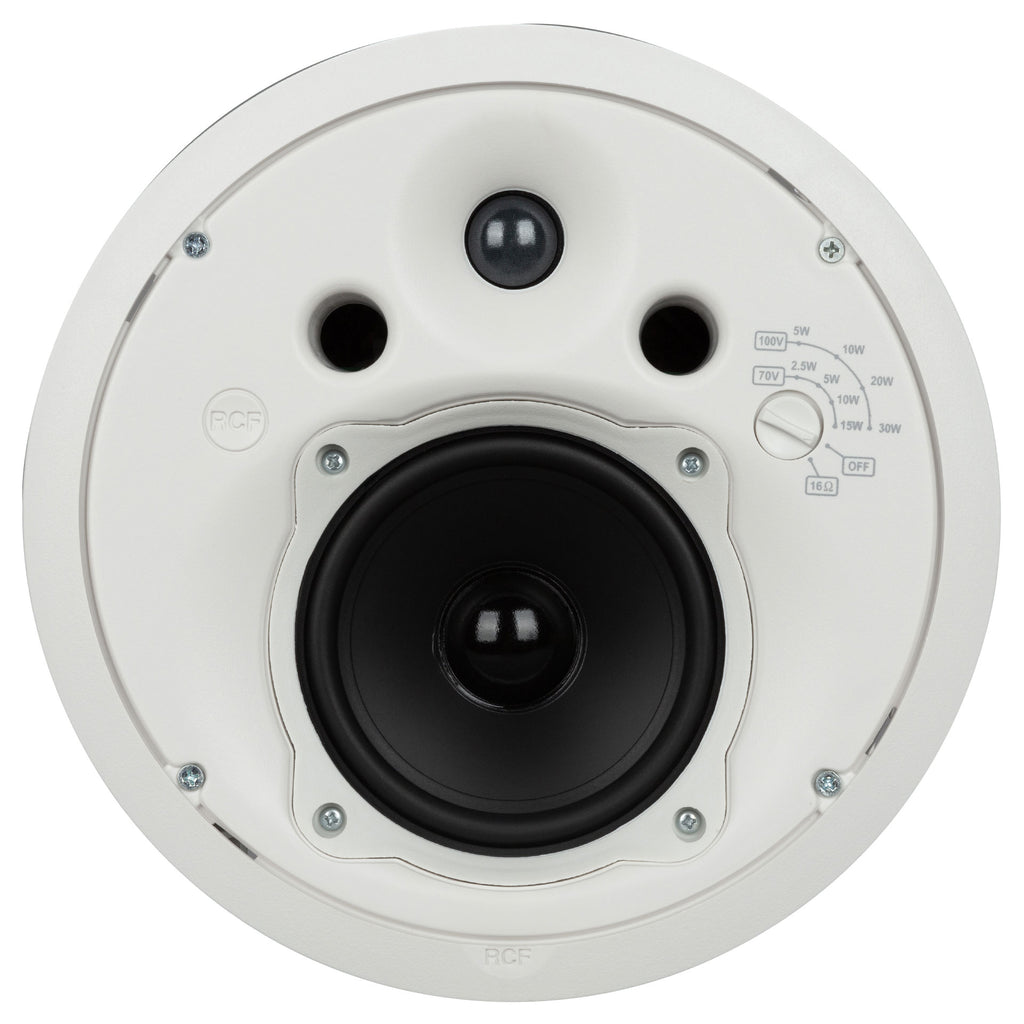

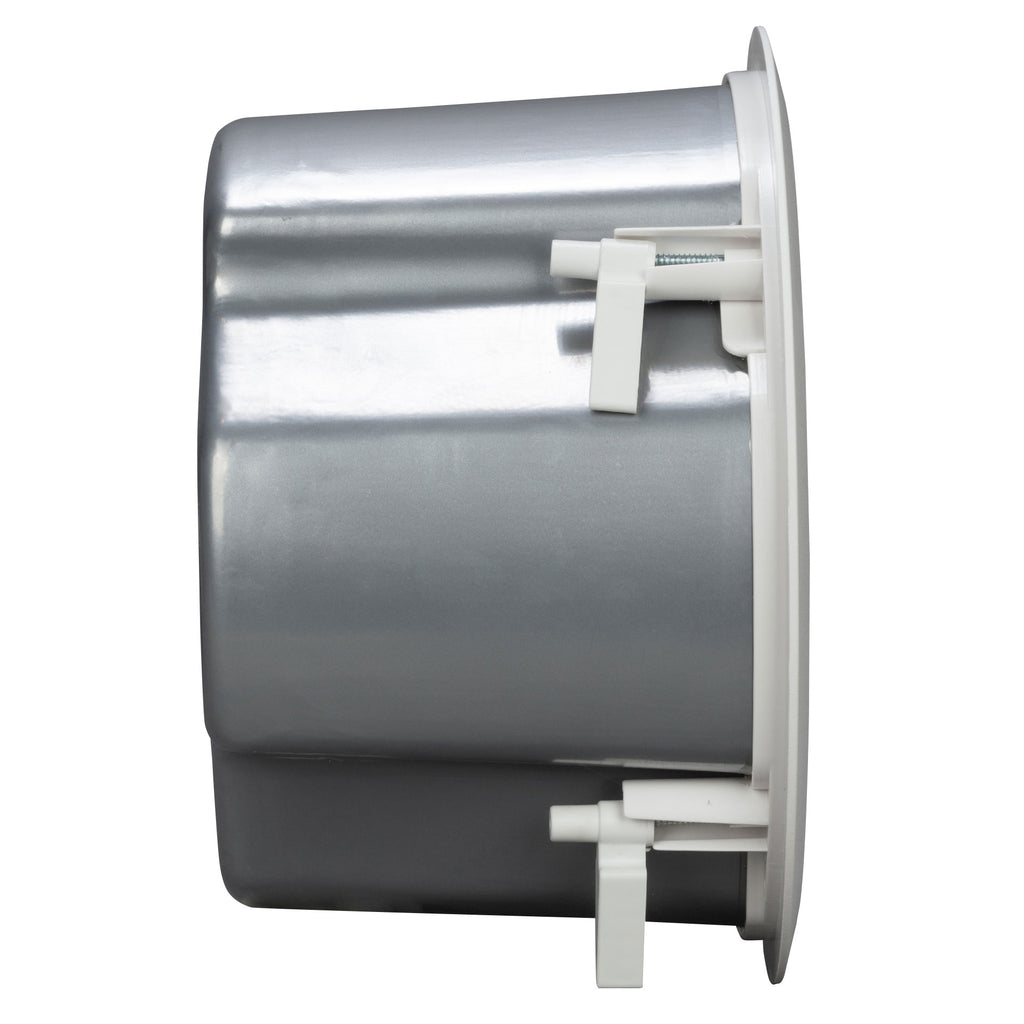

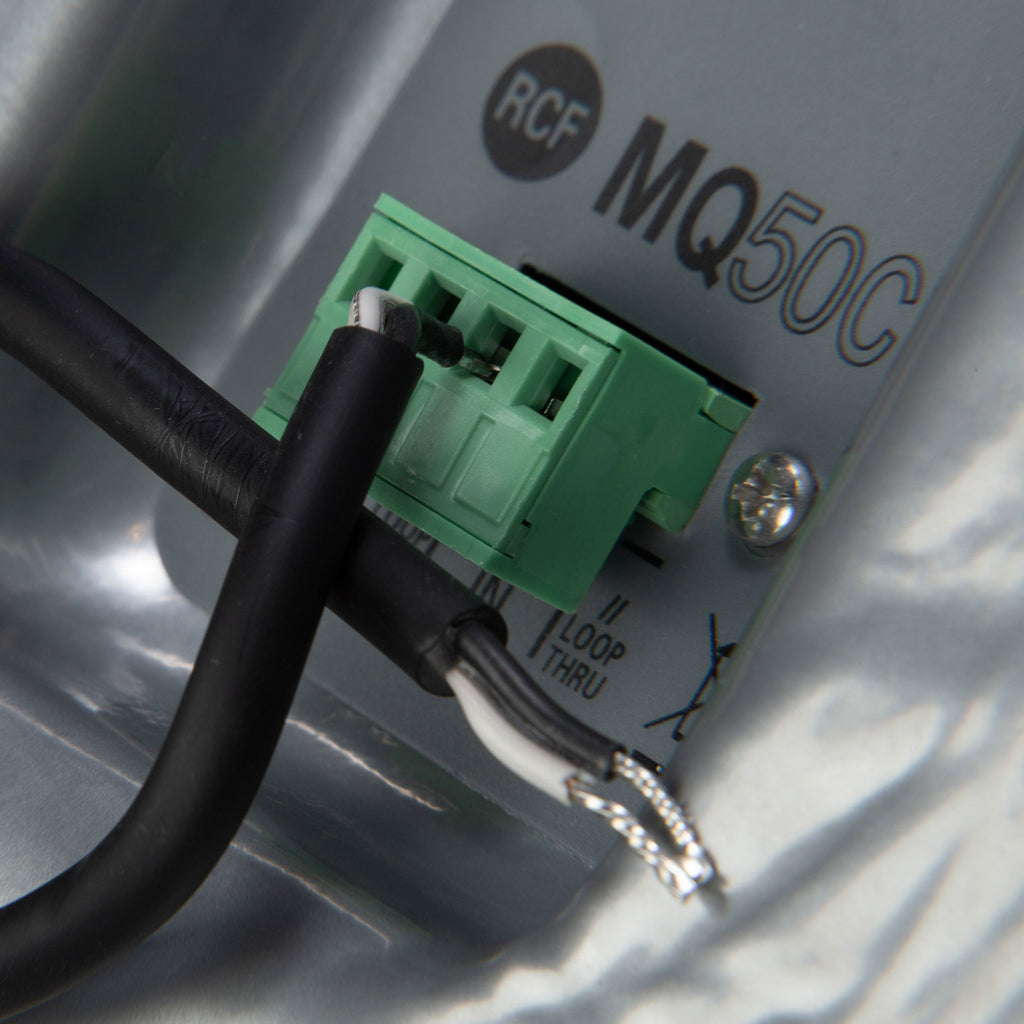

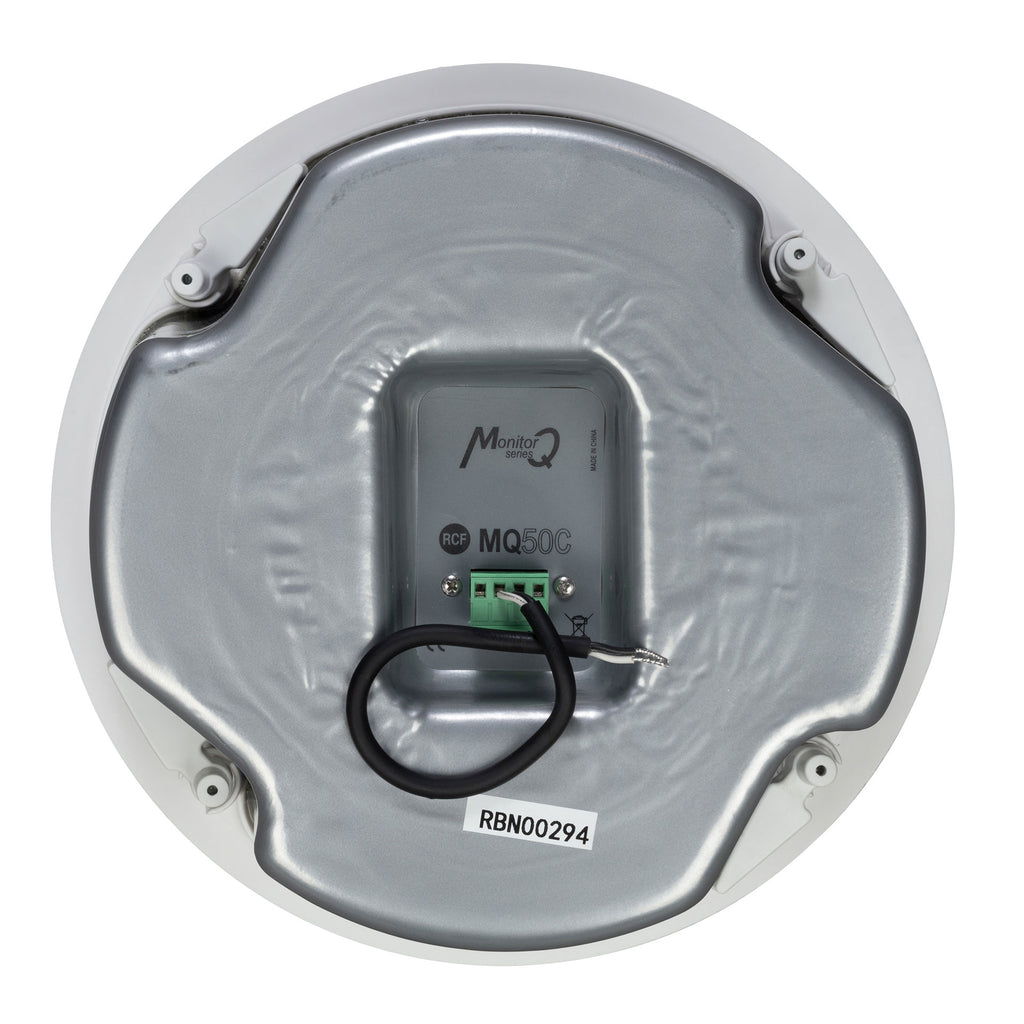

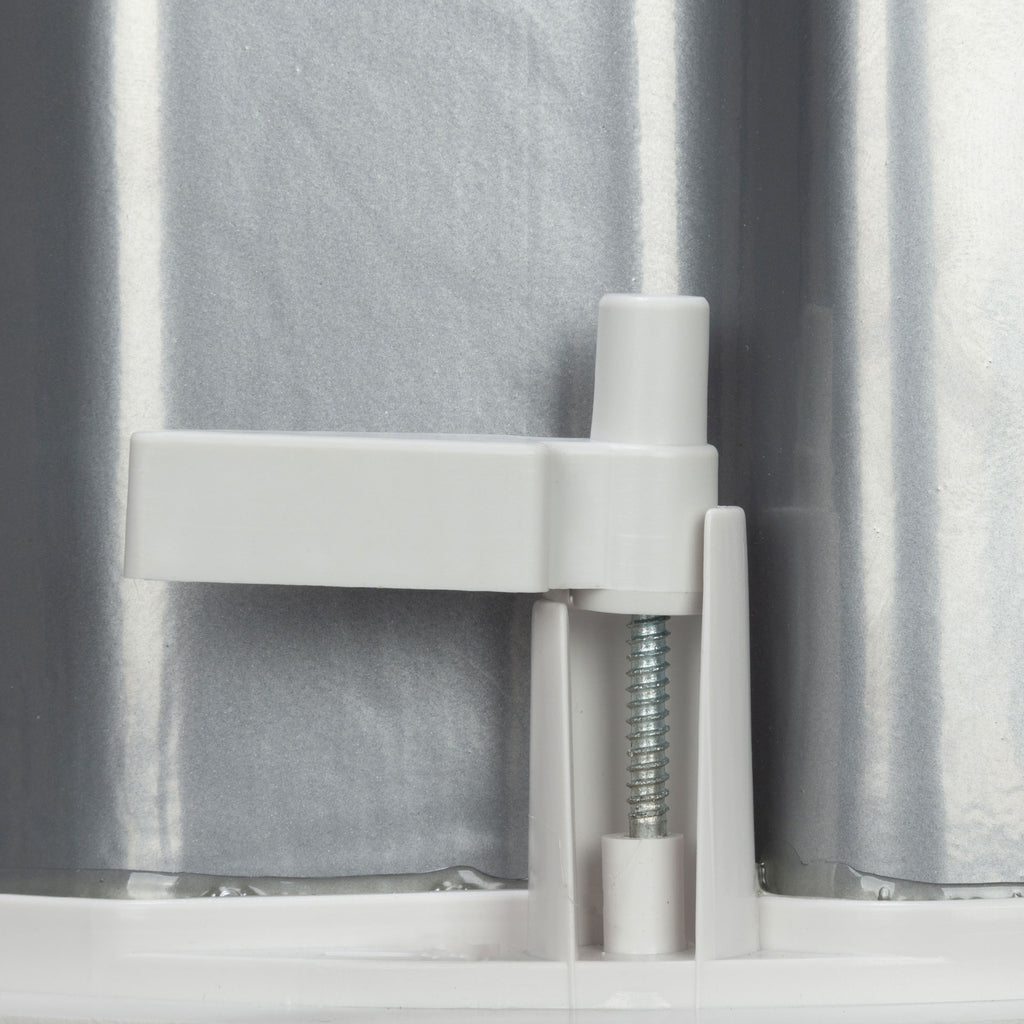

Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.
Features
- 5" woofer with 1" dome tweeter
- Power selectable (100 V): 30 W - 20 W - 10 W - 5 W
- 91 dB sensitivity
- Colour white RAL 9016 and black RAL 9005
- Self-extinguishing plastic frame and back can, steel grille
- In/out euroblock connectors
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 70 Hz - 20000 Hz |
| Max SPL @ 1m | 112 dB |
| Coverage angle | 120° |
| System Sensitivity | 91 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 16 ohm |
| Power Handling | 60 W |
| Peak Power Handling | 240 W PEAK |
| Crossover Frequencies | 3000 Hz |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
| Transducers | |
| Dome Tweeter | 1 x 1.0'' neo |
| Woofer | 1 x 5.0'' neo |
| Input/Output section | |
| Input connectors | Euroblock |
| Output connectors | Euroblock |
| Constant Voltage Transformer | 100 V |
| Power selection 1 | 30 W - 333 ohm |
| Power selection 2 | 20 W - 500 ohm |
| Power selection 3 | 10 W - 1000 ohm |
| Power selection 4 | 5 W - 2000 ohm |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plastic |
| Hardware | Plastic Material |
| Grille | Steel |
| Color | White - RAL 9016, Black - RAL 9005 |
| Size / Weight | |
| Depth | 156 mm / 6.14 inches |
| Recessed Depth | 140 mm / 5.51 inches |
| Diameter | 266 mm / 10.47 inches |
| Cut out diameter | 245 mm / 9.65 inches |
| Weight | 2.1 kg / 4.63 lbs |
| Shipping information | |
| Package Height | 235 mm / 9.25 inches |
| Package Width | 310 mm / 12.2 inches |
| Package Depth | 310 mm / 12.2 inches |
| Package Weight | 2.99 kg / 6.59 lbs |
