Description

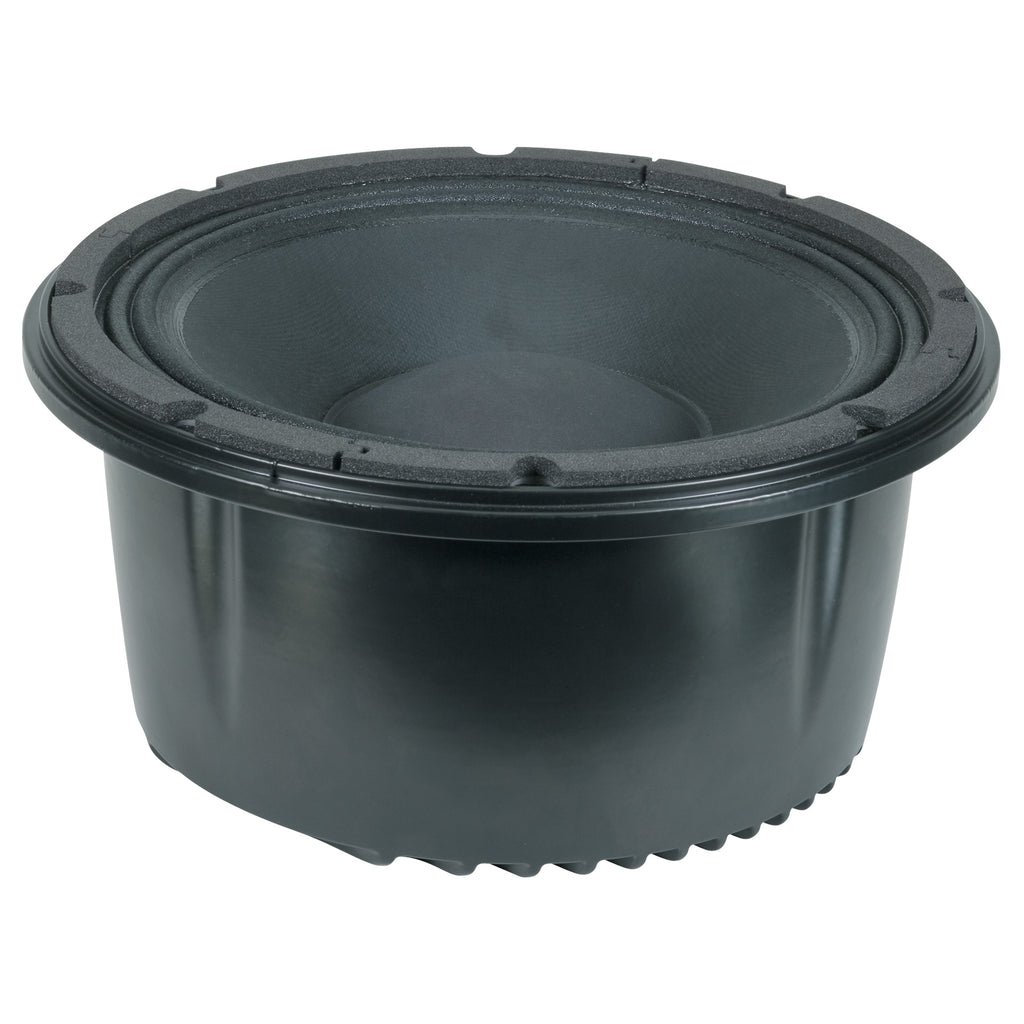

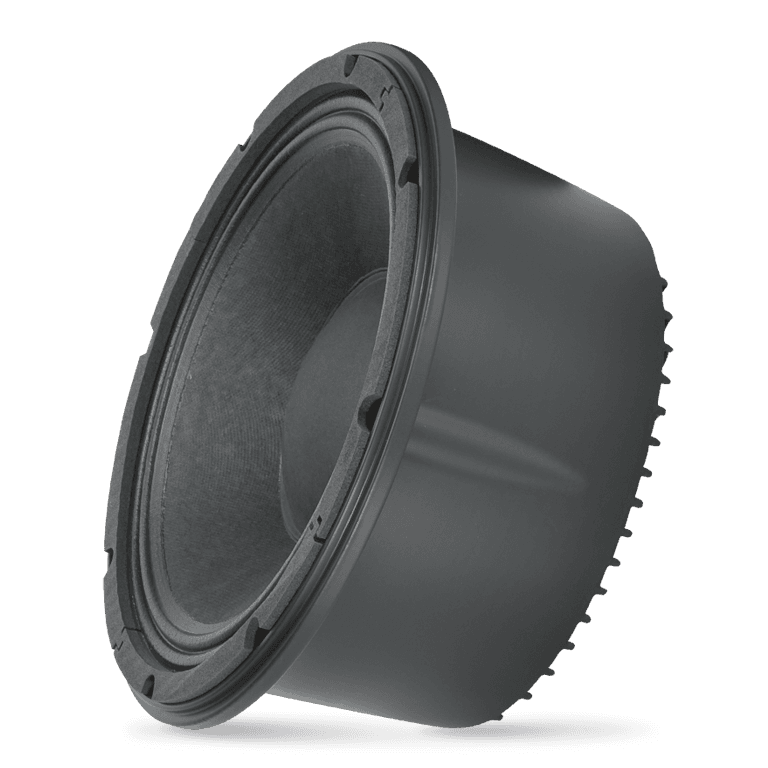

The MR10N301 is a high efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size. The total weight is reduced to less than half of a comparable ceramic midrange thanks to an incredibly powerful neodymium magnet assembly. The unique sealed basket design doesn't require a back sealing chember, simplifying the cabinet design and improving heat dissipation. Every detail of this speaker has been optimazed to offer the best response and perfect control to the midrange frequencies.
Features
- 3-inch, finside/outside copper voice coil
- 600W continuous program power handling
- 102 dB Sensitivity in horn loaded application
- 150 Hz - 2 kHz Frequency range
- High BL neodymium design

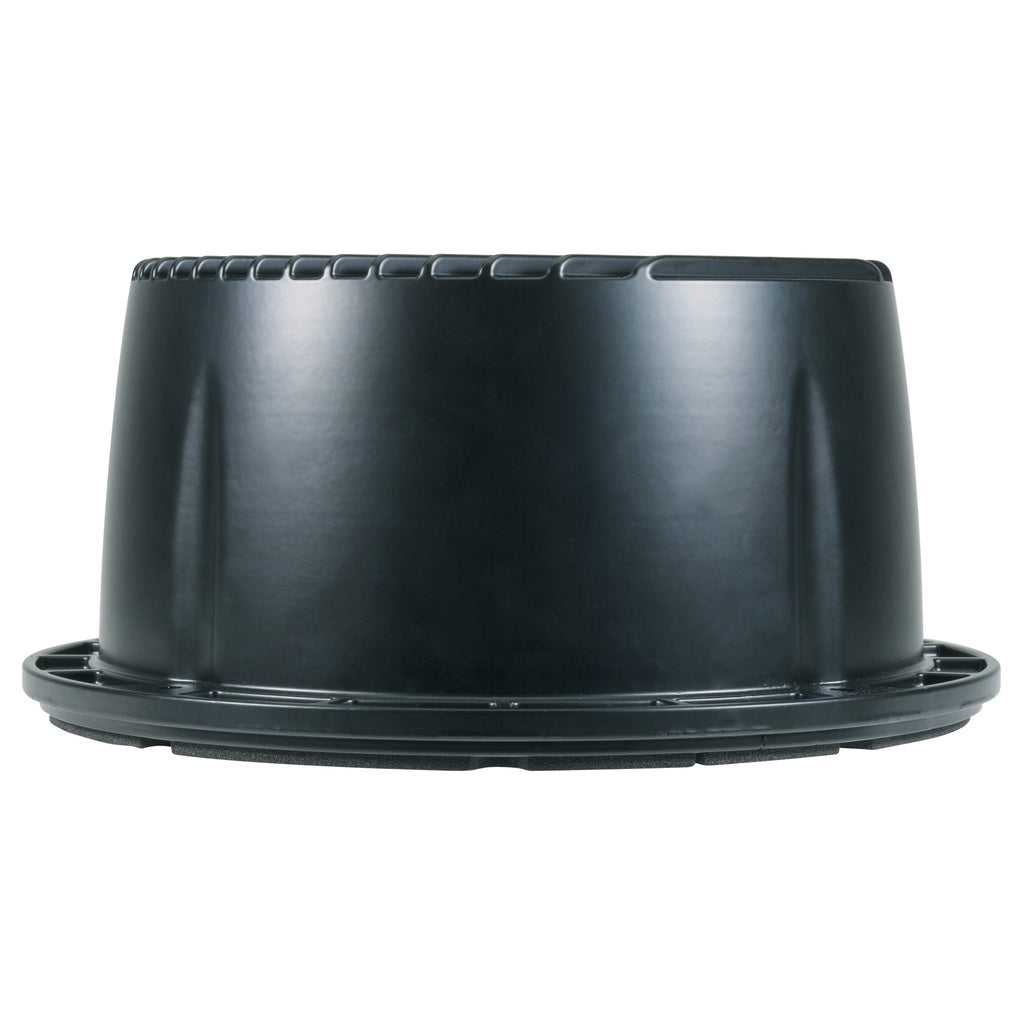

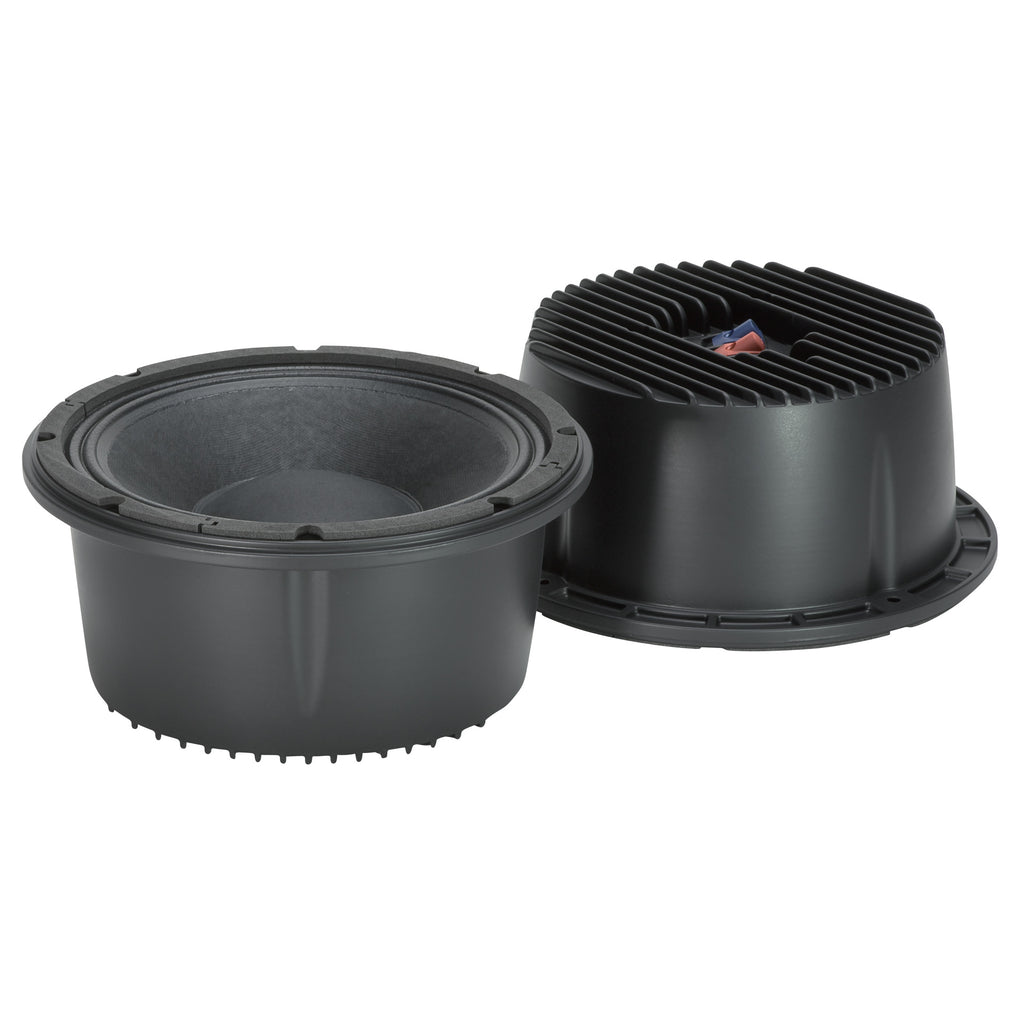

- Unique aluminum sealed basket featuring vented fin heat dissipation design
- Calibrated back volume for a perfect time domain transient reproduction
Specifications
| General specifications | |
| Nominal Diameter | 10 inch / 254 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 600 W |
| Power handling capacity | 300 W |
| Sensitivity | 102.0 dB |
| Frequency range | 150 - 2000 Hz |
| Effective piston diameter | 210 mm / 8.27 inch |
| Max. Excursion Before Damage | 20 mm / 0.79 inch |
| Minimum Impedance (ohm) | 9.0 ohm |
| Voice Coil Diameter | 3.0 inch / 76 mm |
| Voice Coil Winding Material | Aluminum |
| Voice Coil Length | 11 mm / 0.43 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 10 mm / 0.39 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | M-roll |
| Magnets | Neodymium |
| Spider | 01 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 250 Hz |
| DC resistance (Re) (ohm) | 6.20 ohm |
| Mechanical factor | 6.48 Qms |
| Electrical factor | 0.72 Qes |
| Total factor | 0.65 Qts |
| Bl factor (Bl) (T x m) | 20.70 T x m |
| Effective moving mass (Mms) | 32.0 g |
| Equivalent Cas air loaded (Vas) | 2.0 liters |
| Effective piston area (Sd) | 0.040 m2 |
| Max. linear excursion (Xmax) | 1 mm |
| Voice coil inductance @ 1kHz (Le1k) | 1.17 mH |
| Half-space efficency (Eff) | 9.26% |
| Mounting information | |
| Overall diameter | 272 mm / 10.71 inches |
| Bolt circle diameter | 244 mm / 9.61 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 235 mm / 9.25 inch |
| Rear mount baffle cut-out | 232 mm / 9.13 inch |
| Volume occupied by the driver | 5 liters / 0.2 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 142 mm / 5.59 inches |
| Diameter | 272 mm / 10.71 inches |
| Weight | 4.5 kg / 9.92 lbs |
| Shipping information | |
| Package Height | 170 mm / 6.69 inches |
| Package Width | 285 mm / 11.22 inches |
| Package Depth | 285 mm / 11.22 inches |
| Package Weight | 5 kg / 11.02 lbs |
