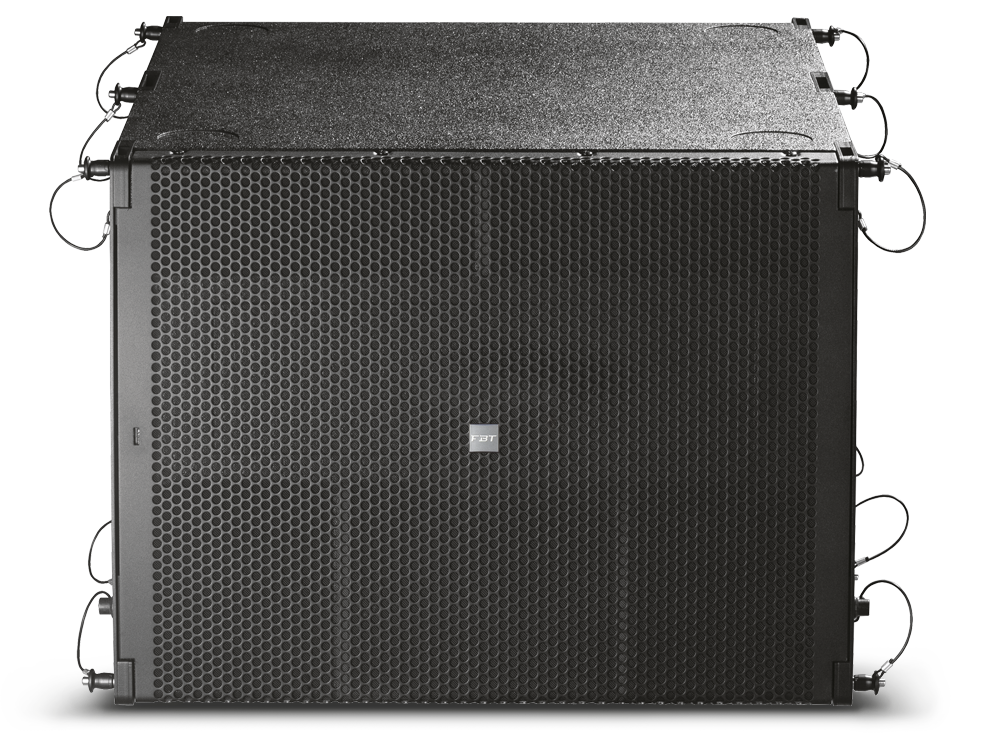

MUSE 118FSA is an active flyable subwoofer specifically designed to integrate seamlessly with MUSE 210L line array systems, providing low-frequency reinforcement in both flown and ground-stacked setups. Ideal for concert touring, live events, and high-end installations, it delivers deep, phase-coherent bass performance while maintaining compact dimensions and rigging compatibility. The enclosure houses an 18” B&C neodymium high-excursion woofer with a 3.5” voice coil, mounted in a hybrid band-pass design to optimize output and minimize distortion. Frequency response: 33Hz – 100Hz. Maximum SPL: 139dB. The on-board Class-D amplifier delivers 1200W RMS, controlled by a powerful DSP with 3 user-selectable presets, including standard and cardioid configurations for flexible deployment. Rear panel includes balanced XLR IN/OUT, rotary selector with OLED display for DSP control, and gain control with signal/limiter LEDs.

INSTALLATION / RIGGING

• The MUSE 118FSA features a fully integrated flyable design, compatible with the MUSE 210L rigging system, allowing seamless integration in flown arrays using the MS-F 210 flybar.

• The amplifier and grille are reversible to accommodate rear-facing cardioid setups without altering system appearance.

• The cabinet is constructed from 15mm birch plywood, finished with scratch-resistant black coating, and equipped with ergonomic handles, front grille with protective cloth, and recessed hardware for tight rigging.

• Compatible with MS-F 210 (flybar) and KBW-1004S (4 wheels kit with brake).

• VERTICAL CONFIGURATION: Can be flown directly above or alongside MUSE 210L arrays for full-range reinforcement.

• GROUND-STACKED CONFIGURATION: Can be used in ground stacks, either stand-alone or paired with tops, maintaining directional control and low-end extension.

• CARDIOID SETUPS (MUSE 118FSCA): Using cardioid presets and reversible modules, the MUSE 118FSA provides effective rear rejection for noise-sensitive environments or stage applications.

Technical Specifications
