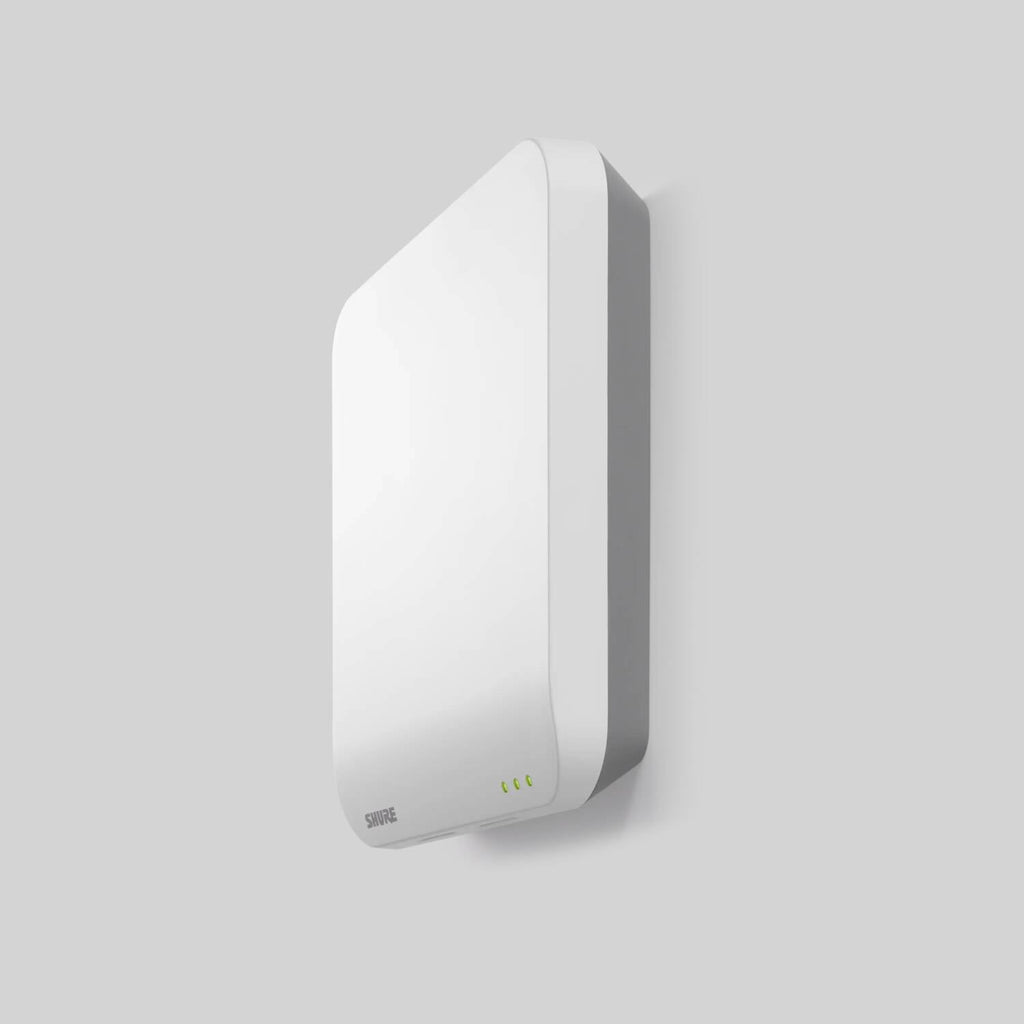

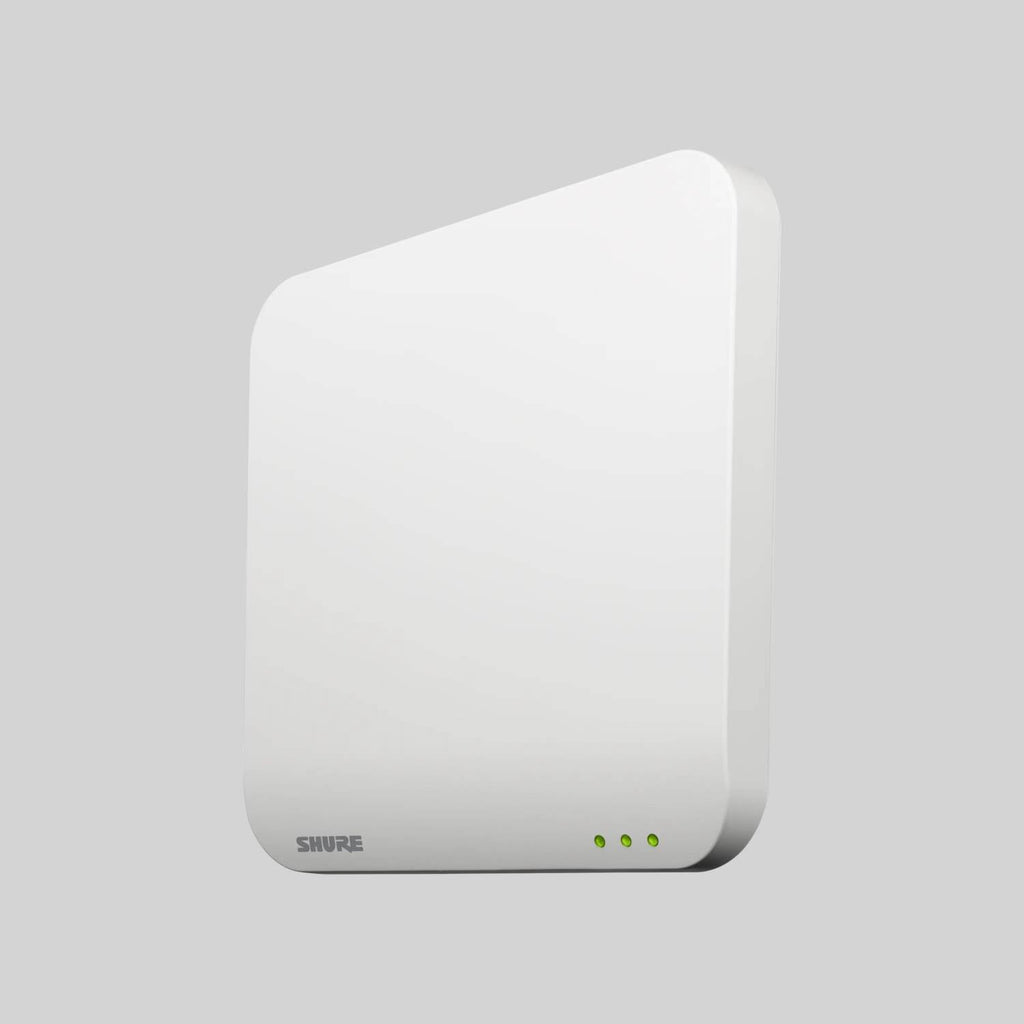

MXWAPT2 features a lightweight, discreet design with a paintable cover to match interior room colors and blend into AV environments.

• Easy installation: Includes wall / ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
• Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
• Scalable configurations: Multiple units can be combined to support configurations of up to 40 compatible channels (80 in Europe and select countries).
• Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real-time remote control of all wireless microphone settings
• Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
• Dante digital networked audio: Transports low-latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
• Encrypted wireless: AES 256-bit encryption for secure transmission
• Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
• Diagnostic LEDs: LEDs offer easy visual reference to system activity and indicate power, wireless connection, and network audio status

Specifications

• Transmission: Digital via DECT (1.9GHz)
• Encryption: yes, AES-256

Dimensions and Weight

• Width: 6.693 in (170.0 mm)
• Height: 0.945 in (24.0 mm)
• Depth: 6.693 in (170.0 mm)
• Weight: 1.863 lb (845 g)

Plenum Rating: UL 2043 Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W Antenna Type: Internal, Spatial Diversity, Circular Polarization
