Description

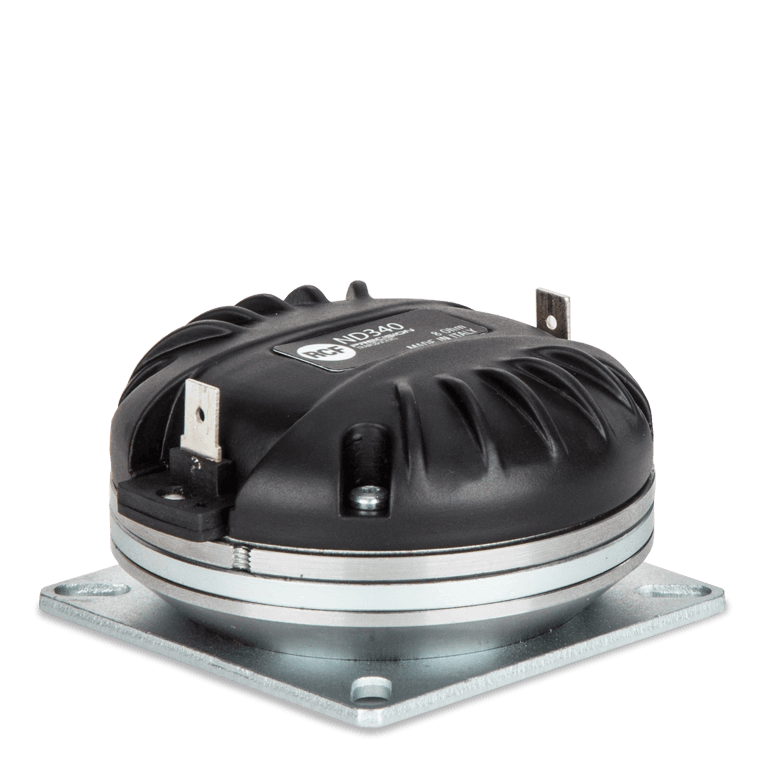

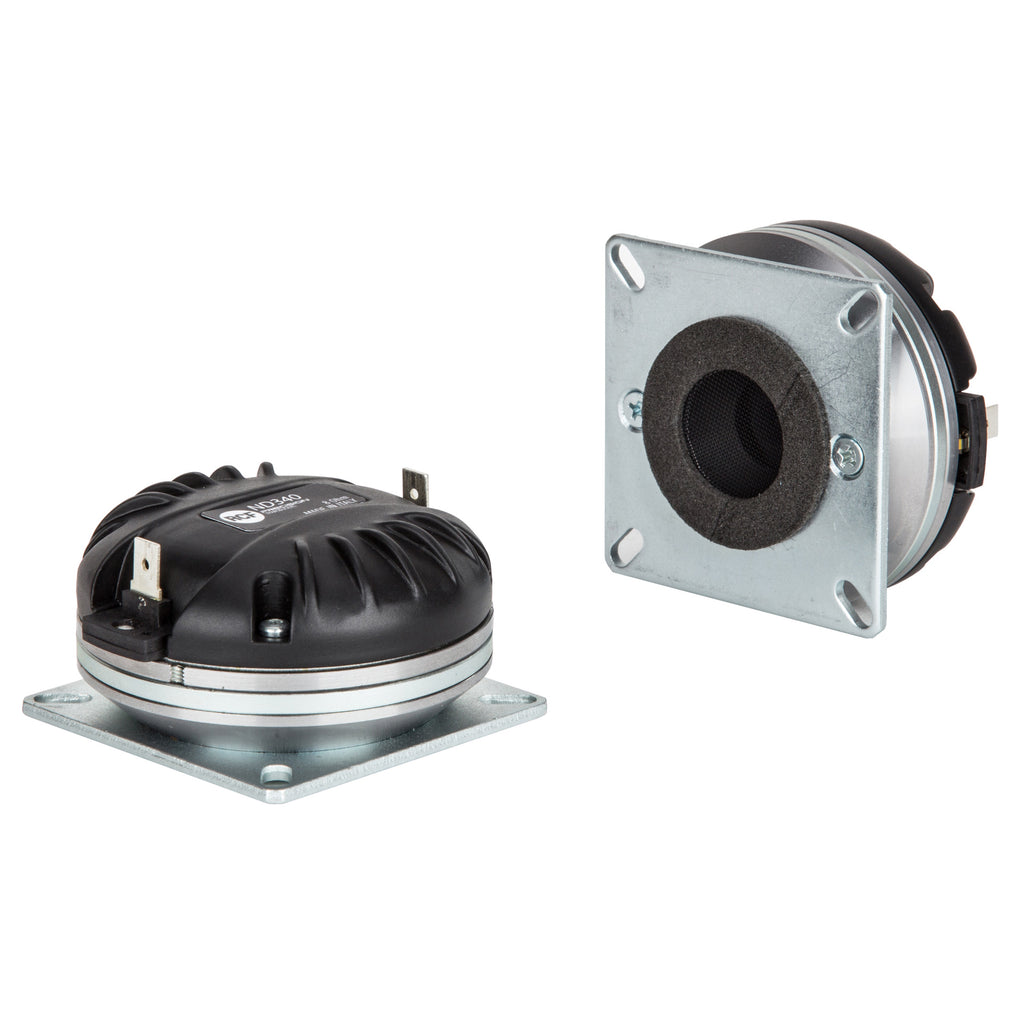

The ND340 is a high performance neodymium compression driver with a 1.0-inch exit throat. The diaphragm is precision formed from polyimide. The 1.75" voice coil assembly use high temperature Kapton former, edge wound copper clad aluminum wire and assembled using advanced, specially formulated adhesives.
Features
- 1.75-inch Diaphragm, 1.0-inch Exit Throat
- 100 watt Continuous program power handling
- Frequency range: 1200Hz - 20kHz
- 2-slot, optimised geometry phase plug
- Polyimide diaphragm
- Extremely compact neodymium magnet assembly
Specifications
| General specifications | |
| Exit Throat Diameter | 1.0 inch / 25 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 100 W |
| Power handling capacity | 50 W |
| Sensitivity | 109 dB |
| Frequency range | 1200 - 20000 Hz |
| Diaphragm Material | Polyimide |
| Suspension Material | Polyimide |
| Suspension Design | Flat |
| Minimum Impedance (ohm) | 6.50 ohm |
| Voice Coil Diameter | 1.75 inch / 44 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 1.9 T |
| Phase Plug Design | 2 slot |
| Phase Plug Material | PP Composite |
| Magnetics | Neodymium |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 7.90 T x m |
| Mounting information | |
| Overall diameter | 76 mm / 2.99 inches |
| Overall height | 39 mm / 1.54 inches |
| Mounting | 4 x 5 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 0.63 kg / 1.39 lbs |
| Shipping information | |
| Package Height | 65 mm / 2.56 inches |
| Package Width | 95 mm / 3.74 inches |
| Package Depth | 97 mm / 3.82 inches |
| Package Weight | 0.81 kg / 1.79 lbs |
