Description

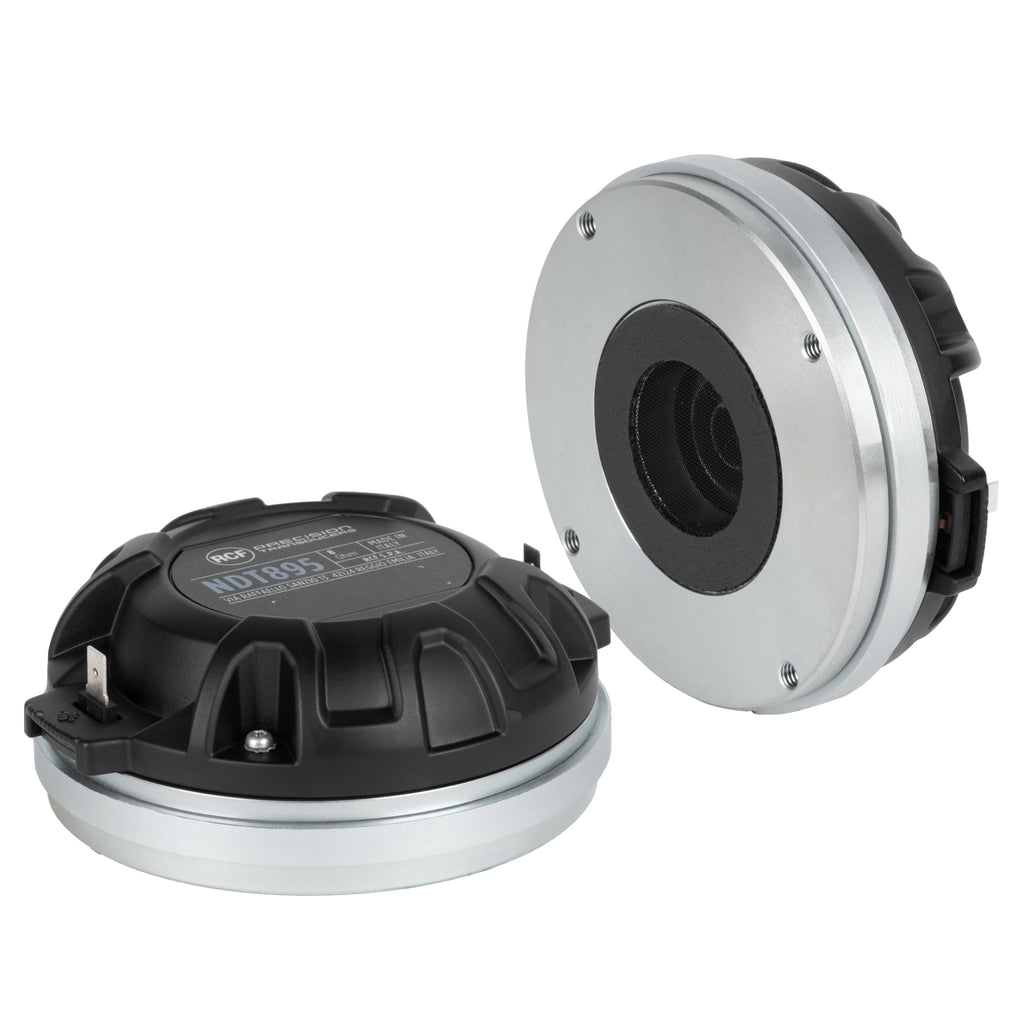

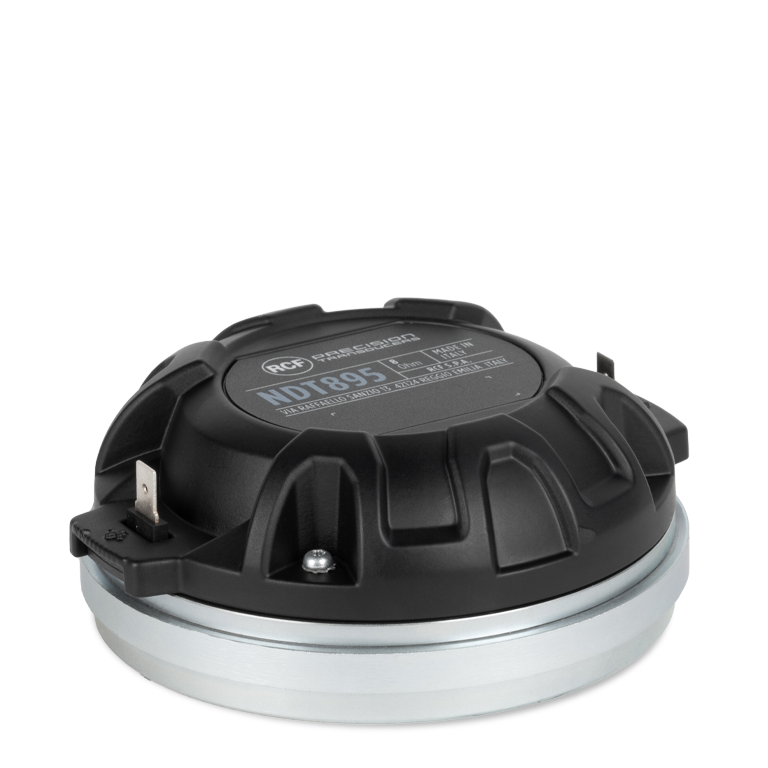

The 3-inch pure titanium dome NDT895 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly and reinforcing ribs on the dome for enhanced breakup behavior. The 3" class-leading motor design utilizes a Kapton former, ultralight edge wound aluminum wire, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The high sensitivity at 109 dB, 240 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 700 Hz make it ideal for integration with waveguides in two-way high-powered systems.
Features
- 3.0-inch, Titanium dome, polyimide surround
- 240W continuous program power handling @ 8O
- Frequency range: 500Hz - 20kHz
- Kapton former, edge wound aluminum voice coil
- 3-slot optimized geometry phase plug
- Copper inductance ring for extended response
- Low recommended crossover point
- High-flux density neodymium magnet
Specifications
| General specifications | |
| Exit Throat Diameter | 1.4 inch / 36 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 240 W |
| Power handling capacity | 120 W |
| Sensitivity | 109 dB |
| Frequency range | 500 - 20000 Hz |
| Diaphragm Material | Pure Titanium |
| Suspension Material | Pure Titanium |
| Suspension Design | Double Roll |
| Minimum Impedance (ohm) | 7.00 ohm |
| Voice Coil Diameter | 3.0 inch / 76 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Direct Drive Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 2.0 T |
| Phase Plug Design | 3 slot |
| Phase Plug Material | Aluminum |
| Magnetics | Neodymium |
| Voice Coil Demodulation Ring | Copper |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 13.00 T x m |
| Mounting information | |
| Overall diameter | 115 mm / 4.53 inches |
| Overall height | 49 mm / 1.93 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 1.6 kg / 3.53 lbs |
| Shipping information | |
| Package Height | 63 mm / 2.48 inches |
| Package Width | 142 mm / 5.59 inches |
| Package Depth | 144 mm / 5.67 inches |
| Package Weight | 1.9 kg / 4.19 lbs |
