Description

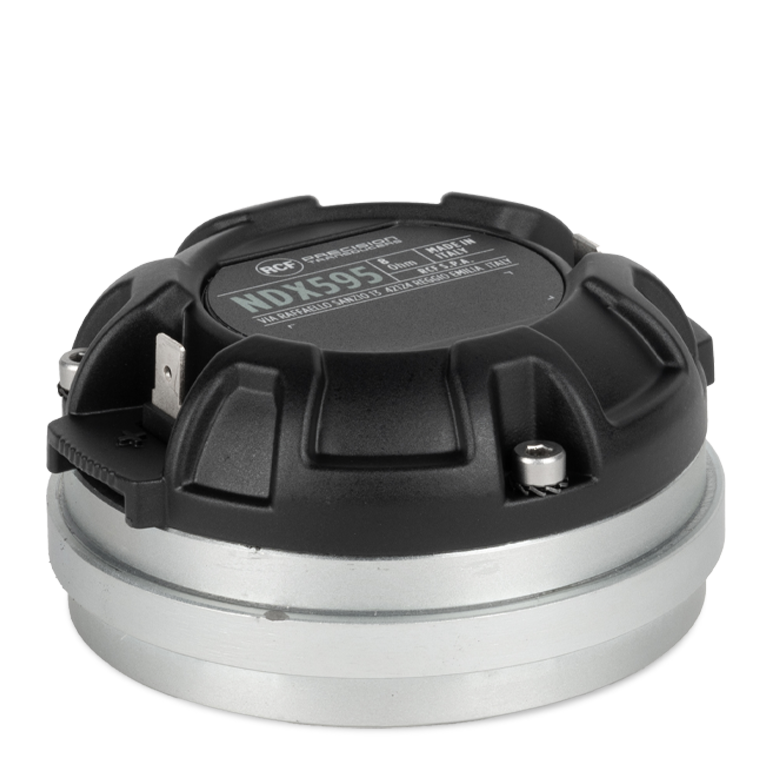

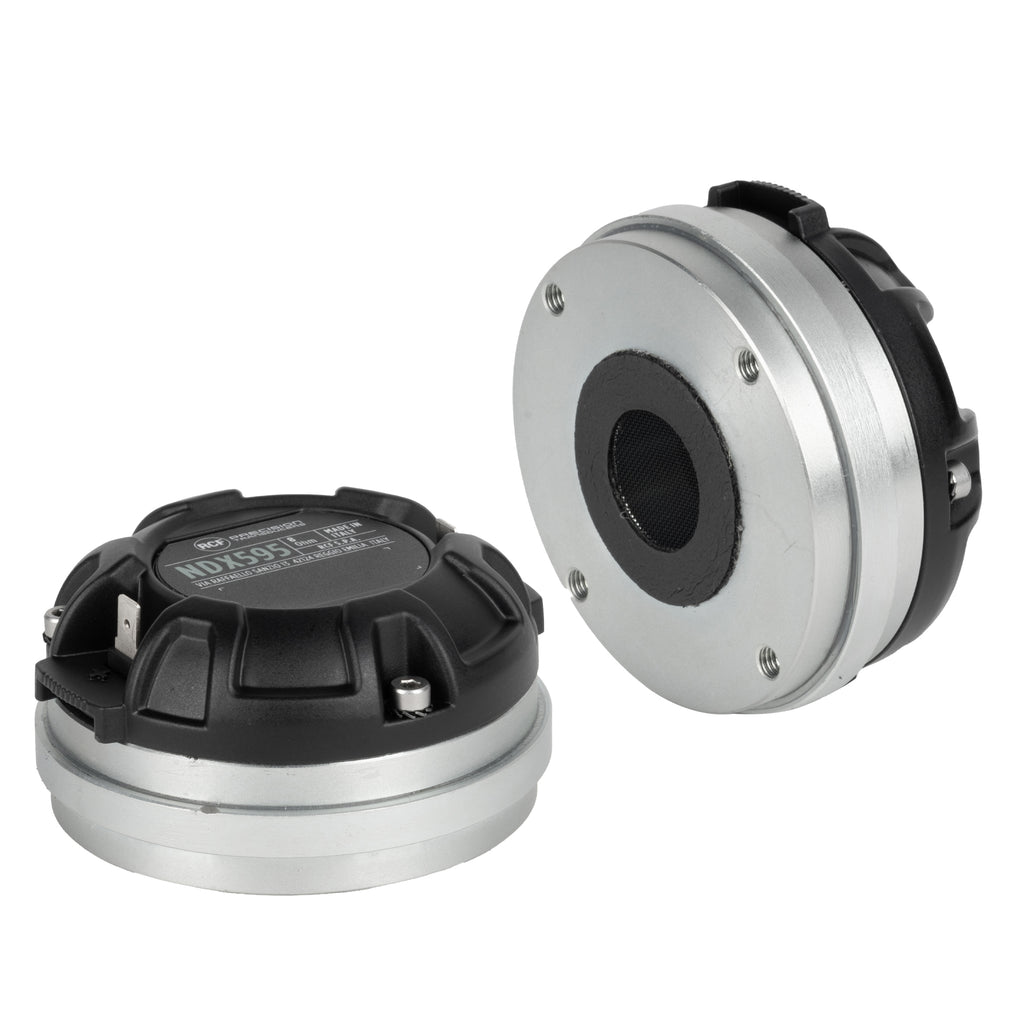

The 1.75" PKX dome NDX595 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size and the low recommended crossover point at 1000 Hz make it ideal for small two-way cabinet designs and three-way loudspeaker systems. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ultralight edge wound aluminum wire, class-leading neodymium magnets, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling at 8 ohms, with a sensitivity of 110 dB.
Features
- 1.75-inch PKX dome, polyimide surround
- Kapton former, edge wound aluminum voice coil
- 140W continuous program power handling @ 8O
- Frequency range: 500Hz - 20kHz
- 4-slot optimized geometry phase plug
- Copper inductance ring for extended response
- High-flux density neodymium magnet
- Recommended for 3-way speaker design
Specifications
| General specifications | |
| Exit Throat Diameter | 1.0 inch / 25 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 140 W |
| Power handling capacity | 70 W |
| Sensitivity | 110 dB |
| Frequency range | 1200 - 20000 Hz |
| Diaphragm Material | PKX Polymer |
| Suspension Material | PKX Polymer |
| Suspension Design | Flat |
| Minimum Impedance (ohm) | 6.50 ohm |
| Voice Coil Diameter | 1.75 inch / 44 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 2.1 T |
| Phase Plug Design | 3 slot |
| Phase Plug Material | PP Composite |
| Magnetics | Neodymium |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 8.00 T x m |
| Mounting information | |
| Overall diameter | 90 mm / 3.54 inches |
| Overall height | 47 mm / 1.85 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 1.04 kg / 2.29 lbs |
| Shipping information | |
| Package Height | 65 mm / 2.56 inches |
| Package Width | 111 mm / 4.37 inches |
| Package Depth | 113 mm / 4.45 inches |
| Package Weight | 1.13 kg / 2.49 lbs |
