The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets to simplify the set up process reducing the lengthy commissioning time often associated with DSP. The unobtrusive form factor allows discrete installations, making it compatible for a wider variety of meeting rooms. Versatile connectivity options provide freedom of choice when joining a room video system including via soft codec, or connecting laptops and mobile devices. Featuring acoustic echo cancellation, noise reduction and automatic gain control for up to 8 Dante channels, the P300 ensures echo- and noise-free conference room audio.

• Connects 10 Dante audio inputs, 2 analog inputs, USB and a mobile device to an AV conferencing system or a PC-based videoconferencing application
• Includes Shure developed DSP algorithms to enhance audio quality in AV conferences: 8 channels of microphone processing featuring AEC, noise reduction, and automatic gain control, IntelliMix automatic mixing, matrix mixing, delay, compressor and PEQ

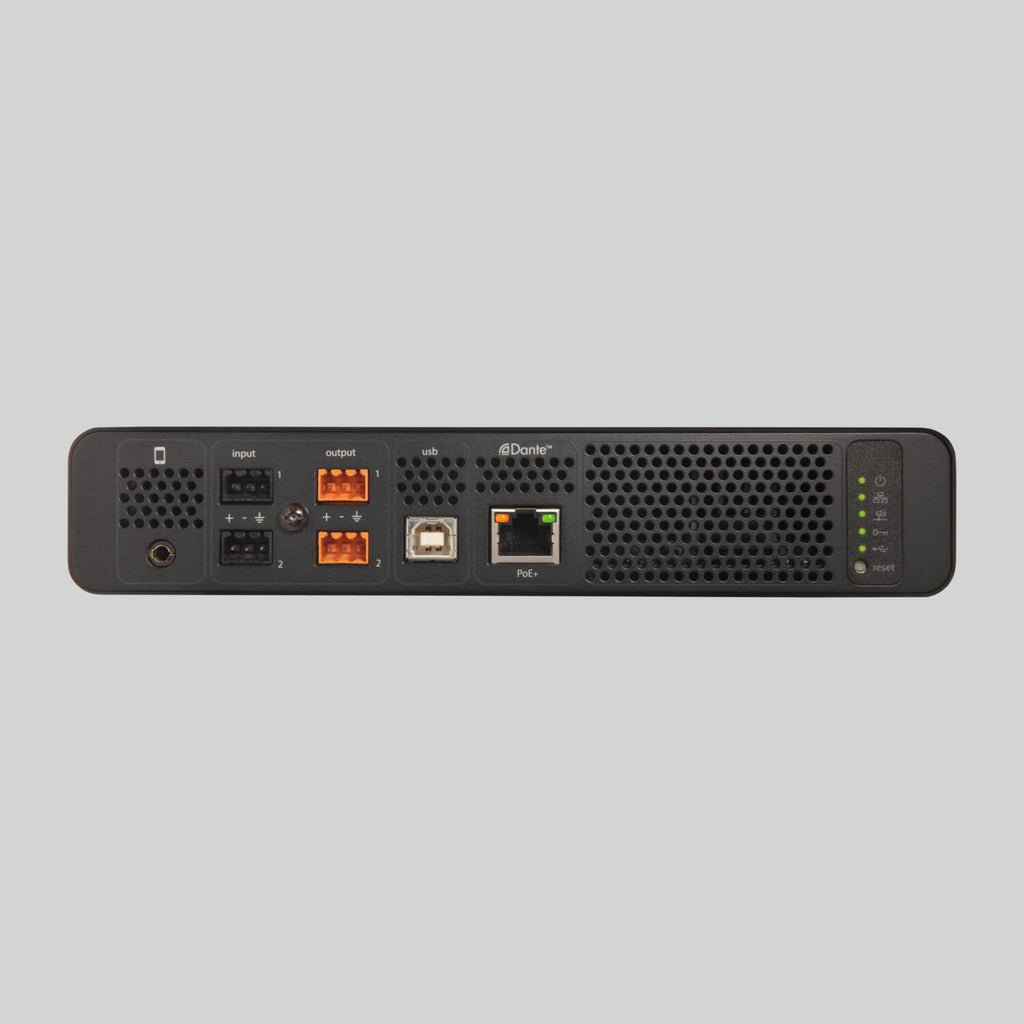

• Flexible signal routing and connectivity: analog audio (2 block in / 2 block out) to connect to room AV conferencing system; USB (1 in/out) to connect to laptop or room PC; one 3.5 mm TRRS jack to connect to a mobile device to enable an additional participant to join
• Power-over-Ethernet (PoE+) eliminates the need for an outboard power supply
• Compact form factor is easy to mount without equipment rack

Specifications

• Analog Inputs: 2 Line + 3.5mm TRRS
• Analog Outputs: 2 Mic/Line/Aux with PEQ & Delay & 1, 3.5mm TRRS
• Dante Inputs: 10 [8 with IntelliMix DSP (AEC, NR, AGC) 2 with PEQ]
• Dante Outputs: 8 with PEQ
• USB Audio: 1 in, 1 Out with PEQ
• Acoustic Echo Canellation: yes
• Noise Reduction: yes
• Automatic Mixing: yes
• Matrix Mixing: yes
• Stereo Mono: Mono

Dimensions and Weight

• Width: 8.268 in (210.0 mm)
• Height: 1.575 in (40.0 mm)
• Depth: 8.898 in (226.0 mm)
• Weight: 3.77 lb (1710 g)
