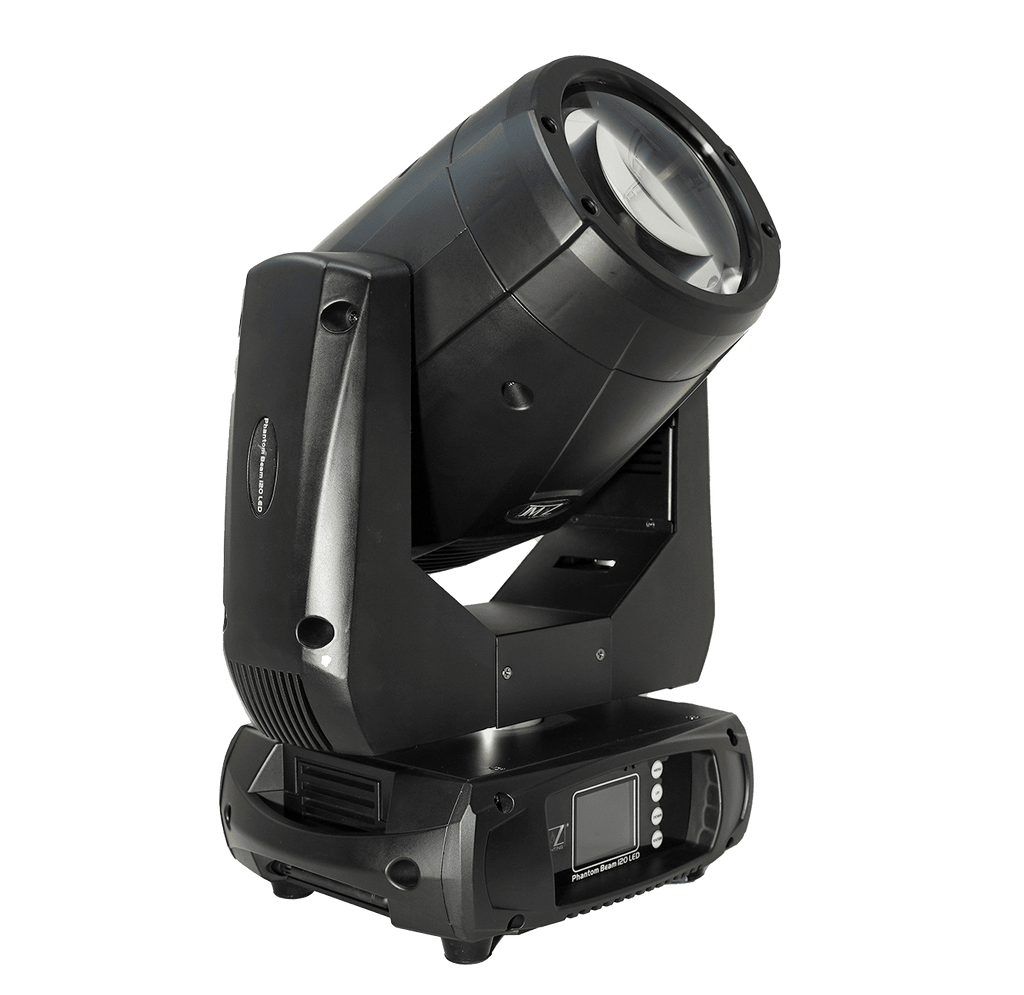

The JMAZ PHANTOM BEAM 120 is a 120W LED Moving Head featuring an 8000K cool white LED, a 2° beam angle, and motorized focus. It offers an 11-color wheel, 19 static gobos, a frost filter, and a dual prism wheel with variable speed. Compatible with DMX512, wireless DMX, and RF remote control, it includes 9 auto/sound programs. Comes with an RF remote, Omega bracket, powerCON cable, and DMX cable for versatile lighting applications.

Main Features

• 120W 8000K Cool White LED
• Color Wheel: 11 Colors + Open
• Static Gobos: 19 + Open
• Frost Filter
• Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed
• Beam Angle: 2°
• Motorized Focus
• Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
• 9 Built-In Auto/Sound Programs
• powerCON In/Out
• Included: RF Remote, Omega Bracket, powerCon Cable, DMX Cable, Safety Cable, Manual

Technical Specifications

Light Source

• 120W 8000K Cool White LED

Color System

• Color Wheel: 11 Colors + Open

Optics

• Beam Angle: 2°

Dynamic Effect

• Gobos: 19 Static + Open
• Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed

Motorized Focus

• 9 Built-In Auto/Sound Programs

Frost Filter

Control

• Protocols: 3-Pin In/Out DMX512, Wireless DMX
• Personalities: 2 Modes 12/14
• Wireless Control: RF Remote
• Display: 2.4″ TFT LCD Display

Electronics

• Dimmer: 0-100% Linear Dimmer
• Operating Temperature: -35° C to 45° C

Body

Quick-Lock Omega Bracket

• Pan Angle: 630°
• Title Angle: 270°
• High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

• Cooling: Fan
• Pan/Tilt: 8/16 bit smooth
• powerCON In/Out

Electrical

• Max Power Consumption: 180W
• Input Voltage: 110-240V, 50HZ/60HZ
• 2 x Omega Brackets
• 1 x DMX Cable
• 1 x powerCON Cable
• 1 x RF Remote
• 1 x Safety Cable
• 1 x User Manual

Item Dimensions & Weight

• Dimensions: 13.2″ x 8.8″ x 19.4″
• Weight: 31.3 lbs

Warranty

2 Years
