Description

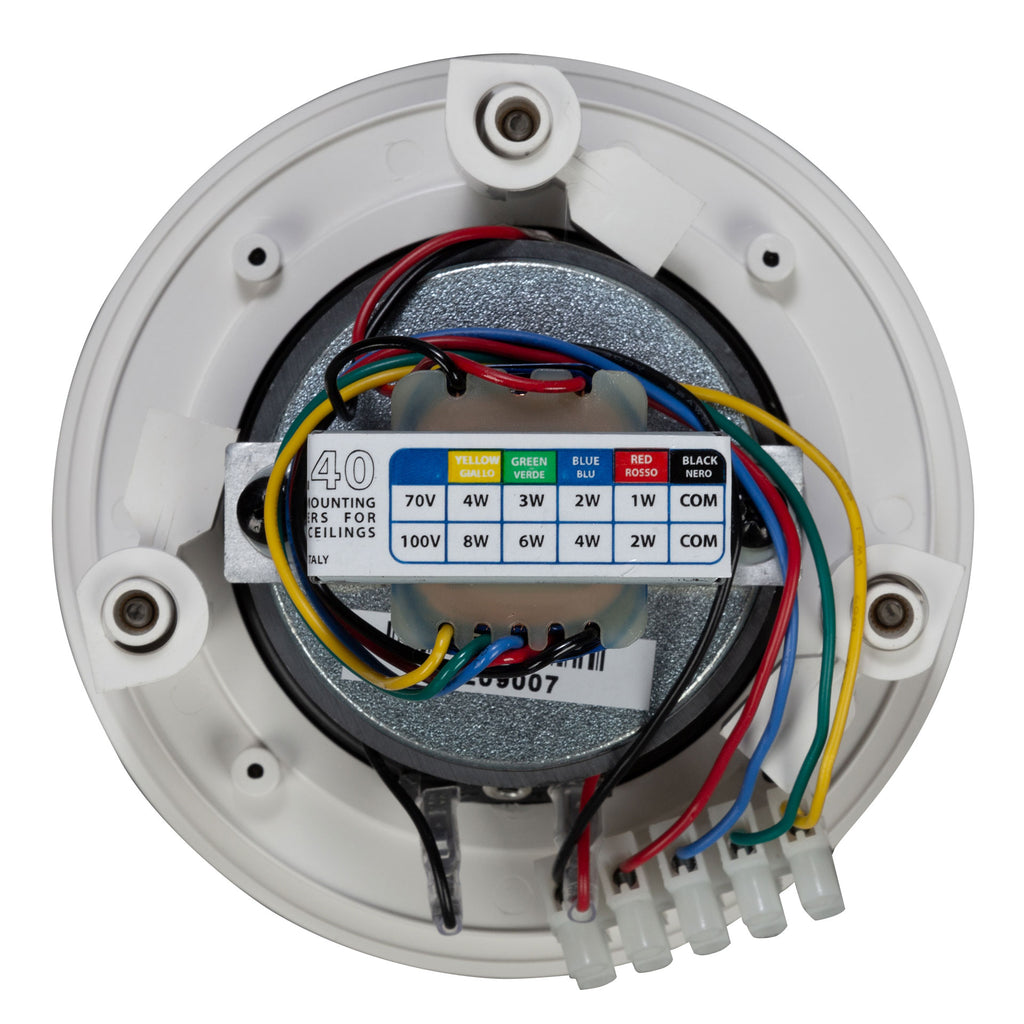

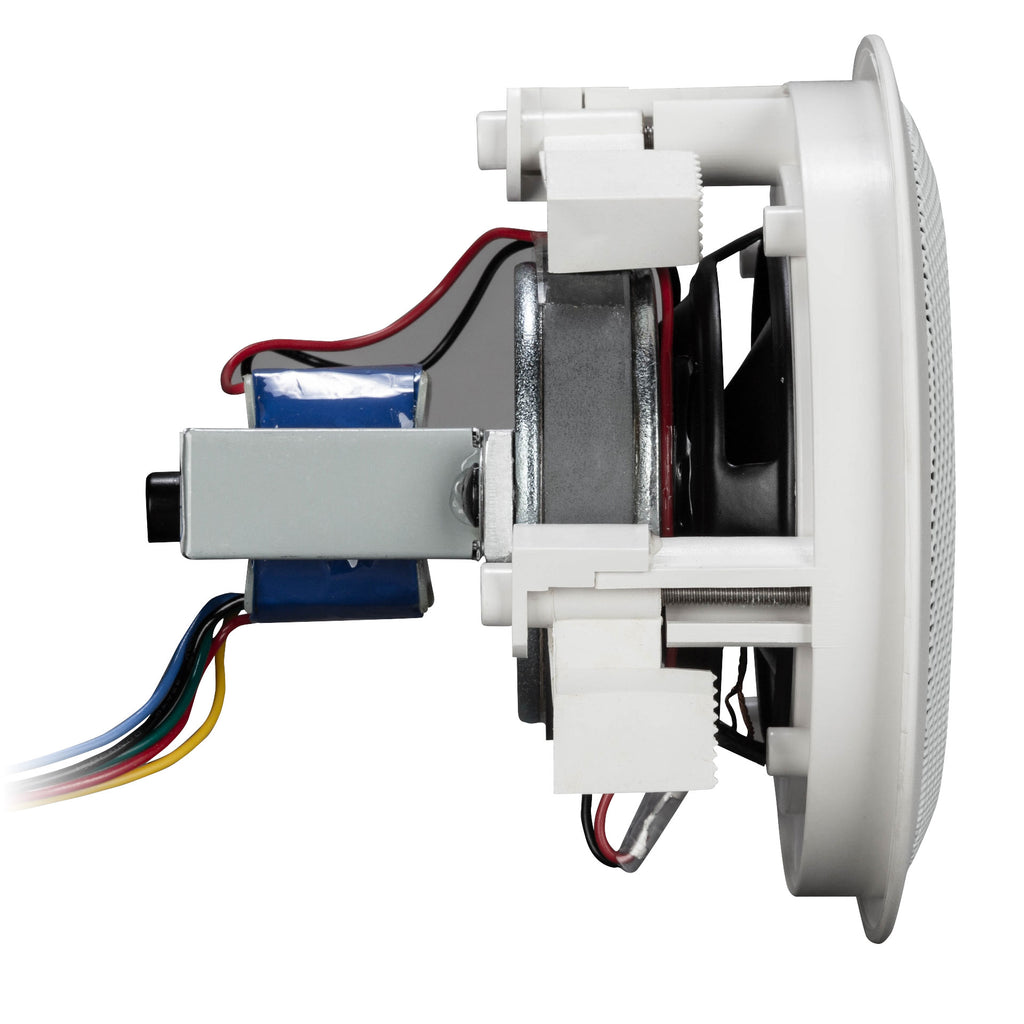

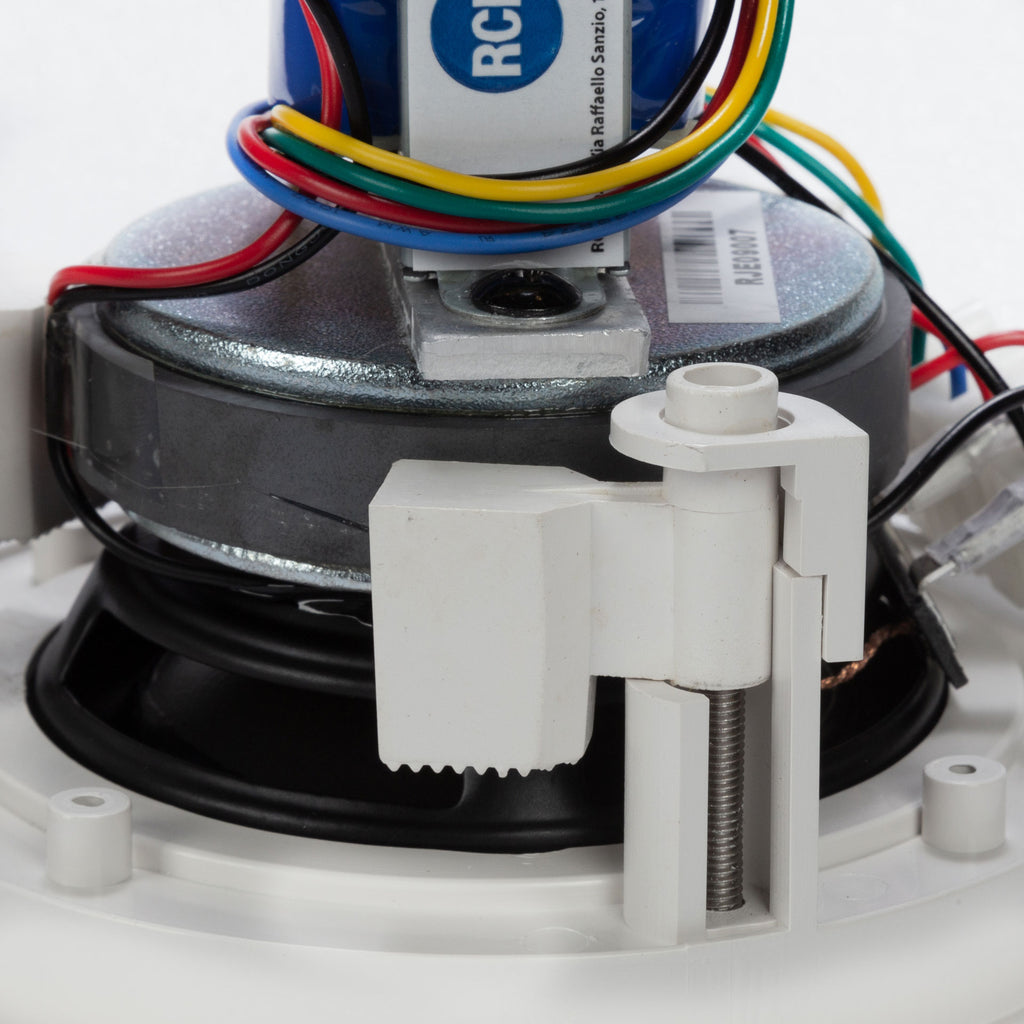

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5" fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features

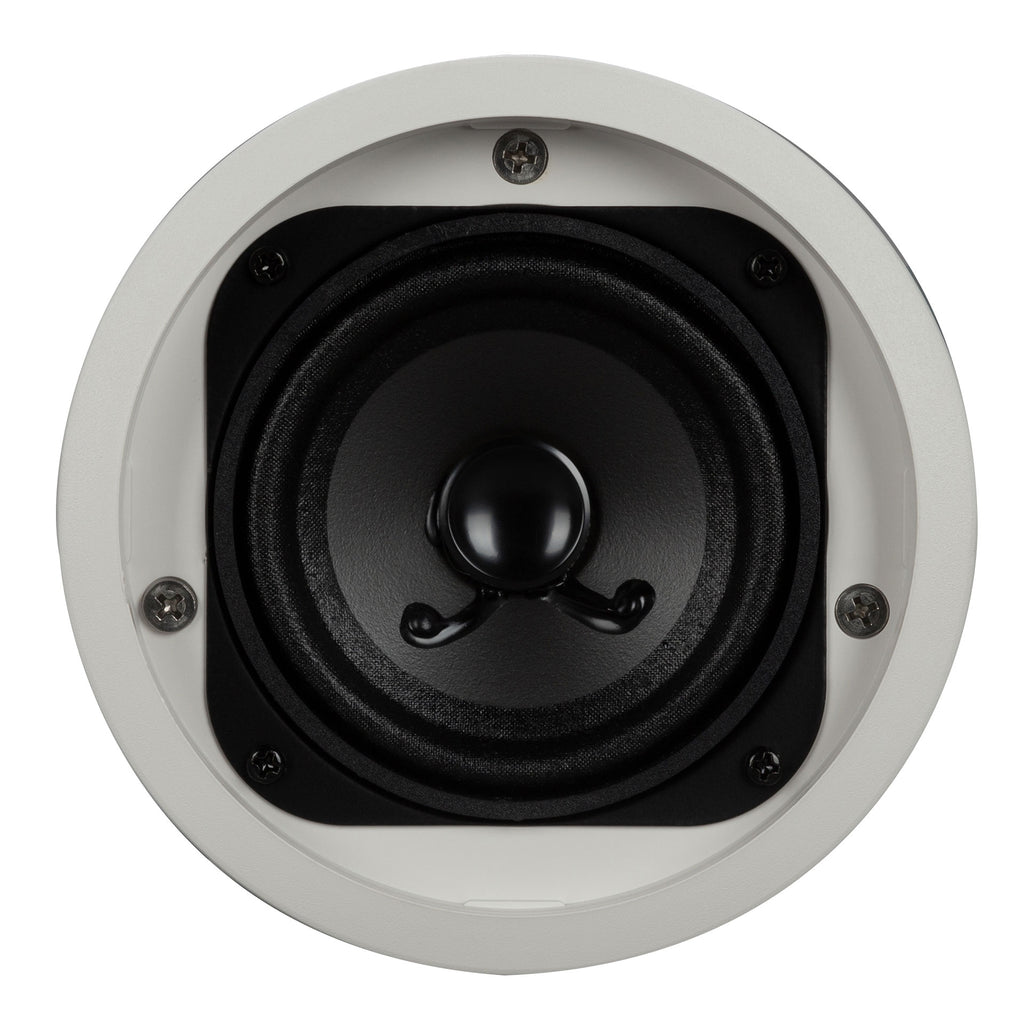

- 3.5" fullrange transducer
- Power selectable (100 V): 8 W - 6 W - 4 W - 2 W
- 88 dB sensitivity
- Colour white RAL 9003
- Plastic frame UL 94 V0, aluminium grille
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 90 Hz - 20000 Hz |
| Max SPL @ 1m | 100 dB |
| Coverage angle | 120° |
| System Sensitivity | 88 dB |
| Power section | |
| Amplification | Full Range |
| Power Handling | 8 W RMS |
| Peak Power Handling | 32 W PEAK |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
| Transducers | |
| Fullrange | 1 x 3.5'' |
| Input/Output section | |
| Input connectors | Screw Terminals |
| Output connectors | Screw Terminals |
| Constant Voltage Transformer | 100 V |
| Power selection 1 | 8 W - 1250 ohm |
| Power selection 2 | 6 W - 1667 ohm |
| Power selection 3 | 4 W - 2500 ohm |
| Power selection 4 | 2 W - 5000 ohm |
| Standard compliance | |
| IP protection grade | IP 44 |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plastic |
| Hardware | Plastic Material |
| Grille | Aluminium |
| Color | White - RAL 9003 |
| Size / Weight | |
| Depth | 110 mm / 4.33 inches |
| Recessed Depth | 103 mm / 4.06 inches |
| Diameter | 130 mm / 5.12 inches |
| Cut out diameter | 122 mm / 4.8 inches |
| Weight | 0.38 kg / 0.84 lbs |
| Shipping information | |
| Package Height | 120 mm / 4.72 inches |
| Package Width | 175 mm / 6.89 inches |
| Package Depth | 175 mm / 6.89 inches |
| Package Weight | 1.2 kg / 2.65 lbs |
