Description

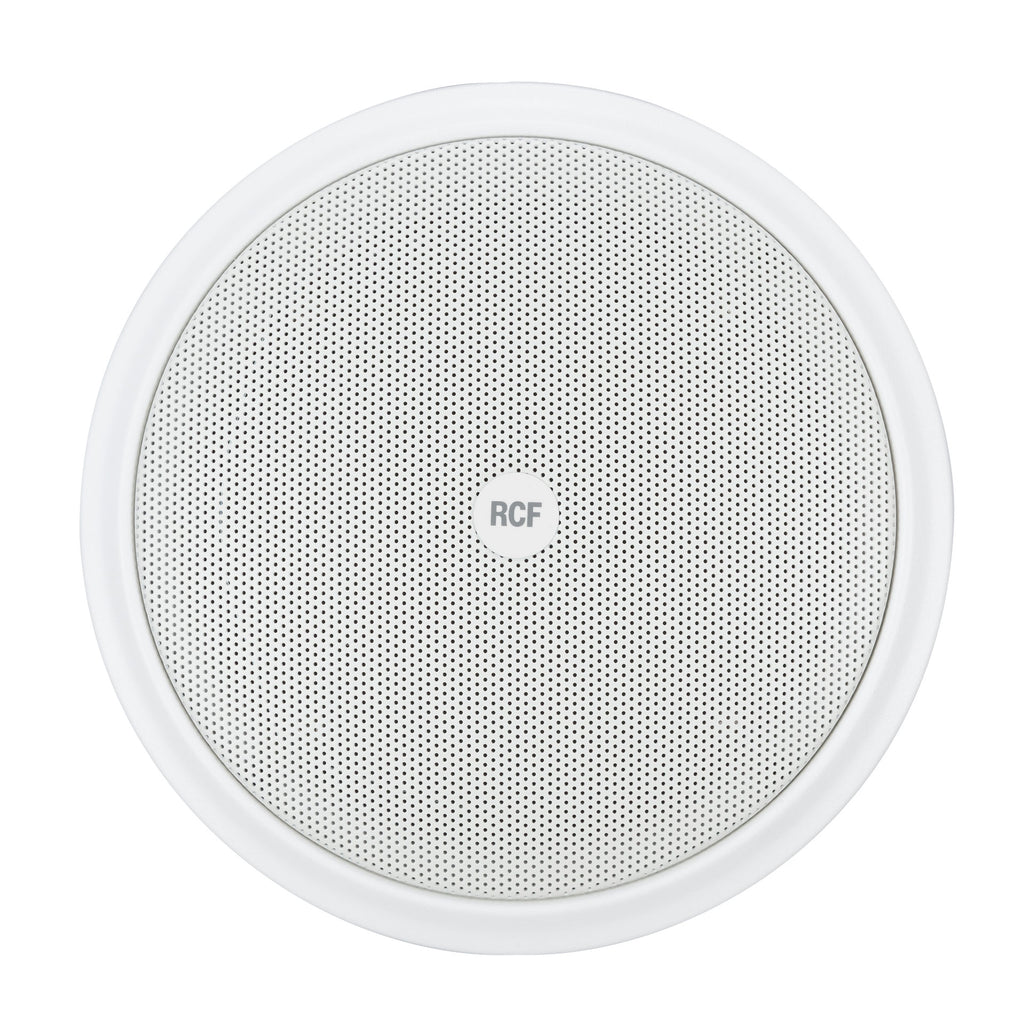

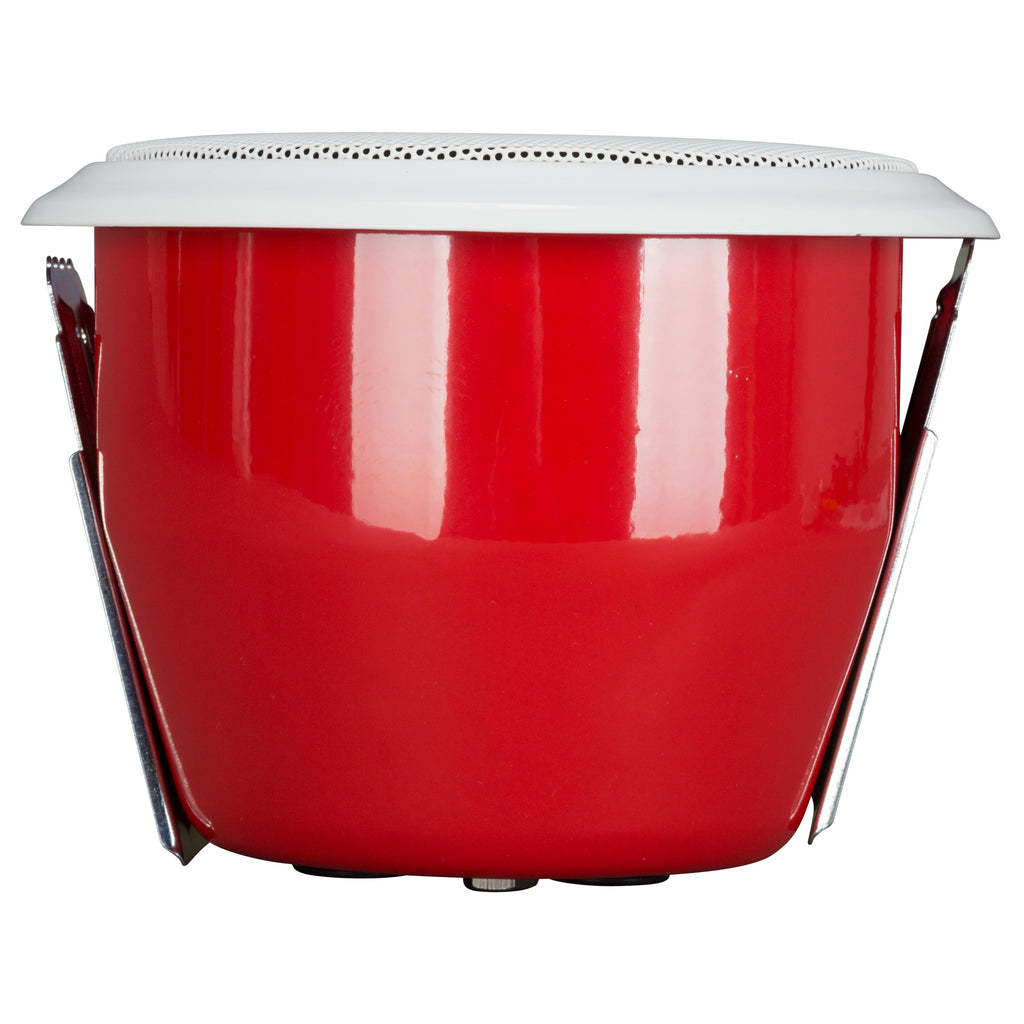

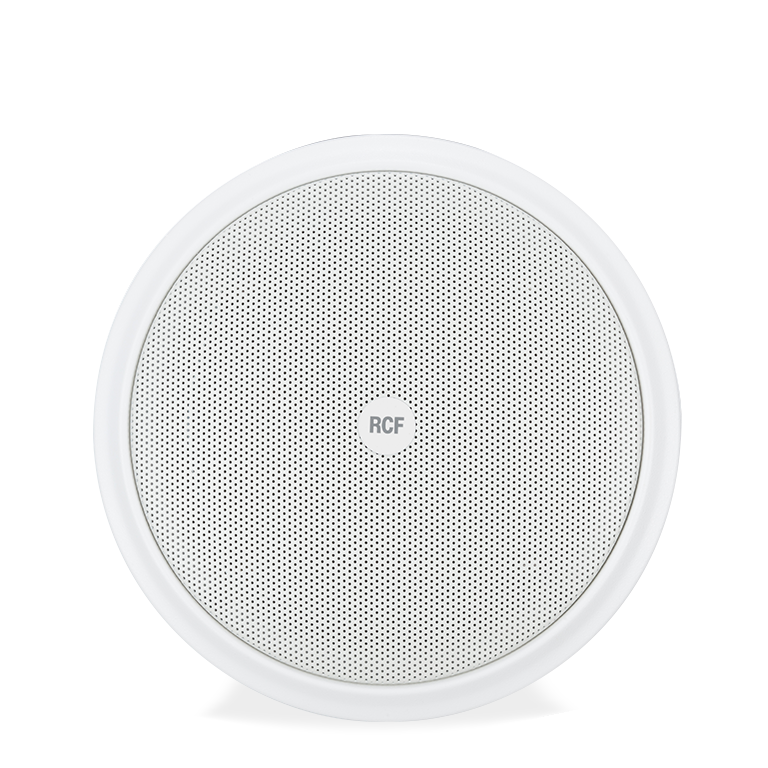

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | PL 50EN | CEILING SPEAKER WITH FIRE DOME | 5" fullrange transducer.
Technical Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 130 Hz - 15000 Hz |
| Max SPL @ 1m | 100 dB |
| Max SPL @ 4m | 88 dB |
| Coverage angle | 160° |
| System Sensitivity | 92 dB |
| System Sensitivity 1W @ 4m | 80 dB |
| Power section | |
| Amplification | Full Range |
| Power Handling | 6 W |
| Peak Power Handling | 24 W PEAK |
| Protections | Thermal fuse |
| Recommended Amplifiers | DXT 3000, DXT 4000, DXT 7000 |
| Transducers | |
| Fullrange | 1 x 5.0'' |
| Input/Output section | |
| Input connectors | Ceramic screw terminals |
| Output connectors | Constant Voltage Transformer |
| 100 V | Power selection 1 |
| 6 W - 1667 ohm | Power selection 2 |
| 3 W - 3333 ohm | Power selection 3 |
| 1.5 W - 6667 ohm | Power selection 4 |
| 0.75 W - 13333 ohm | |
| Standard compliance | |
| Safety agency | CE compliant |
| EN54-24 certified | Yes |
| CPR number | 0068-CPR-051/2017 |
| Physical specifications | |
| Cabinet/Case Material | Metal |
| Hardware | Steel back cover |
| Grille | Steel |
| Color | White - RAL 9016 |
| Size / Weight | |
| Depth | 143 mm / 5.63 inches |
| Recessed Depth | 125 mm / 4.92 inches |
| Diameter | 181 mm / 7.13 inches |
| Cut out diameter | 155 mm / 6.1 inches |
| Weight | 1.35 kg / 2.98 lbs |
| Shipping information | |
| Package Height | 160 mm / 6.3 inches |
| Package Width | 190 mm / 7.48 inches |
| Package Depth | Package Weight |
