Description

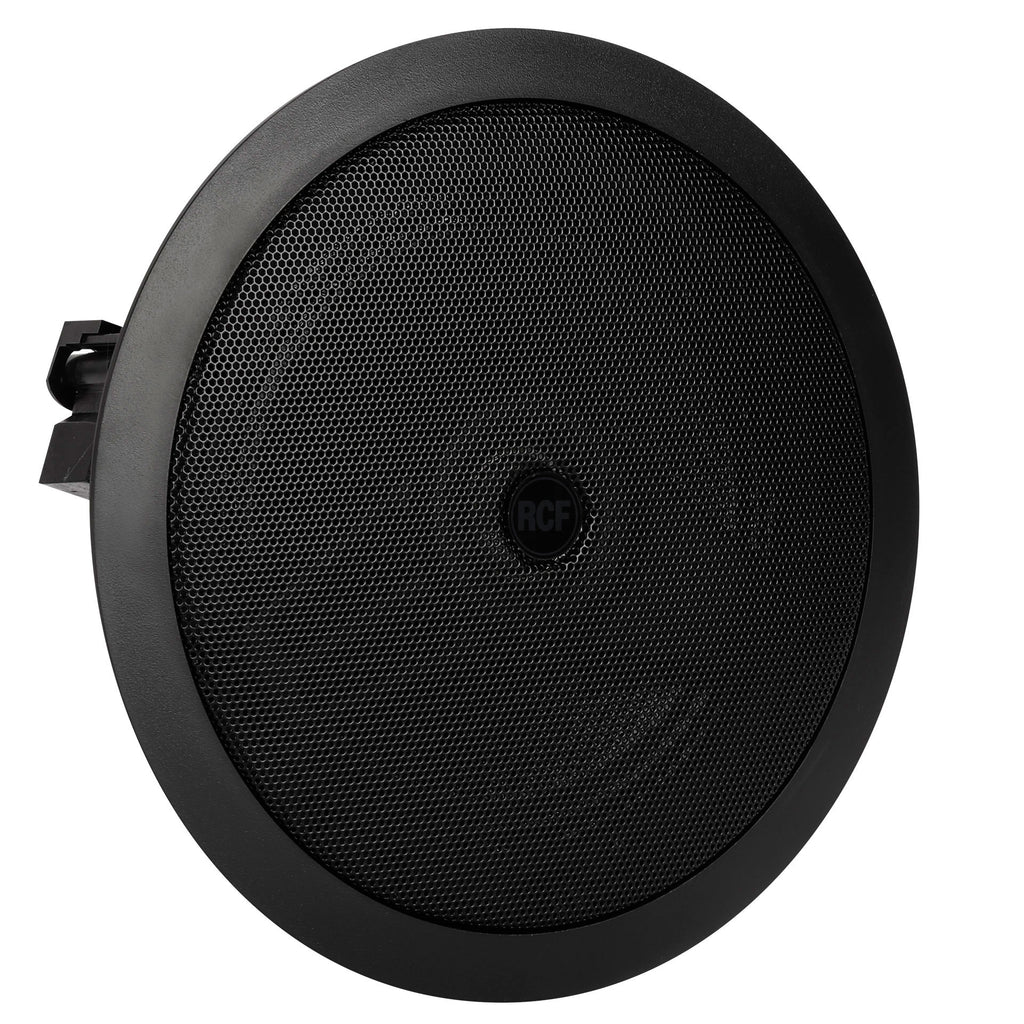

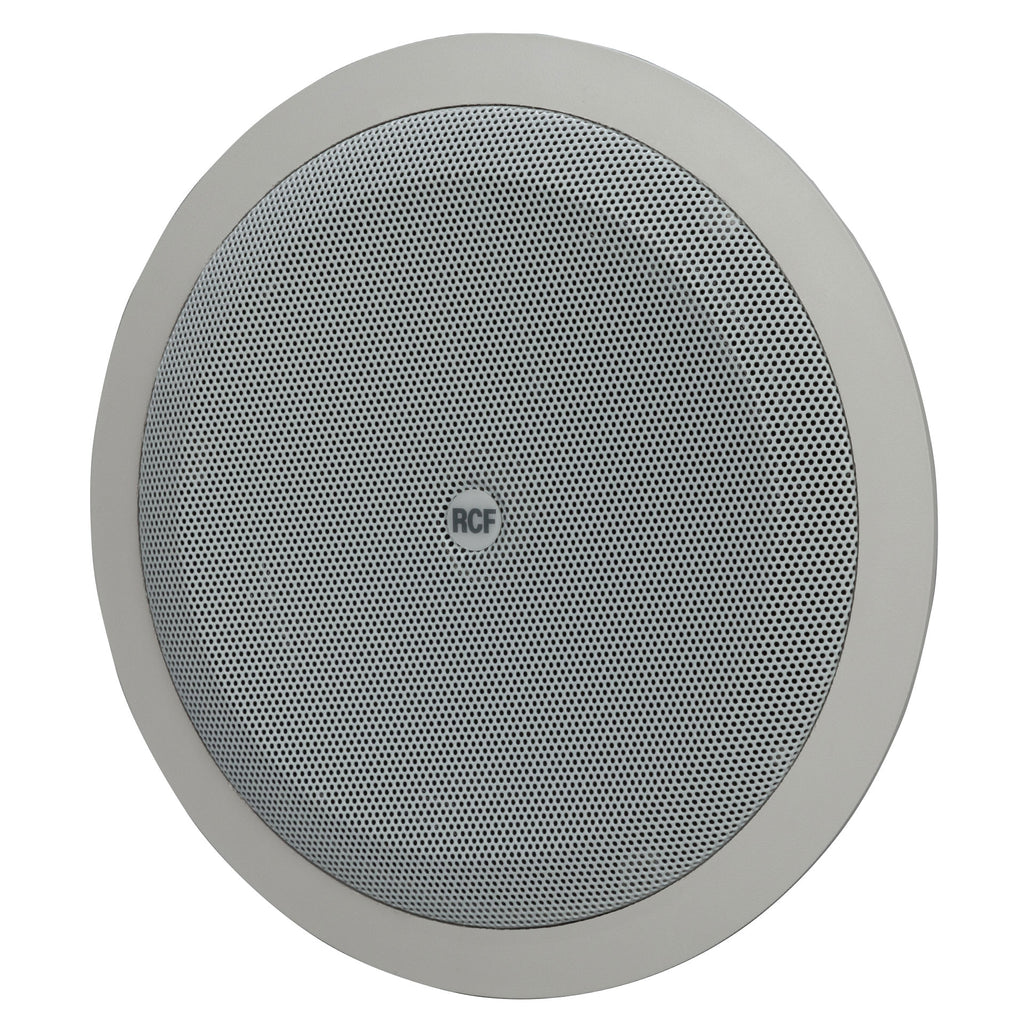

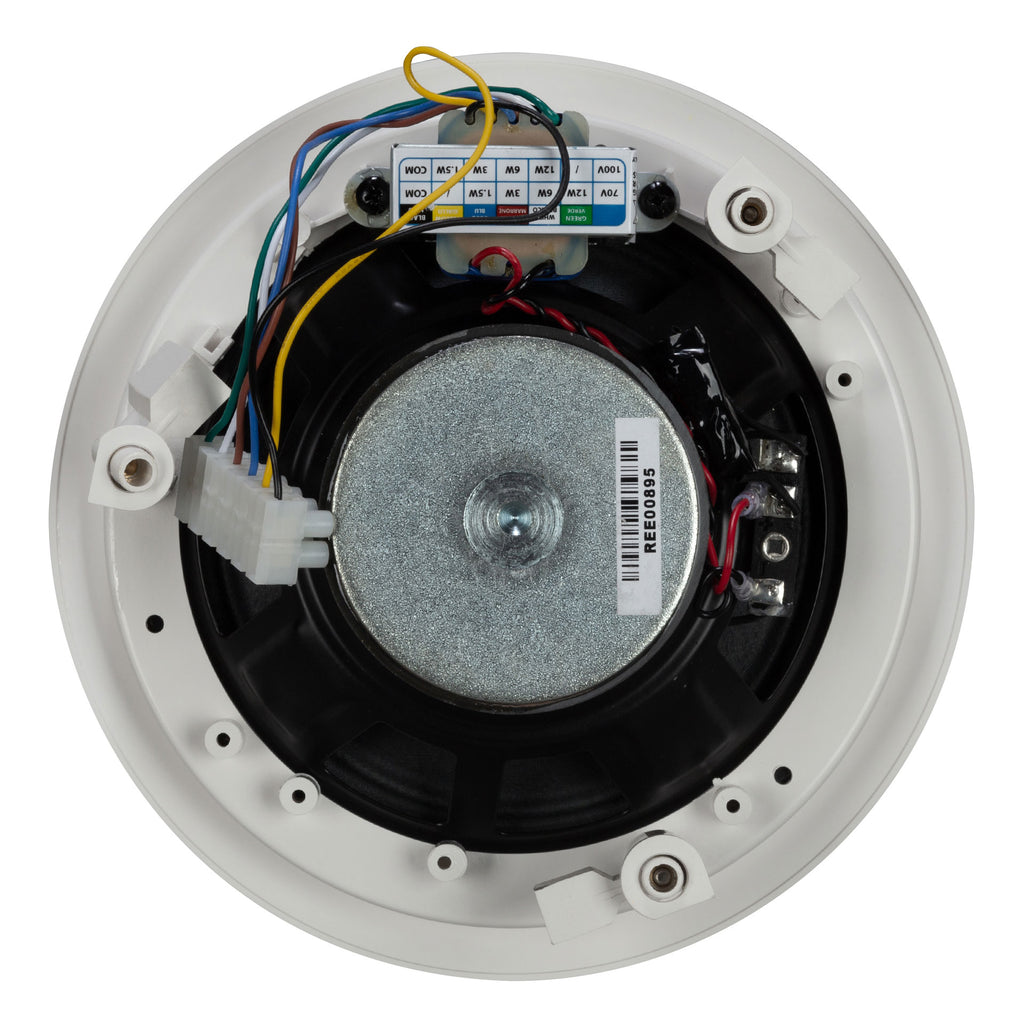

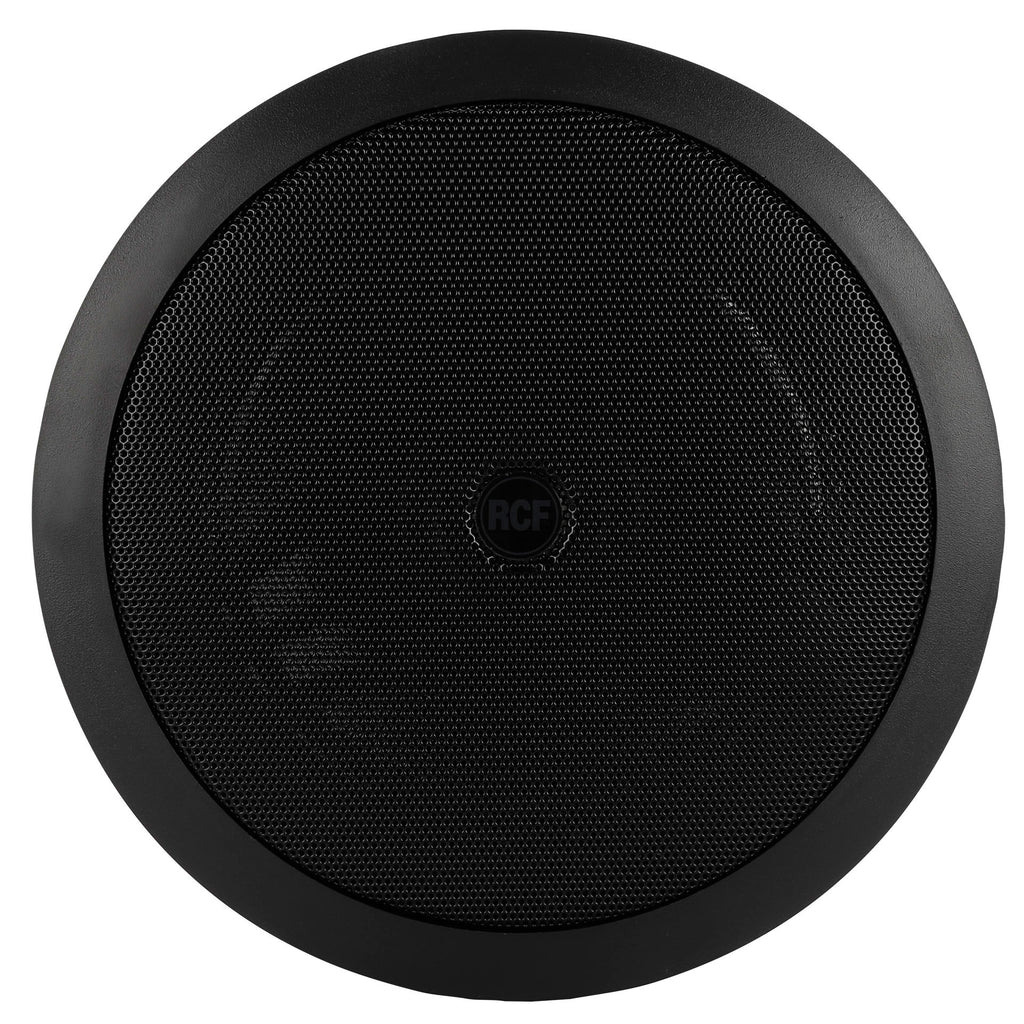

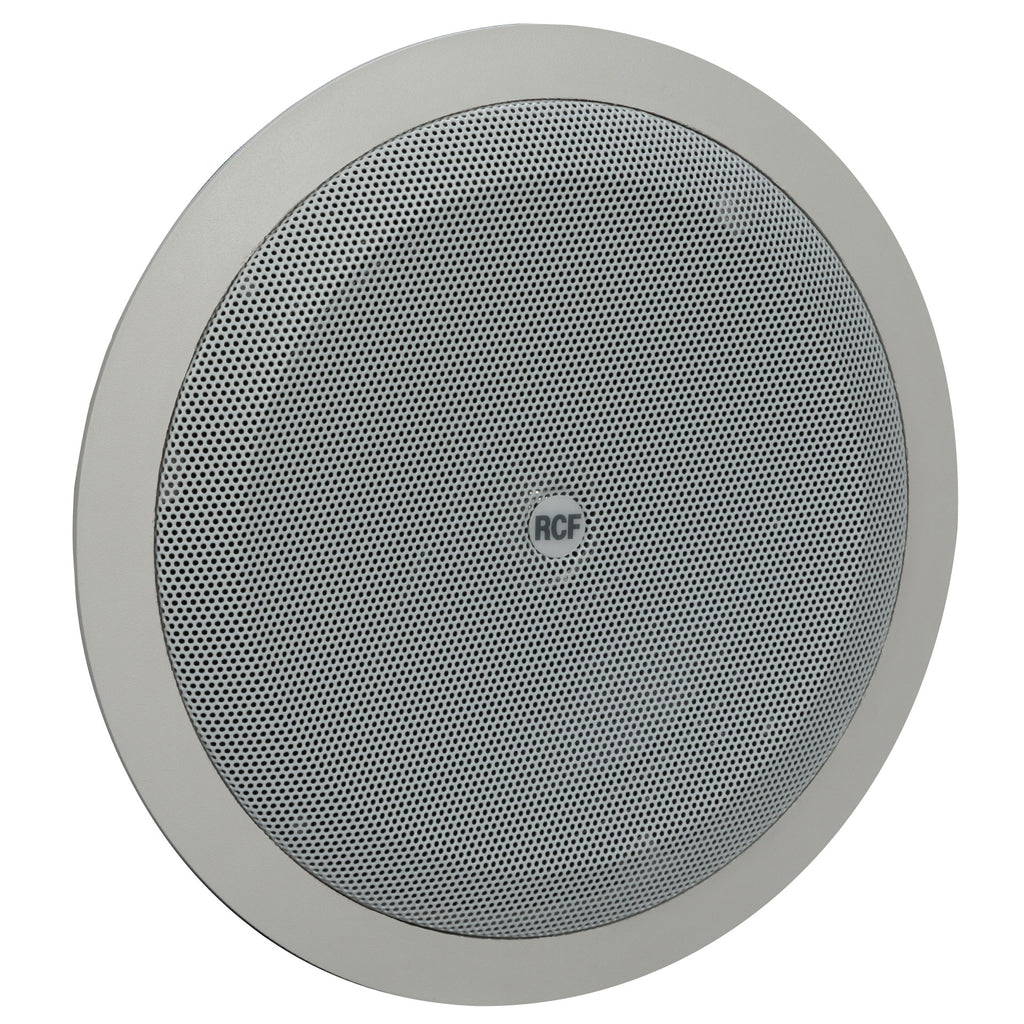

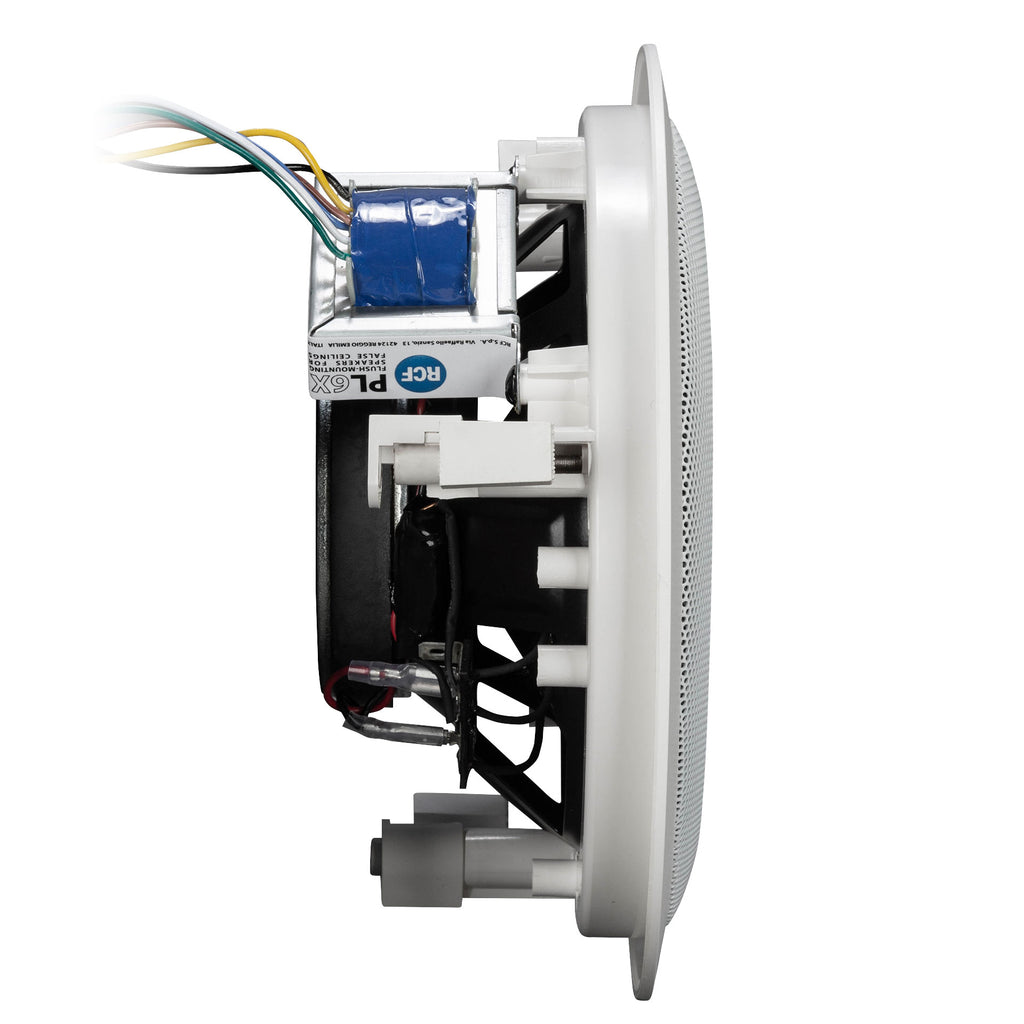

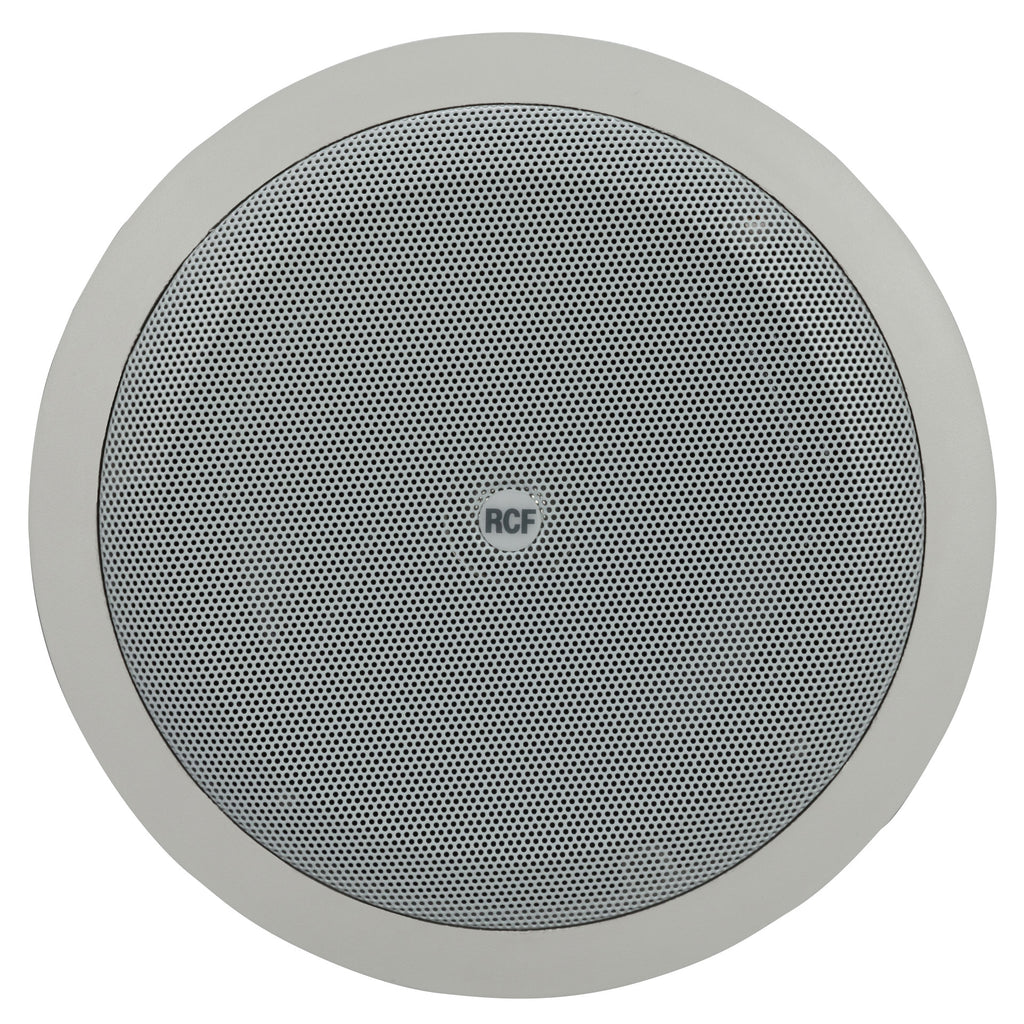

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6" coaxial woofer with a 1" tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features
- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W - 6 W - 3 W - 1.5 W
- 92 dB sensitivity

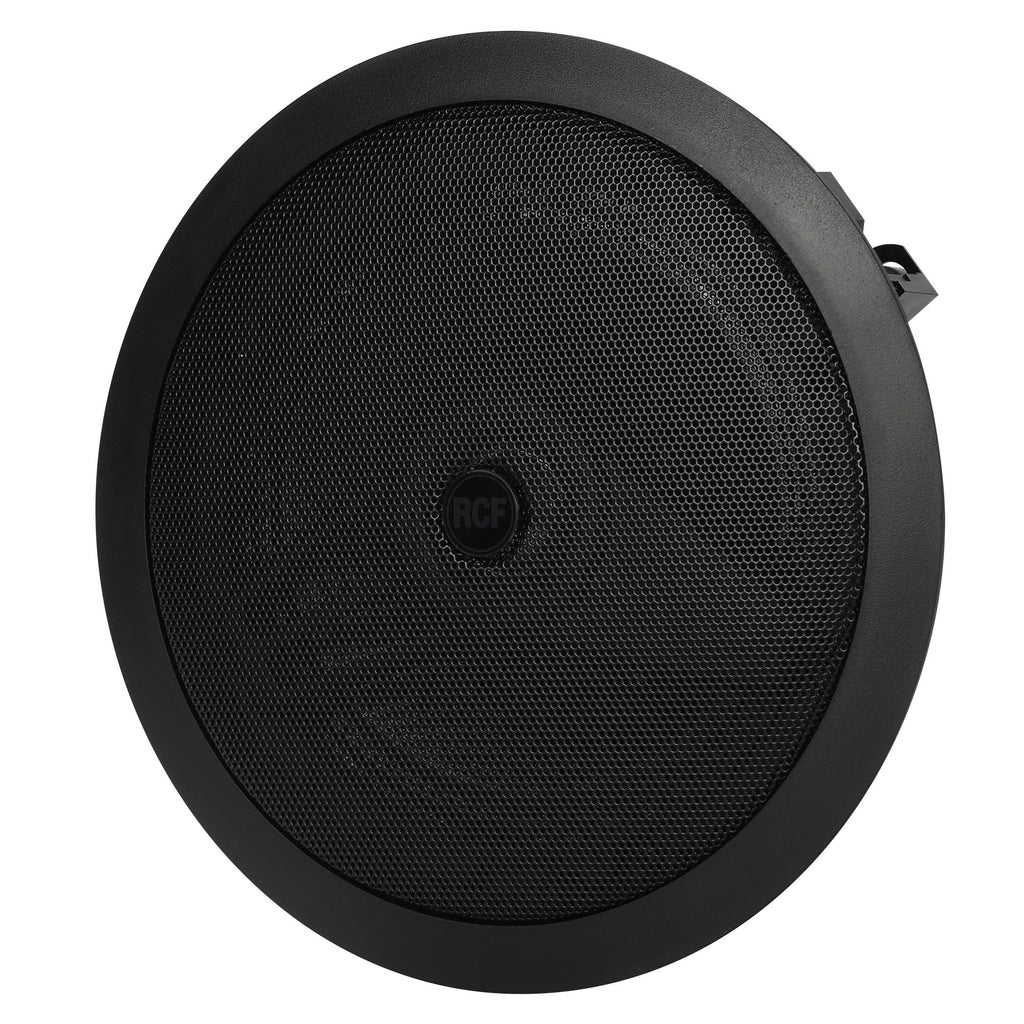

- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 70 Hz - 20000 Hz |
| Max SPL @ 1m | 106 dB |
| Coverage angle | 100° |
| System Sensitivity | 92 dB |
| Power section | |
| Amplification | Full Range |
| Power Handling | 12 W RMS |
| Peak Power Handling | 48 W PEAK |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
| Transducers | |
| Dome Tweeter | 1.0'' |
| Woofer | 6.0'' |
| Input/Output section | |
| Input connectors | Screw Terminals |
| Output connectors | Screw Terminals |

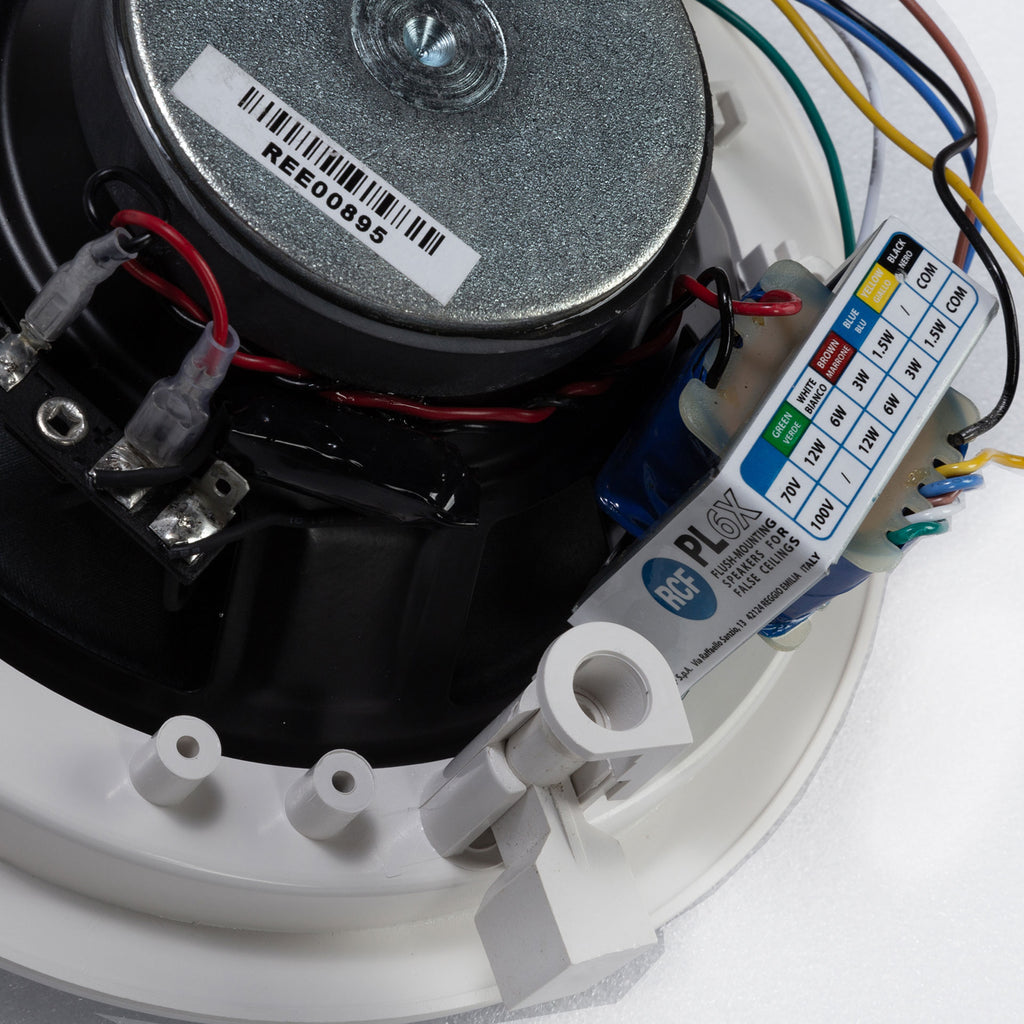

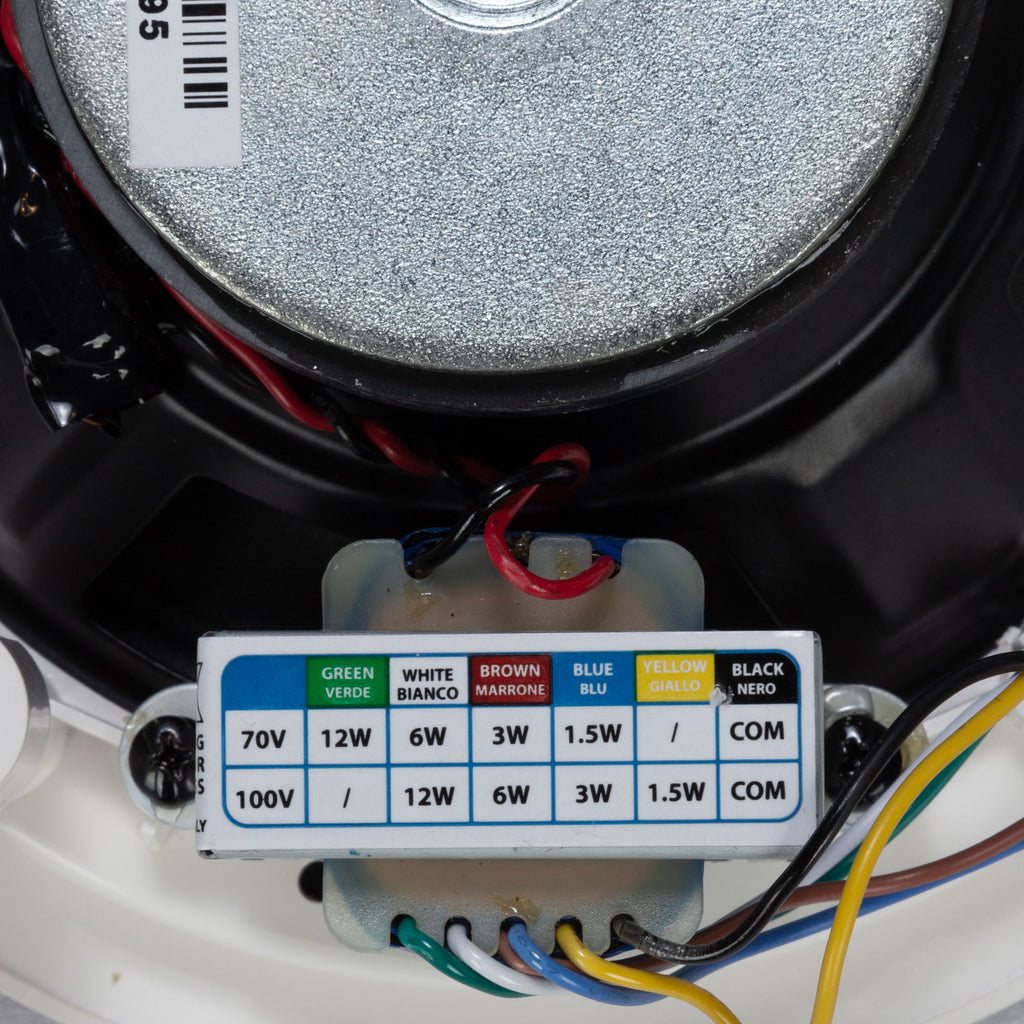

| Constant Voltage Transformer | 70/100 V |
| Power selection 1 | 12 W - 833 ohm |
| Power selection 2 | 6 W - 1667 ohm |
| Power selection 3 | 3 W - 3333 ohm |
| Power selection 4 | 1.5 W - 6667 ohm |
| Standard compliance | |
| IP protection grade | IP 44 |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plastic |
| Hardware | Plastic Material |
| Grille | Aluminium |
| Color | White - RAL 9003, Black - RAL 9005 |
| Size / Weight | |
| Depth | 73 mm / 2.87 inches |
| Recessed Depth | 66 mm / 2.6 inches |
| Diameter | 204 mm / 8.03 inches |
| Cut out diameter | 182 mm / 7.17 inches |
| Weight | 0.78 kg / 1.72 lbs |
| Shipping information | |
| Package Height | 240 mm / 9.45 inches |
| Package Width | 240 mm / 9.45 inches |
| Package Depth | 110 mm / 4.33 inches |
| Package Weight | 1.56 kg / 3.44 lbs |
