Description

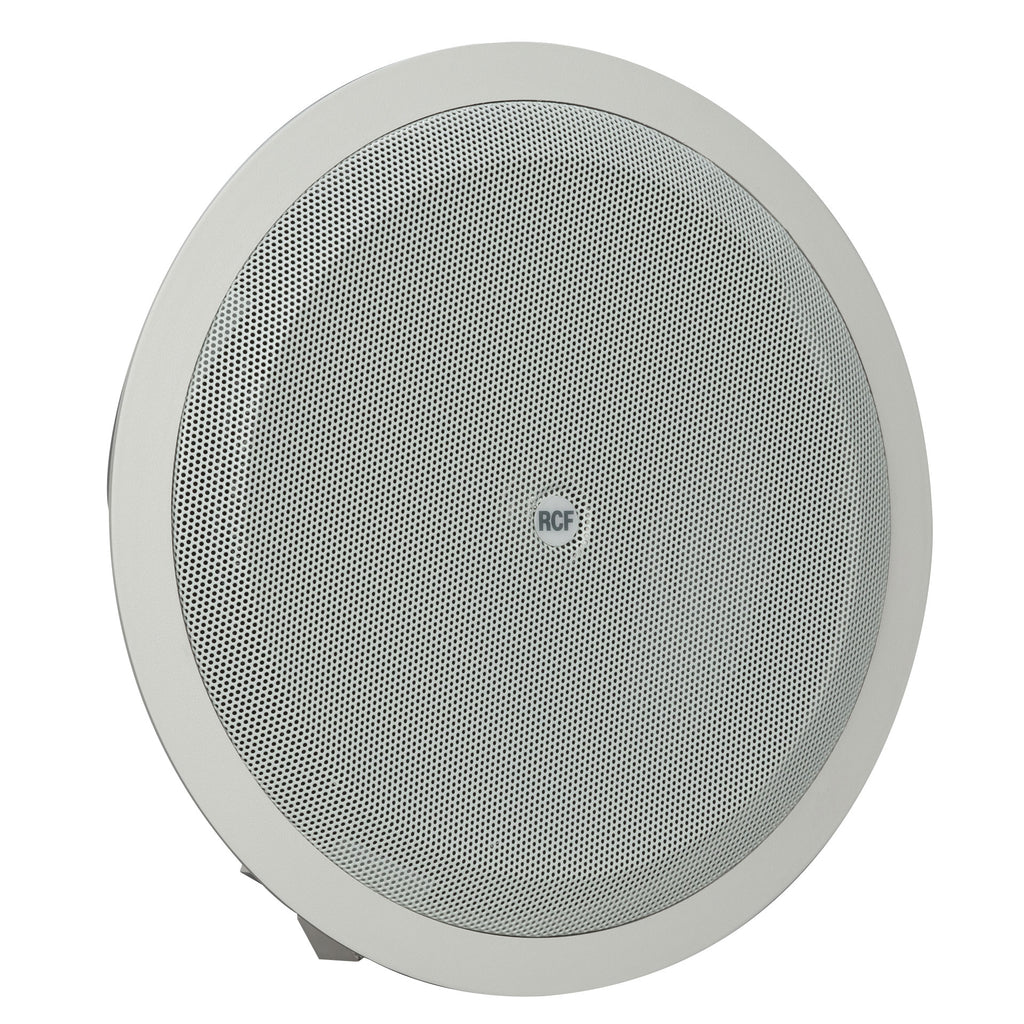

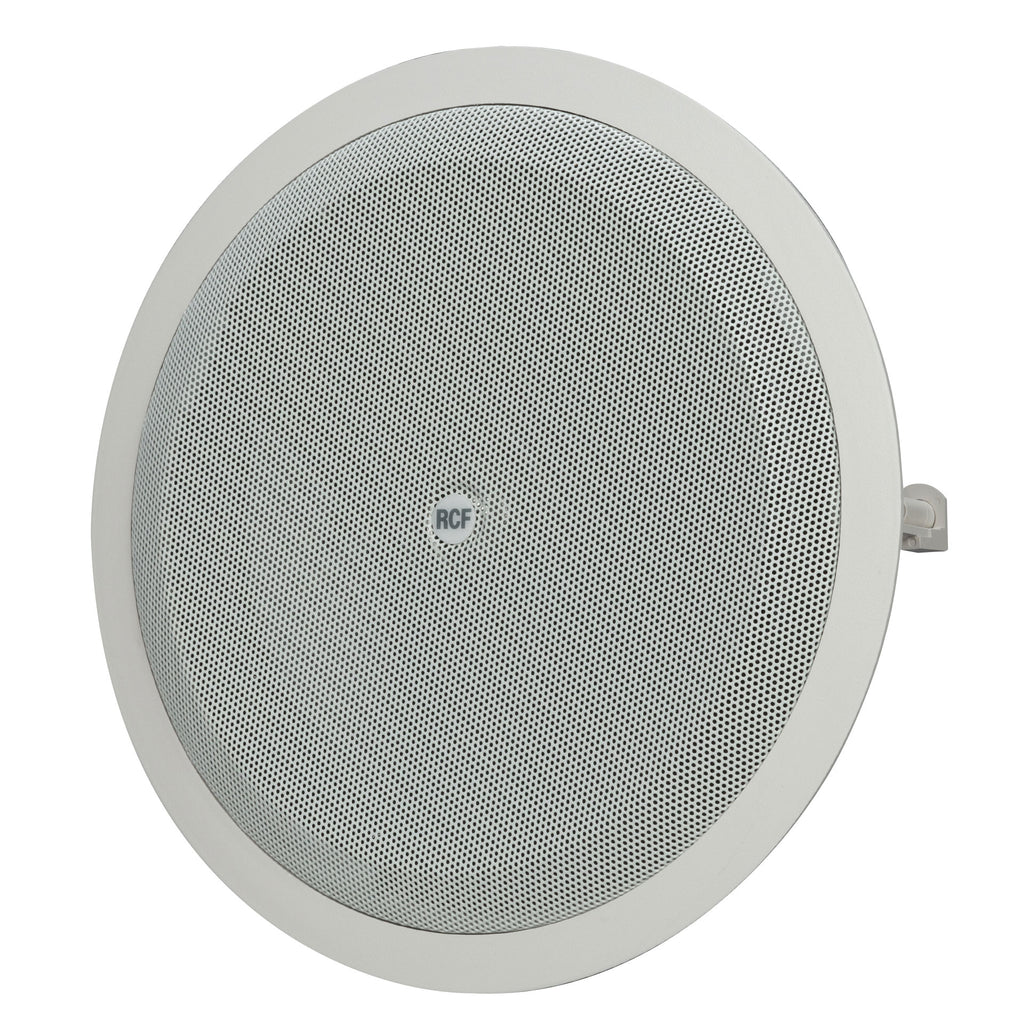

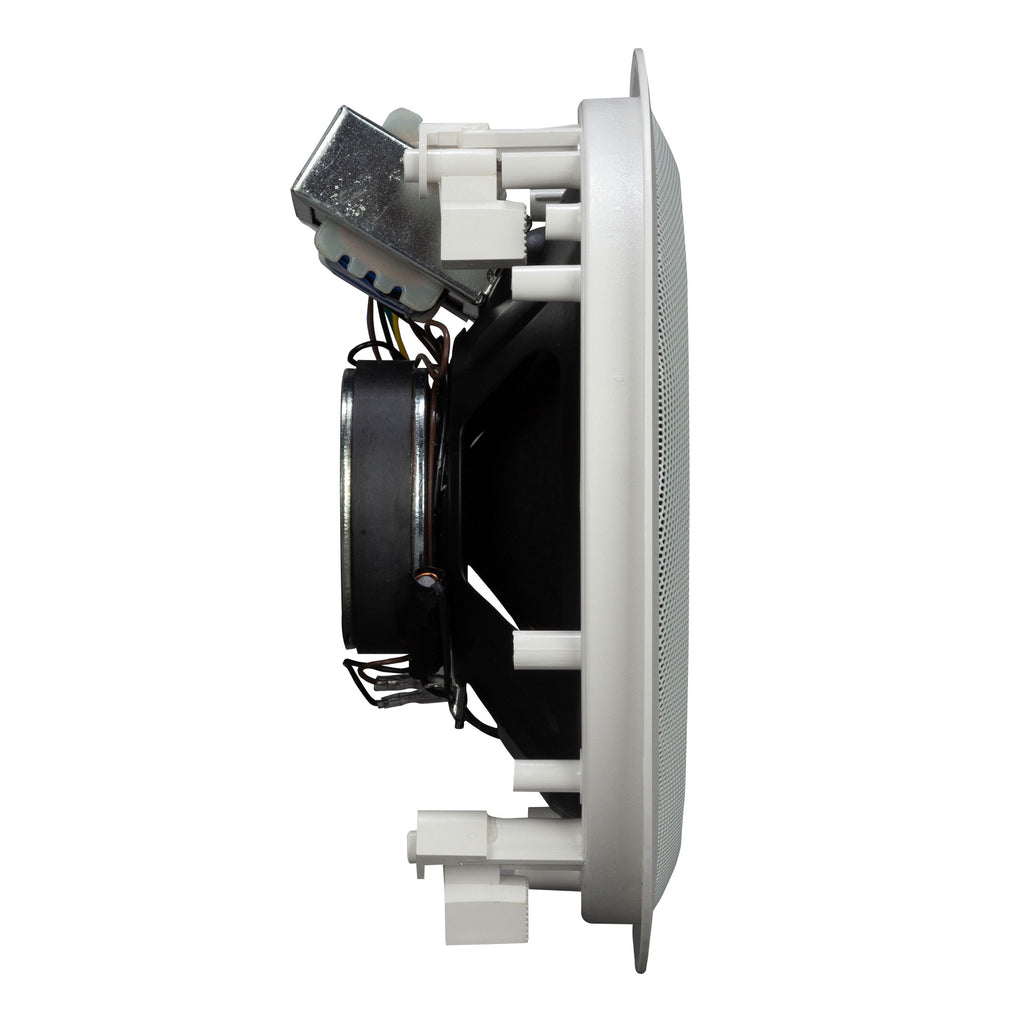

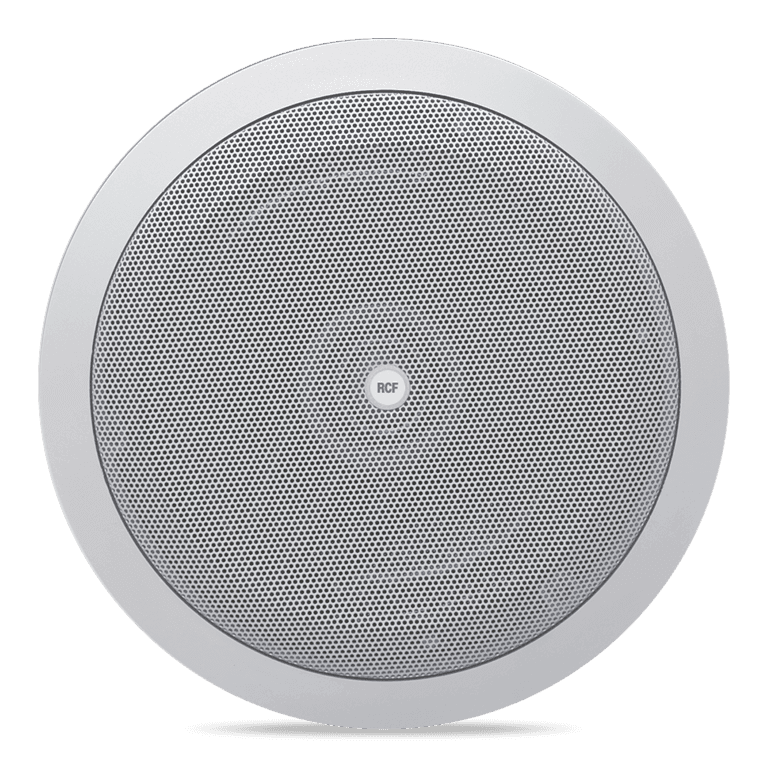

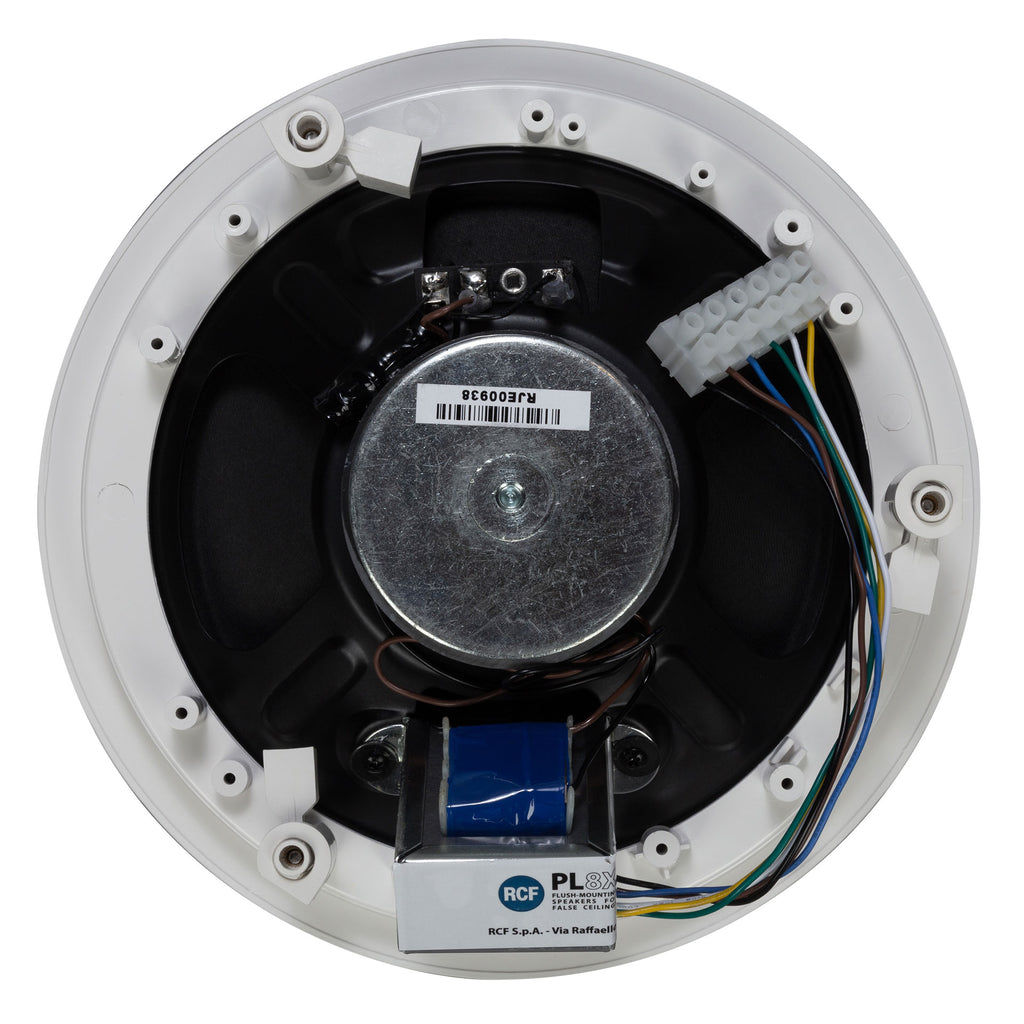

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8" coaxial woofer with a 1" tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features

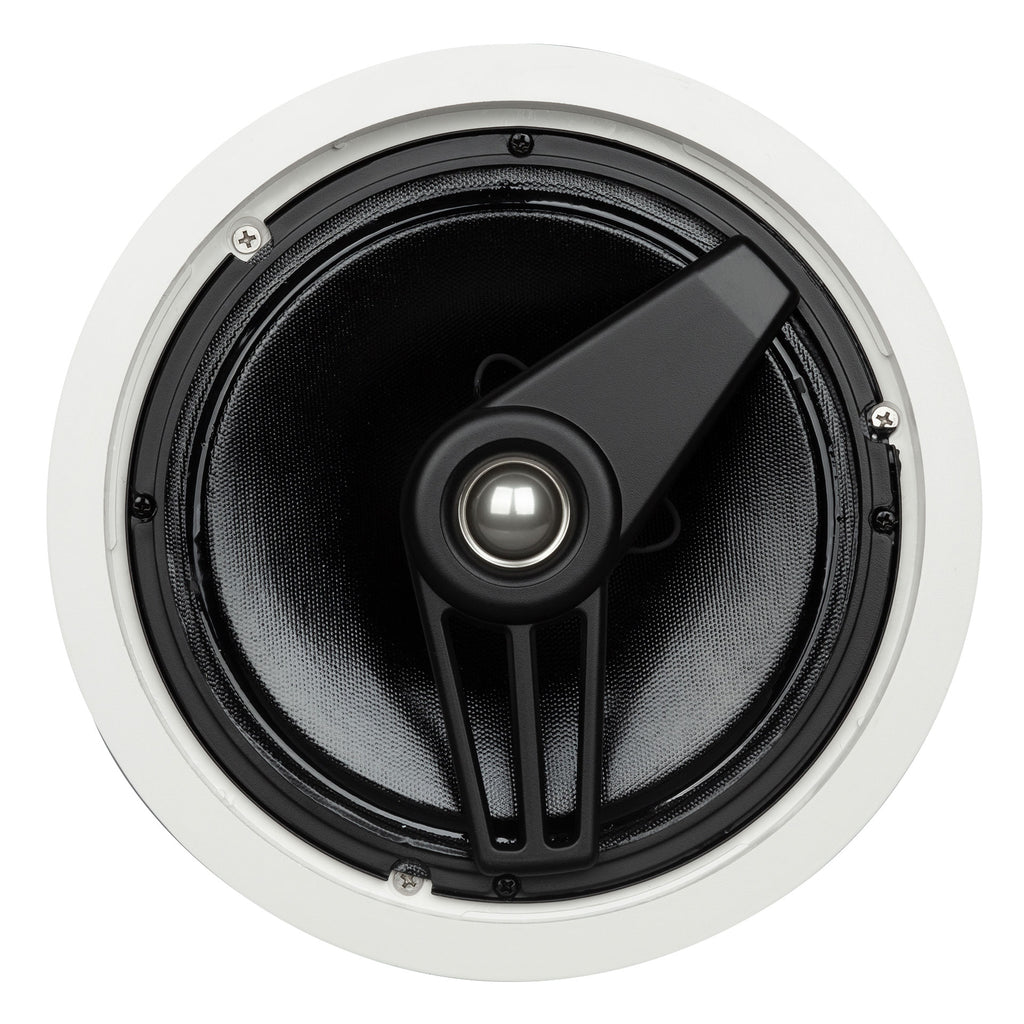

- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W - 10 W - 5 W - 2.5 W
- 93 dB sensitivity

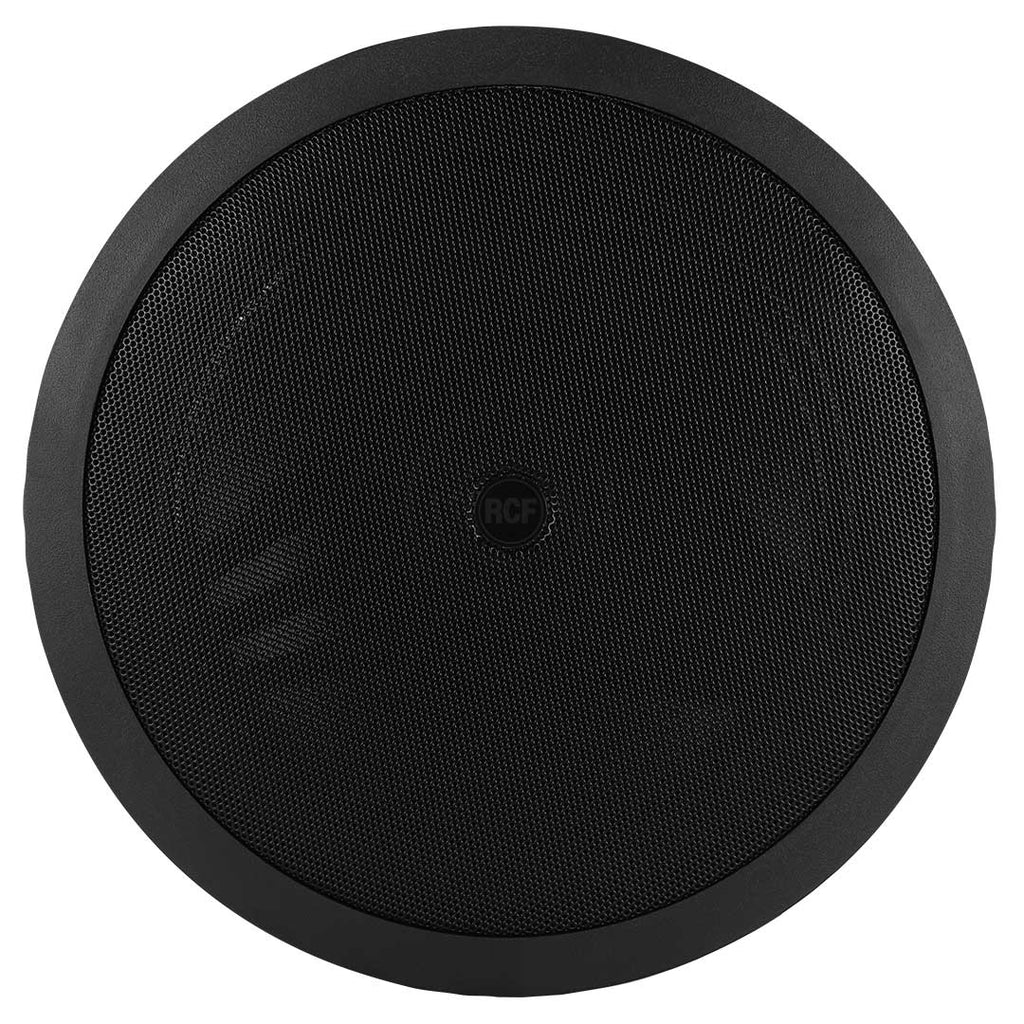

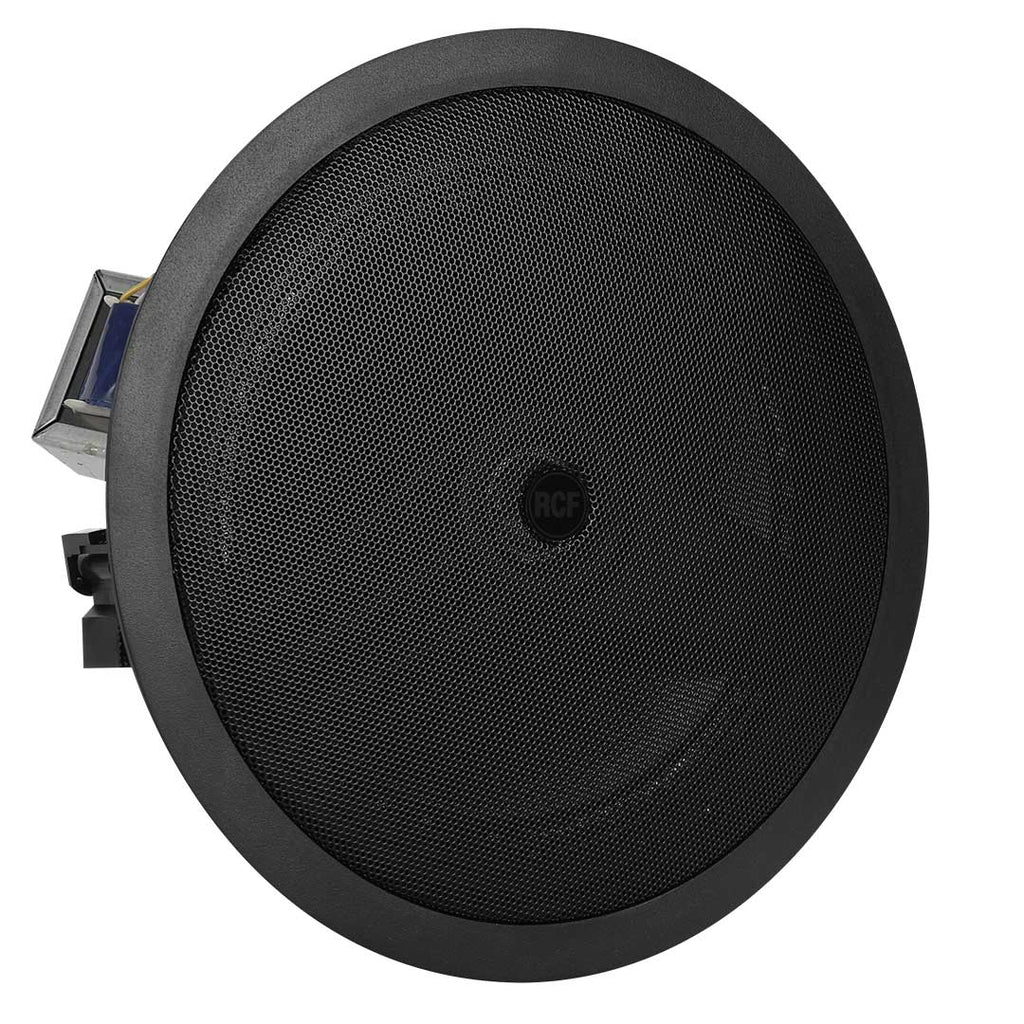

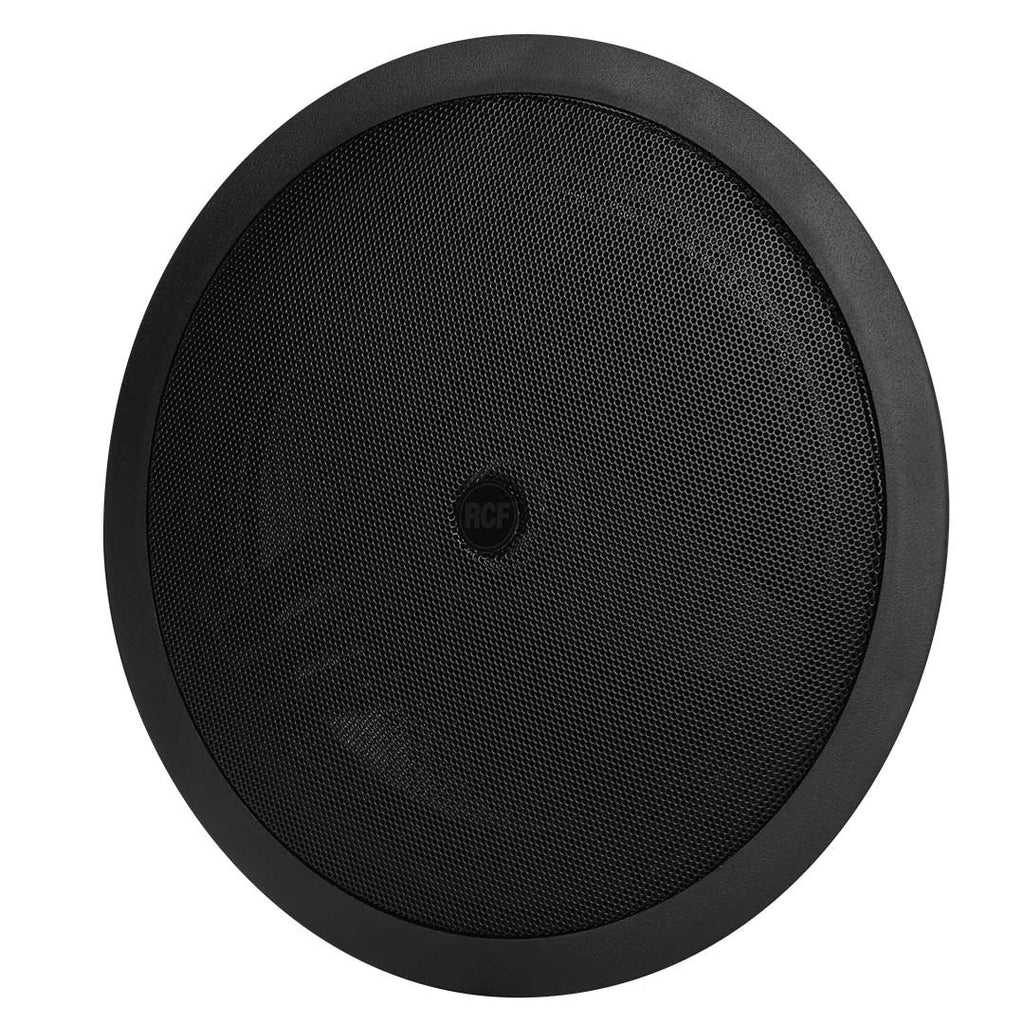

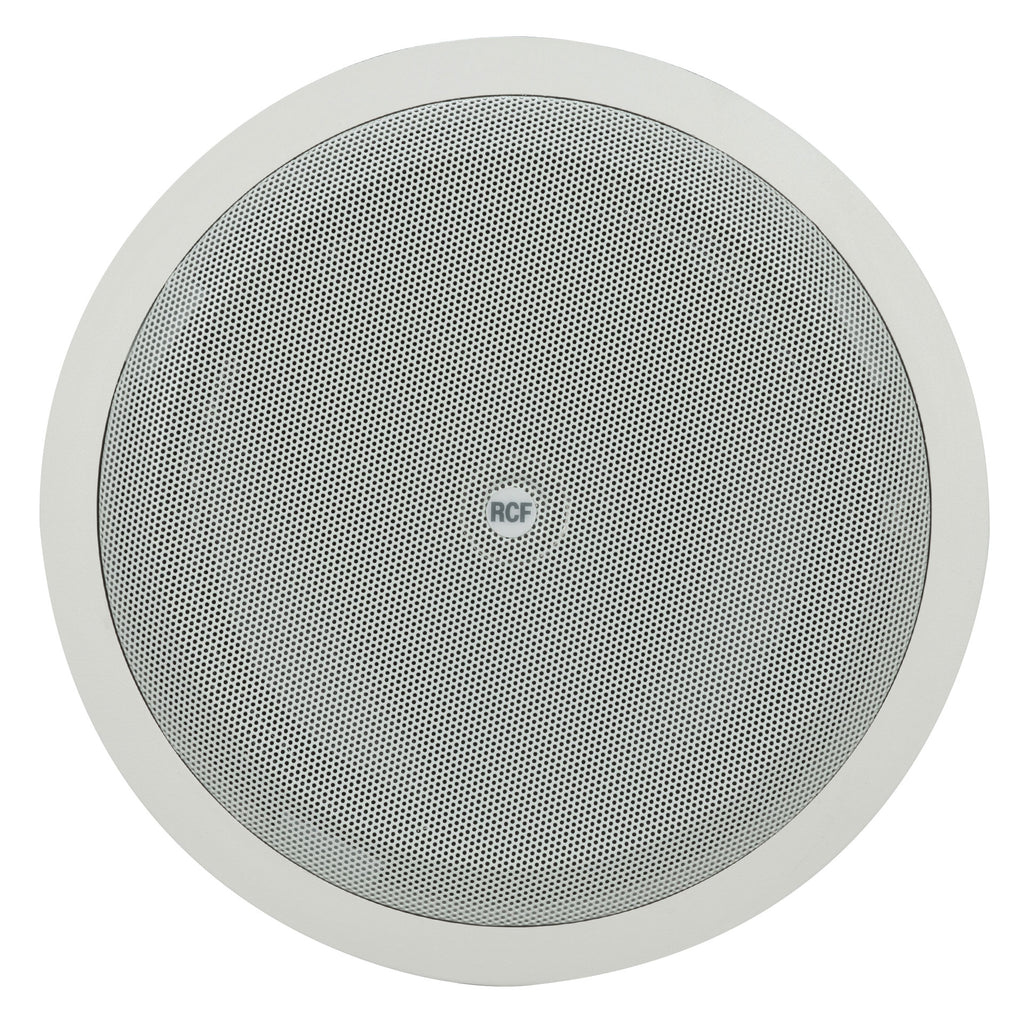

- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 60 Hz - 20000 Hz |
| Max SPL @ 1m | 109 dB |
| Coverage angle | 80° |
| System Sensitivity | 93 dB |
| Power section | |
| Amplification | Full Range |
| Power Handling | 20 W RMS |
| Peak Power Handling | 80 W PEAK |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
| Transducers | |
| Dome Tweeter | 1.0'' |
| Woofer | 8'' |
| Input/Output section | |
| Input connectors | Screw Terminals |
| Output connectors | Screw Terminals |

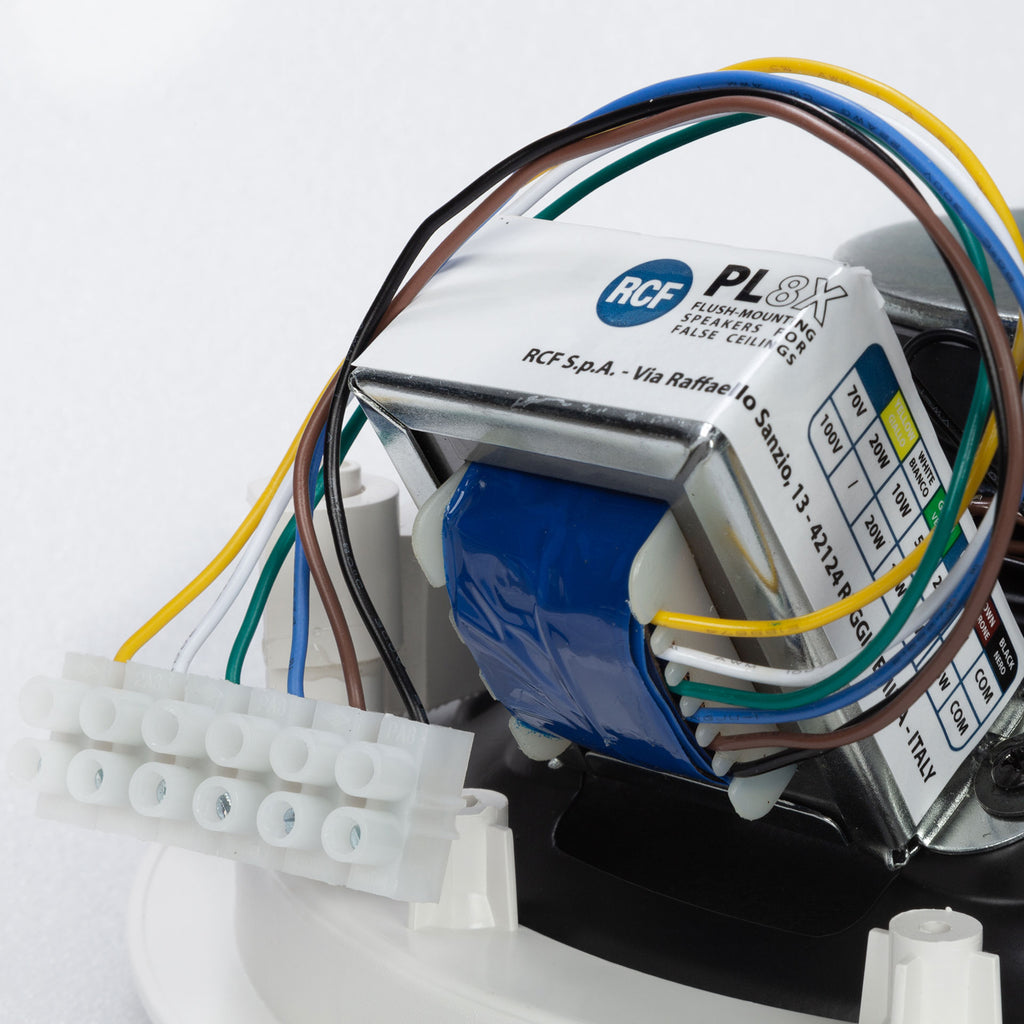

| Constant Voltage Transformer | 70/100 V |
| Power selection 1 | 20 W - 500 ohm |
| Power selection 2 | 10 W - 1000 ohm |
| Power selection 3 | 5 W - 2000 ohm |
| Power selection 4 | 2.5 W - 4000 ohm |
| Standard compliance | |
| IP protection grade | IP 44 |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plastic |
| Hardware | Plastic Material |
| Grille | Aluminium |
| Color | White - RAL 9003, Black - RAL 9005 |
| Size / Weight | |
| Depth | 88 mm / 3.46 inches |
| Recessed Depth | 80 mm / 3.15 inches |
| Diameter | 247 mm / 9.72 inches |
| Cut out diameter | 224 mm / 8.82 inches |
| Weight | 1.23 kg / 2.71 lbs |
| Shipping information | |
| Package Height | 280 mm / 11.02 inches |
| Package Width | 280 mm / 11.02 inches |
| Package Depth | 130 mm / 5.12 inches |
| Package Weight | 2.09 kg / 4.61 lbs |
