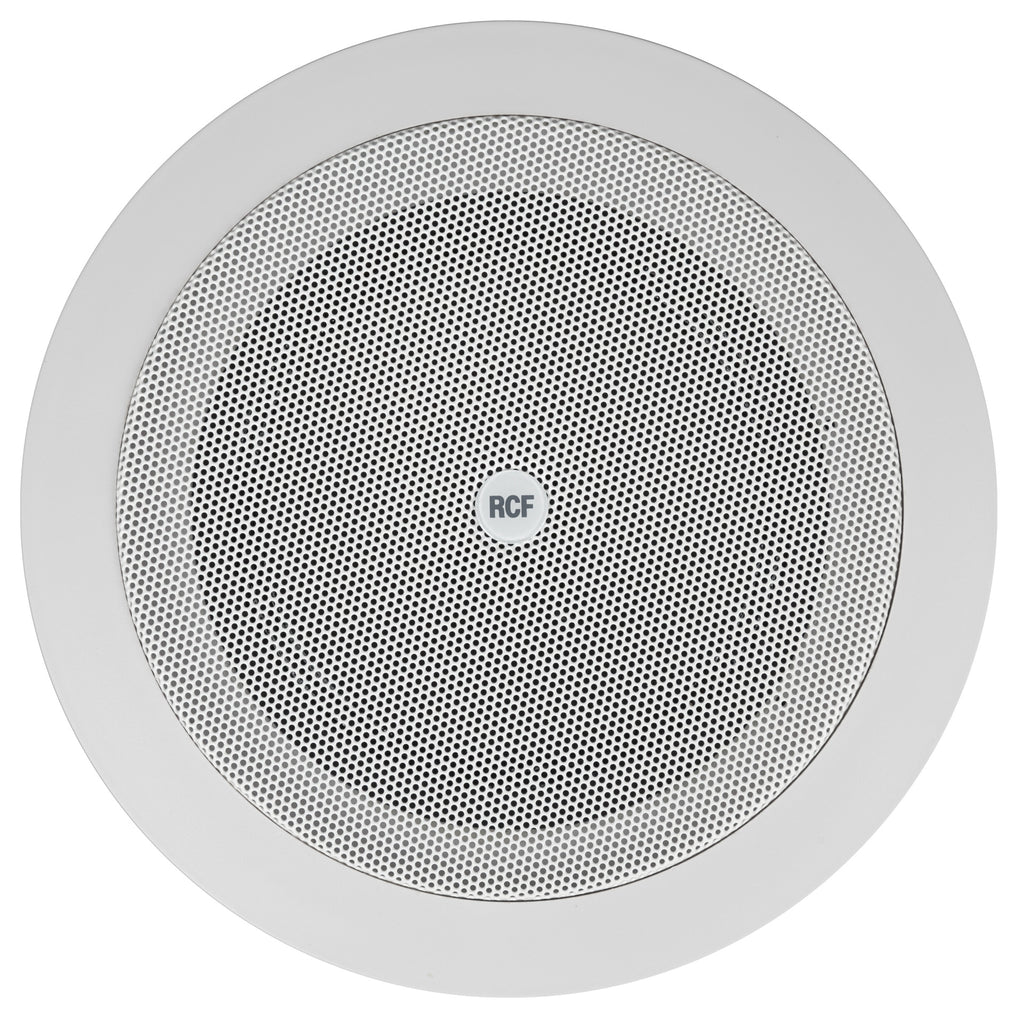

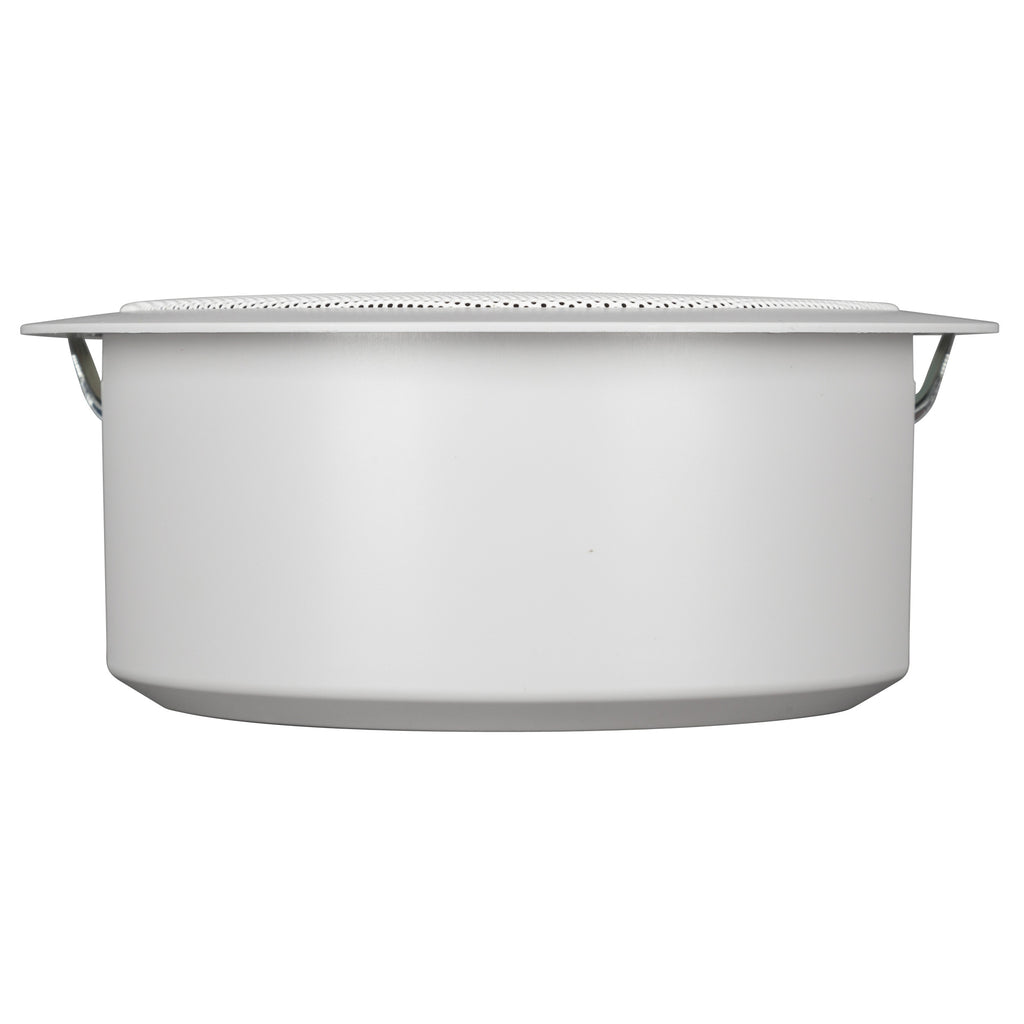

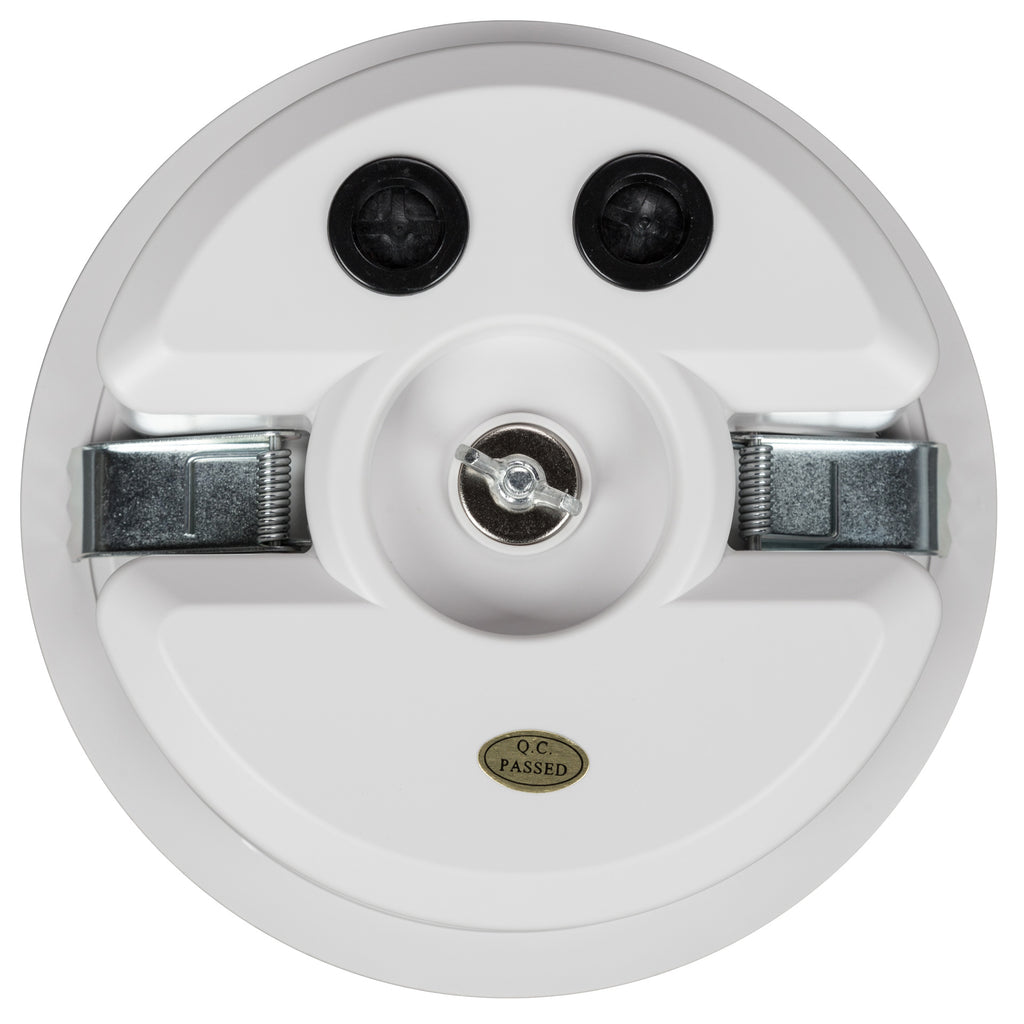

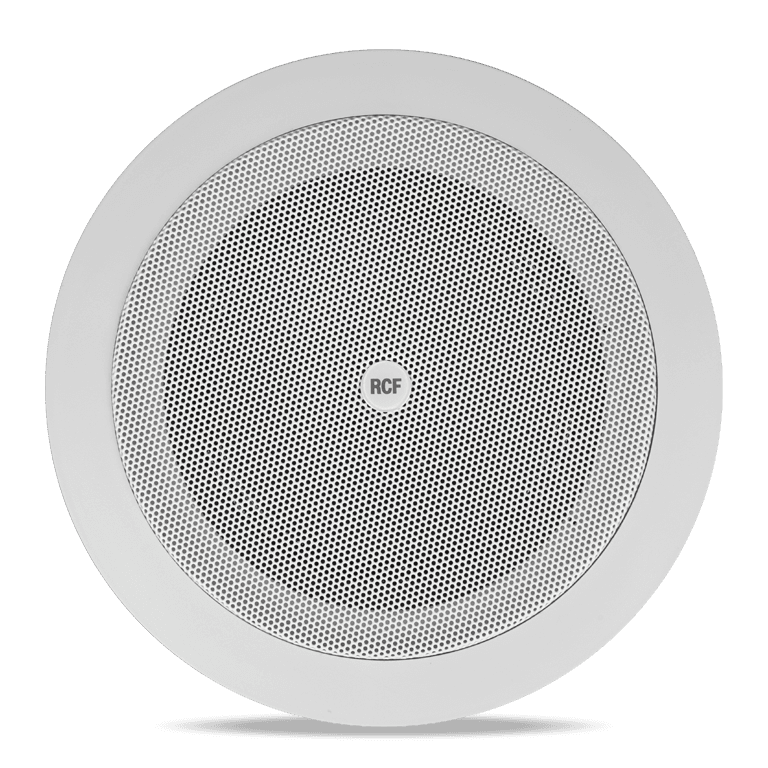

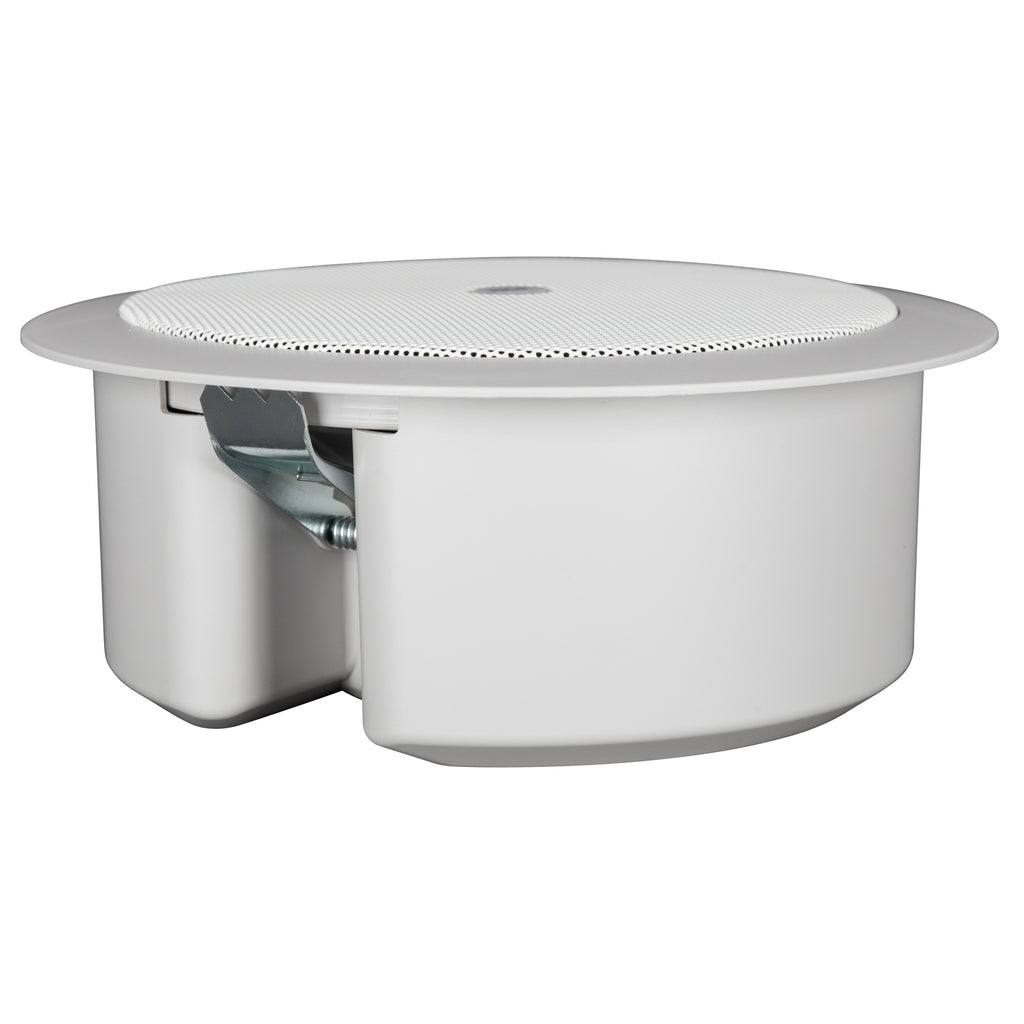

RCF PLP 50EN - 5" Ceiling Speaker Plastic Fire Dome, 6W, 70-100V

RCFSKU: PLP 50EN

Price:
$79

Shipping calculated at checkout

Description

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | PLP 50EN | CEILING SPEAKER WITH PLASTIC FIRE DOME | 5" fullrange transducer.

Technical Specifications

Acoustical specifications
Frequency Response (-10dB) 130 Hz - 15000 Hz
Max SPL @ 1m 101 dB
Max SPL @ 4m 89 dB
Coverage angle 165°
System Sensitivity 93 dB
System Sensitivity 1W @ 4m 81 dB
Power section
Amplification Full Range
Power Handling 6 W
Peak Power Handling 24 W PEAK
Protections Thermal fuse
Recommended Amplifiers DXT 3000, DXT 4000, DXT 7000
Transducers
Fullrange 1 x 5.0''
Input/Output section
Input connectors Ceramic screw terminals
Output connectors Constant Voltage Transformer
100 V Power selection 1
6 W - 1667 ohm Power selection 2
3 W - 3333 ohm Power selection 3
1.5 W - 6667 ohm
Standard compliance
Safety agency CE compliant
EN54-24 certified Yes
CPR number 0068-CPR-051/2017
Physical specifications
Cabinet/Case Material Plastic
Hardware Plastic back cover
Grille Steel
Color White - RAL 9016
Size / Weight
Depth 71 mm / 2.8 inches
Recessed Depth 66 mm / 2.6 inches
Diameter 175 mm / 6.89 inches
Cut out diameter 149 mm / 5.87 inches
Weight 0.66 kg / 1.46 lbs
Shipping information
Package Height 110 mm / 4.33 inches
Package Width 190 mm / 7.48 inches
Package Depth 180 mm / 7.09 inches
