Description
PSLC10
Specifications
SOURCE
0.2 SMD RGB 3-in-1 LEDs
Color Resolution: 8 bits per color (24 bits per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation): 44,000Hz
CONNECTIONS

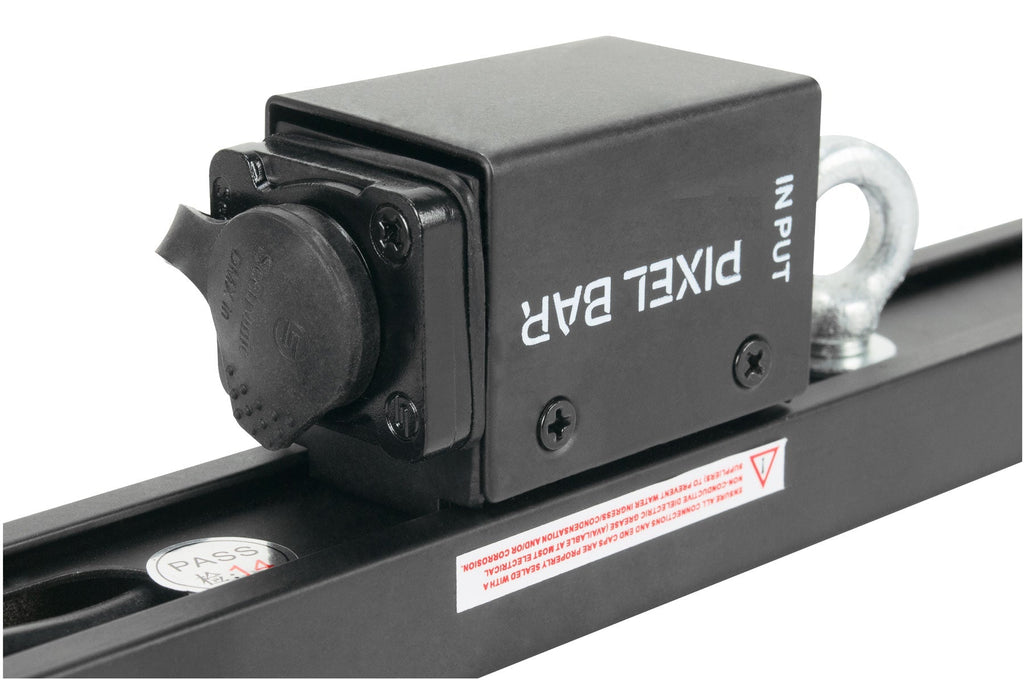

4pin Power/Data In/Out
SIZE / WEIGHT
Length: 19.2" (488mm)
Width: 1.3" (34mm)
Height: 3.3" (83mm)
Weight: 1.5 lbs. (0.7kg)
ELECTRICAL
Max Power Consumption: 6W
ACCESSORIES
(1) Frosted Square LED Lens Cover (Included)
(1) Frosted Round LED Lens Cover (Included)
(1) Stealth Gray LED Lens Cover (Included)
(1) Stealth Gray LED Lens Cover (Included)
APPROVALS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
