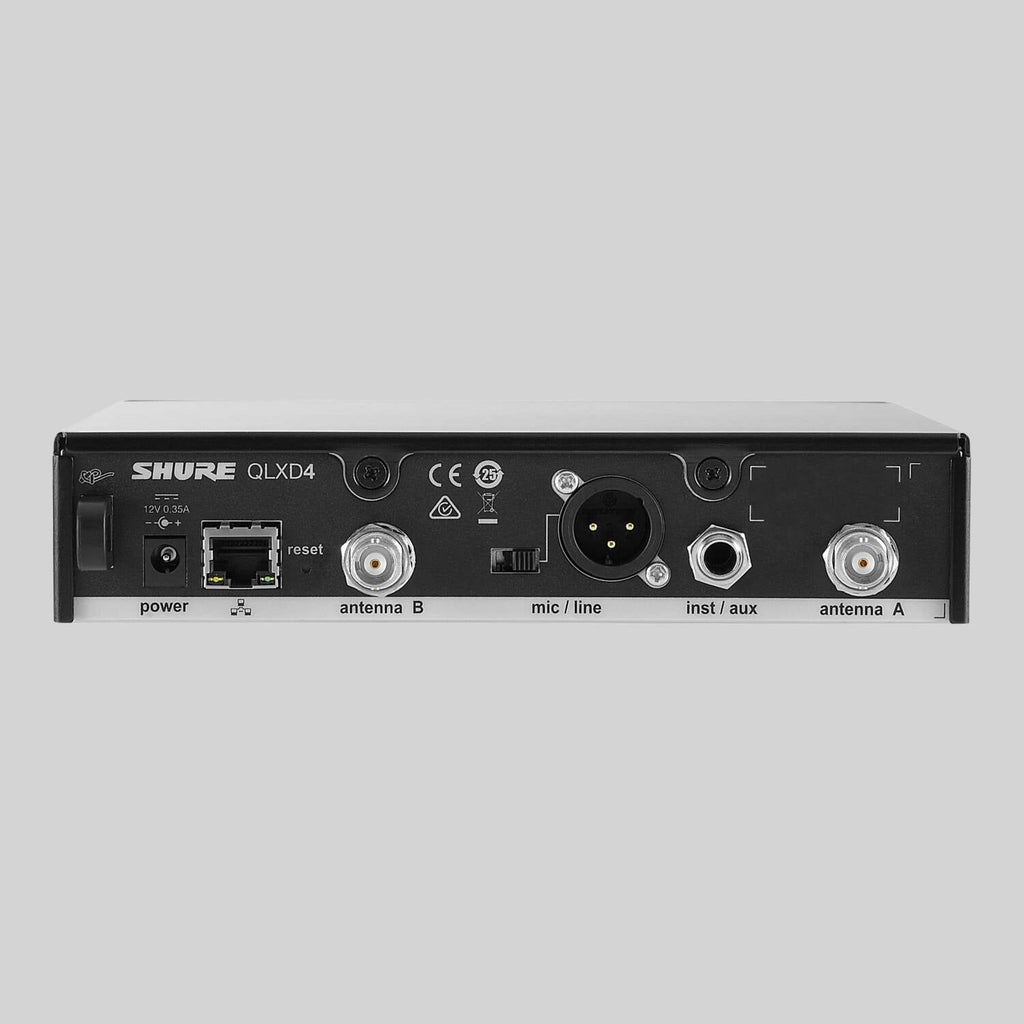

With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.

Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench® software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus™ Channels Mobile App.

• 64 MHz tuning bandwidth (region dependent)
• More than 60 preset compatible channels per frequency band (region dependent)
• Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• Detachable ½ wave antennas
• Mic / line switchable XLR output
• ¼" Instrument output
• Durable aluminum construction with brushed finish

Specifications

• Transmission: Digital in VHF, UHF, 900MHz ISM, 1.5GHz, 1.8GHz
• Type Of Power Supply: External
• Encryption: yes, AES-256

Dimensions and Weight

• Width: 7.756 in (197.0 mm)
• Height: 1.614 in (41.0 mm)
• Depth: 5.945 in (151.0 mm)
• Weight: 1.713 lb (777 g)

Power requirements 12 V DC @ 0.4 A, supplied by external power supply (tip positive) RF Input Spurious Rejection >80 dB, typical Connector Type BNC Impedance 50 Ω Audio Output Gain Adjustment Range -18 to +42 dB in 1 dB steps Configuration 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio −) Impedance 1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω Full Scale Output 1/4" (6.35 mm): +12 dBV XLR: LINE setting= +18 dBV, MIC setting= −12 dBV Mic/Line Switch 30 dB pad Phantom Power Protection 1/4" (6.35 mm): yes XLR: yes Networking Network Interface Single Port Ethernet 10/100 Mbps Network Addressing Capability DHCP or Manual IP address Maximum Ethernet Cable Length 100 m (328 ft)
