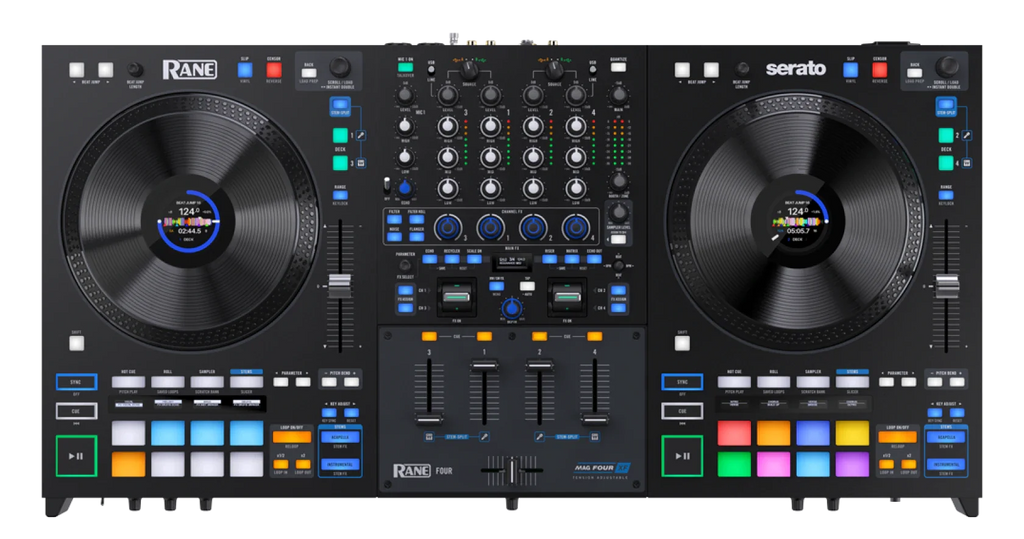

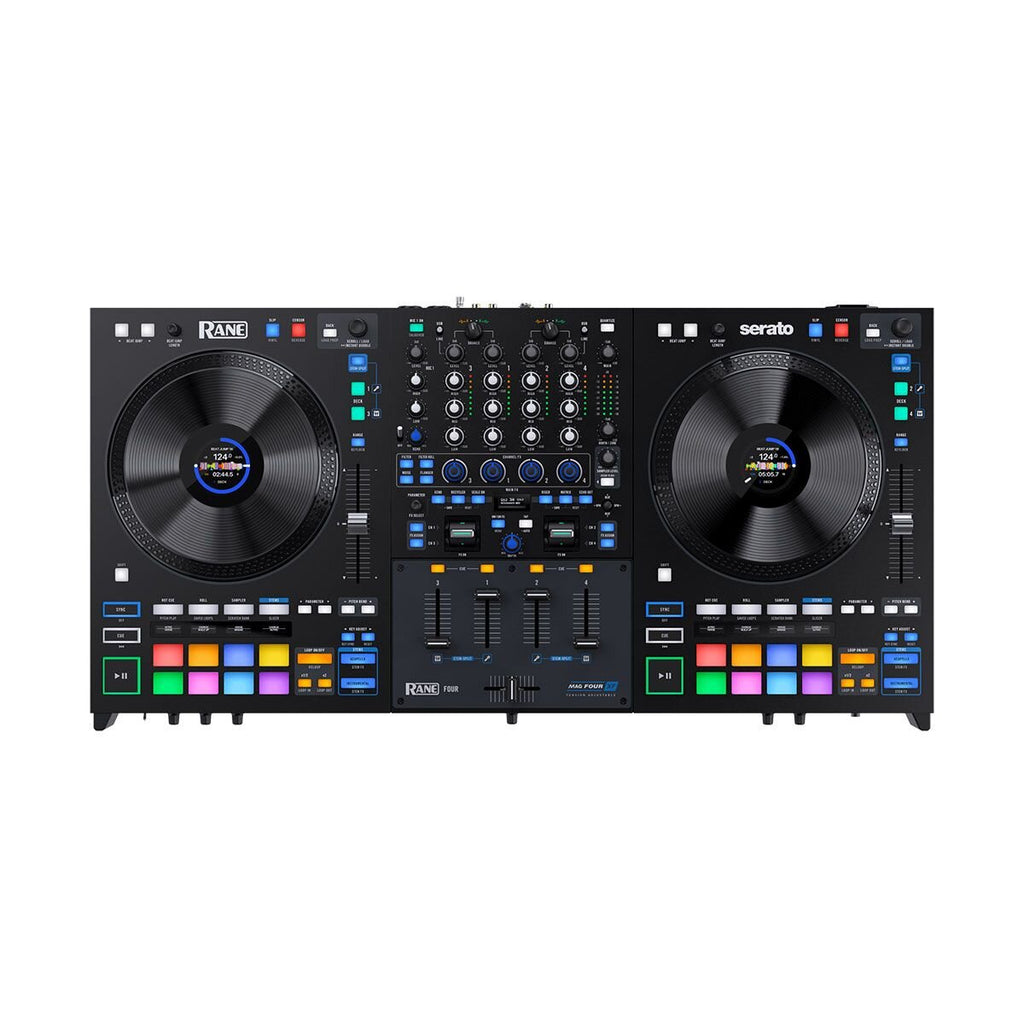

RANE DJ FOUR is a professional 4-channel DJ controller for Serato DJ Pro, built for high-performance mixing with advanced controls, rugged construction, and club-ready connectivity.

Advanced 4-Channel Stems DJ Controller

Built for advanced stems workflows and four channel control, the RANE FOUR combines Serato Stems tools, Dynamic FX, high resolution jog wheels, and RANE build quality in a dedicated performance controller.

Four channels. Stems up front.

RANE Four: Harness the power of stems

The FOUR is built around direct Stems handling on the surface. A dedicated Stems pad mode, independent Acapella and Instrumental buttons, and RANE’s exclusive STEM SPLIT feature give you multiple ways to separate, balance, and route track elements. This lets you treat vocals, drums, melodies, and other parts as live sources instead of static tracks, without leaving your usual performance flow.

Pad displays that keep your off the laptop

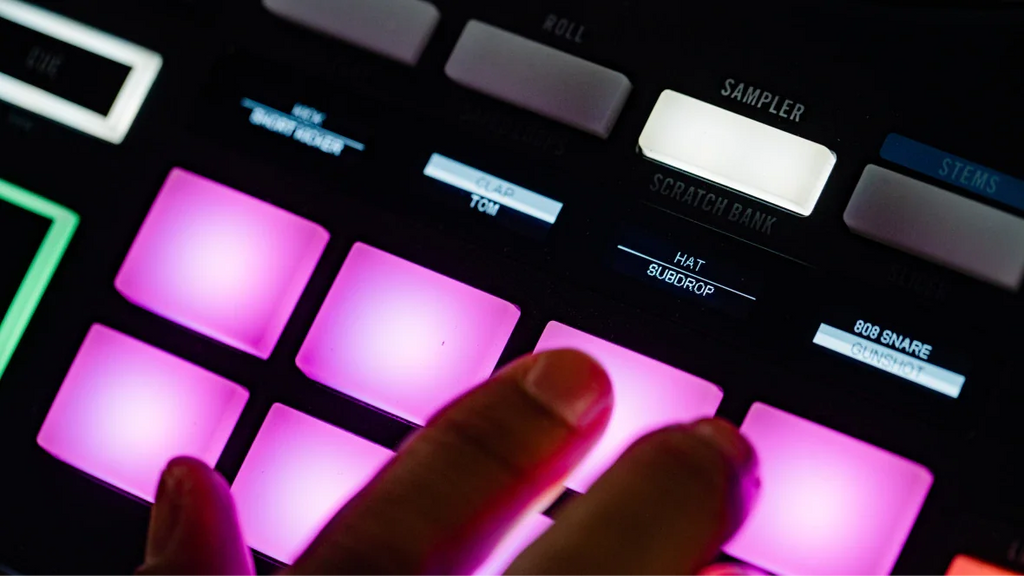

Eight OLED displays above the 16 Performance Pads provide visual feedback for every pad mode. You can see cue, loop, and sample names, roll and loop lengths, beat divisions, Pitch Play tuning, and which Stems elements and FX are active, directly above the pads. This makes it easier to stay locked on the controller and the crowd instead of watching the laptop screen.

A dynamic internal FX engine gives you 22 hardware Main FX and 4 knob controlled Channel FX, with access to Serato DJ software FX when you want to extend the palette. Classic tools like reverb, echo, filter, and flanger sit alongside modern additions like Scale Down, Recycler, and Riser, tuned for clear response on club systems. Channel FX such as Filter, Filter Roll, Noise, and Flanger sit on dedicated knobs for quick, hands on shaping of individual channels or stems.

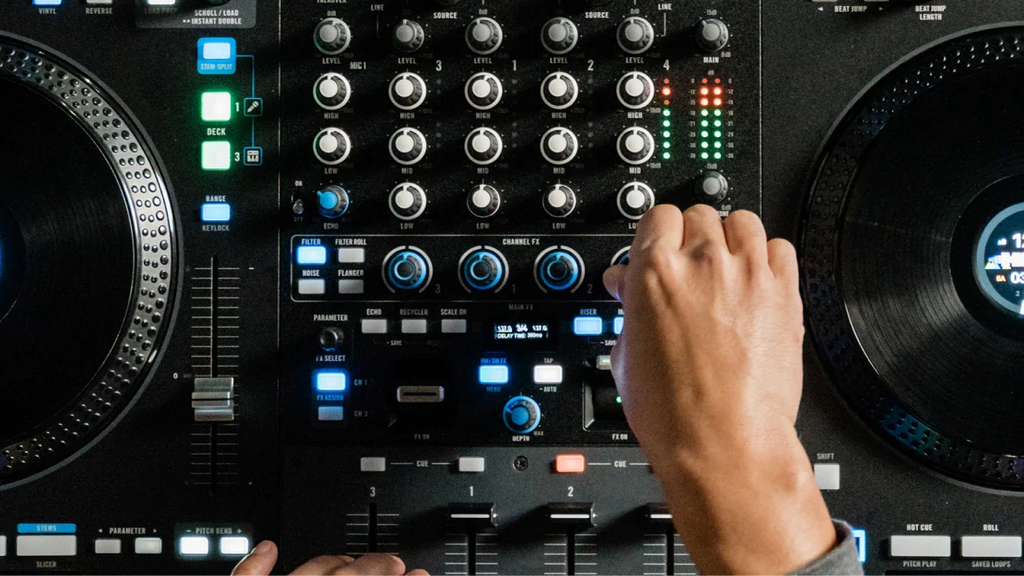

4-Channel mixer with flexible routing

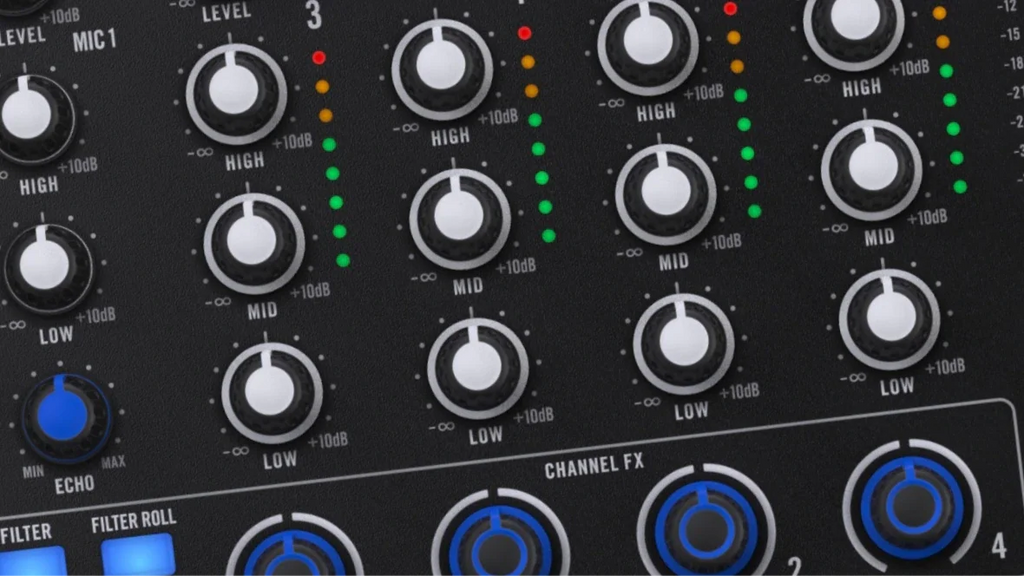

The FOUR’s 4 channel mixer section offers full EQ control, intuitive FX assignment, and enhanced sampler routing so you can treat the sampler like a true additional source when needed. Quick access deck selection buttons let you control up to four software decks from the main surface, and two Line/Phono inputs on the rear panel support external turntables or decks when you want to bring in vinyl or other hardware.

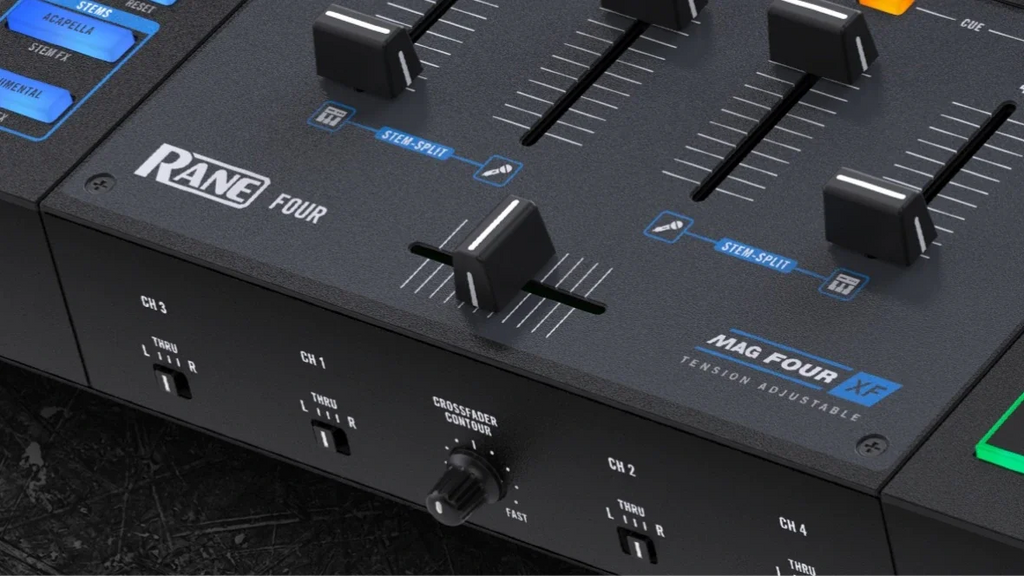

The mixer section features a tension adjustable MAG FOUR crossfader, designed for scratch and performance work. External tension adjustment lets you set the feel without opening the unit, while contour control and assignment switches keep your preferred curve and routing close to hand. Whether you are cutting stems, tracks, or external decks, the crossfader is built to handle fast, precise moves.

Full-size 8.5inch jog wheels with center displays

Two full size 8.5 inch high resolution capacitive static platters give you precise control over pitch bends, nudging, and jog based scratching. Each jog wheel features a full color center display that shows playhead position, BPM, pitch percentage and range, waveform overview with cue markers, key, time, loop size, deck selection, and more. This keeps critical information on the controller, tightening the link between your hands and what you hear.

Performance pads with OLED feedback

A dynamic internal FX engine gives you 29 main FX plus four knob controlled Channel FX for each side of the mixer. Core effects like echoes, reverbs, rolls, and flangers are tuned for clarity on professional sound systems. You can run the internal FX on their own or combine them with Serato DJ Pro FX when you need more layers, without sacrificing consistency or output level.

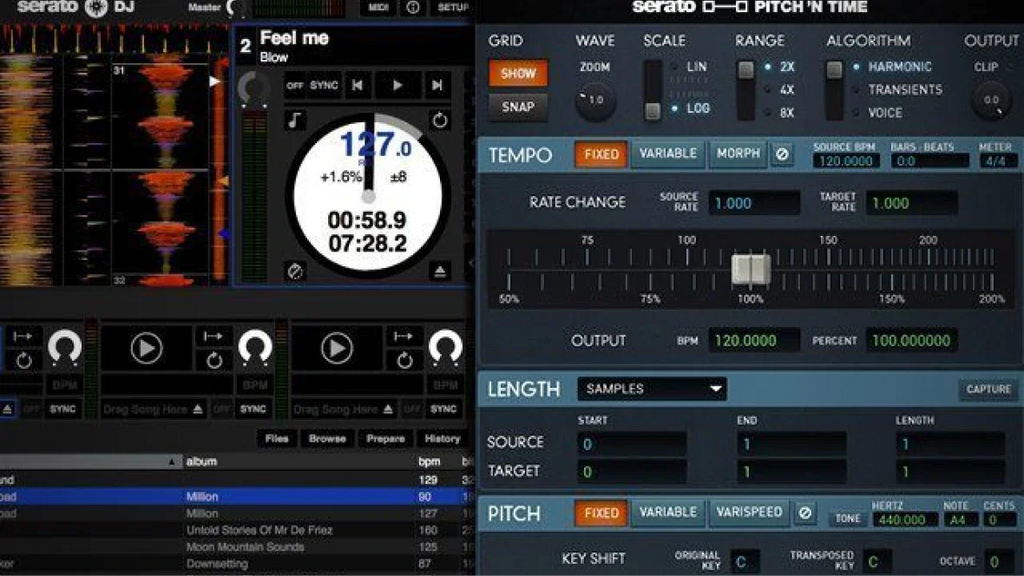

Serato DJ Pro and Serato Pitch 'n Time DJ included

The FOUR unlocks Serato DJ Pro when connected and comes with a license for Serato Pitch ’n Time DJ, so you can use advanced key-shifting and time-stretching for tight blends and key-matched routines. This pairing keeps the hardware and software tightly integrated, with the Serato Stems and FX features on the surface mapped directly to Serato’s latest tools.

Expand your performance, stay RANE grade

Two switchable Line/Phono inputs on the rear panel let you connect turntables or other external decks. The FOUR is DVS ready when used with the Serato DVS Expansion Pack, so you can control Serato decks with control vinyl if you choose. Dual USB ports support smooth DJ changeovers and back to back sets, and XLR and RCA main outputs, booth outputs, and dual mic inputs keep the controller ready for club, bar, or event installs. All of it sits inside a solid chassis built to RANE standards, with trusted sound quality and no compromise on connections.

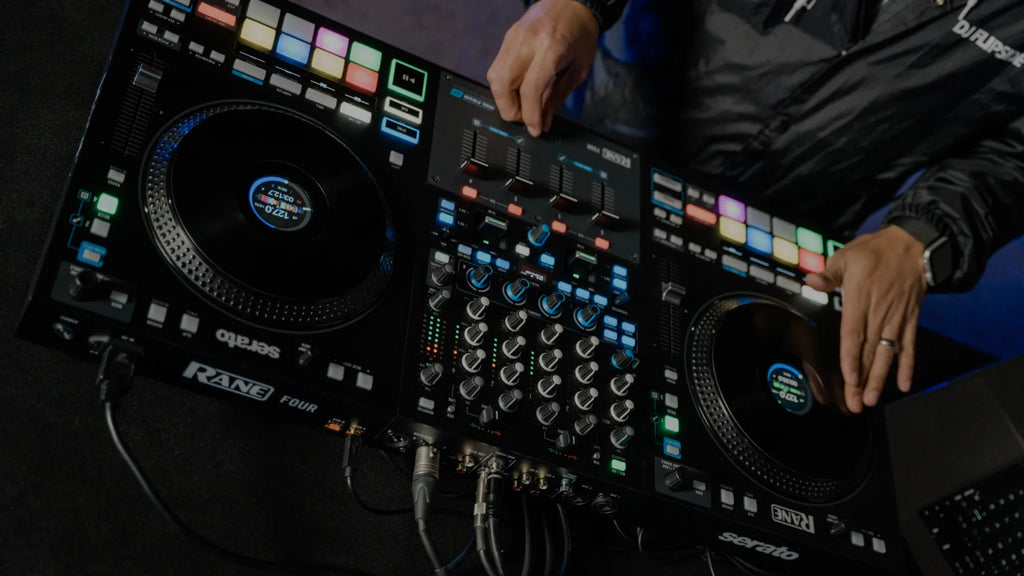

Take a detailed walkthrough of the FOUR’s Stems workflow, FX engine, jog wheels, mixer section, and connectivity to see how the controller is laid out for real performance work.

8.5” Jog Wheels with Color Displays

The color display indicates play head position, BPM, pitch percentage, pitch range, overview waveform with Hot Cue markers, song key, time, loop size, deck selection, Beat Jump length and more

Instantly Isolate or remove vocals, melody, bass, and drums. Bottom row Pads add STEM FX to the mix when removing elements. Stem separation can be applied to any song and is processed in real-time

Instrumental / Acapella Buttons

Isolate or subtract the vocals or instruments of any track at any time with a quick button tap, and without leaving your currently selected Performance Pad mode

Featuring 24 MAIN FX like Reverb, Echo, Choppa, Mute, Recycler and more. 4 knob-controlled FX include Filter, Filter Roll, Noise and Flanger. Switch between the hardware FX and Serato’s software FX

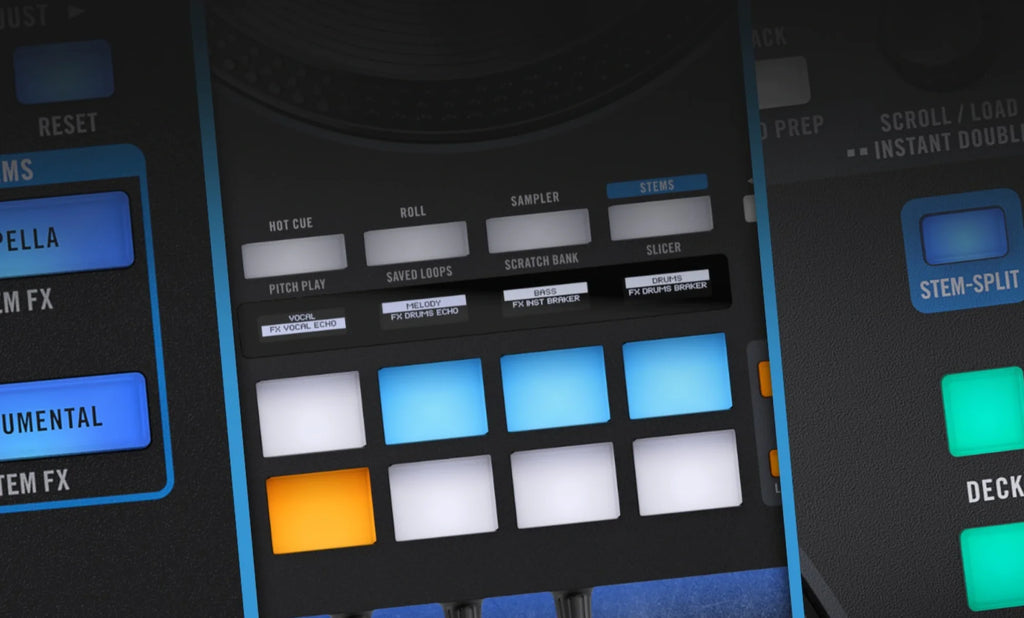

Performance Pads with Dedicated Displays

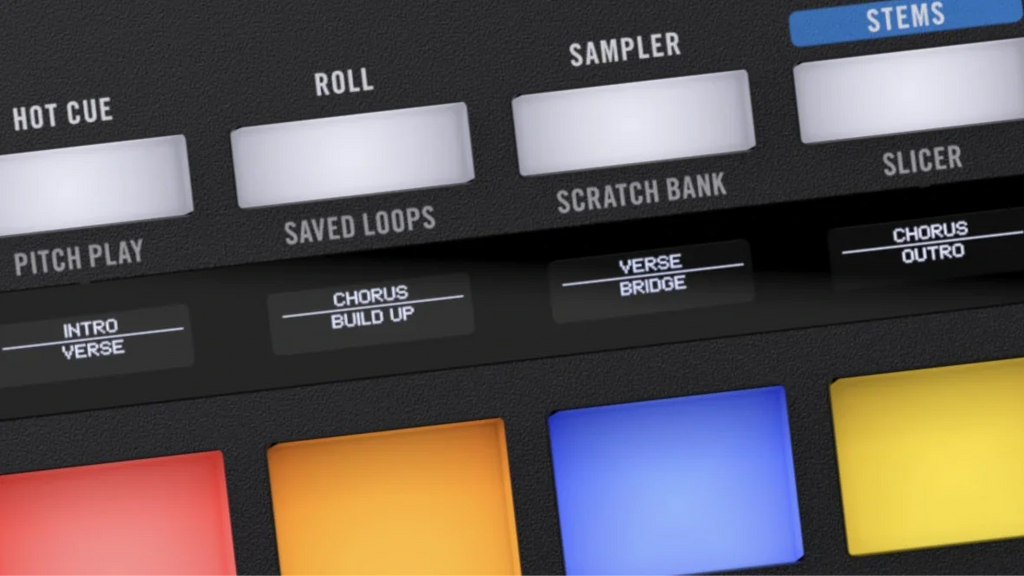

8 independent multi-function pads with onboard OLED display giving you Stems, Hot Cue, Saved Loop, Roll, Sampler, Slicer and a Combo Pad mode to activate 2 modes like CUE and Stems at the same time

Instantly split the current track, isolating the vocals on the primary deck and the instrumental on the sub-layer. Adjust level, EQ, and apply effects to the instrumental or acapella independently

The RANE FOUR's Mic Controls feature the Level, High and Low rotary knobs, as well as a switch to turn the Mic on and off. Talkover and Echo on DJ Mic

Change the cutting time of the MAG FOUR tension adjustable crossfader within the settings and from the Crossfader Contour on the front of the DJ Controller to change it form Fast to Slow

Adjust the feel of your crossfader with full curve adjustment from fast to slow, plus crossfader assign switches for Left, Right, or Thru for each channel

Along the face of the unit RANE FOUR are Headphone Controls with Mix and Level rotary knobs, plus Split Cue switch and 1/8" and a 1/4" jacks for DJ headphones

RANE FOUR features Dual-USB laptop connections for seamless DJ transitions

Mic 1&2 XLR ins plus the channels 3&4 ins that you can switch from Line to Phono, and a Ground next

Converters: Cirrus Logic, 24-bit PCM, 48 kHz

Digital Signal Processing: 32-bit, floating point, double precision

Dynamic Range (A-weighted, unity gain): ADC: 113 dB DAC: 113 dB CD Input to Analog Output: 110 dB CD Input to USB Output: 113 dB USB Input to Analog Output: 113 dB

Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS): Analog Gain: 25 dB Maximum Input: 110 mV Gain Trim: Off to +26 dB (unity at center) Tone Control: 2-band

Line/Phono Inputs 3/4 (RCA stereo pairs, switchable): Line: Line Maximum Input: 4 Vrms Gain Trim: Off to +12 dB Tone Control: 3-band, full-cut to +10 dB THD+N (20 kHz BW @ 1 kHz: 0.004%) Phono: RIAA RIAA Curve: +/-0.25 dB Gain (@ 1 kHz): 31.5 dB Maximum Input (@ 1 kHz): 106 mV Dynamic Range (A-weighted): 102 dB)

Main Outputs (XLR): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz

Main Outputs (RCA stereo pair): Maximum Output: 4 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz

Booth Outputs (1/4”): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz

Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS): Maximum Output: 4 Vrms Voltage: (no load) Output Power: 50 mW (50 ohms) Dynamic Range (A-weighted): 108 dB

(16) on/off multi-color back-lit pads (8 per deck, 9 modes each

(9) 128 x 32 Monochrome OLED’s

(1) MAG FOUR tension-adjustable crossfader with contour

(1) RCA stereo output pair (Main)

(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1-2)

(2) RCA stereo input pairs (Deck 3-4)

(1) 1/4” (6.35 mm) TRS output (Headphones)

(1) 1/8” (3.5 mm) TRS output (Headphones)

Dimensions (width x depth x height):
