Description

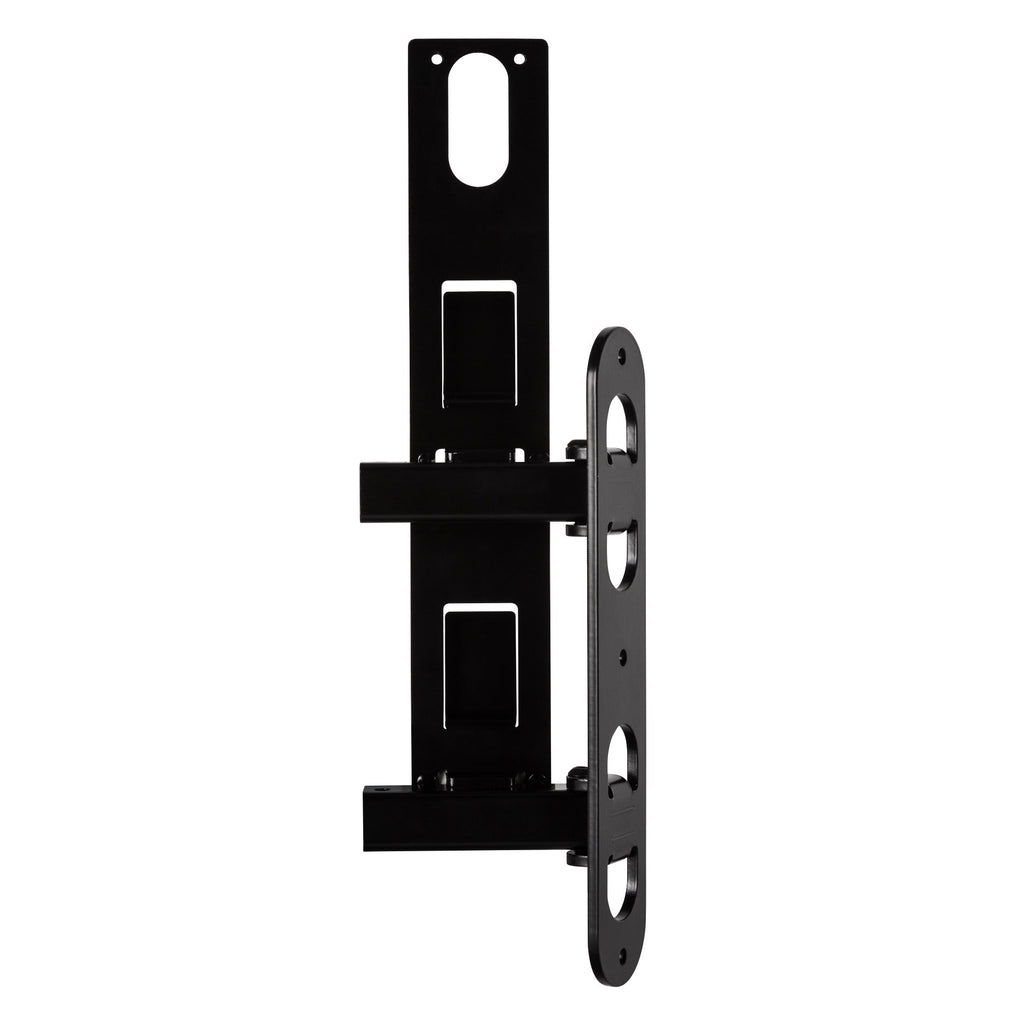

SWM-BR VSA II Pair of Swivel Brackets

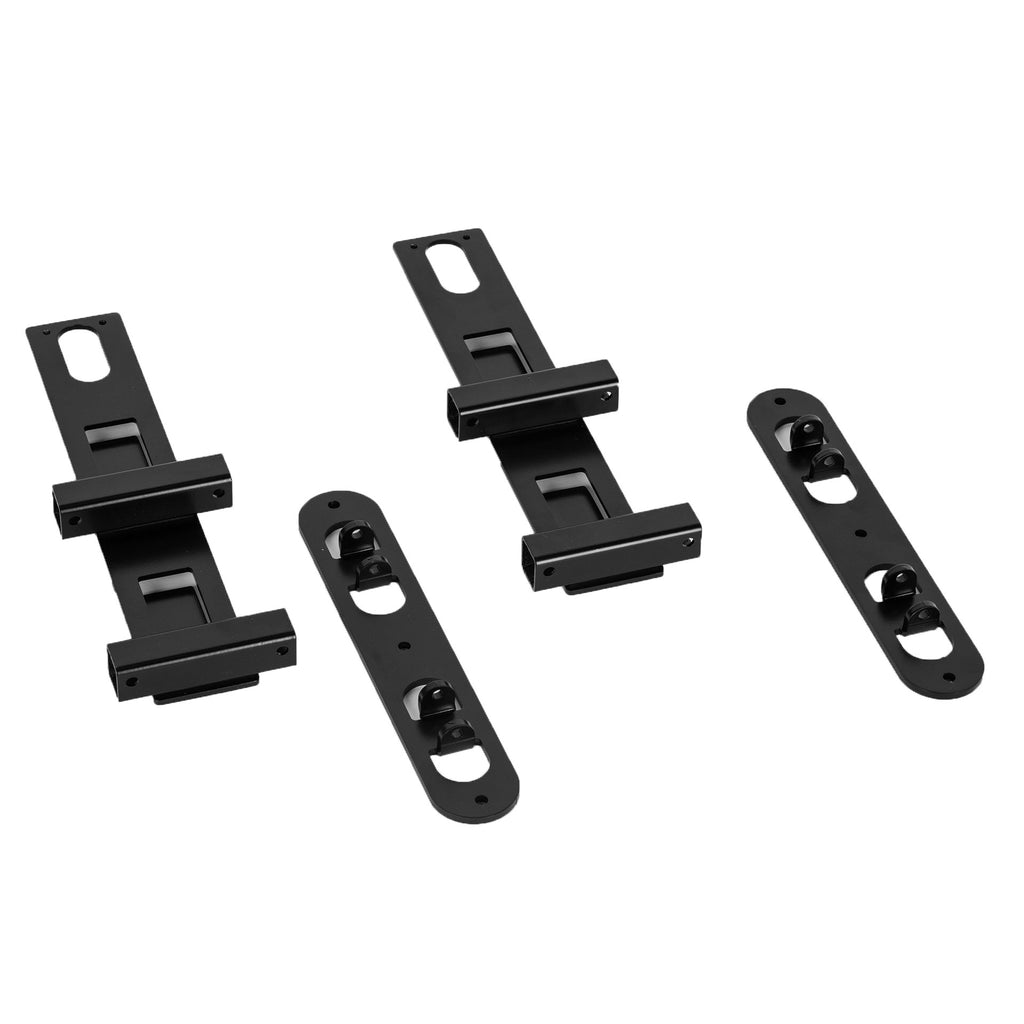

Each kit includes a pair of swivel brackets for wall mounting of a single RCF VSA 2050 II \ VSA 1250 II \ VSA 850 II Digitally steerable array loudspeaker system, with a horizontal angle pointing up to 60°.
Features
- Two mounting points for the VSA loudspeaker rear side.
- Three holes for wall mounting through M5 wall plugs.
- Two bolts and nuts (used as pins) can be tightened to fix the VSA loudspeaker when the horizontal angle pointing is correct.
- Two holes to secure the VSA loudspeaker to the swivel bracket through two screws (M5x10).
Specifications
General specifications
| Mounting points | 2 |
| Orientation | Horizontal |
| Maximum angle | 60° |
Standard compliance
| Safety agency | CE compliant |
Physical specifications

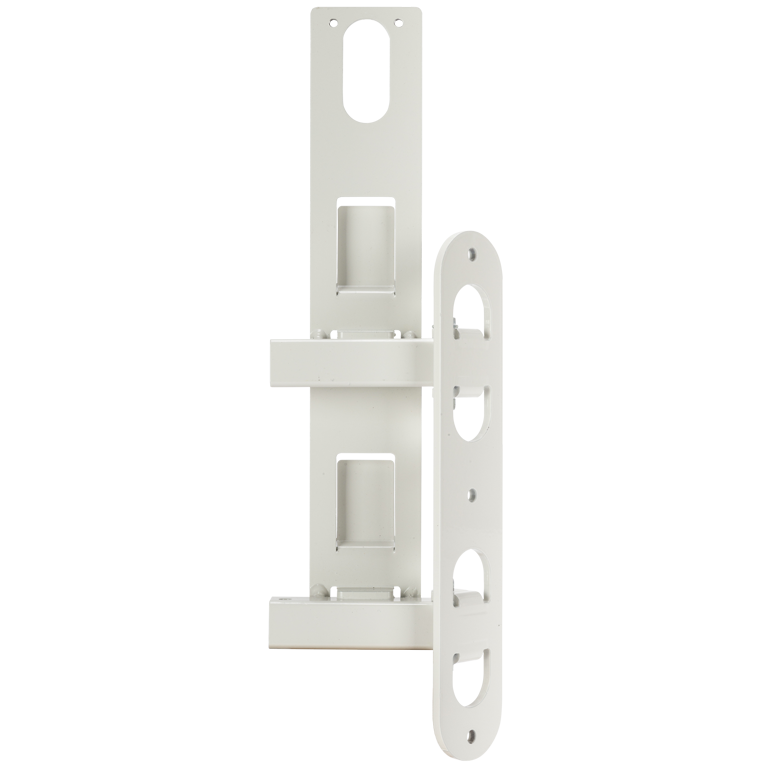

| Color | White - RAL 9003, Black - RAL 9005 |
Size / Weight
| Width | 318 mm / 12.52 inches |
| Weight | 1.5 kg / 3.31 lbs |
Shipping information
| Package Height | 74 mm / 2.91 inches |
| Package Width | 314 mm / 12.36 inches |
| Package Depth | 154 mm / 6.06 inches |
| Package Weight | 1.7 kg / 3.75 lbs |
