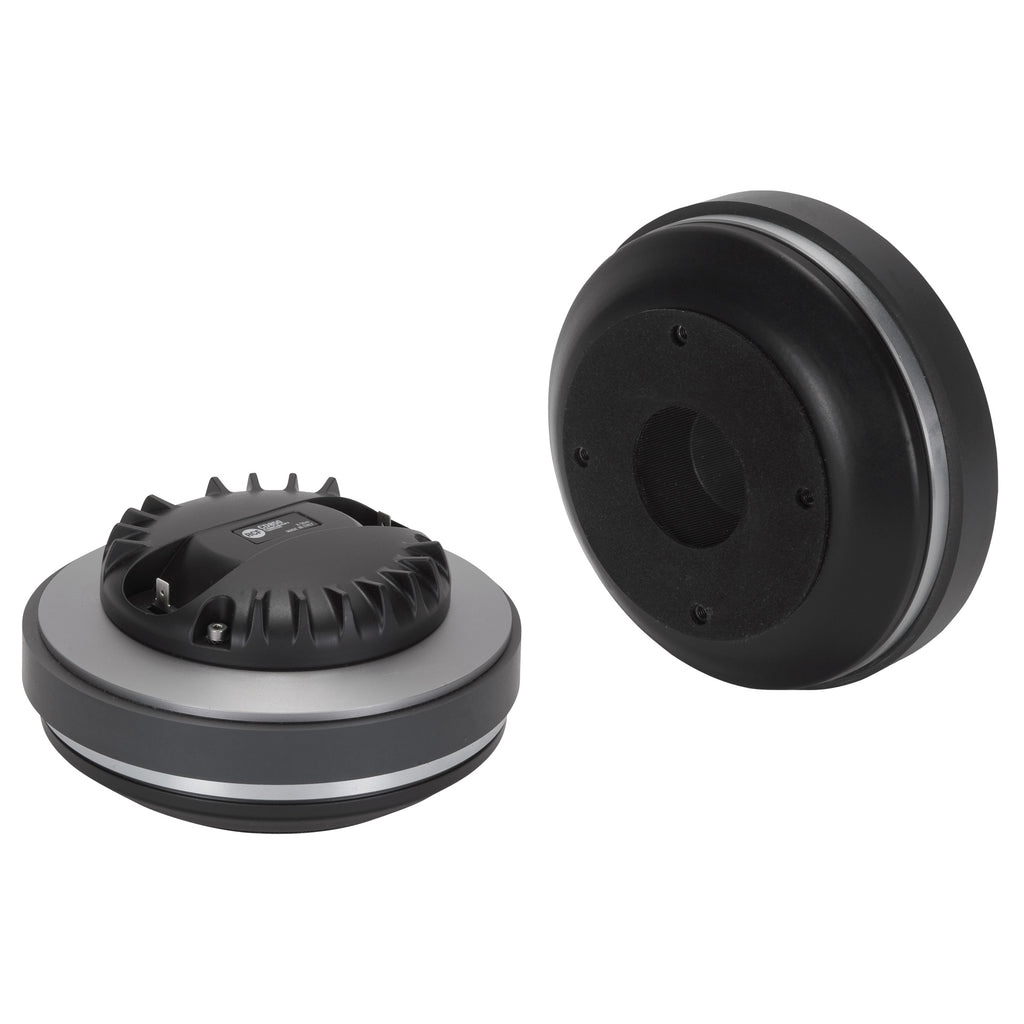

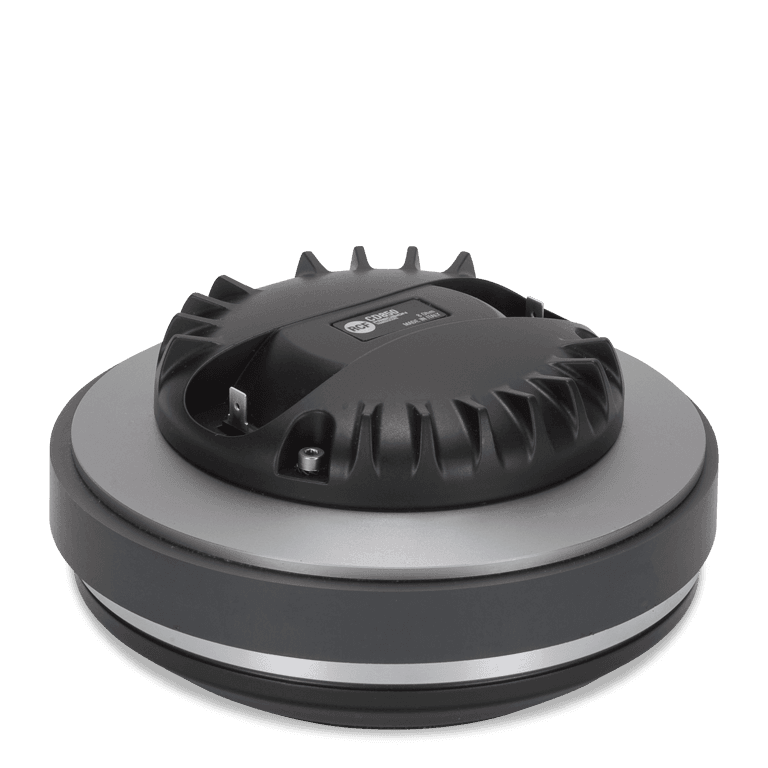

CD850 2.0 Driver

The CD850 2.0 is a high performance 3.0-inch diaphragm compression driver with a 2 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distorsion. Voice coil assembly is designed using high temperature kapton former.

Features

3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
220W continuous program power handling
Frequency range: 500Hz - 20kHz
3-slot optimized geometry phase plug
Ceramic Magnet Assembly
Copper inductance ring for extended response
Vented, damped, low distortion suspension system

Specifications

General specifications

Exit Throat Diameter	2.0 inch / 51 mm
Related Impedance	8 ohm
Program Power (watt)	220 W
Power handling capacity	110 W
Sensitivity	109 dB
Frequency range	500 - 20000 Hz
Diaphragm Material	Pure Titanium
Suspension Material	Polyester
Suspension Design	Flat
Minimum Impedance (ohm)	8.50 ohm
Voice Coil Diameter	3.0 inch / 76 mm
Voice Coil Winding Material	Edgewound Aluminum
Voice Coil Former Design	Straight - Kapton
Number of layers	1
Kind of layers	outside
Flux Density	1.9 T
Phase Plug Design	3 slot
Phase Plug Material	PP Composite
Magnetics	Ceramic
Voice Coil Demodulation Ring	Copper

Thiele - small parameters

Bl factor (Bl) (T x m)

12.30 T x m

Mounting information

Overall diameter	180 mm / 7.09 inches
Overall height	88 mm / 3.46 inches
Mounting	4 x 6 mm threaded holes at 90°

Standard compliance

Safety agency

CE compliant

Size / Weight

Weight

5.72 kg / 12.61 lbs

Shipping information

Package Height	114 mm / 4.49 inches
Package Width	203 mm / 7.99 inches
Package Depth	205 mm / 8.07 inches
Package Weight	5.97 kg / 13.16 lbs
