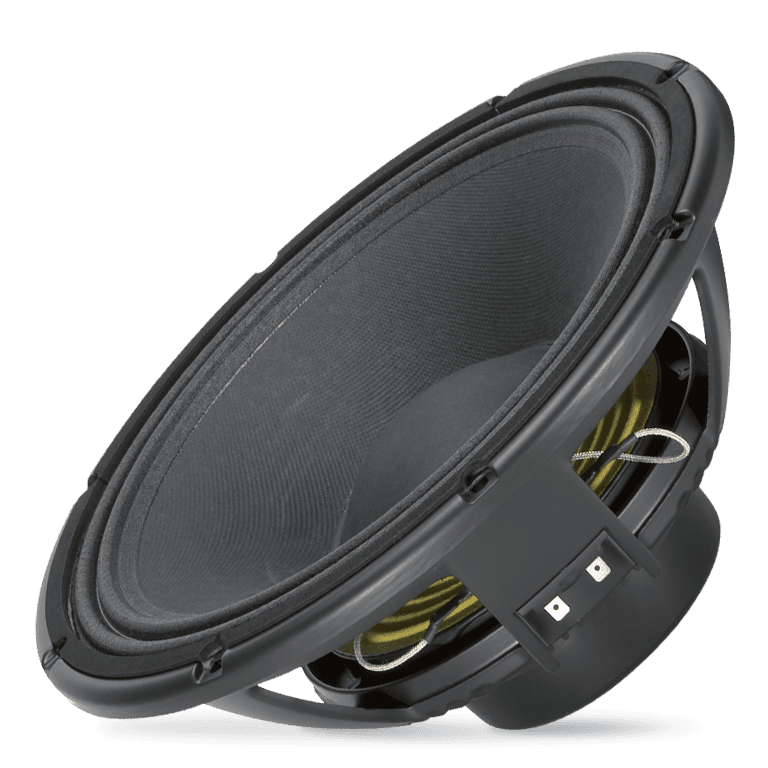

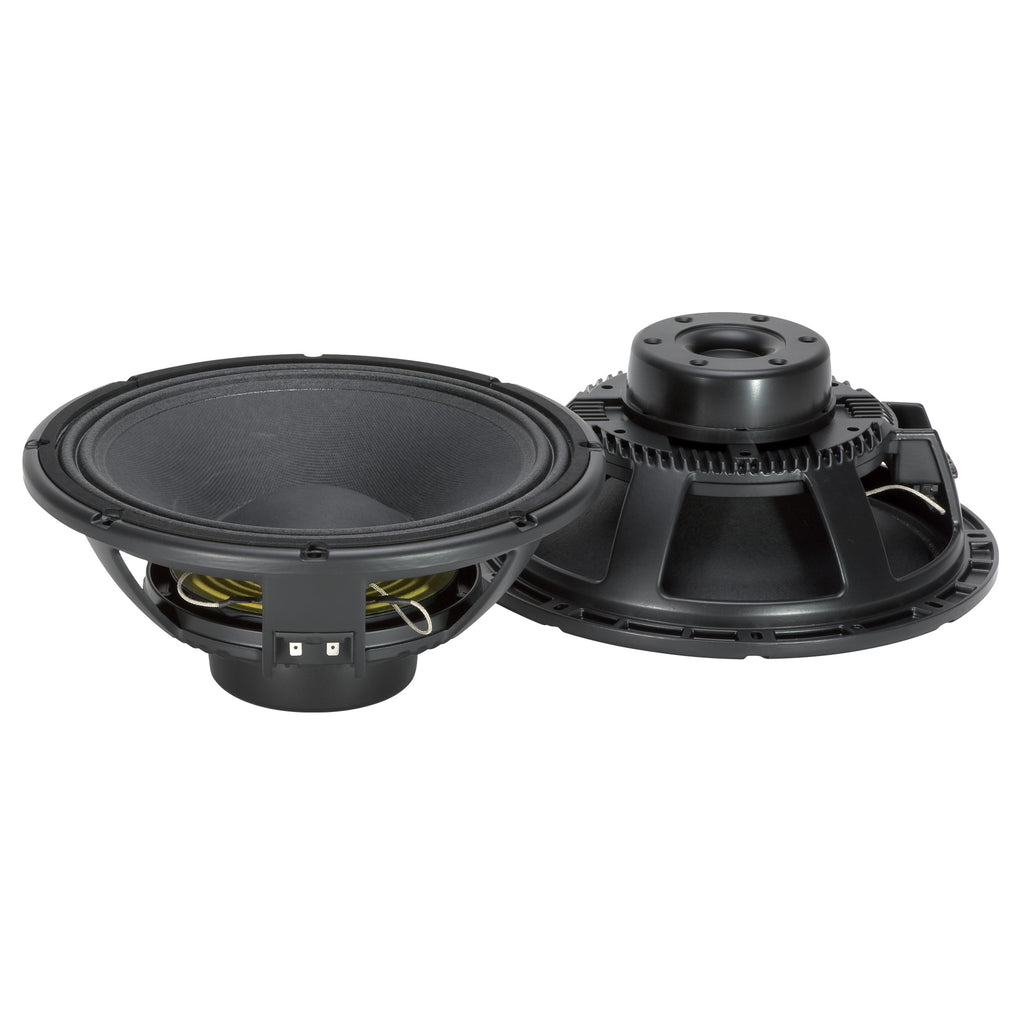

MB12N351 Mid - Bass
The MB12N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3.5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation to minimize the power compression and provide higher power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1300W continuous program power handling
- 99 dB Sensitivity
- 45 Hz - 3 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Single spider design with silicon based damping control
Specifications
General specifications
| Nominal Diameter |
12 inch / 305 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
1300 W |
| Power handling capacity |
650 W |
| Sensitivity |
99.0 dB |
| Frequency range |
45 - 3000 Hz |
| Effective piston diameter |
260 mm / 10.24 inch |
| Max. Excursion Before Damage |
39 mm / 1.54 inch |
| Minimum Impedance (ohm) |
7.0 ohm |
| Voice Coil Diameter |
3.5 inch / 89 mm |
| Voice Coil Winding Material |
Copper |
| Voice Coil Length |
17 mm / 0.67 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
11 mm / 0.43 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Neodymium |
| Dual-force air ventilation |
Yes |
| Spider |
02 |
Thiele - small parameters
| Resonance frequency (Fs) |
55 Hz |
| DC resistance (Re) (ohm) |
5.60 ohm |
| Mechanical factor |
4.50 Qms |
| Electrical factor |
0.21 Qes |
| Total factor |
0.20 Qts |
| Bl factor (Bl) (T x m) |
22.50 T x m |
| Effective moving mass (Mms) |
54.0 g |
| Equivalent Cas air loaded (Vas) |
61.0 liters |
| Effective piston area (Sd) |
0.050 m2 |
| Max. linear excursion (Xmax) |
6 mm |
| Voice coil inductance @ 1kHz (Le1k) |
1.65 mH |
| Half-space efficency (Eff) |
4.66% |
Mounting information
| Overall diameter |
320 mm / 12.6 inches |
| Bolt circle diameter |
293-304 mm / 11.54-11.97 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
282 mm / 11.1 inch |
| Rear mount baffle cut-out |
284 mm / 11.18 inch |
| Volume occupied by the driver |
2.2 liters / 0.09 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
151 mm / 5.94 inches |
| Diameter |
320 mm / 12.6 inches |
| Weight |
4.5 kg / 9.92 lbs |
Shipping information
| Package Height |
210 mm / 8.27 inches |
| Package Width |
360 mm / 14.17 inches |
| Package Depth |
360 mm / 14.17 inches |
| Package Weight |
5.49 kg / 12.1 lbs |
