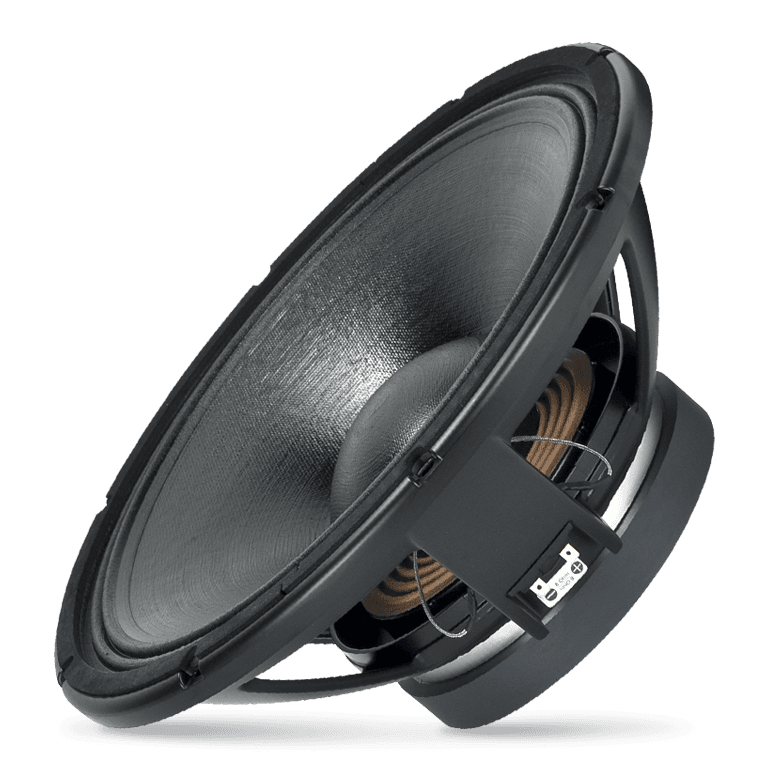

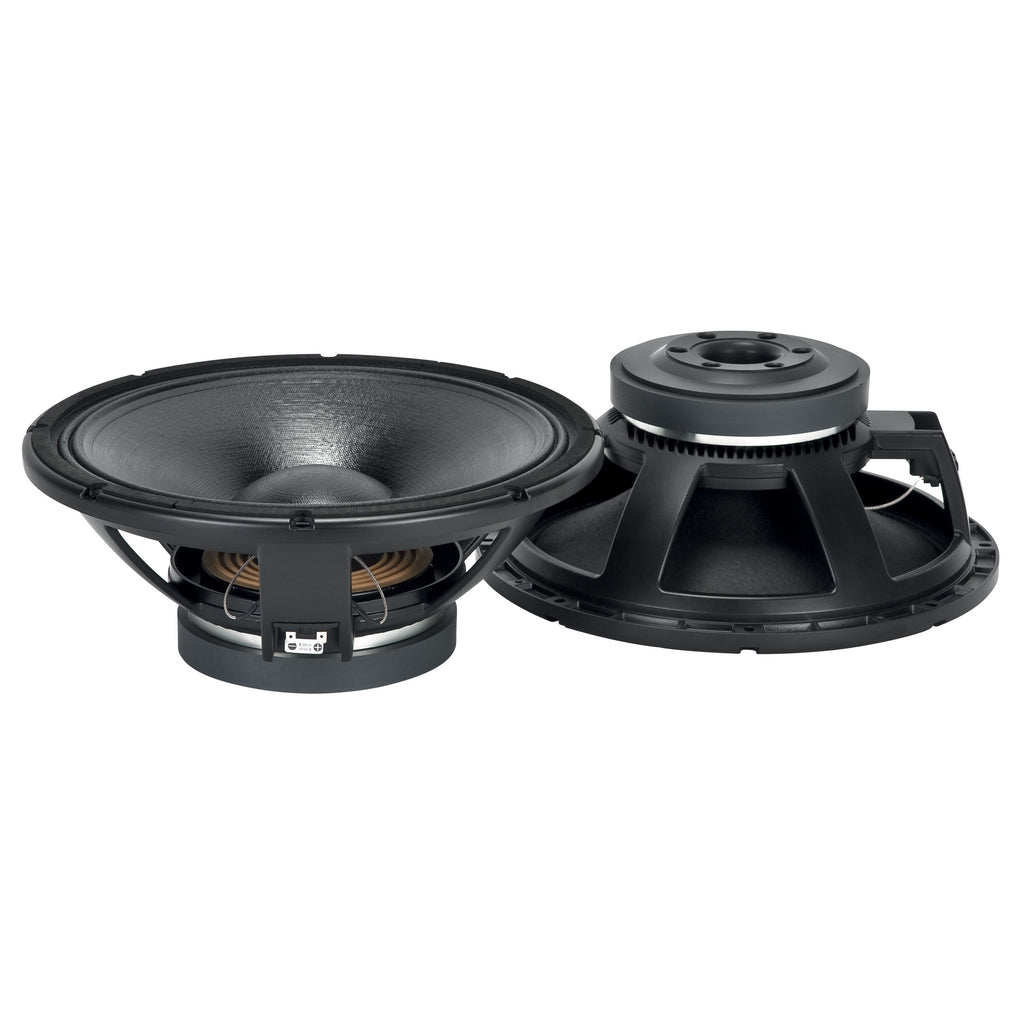

MB15X351 Mid Bass
The MB15N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3” voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1400W continuous program power handling
- 99 dB Sensitivity
- 40 Hz - 2.5 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- M-roll surround and corrugated straight cone geometry
Specifications
General specifications
| Nominal Diameter |
15 inch / 381 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
1400 W |
| Power handling capacity |
700 W |
| Sensitivity |
99.0 dB |
| Frequency range |
40 - 2500 Hz |
| Effective piston diameter |
330 mm / 12.99 inch |
| Max. Excursion Before Damage |
40 mm / 1.57 inch |
| Minimum Impedance (ohm) |
6.5 ohm |
| Voice Coil Diameter |
3.5 inch / 89 mm |
| Voice Coil Winding Material |
Copper |
| Voice Coil Length |
19 mm / 0.75 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
10 mm / 0.39 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Ceramic |
| Dual-force air ventilation |
Yes |
| Spider |
03 |
Thiele - small parameters
| Resonance frequency (Fs) |
46 Hz |
| DC resistance (Re) (ohm) |
5.40 ohm |
| Mechanical factor |
6.70 Qms |
| Electrical factor |
0.33 Qes |
| Total factor |
0.31 Qts |
| Bl factor (Bl) (T x m) |
22.80 T x m |
| Effective moving mass (Mms) |
106.0 g |
| Equivalent Cas air loaded (Vas) |
114.0 liters |
| Effective piston area (Sd) |
0.090 m2 |
| Max. linear excursion (Xmax) |
7 mm |
| Voice coil inductance @ 1kHz (Le1k) |
0.90 mH |
| Half-space efficency (Eff) |
3.20% |
Mounting information
| Overall diameter |
393 mm / 15.47 inches |
| Bolt circle diameter |
371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
354 mm / 13.94 inch |
| Rear mount baffle cut-out |
354 mm / 13.94 inch |
| Volume occupied by the driver |
4.5 liters / 0.18 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
167 mm / 6.57 inches |
| Diameter |
393 mm / 15.47 inches |
| Weight |
8.2 kg / 18.08 lbs |
Shipping information
| Package Height |
209 mm / 8.23 inches |
| Package Width |
439 mm / 17.28 inches |
| Package Depth |
434 mm / 17.09 inches |
| Package Weight |
9.5 kg / 20.94 lbs |
