RCF NDT895, 1.4" Exit Compression Driver, 120W RMS, 240W Program, 109 dB Sensitivity, 0.5-20 kHz, Titanium Diaphragm, 8 Ohm

Roll over image to zoom in

RCF NDT895, 1.4" Exit Compression Driver, 120W RMS, 240W Program, 109 dB Sensitivity, 0.5-20 kHz, Titanium Diaphragm, 8 Ohm

Name: RCF NDT895, 1.4" Exit Compression Driver, 120W RMS, 240W Program, 109 dB Sensitivity, 0.5-20 kHz, Titanium Diaphragm, 8 Ohm
Brand: RCF
SKU: NDT895
Price: 439.0 USD
Availability: InStock

Save $190

RCFSKU: NDT895

Share this product

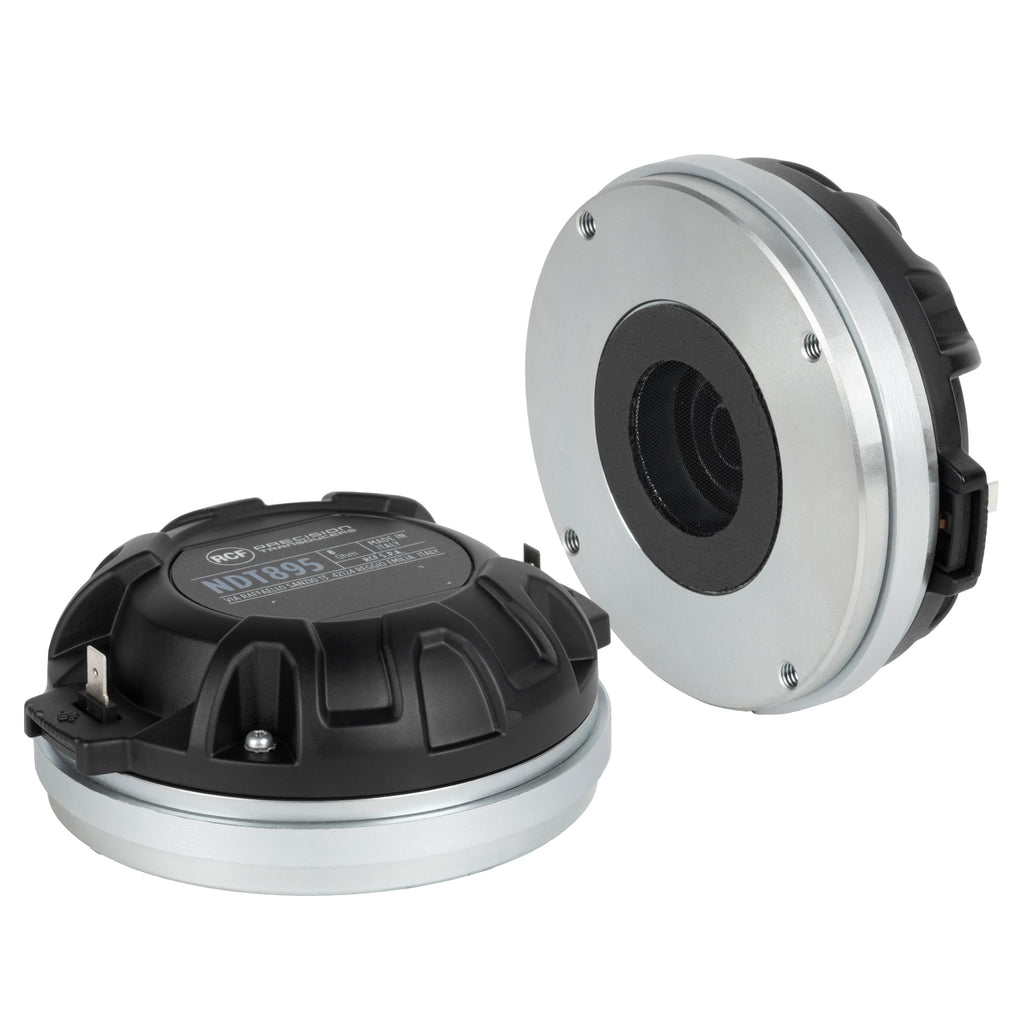

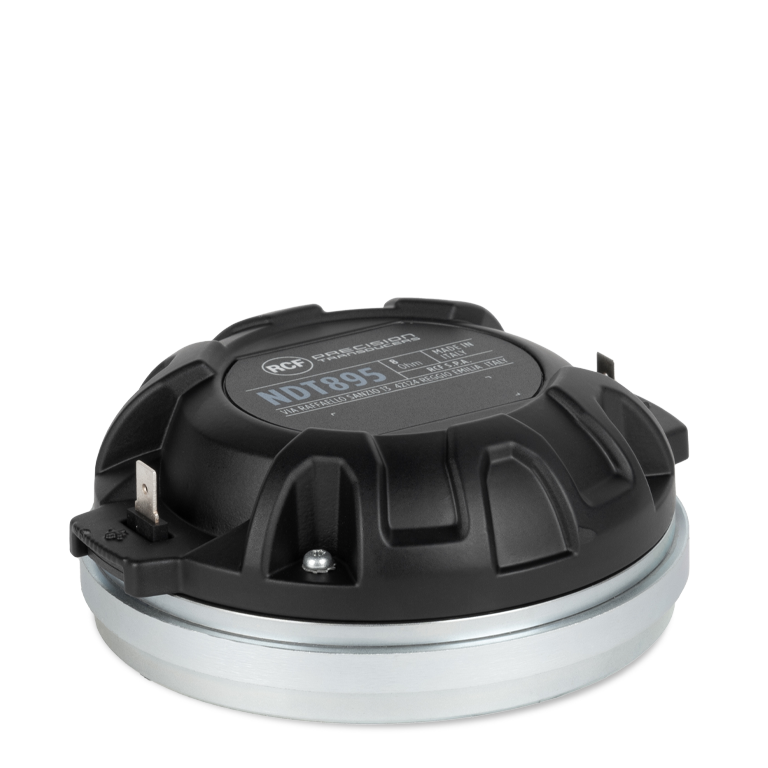

NDT895 Driver

The 3-inch pure titanium dome NDT895 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly and reinforcing ribs on the dome for enhanced breakup behavior. The 3" class-leading motor design utilizes a Kapton former, ultralight edge wound aluminum wire, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The high sensitivity at 109 dB, 240 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 700 Hz make it ideal for integration with waveguides in two-way high-powered systems.

Features

3.0-inch, Titanium dome, polyimide surround
240W continuous program power handling @ 8O
Frequency range: 500Hz - 20kHz
Kapton former, edge wound aluminum voice coil
3-slot optimized geometry phase plug
Copper inductance ring for extended response
Low recommended crossover point
High-flux density neodymium magnet

Specifications

General specifications

Exit Throat Diameter	1.4 inch / 36 mm
Related Impedance	8 ohm
Program Power (watt)	240 W
Power handling capacity	120 W
Sensitivity	109 dB
Frequency range	500 - 20000 Hz
Diaphragm Material	Pure Titanium
Suspension Material	Pure Titanium
Suspension Design	Double Roll
Minimum Impedance (ohm)	7.00 ohm
Voice Coil Diameter	3.0 inch / 76 mm
Voice Coil Winding Material	Edgewound Aluminum
Voice Coil Former Design	Direct Drive Kapton
Number of layers	1
Kind of layers	outside
Flux Density	2.0 T
Phase Plug Design	3 slot
Phase Plug Material	Aluminum
Magnetics	Neodymium
Voice Coil Demodulation Ring	Copper

Thiele - small parameters

Bl factor (Bl) (T x m)

13.00 T x m

Mounting information

Overall diameter	115 mm / 4.53 inches
Overall height	49 mm / 1.93 inches
Mounting	4 x 6 mm threaded holes at 90°

Standard compliance

Safety agency

CE compliant

Size / Weight

Weight

1.6 kg / 3.53 lbs

Shipping information

Package Height	63 mm / 2.48 inches
Package Width	142 mm / 5.59 inches
Package Depth	144 mm / 5.67 inches
Package Weight	1.9 kg / 4.19 lbs
