Description
P 4228 Weatherproof Two-Way Speaker

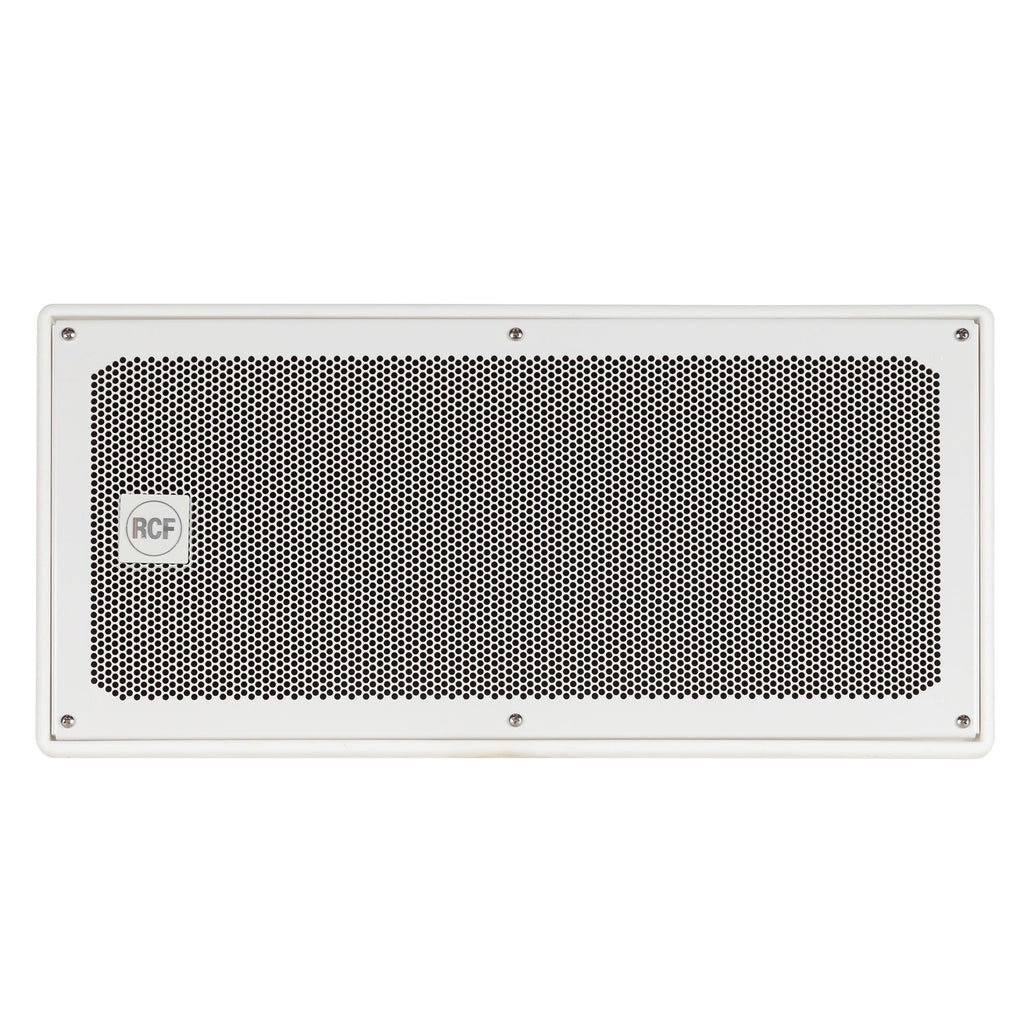

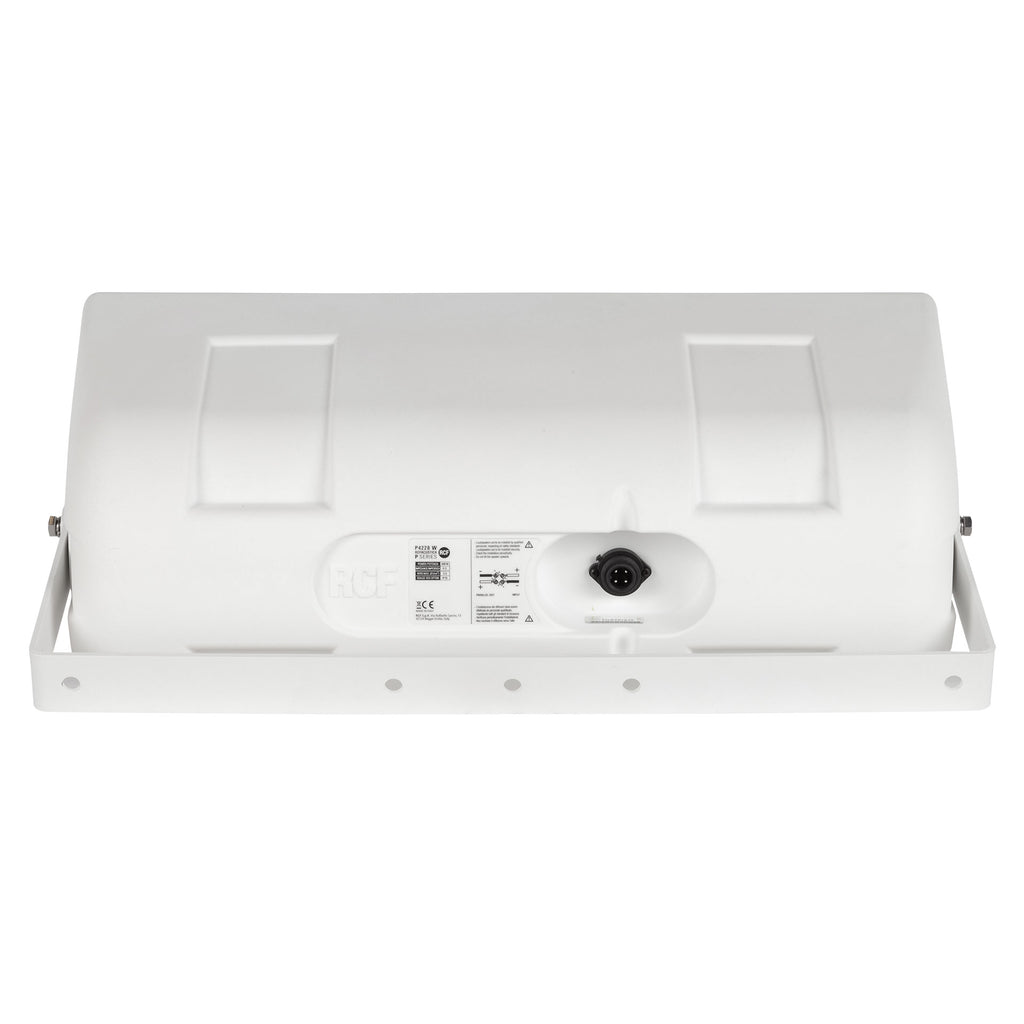

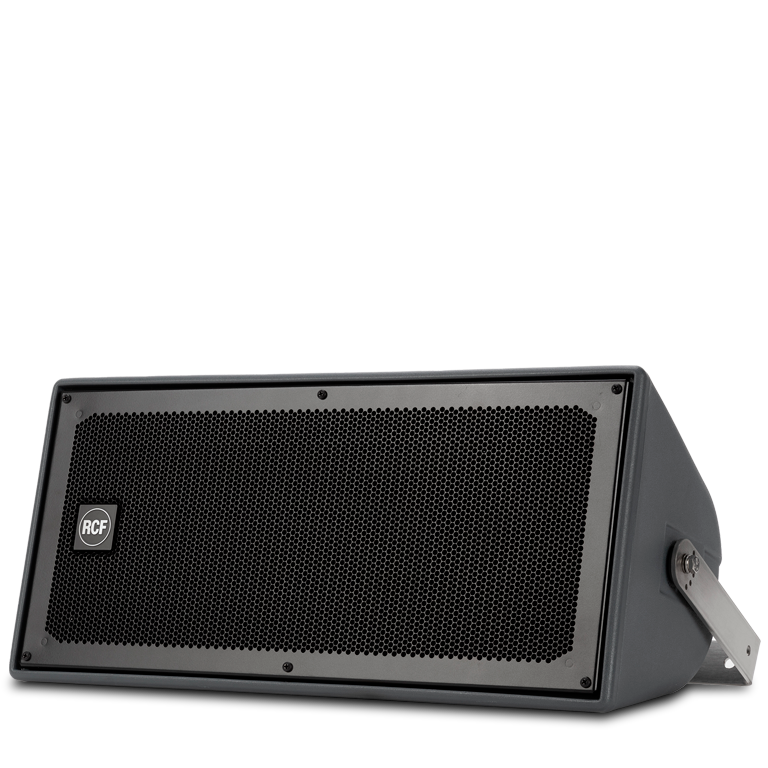

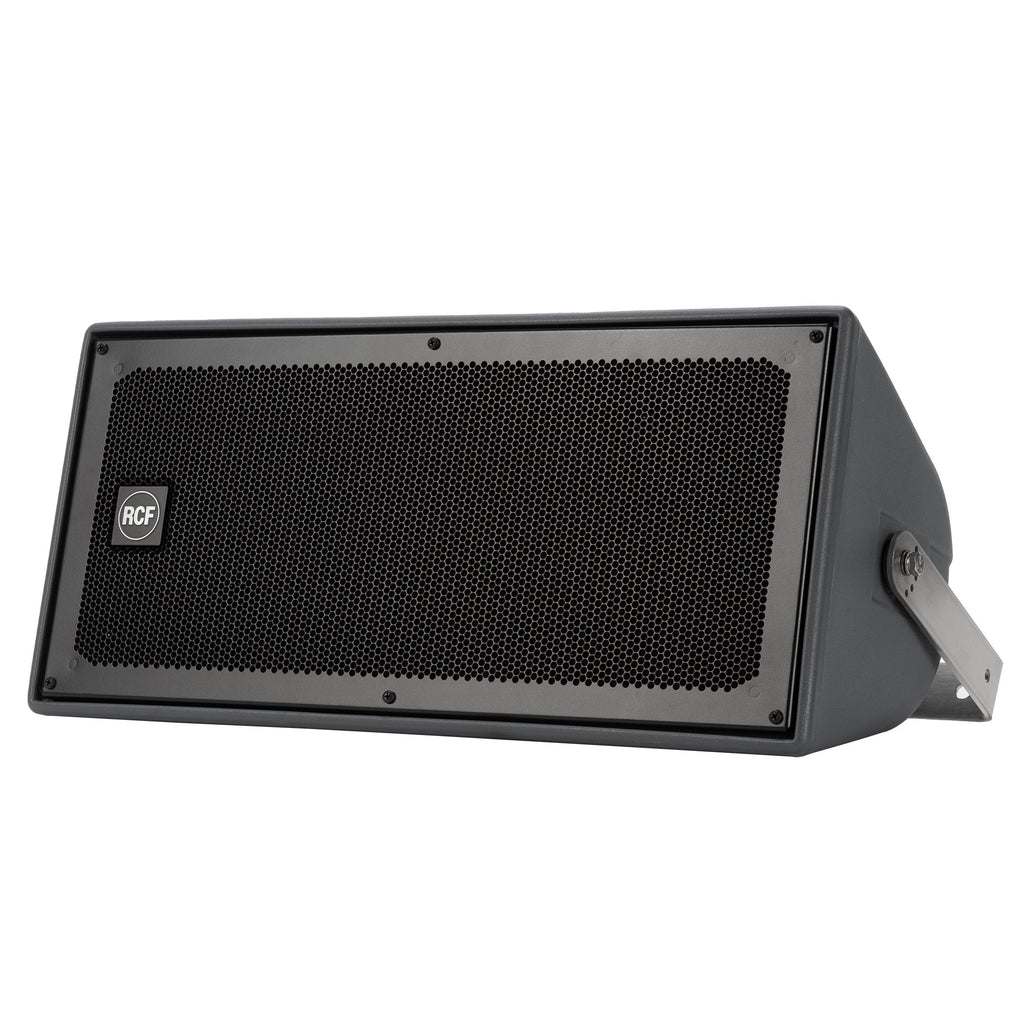

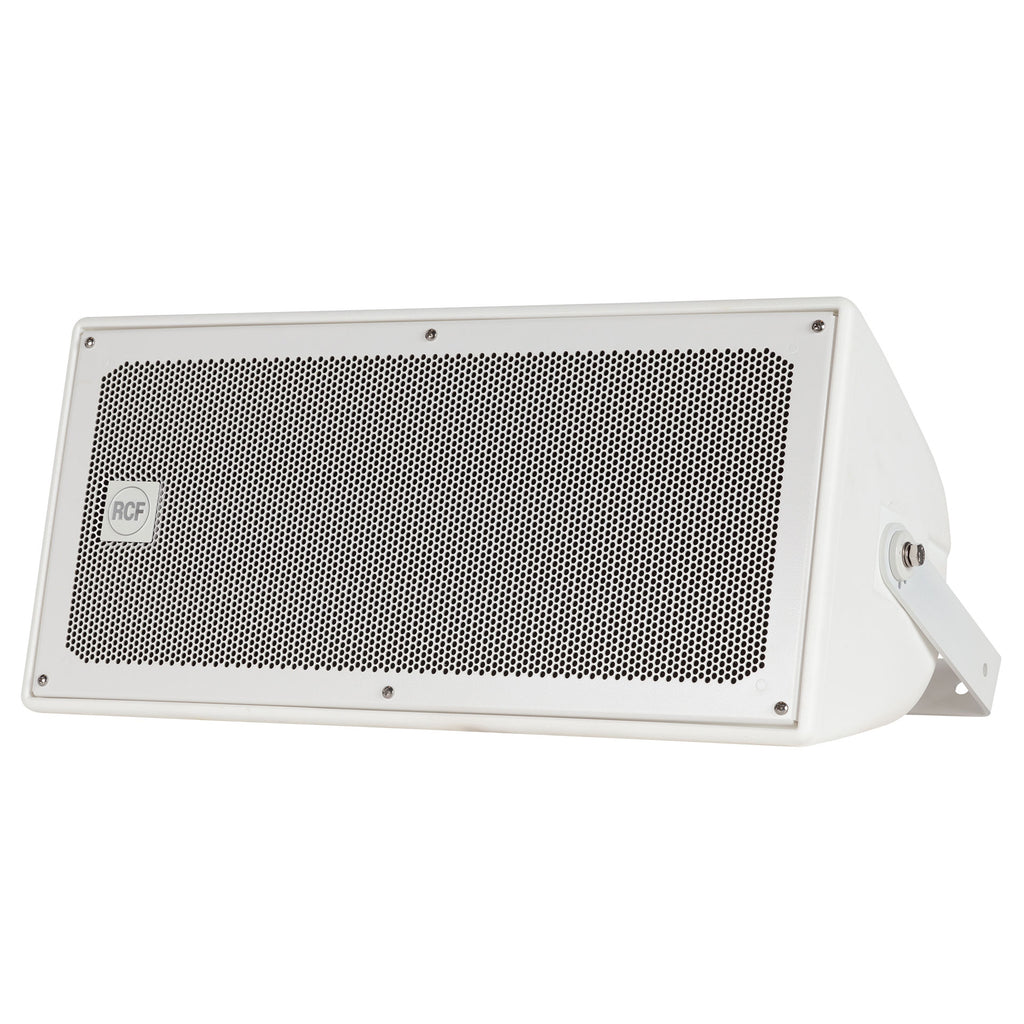

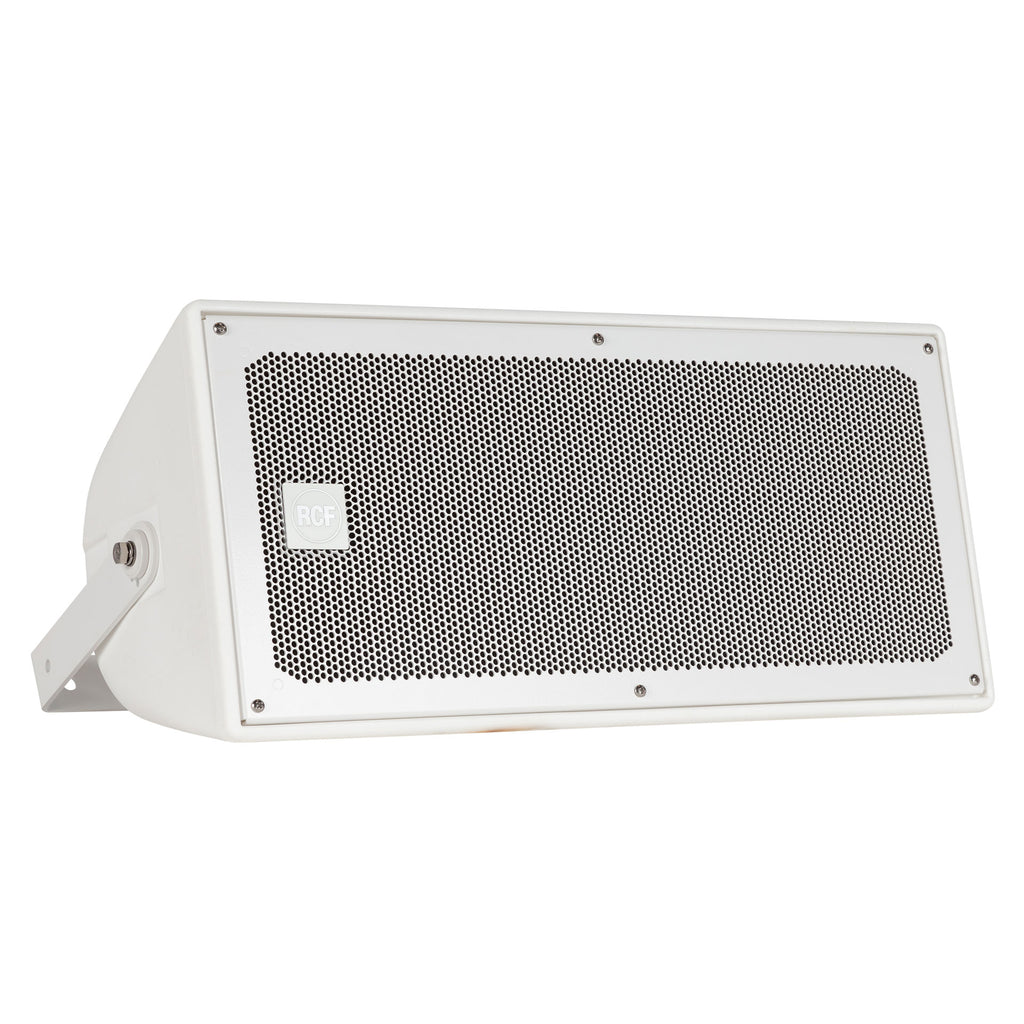

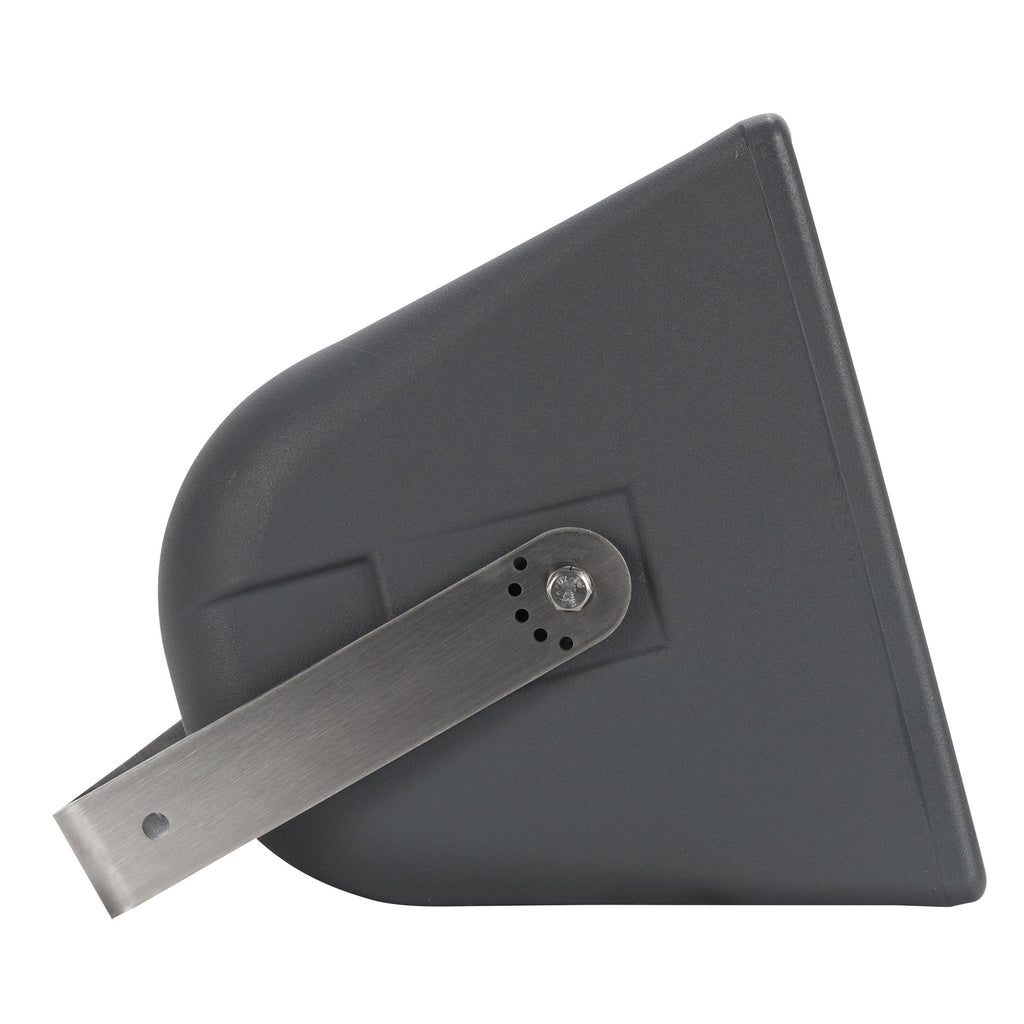

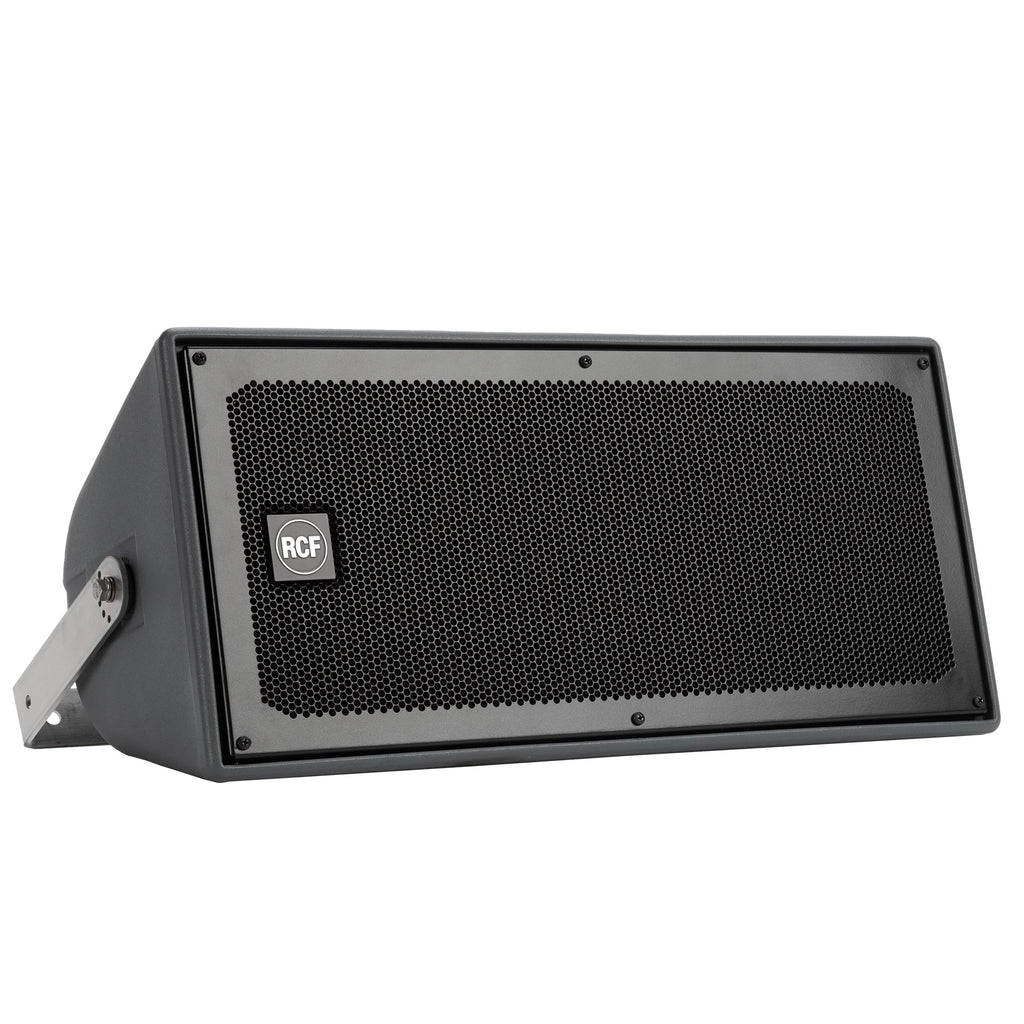

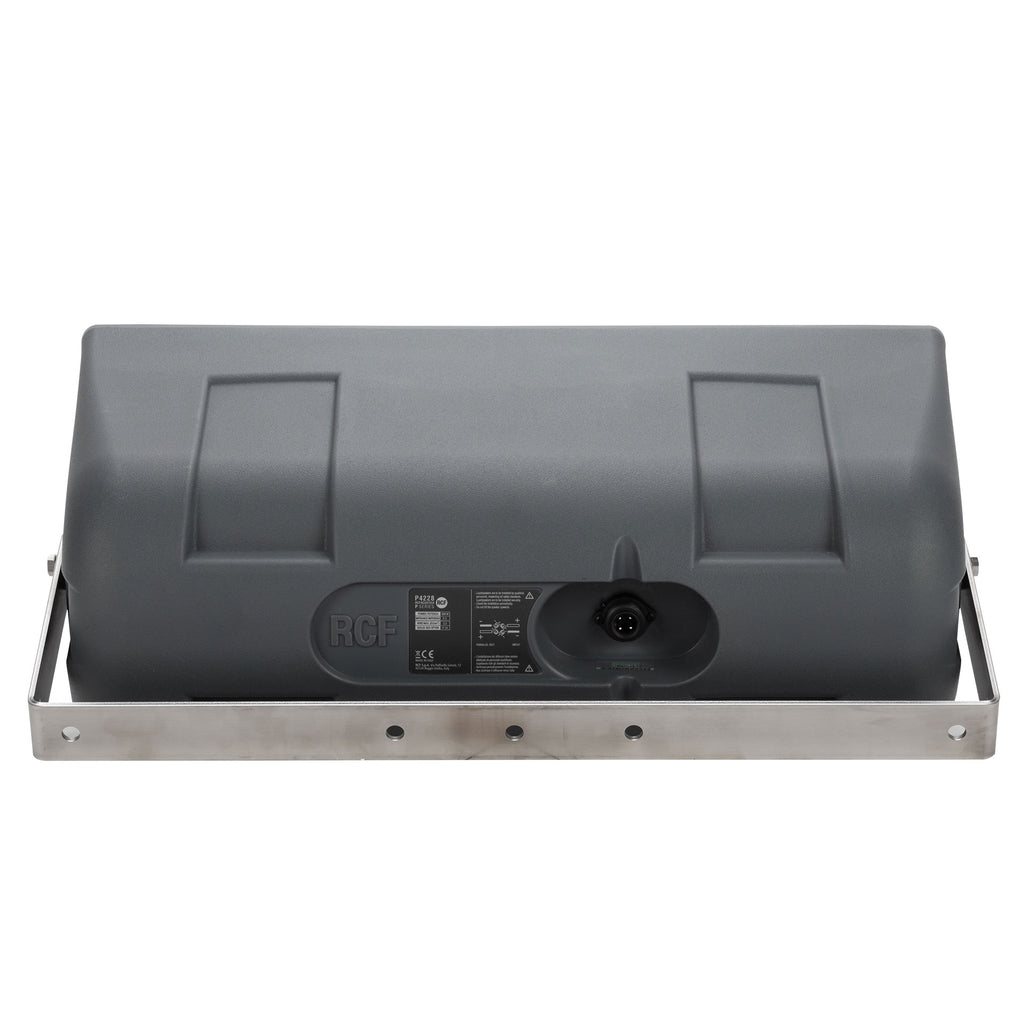

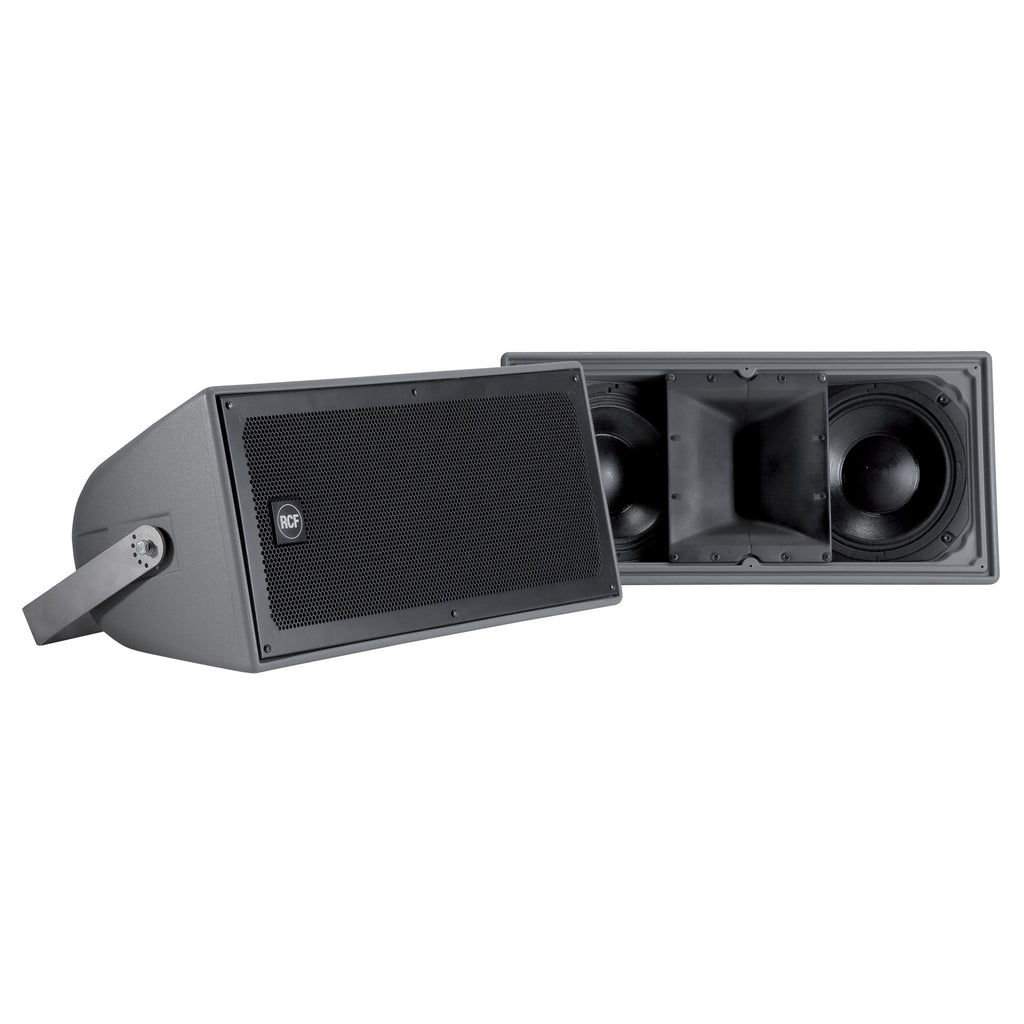

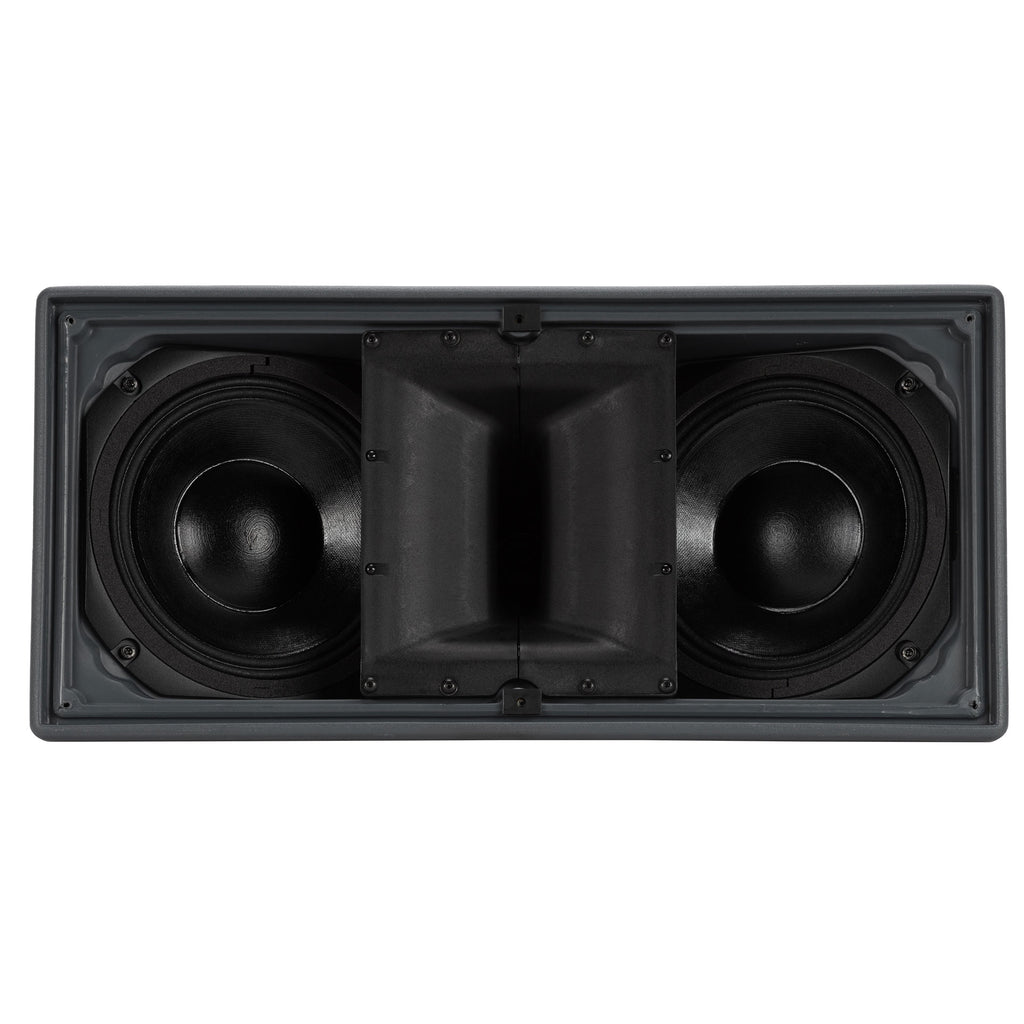

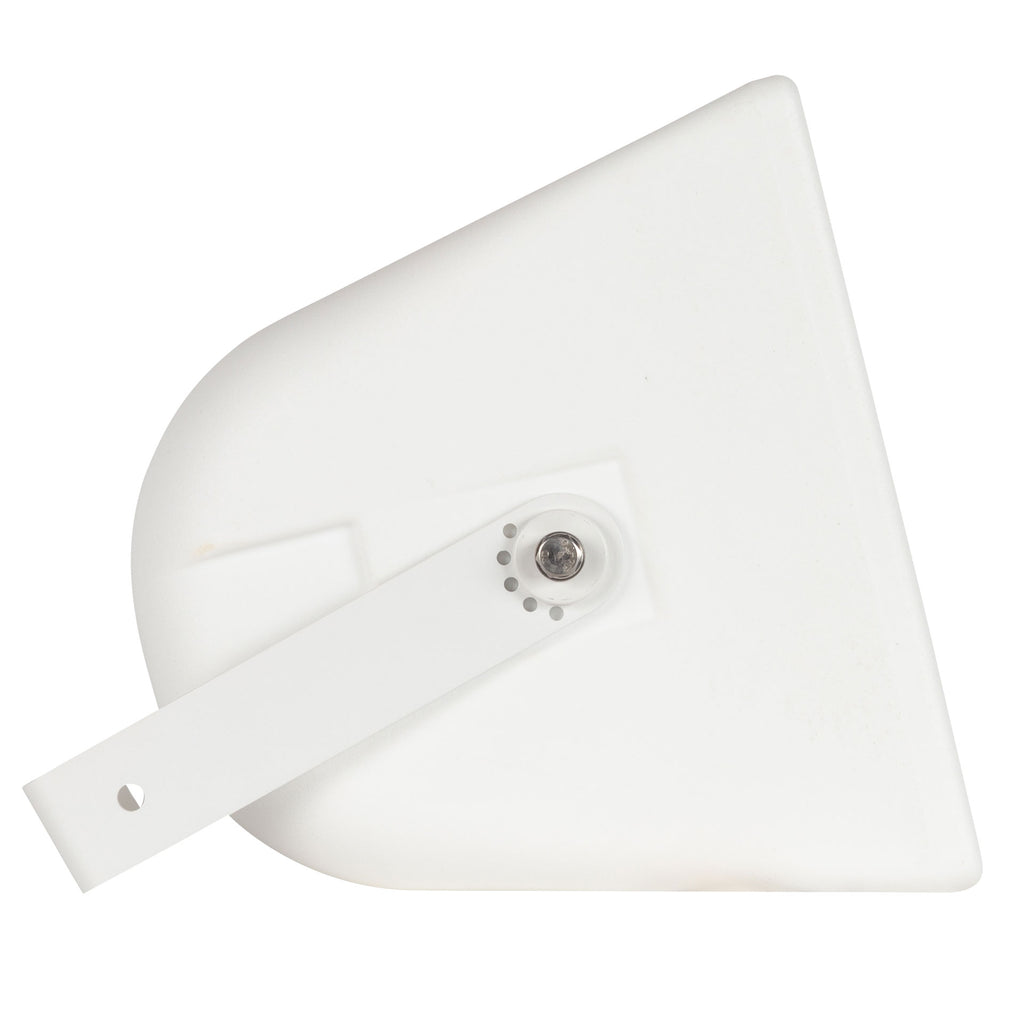

The P 4228 is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes a constant directivity CMD horn, loaded with a 1.4" RCF Precision neodymium compression driver with a 2.5" diaphragm assembly for smooth, highly controlled coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
Features
- 400 W RMS power handling
- 129 dB max SPL
- 80 Hz ÷ 20000 Hz frequency range
- 2 x 8" neodymium woofer, 2.5" v.c.
- 2.5" v.c. neodymium compression driver
- 110° x 60° constant directivity
- Weatherproof IP55 cabinet with UV protection
- Aluminum grille
- AISI 316L stainless steel bracket
- Amphenol IP67 4 pole input connector
- XPS SERIES
- 4 x 4000 W
- Class D continuous power
- at 2.7 Ohms
- 40-bit Floating-point
- Processing at 96 kHz
- Ready-to-Use
- Configurations and presets
- for RCF speakers
- 2U Rack Space
- for both touring and installed sound systems
- Flexible 32-bit Routing
- with analog, digital
- and Dante I/O
- Advanced Fault Protections
- for each amplifier channel and power supply
- Configuration Example
- Bi-Amp Two-Way Line Array
- 6 x double 8" Line Array (P 4228)
- Medium Size Venues, Sports Facilities, and Nightclubs
All-weather performance

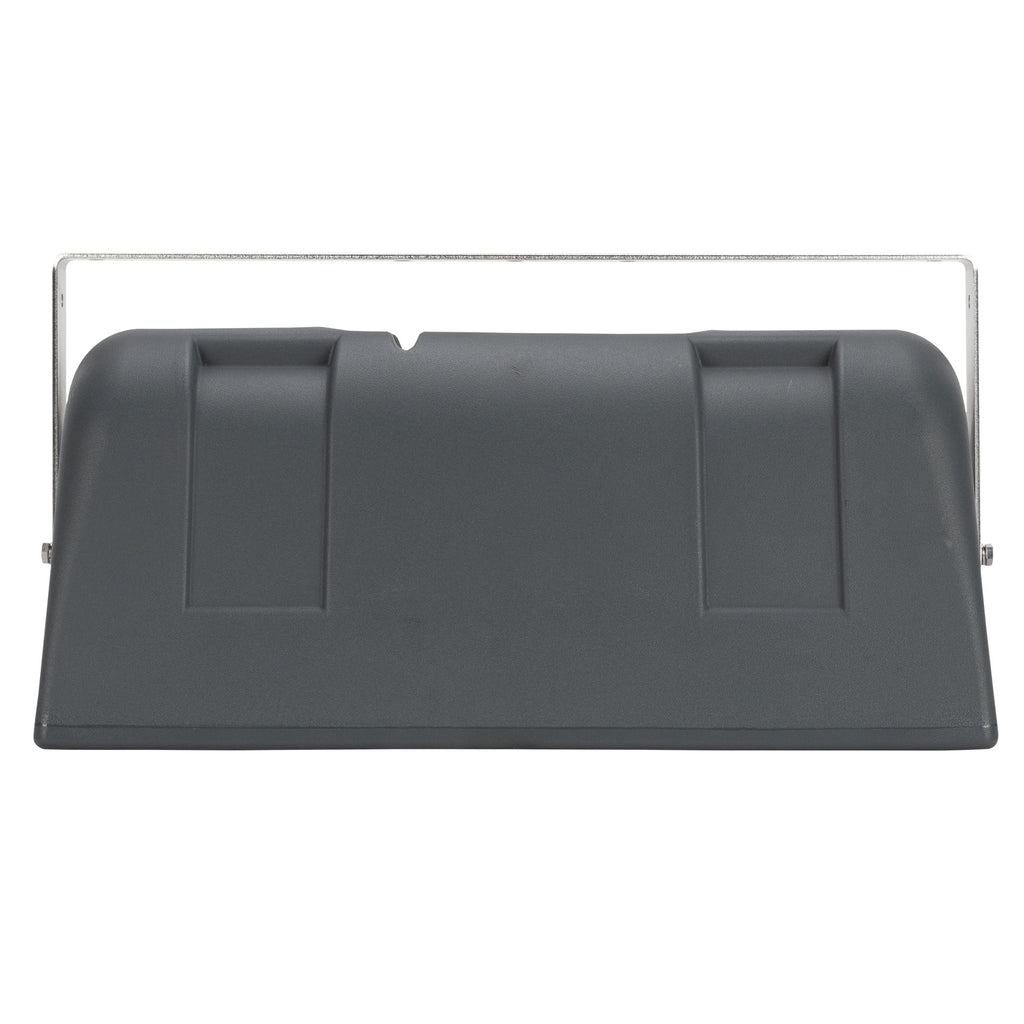

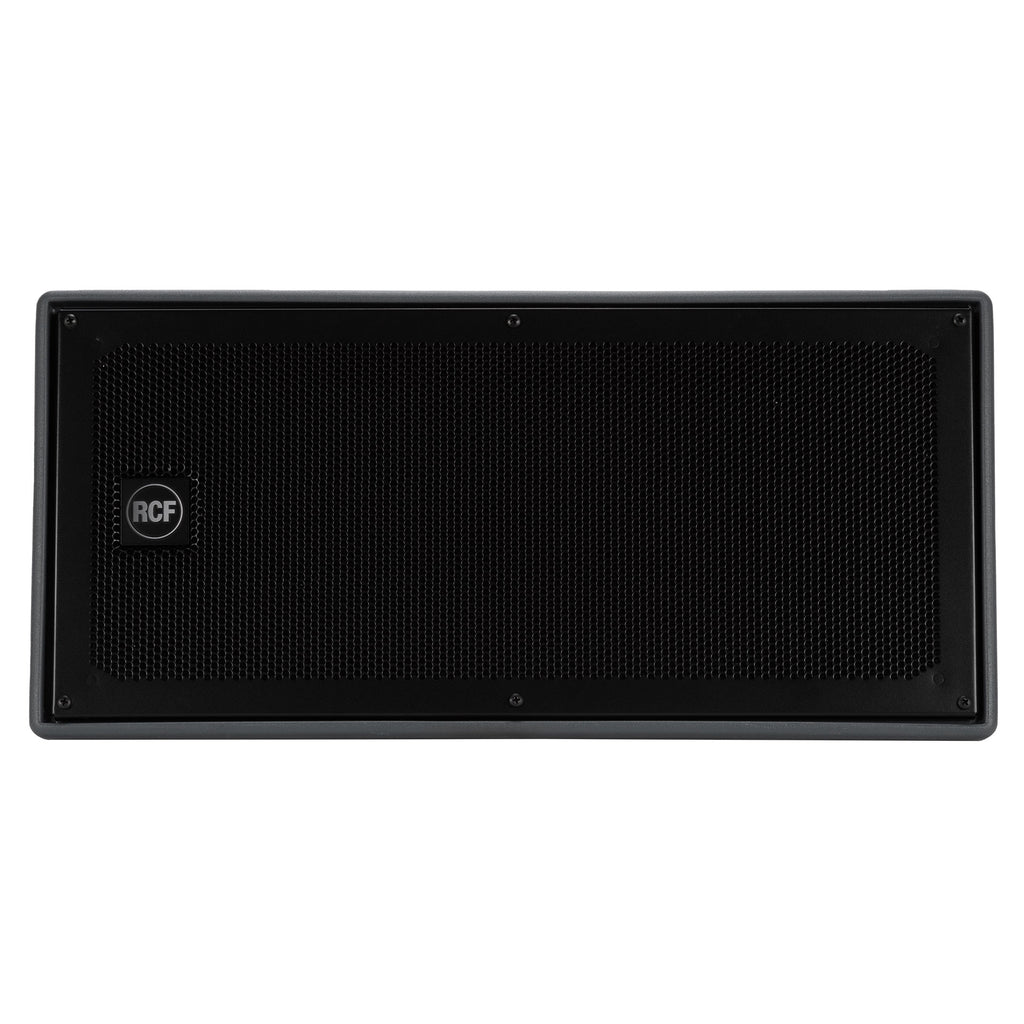

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.
Versatility for any application
Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
LICC - Low Impedance Compensated Crossover
The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.
CMD - Coverage Matching Design
RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Customization without boundaries
Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs - complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
contact us
Specifications
Acoustical specifications
| Frequency Response (-10dB) | 80 Hz - 20000 Hz |
| Max SPL @ 1m | 129 dB |
| Horizontal coverage angle | 110° |
| Vertical coverage angle | 60° |
| Directivity index Q | 9 |
| System Sensitivity | 97 dB |
Power section
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 400 W |
| Peak Power Handling | 1600 W PEAK |
| Protections | Dynamic active mosfet |
| Crossover Frequencies | 1100 Hz |
Transducers
| Compression Driver | 1 x 1.4'' neo, 2.5'' v.c |
| Woofer | 2 x 8'', 2.5'' v.c |
Input/Output section
| Input connectors | Amphenol eco/mat IP 67 |
Standard compliance
| IP protection grade | IP 55 |
| Safety agency | CE compliant |
Physical specifications
| Cabinet/Case Material | PE Low Density |
| Hardware | 4 x M8 + U-bracket and pair of spacers |
| Grille | Aluminum with water-repellent protection |
| Color | Grey - RAL 7011, Black - RAL 9005, White - RAL 9003 |
Size / Weight
| Height | 268 mm / 10.55 inches |
| Width | 566 mm / 22.28 inches |
| Depth | 250 mm / 9.84 inches |
| Weight | 14 kg / 30.86 lbs |
Shipping information
| Package Height | 290 mm / 11.42 inches |
| Package Width | 590 mm / 23.23 inches |
| Package Depth | 290 mm / 11.42 inches |
| Package Weight | 15.6 kg / 34.39 lbs |
