Save $20
RCFSKU: PL 40
Price:
$79 $99

Shipping calculated at checkout

Description

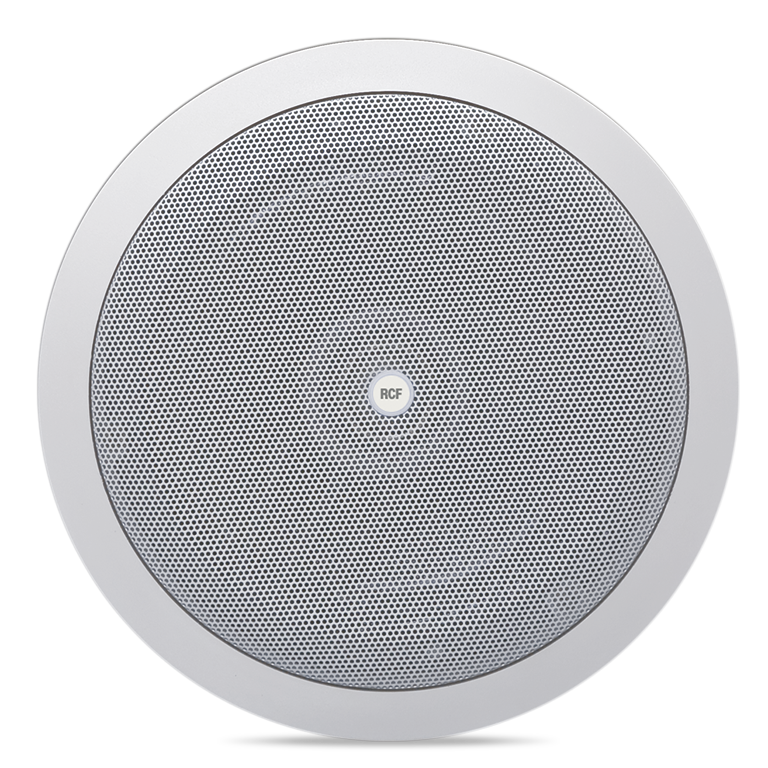

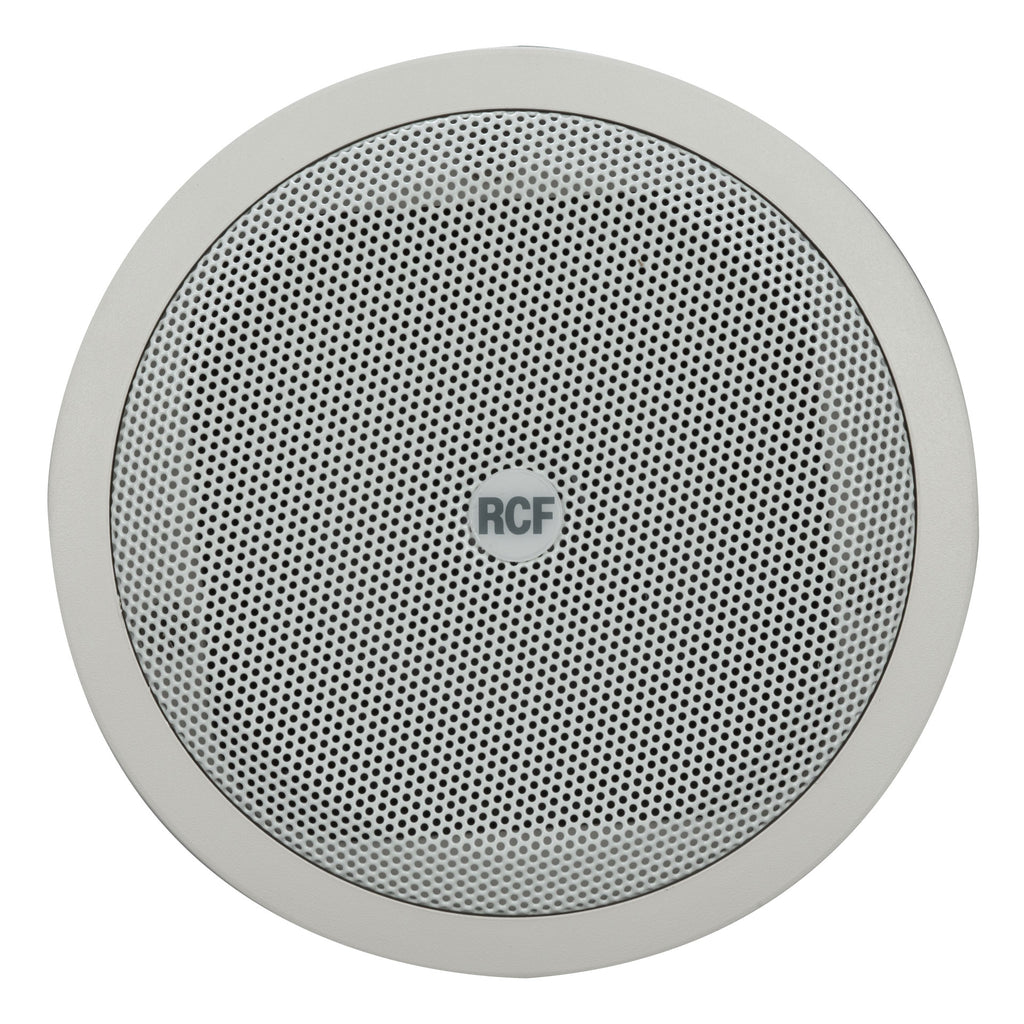

PL 40 Ceiling Speaker

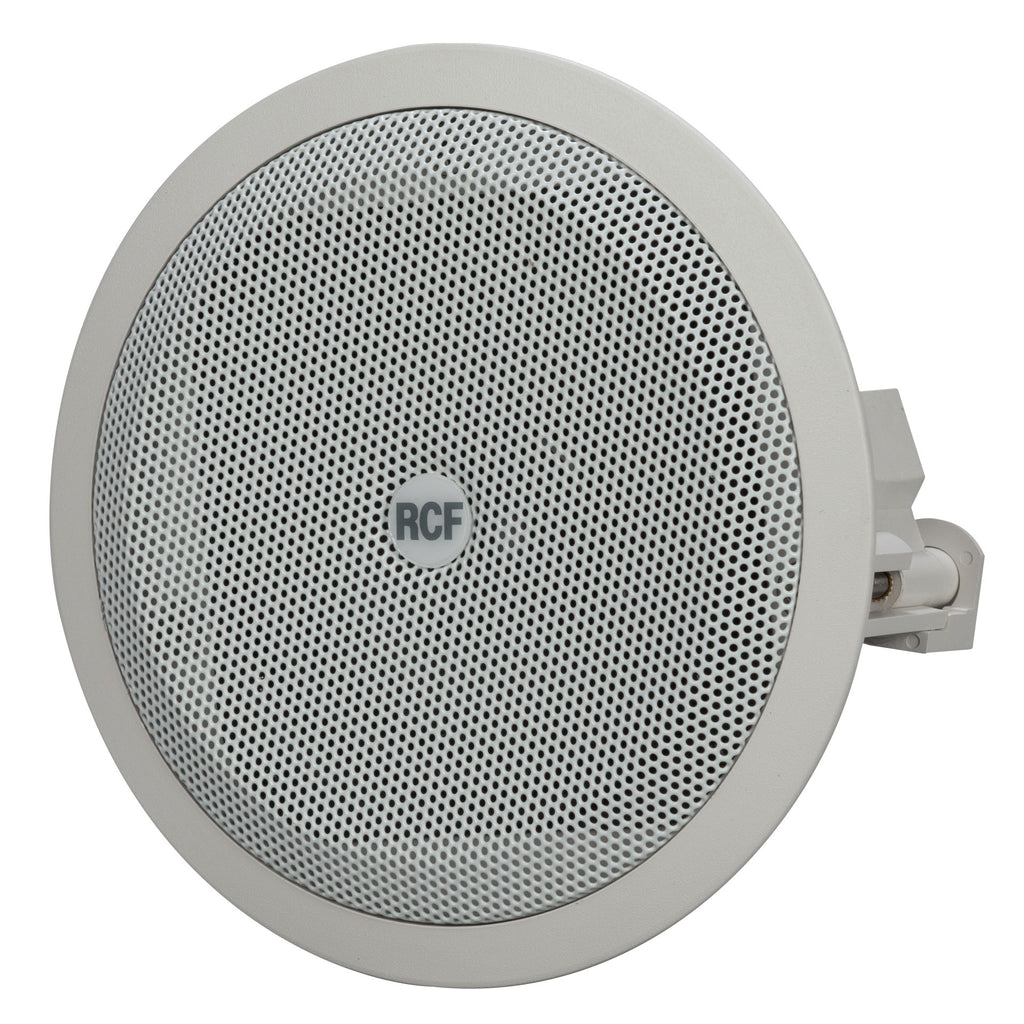

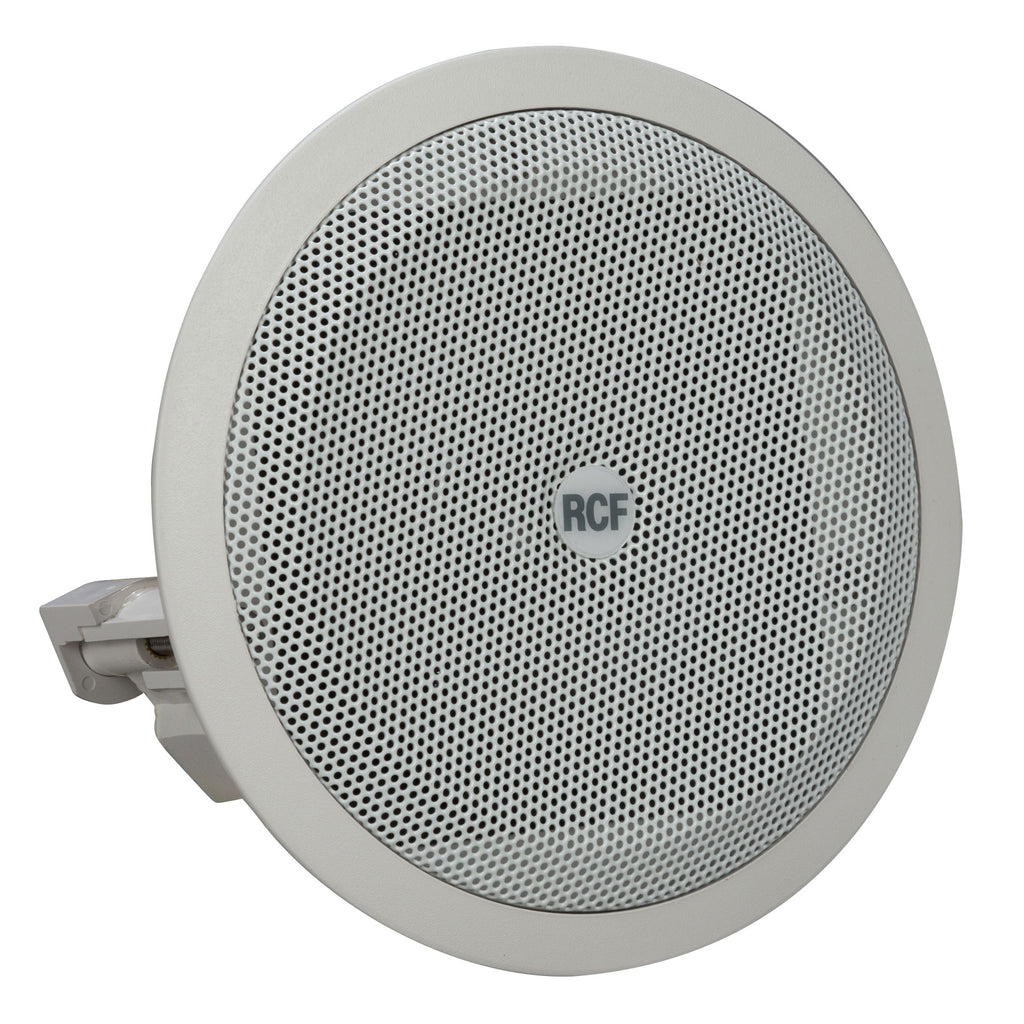

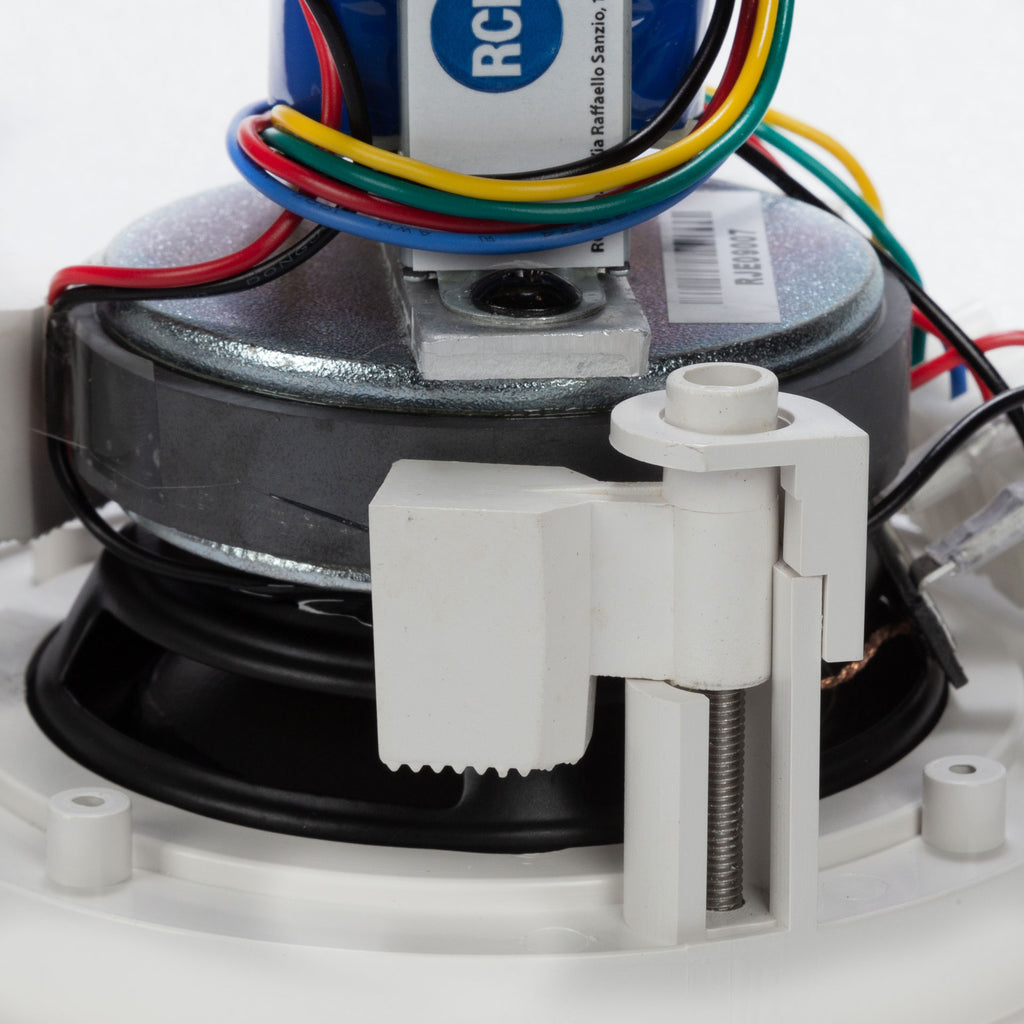

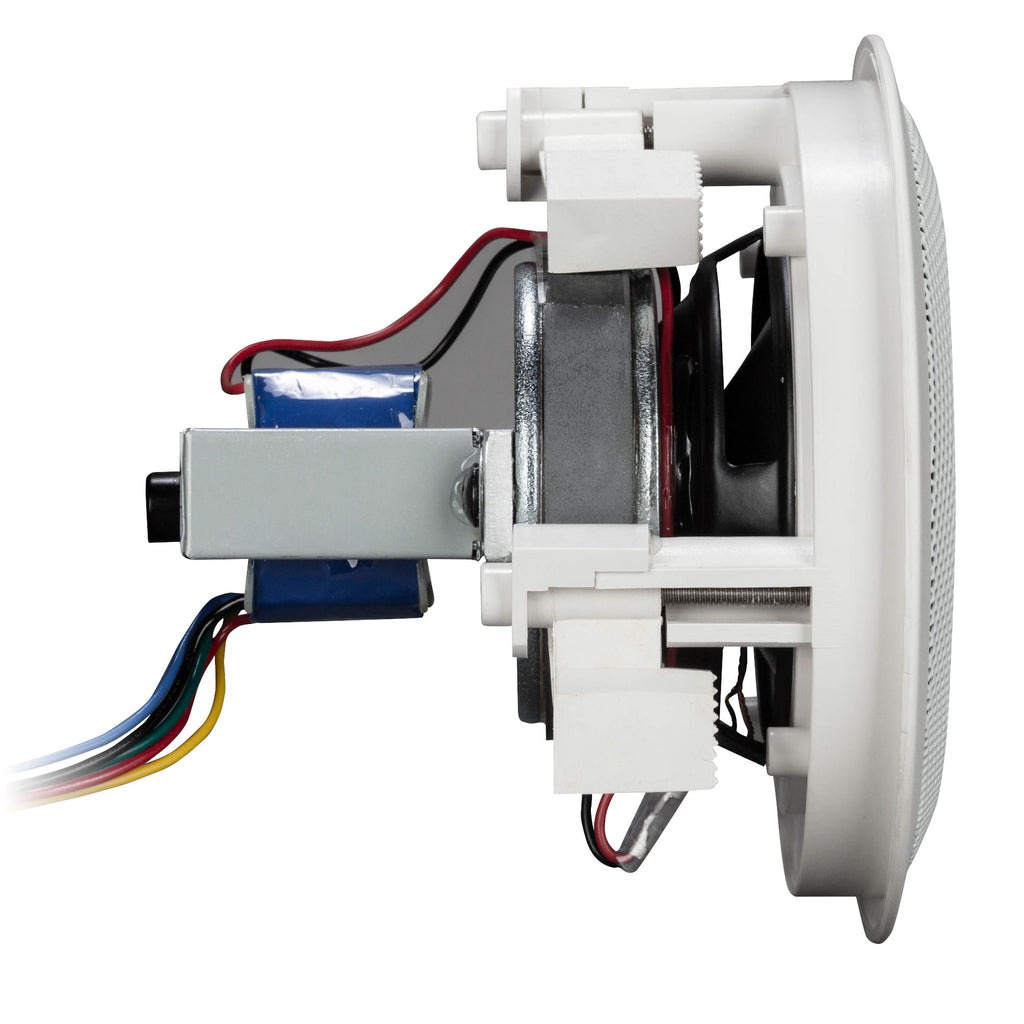

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features

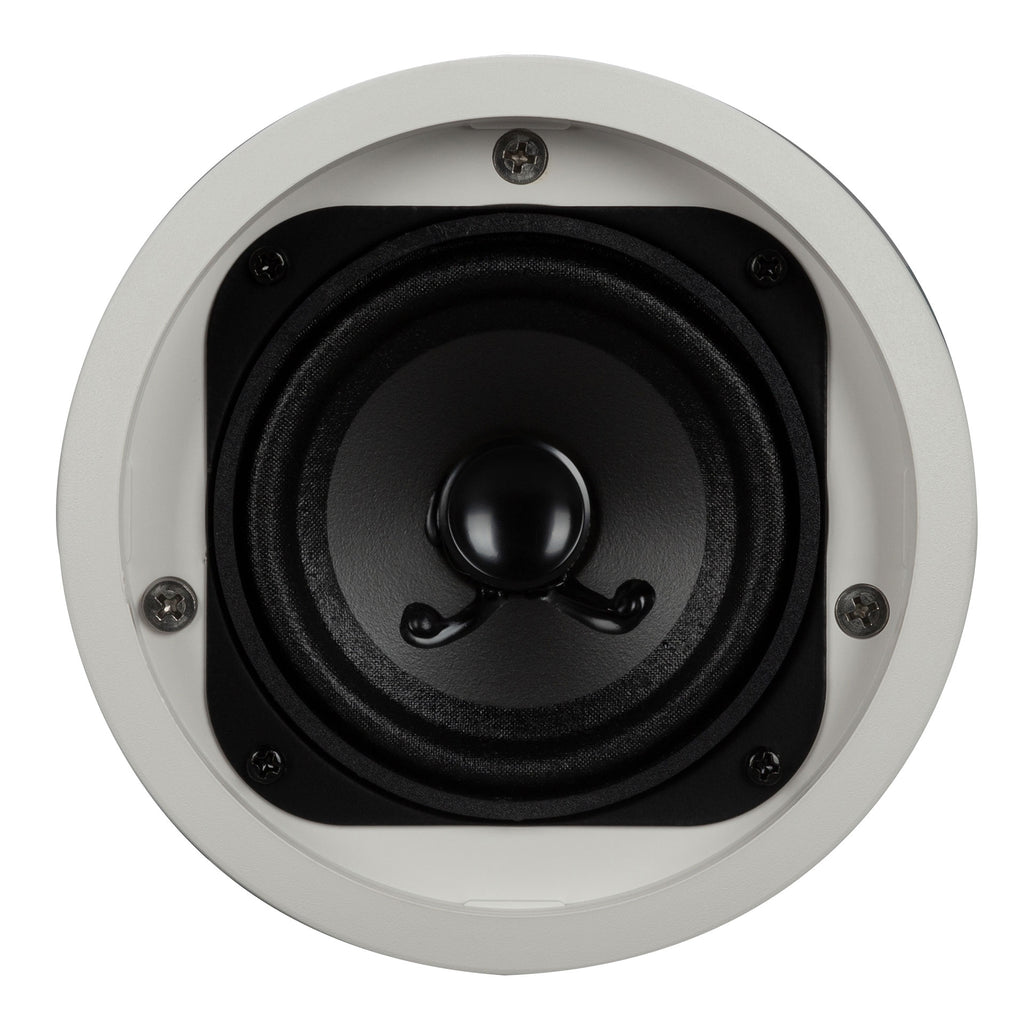

  • 3.5" fullrange transducer
  • Power selectable (100 V): 8 W - 6 W - 4 W - 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame UL 94 V0, aluminium grille

Specifications

Acoustical specifications

Frequency Response (-10dB) 90 Hz - 20000 Hz
Max SPL @ 1m 100 dB
Coverage angle 120°
System Sensitivity 88 dB

Power section

Amplification Full Range
Power Handling 8 W RMS
Peak Power Handling 32 W PEAK
Recommended Amplifiers DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162

Transducers

Fullrange 1 x 3.5''

Input/Output section

Input connectors Screw Terminals
Output connectors Screw Terminals

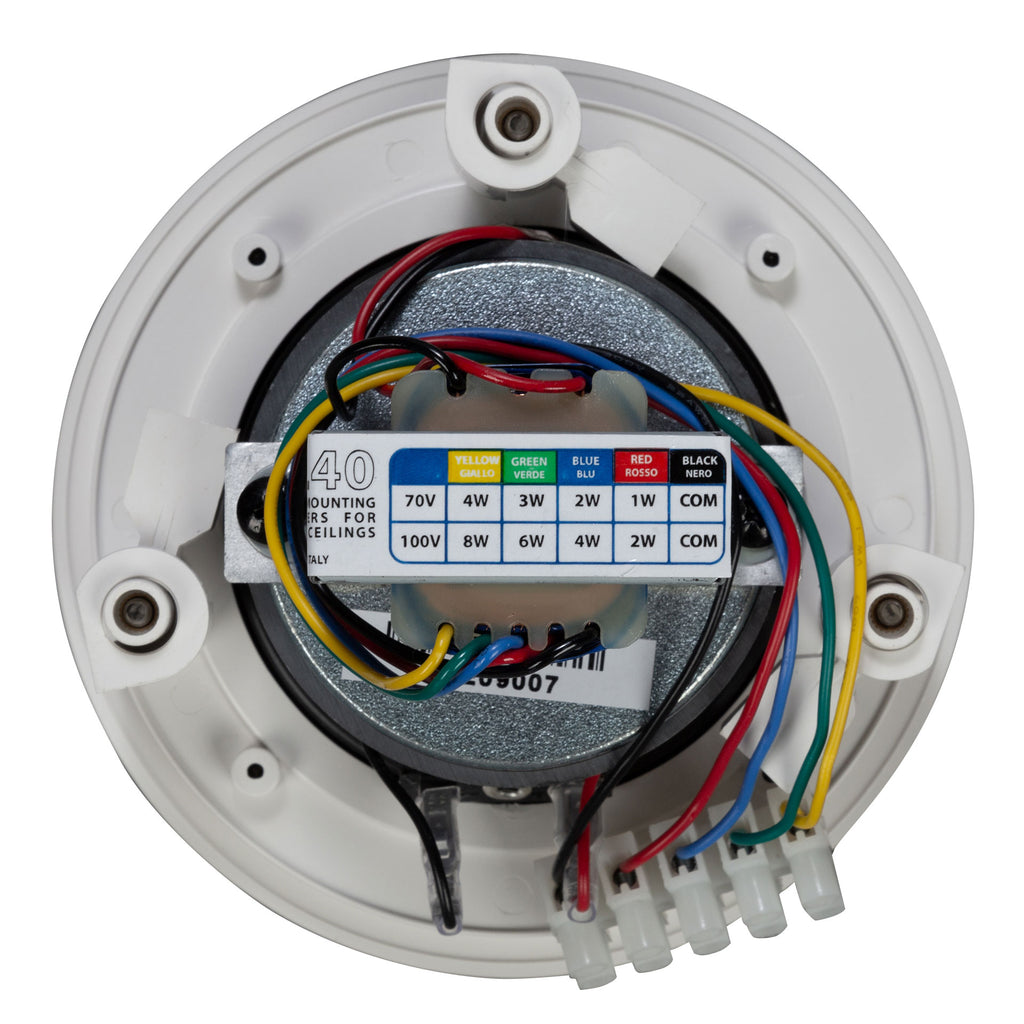

Constant Voltage Transformer 100 V
Power selection 1 8 W - 1250 ohm
Power selection 2 6 W - 1667 ohm
Power selection 3 4 W - 2500 ohm
Power selection 4 2 W - 5000 ohm

Standard compliance

IP protection grade IP 44
Safety agency CE compliant

Physical specifications

Cabinet/Case Material Plastic
Hardware Plastic Material
Grille Aluminium
Color White - RAL 9003

Size / Weight

Depth 110 mm / 4.33 inches
Recessed Depth 103 mm / 4.06 inches
Diameter 130 mm / 5.12 inches
Cut out diameter 122 mm / 4.8 inches
Weight 0.38 kg / 0.84 lbs

Shipping information

Package Height 120 mm / 4.72 inches
Package Width 175 mm / 6.89 inches
Package Depth 175 mm / 6.89 inches
Package Weight 1.2 kg / 2.65 lbs
