PL 50 Ceiling Speaker

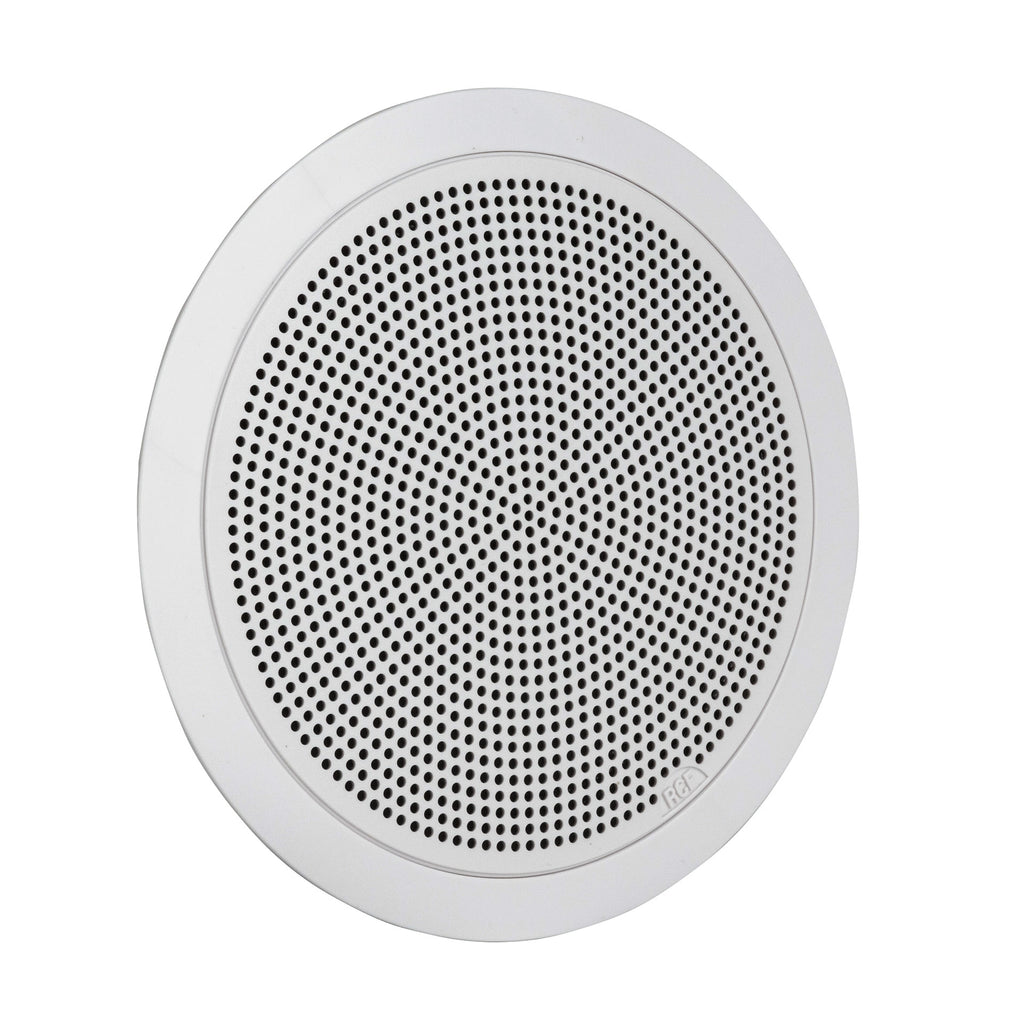

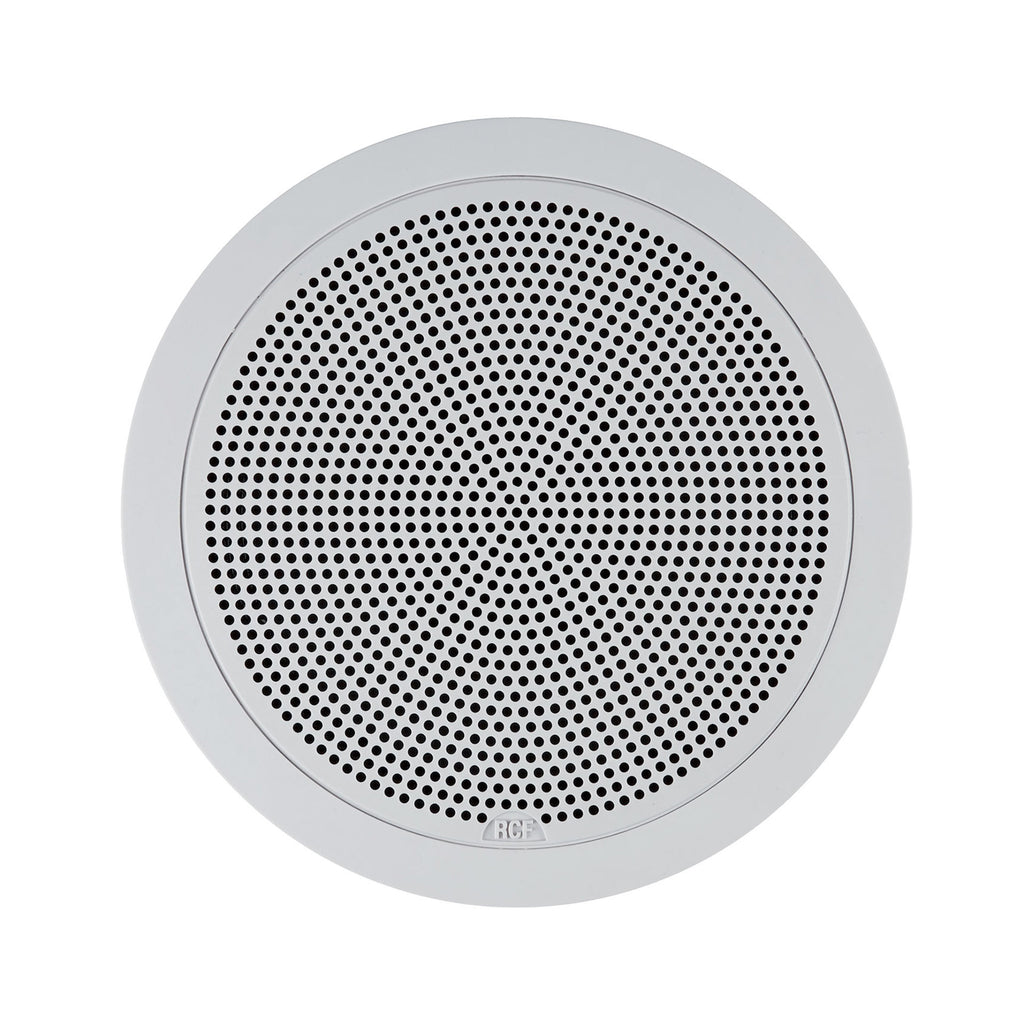

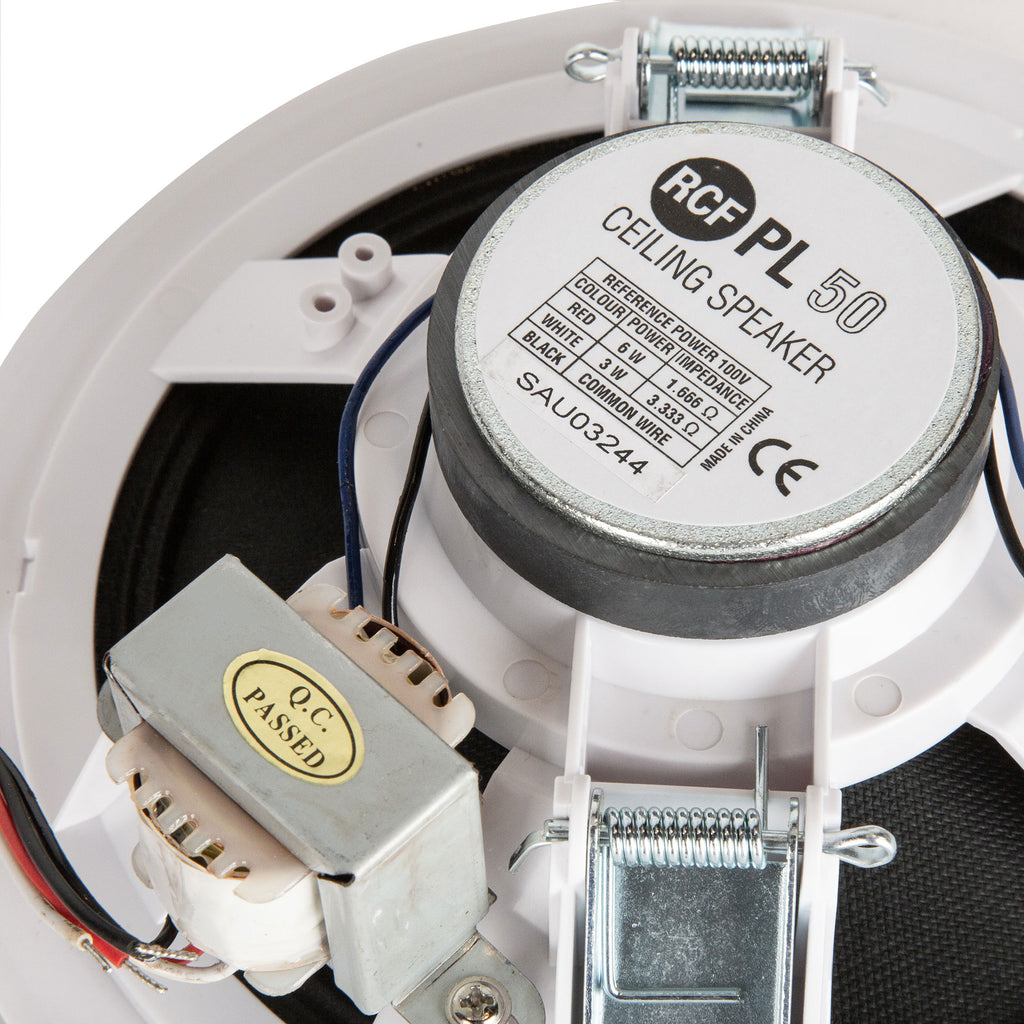

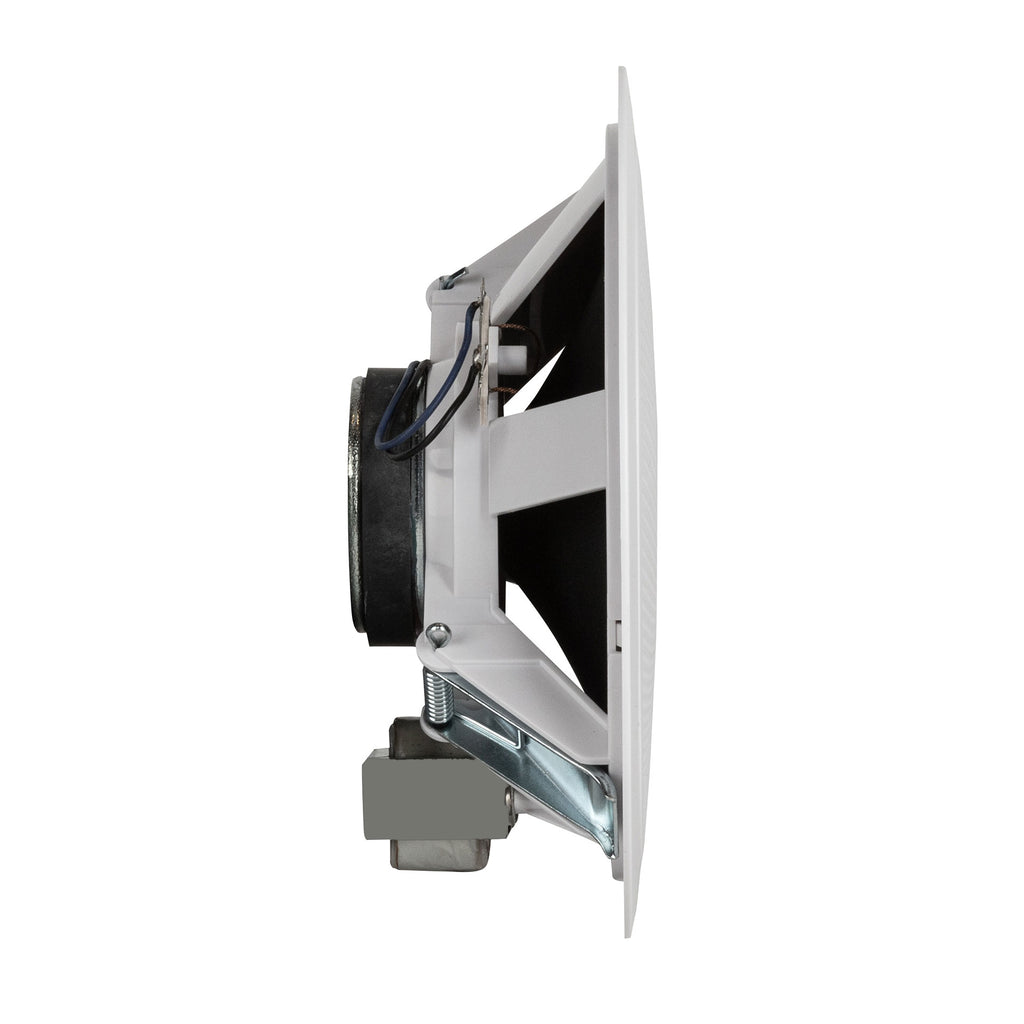

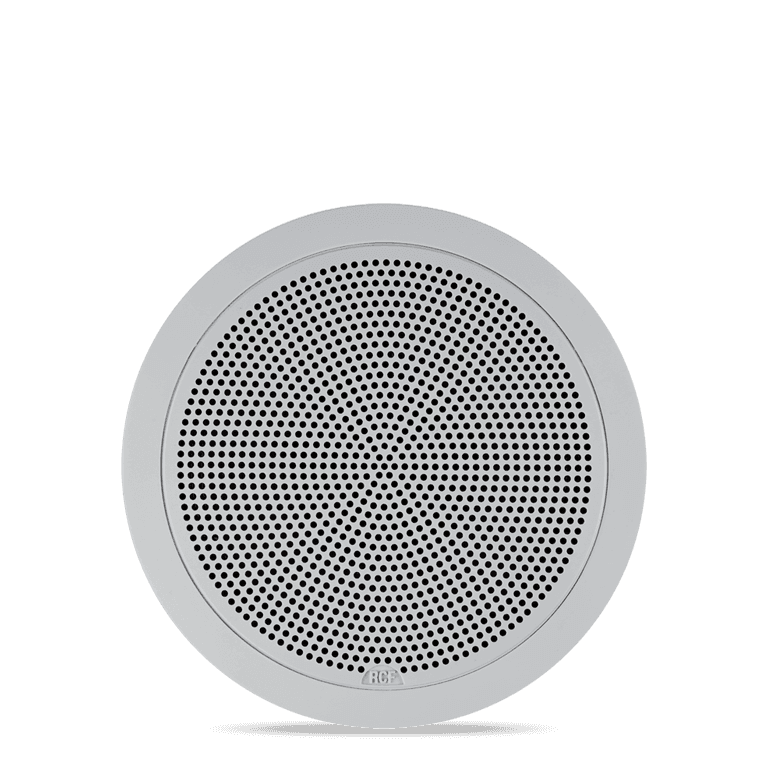

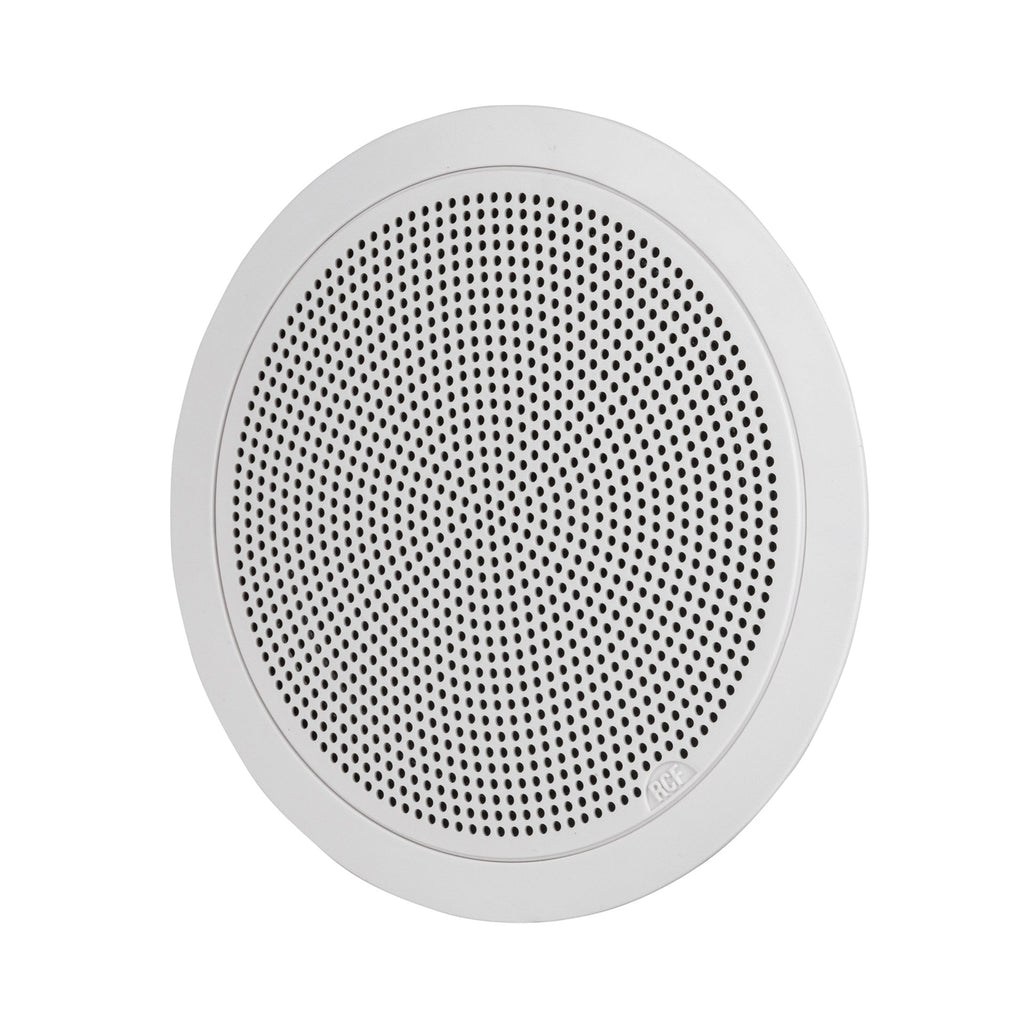

PL 50 is a flush-mount ceiling 6” (dual-cone) loudspeaker. It has an internal transformer that allows direct connection to 100 V constant voltage lines. The transformer has 2 inputs for power tapping: 6 - 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.
Features
- 6" fullrange transducer
- Power selectable (100 V): 6 W - 3 W
- 90 dB sensitivity
- Colour white RAL 9003
- Plastic frame and grille
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
100 Hz - 20000 Hz |
| Max SPL @ 1m |
98 dB |
| Coverage angle |
150° |
| System Sensitivity |
90 dB |
Power section
| Amplification |
Full Range |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
Input/Output section
| Input connectors |
Screw Terminals |
| Output connectors |
Screw Terminals |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
6 W - 1667 ohm |
| Power selection 2 |
3 W - 3333 ohm |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Metal |
| Grille |
Plastic |
| Color |
White - RAL 9003 |
Size / Weight
| Depth |
65 mm / 2.56 inches |
| Recessed Depth |
59 mm / 2.32 inches |
| Diameter |
186 mm / 7.32 inches |
| Weight |
0.5 kg / 1.1 lbs |
Shipping information
| Package Height |
80 mm / 3.15 inches |
| Package Width |
200 mm / 7.87 inches |
| Package Depth |
200 mm / 7.87 inches |
| Package Weight |
0.6 kg / 1.32 lbs |
