PL 6X Coaxial Ceiling Speaker

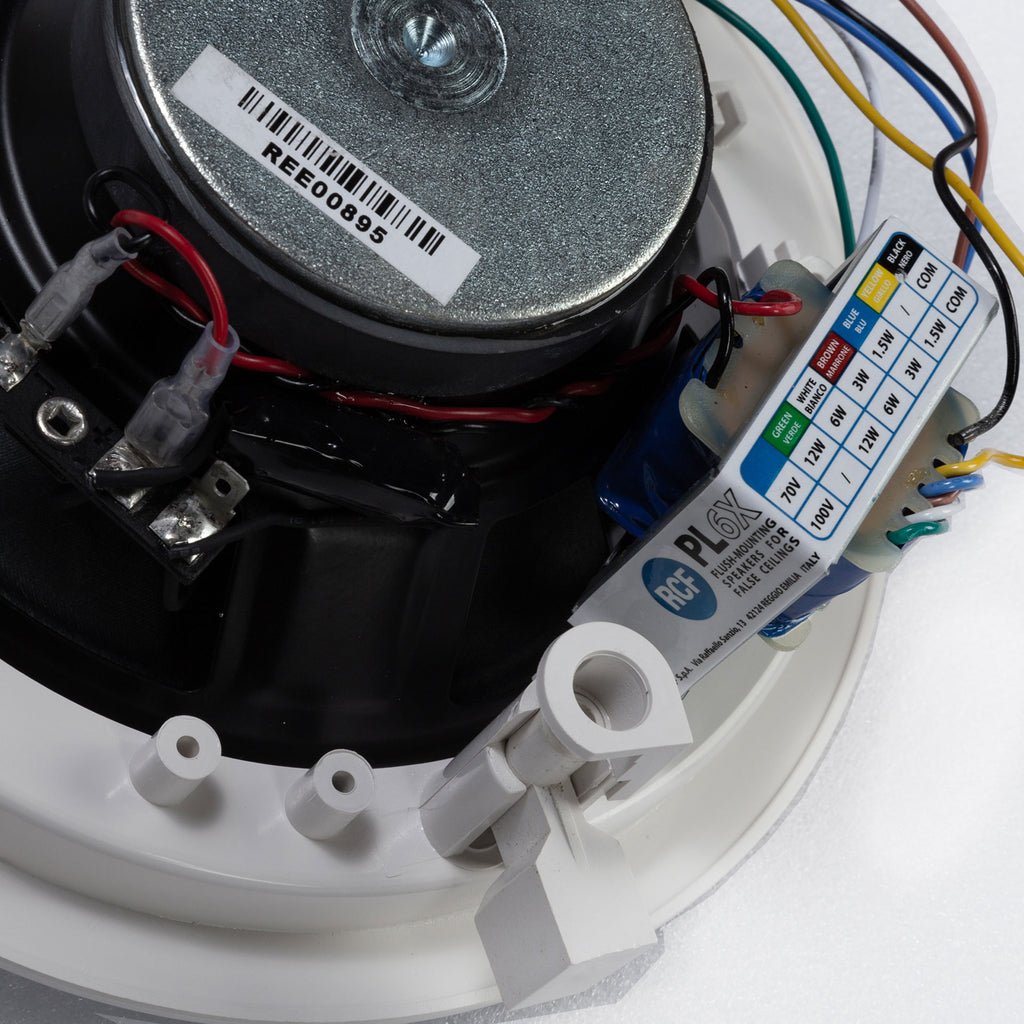

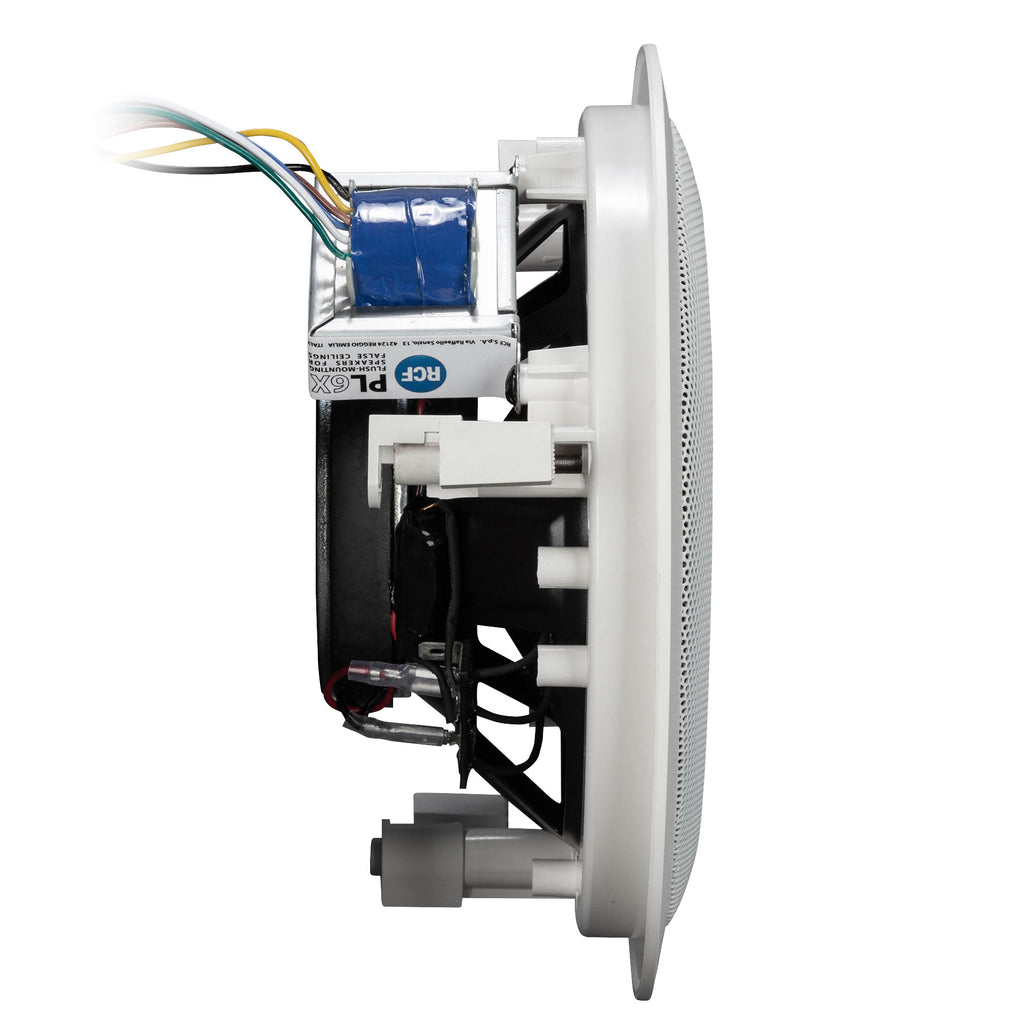

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6” coaxial woofer with a 1” tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features
- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W - 6 W - 3 W - 1.5 W
- 92 dB sensitivity

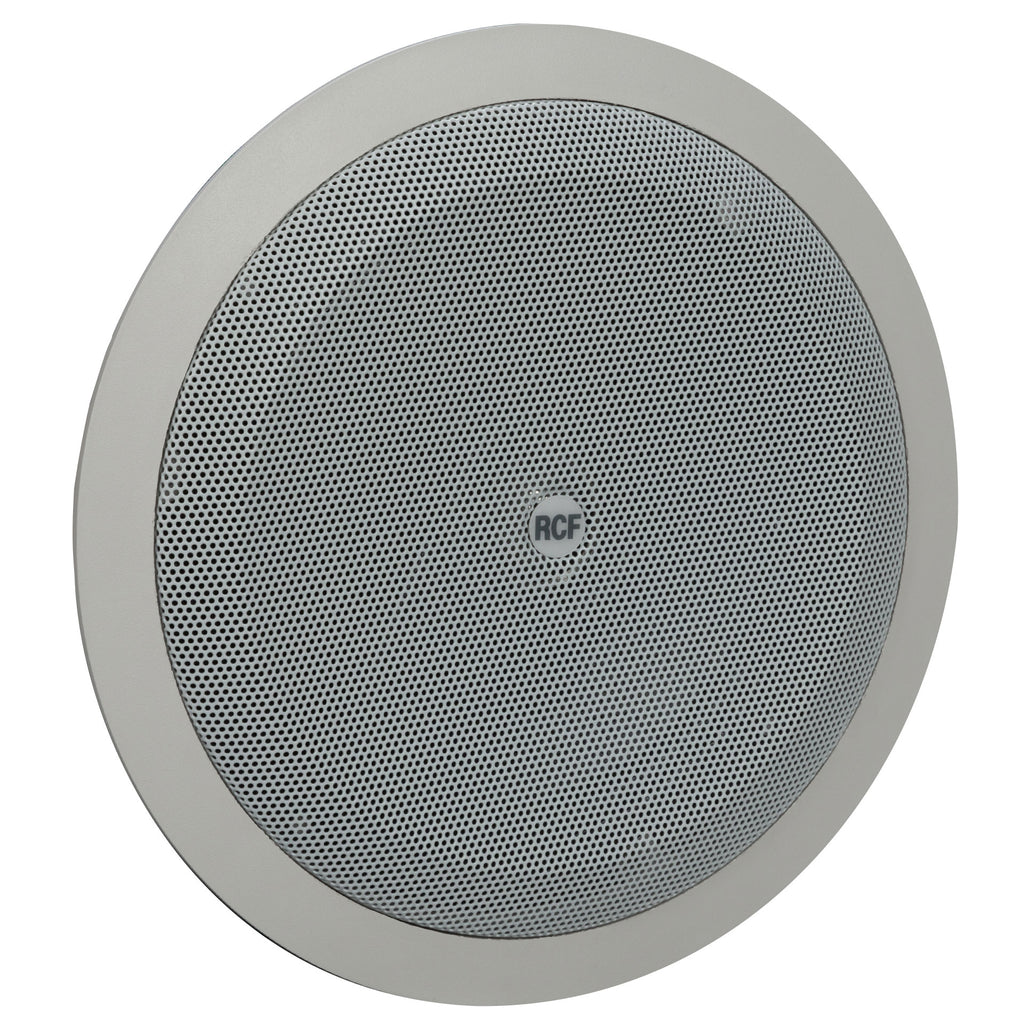

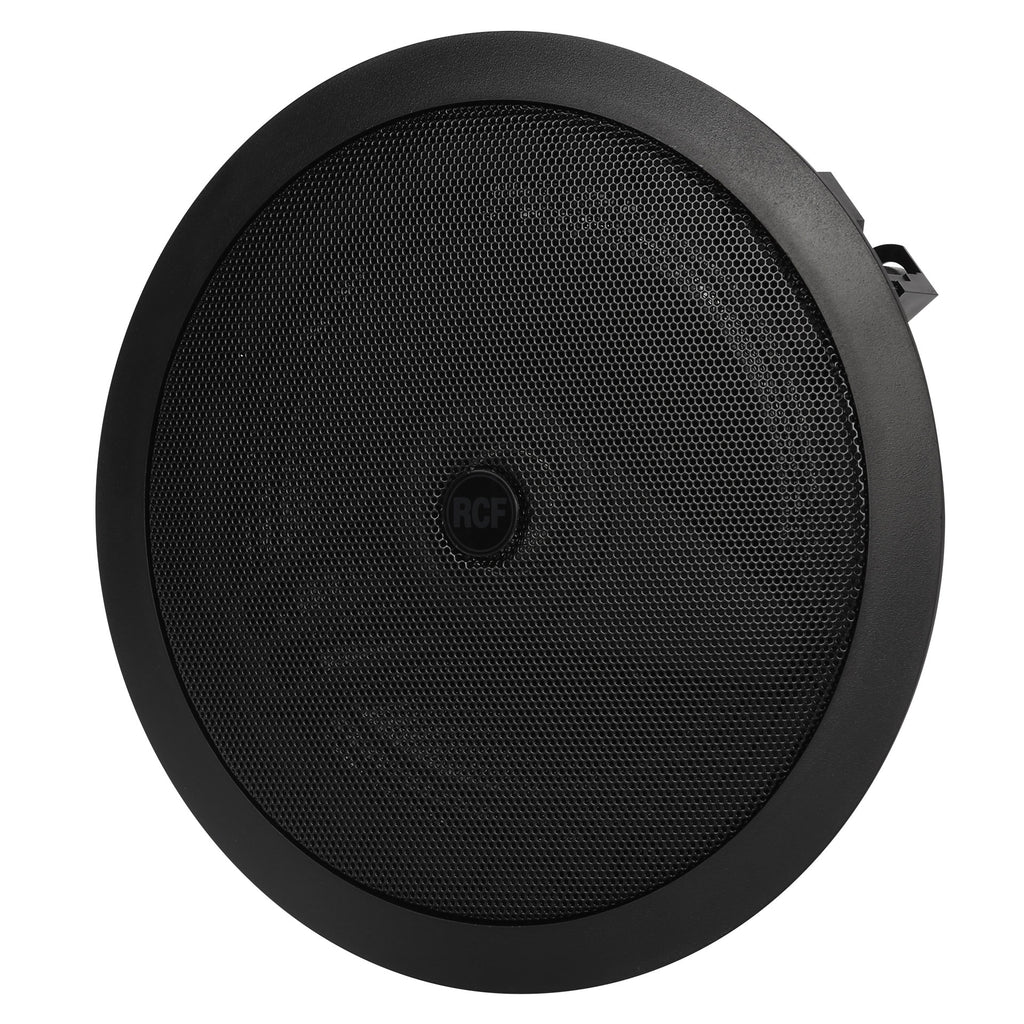

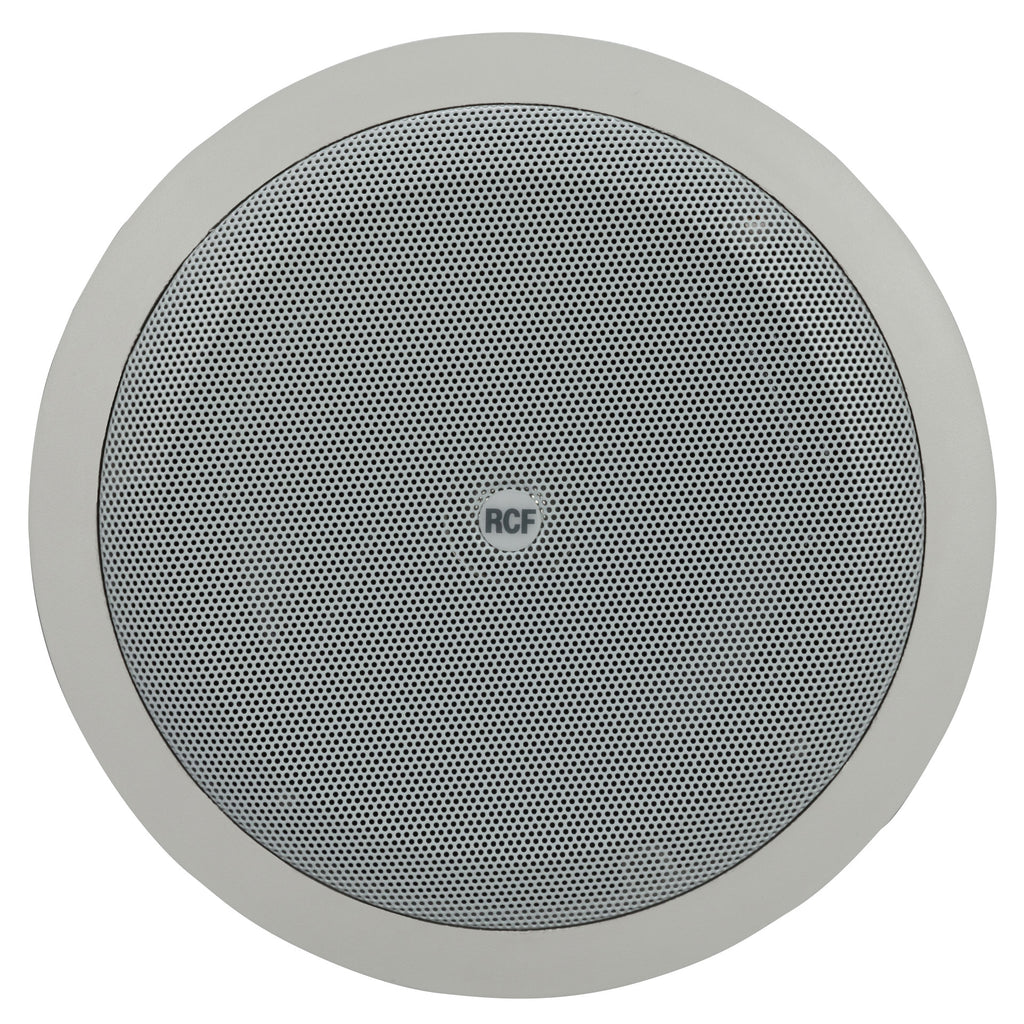

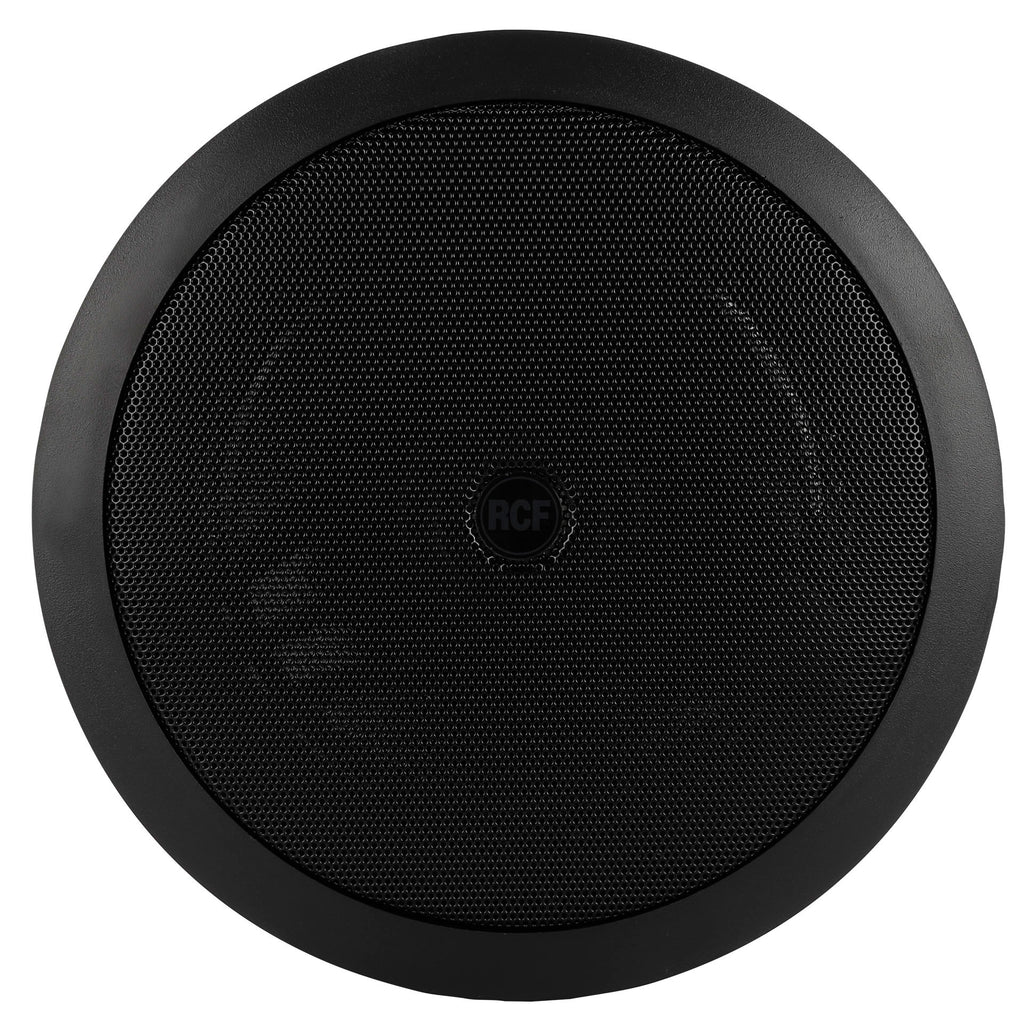

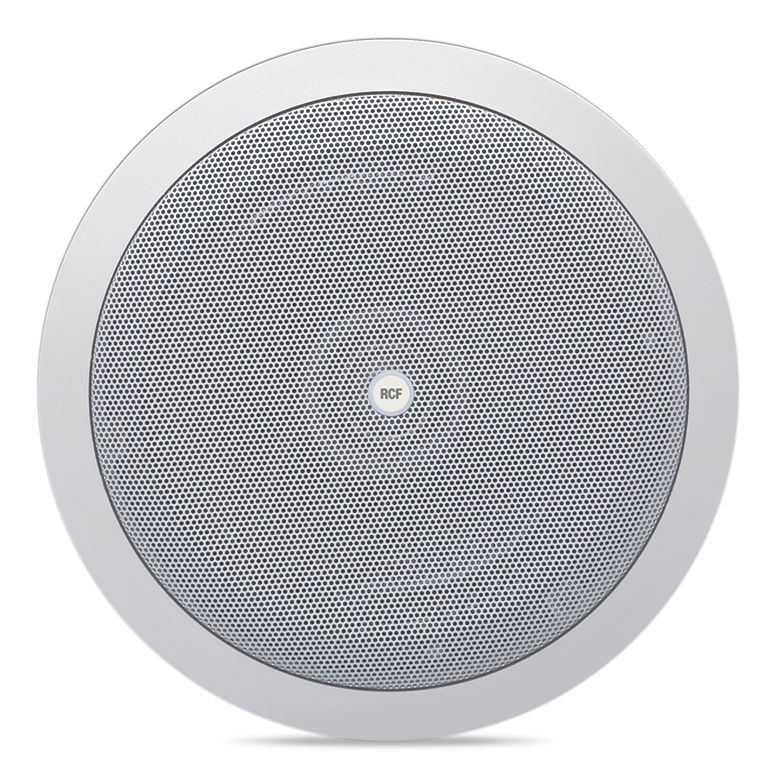

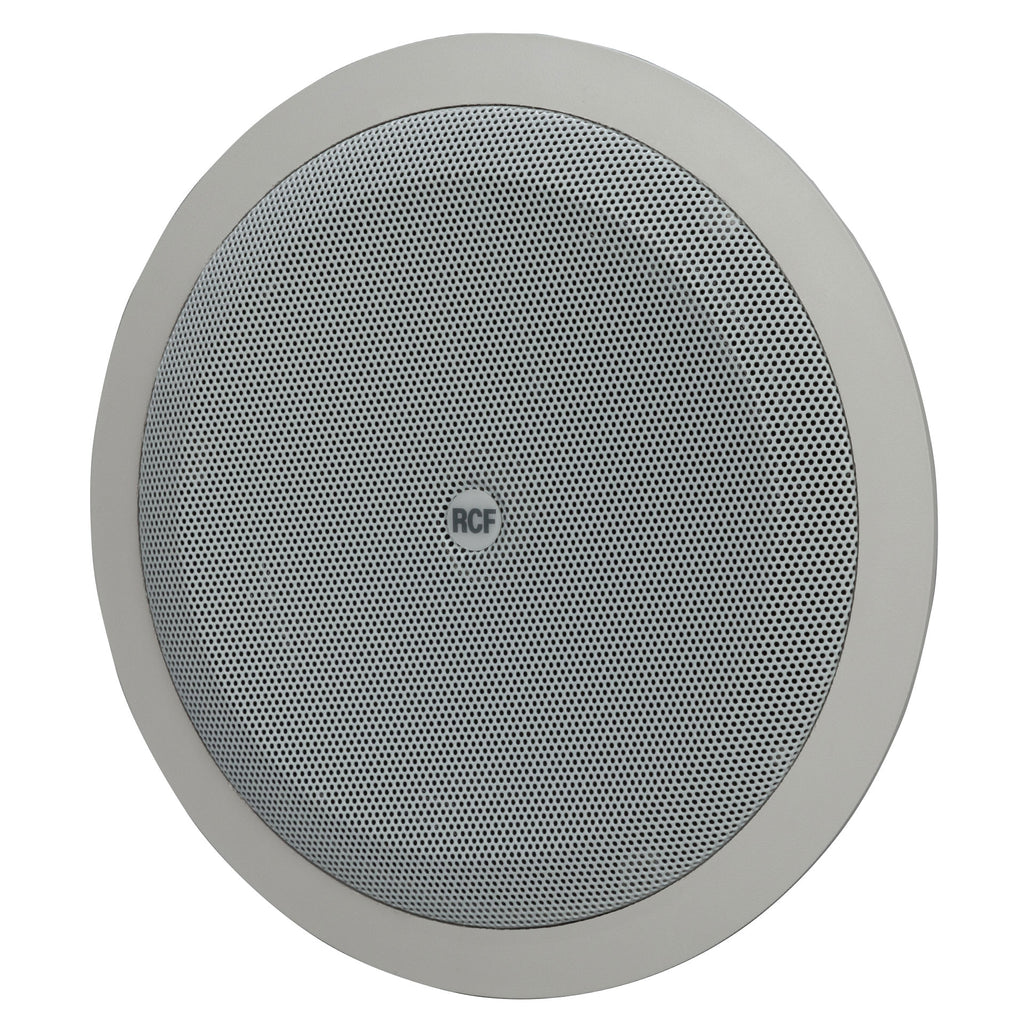

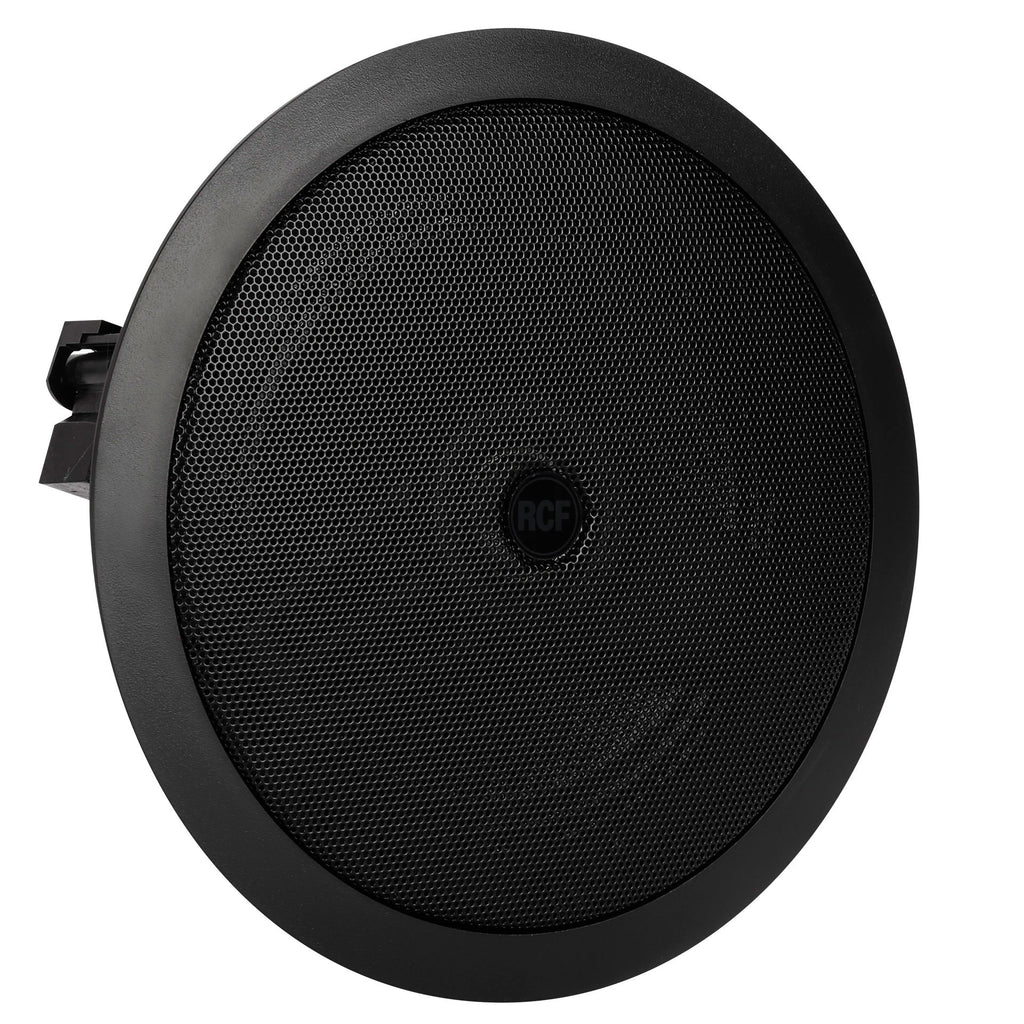

- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
106 dB |
| Coverage angle |
100° |
| System Sensitivity |
92 dB |
Power section
| Amplification |
Full Range |
| Power Handling |
12 W RMS |
| Peak Power Handling |
48 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
| Dome Tweeter |
1.0'' |
| Woofer |
6.0'' |
Input/Output section
| Input connectors |
Screw Terminals |
| Output connectors |
Screw Terminals |

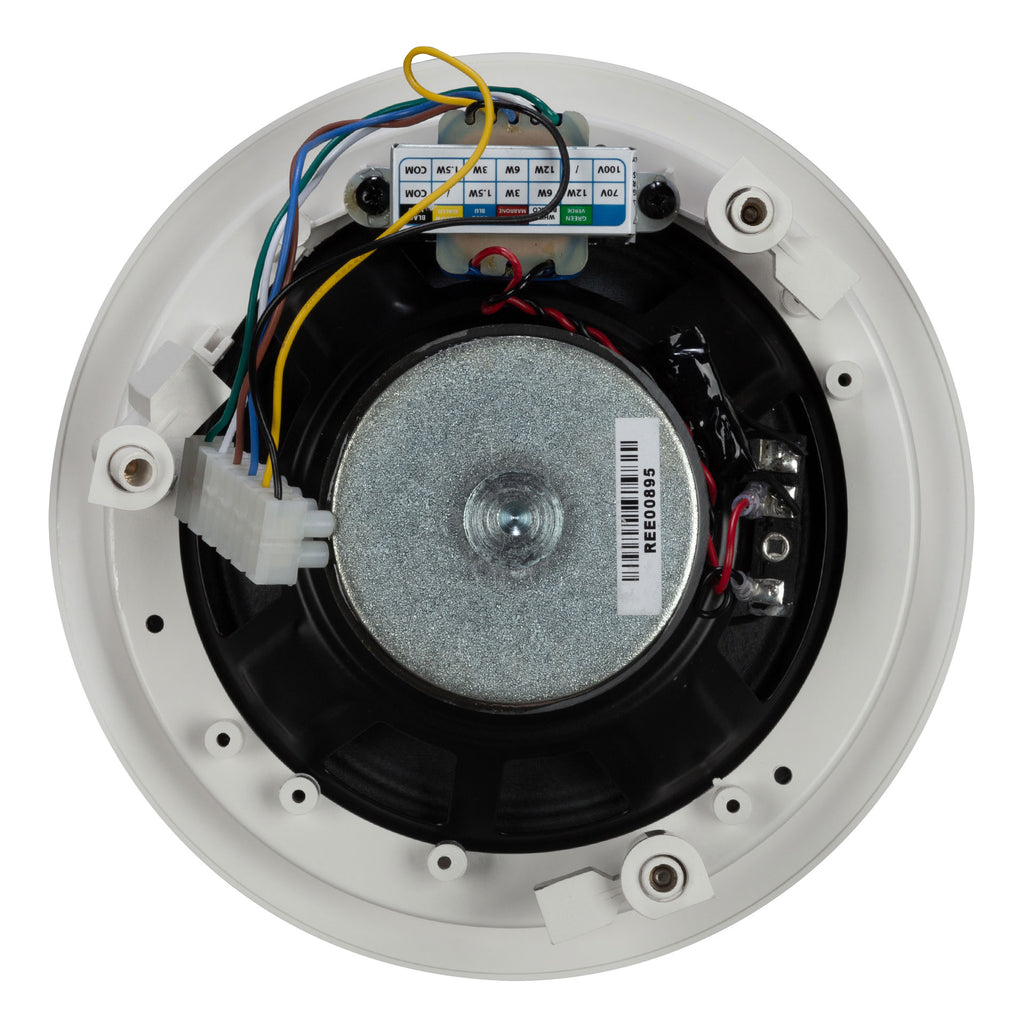

| Constant Voltage Transformer |
70/100 V |

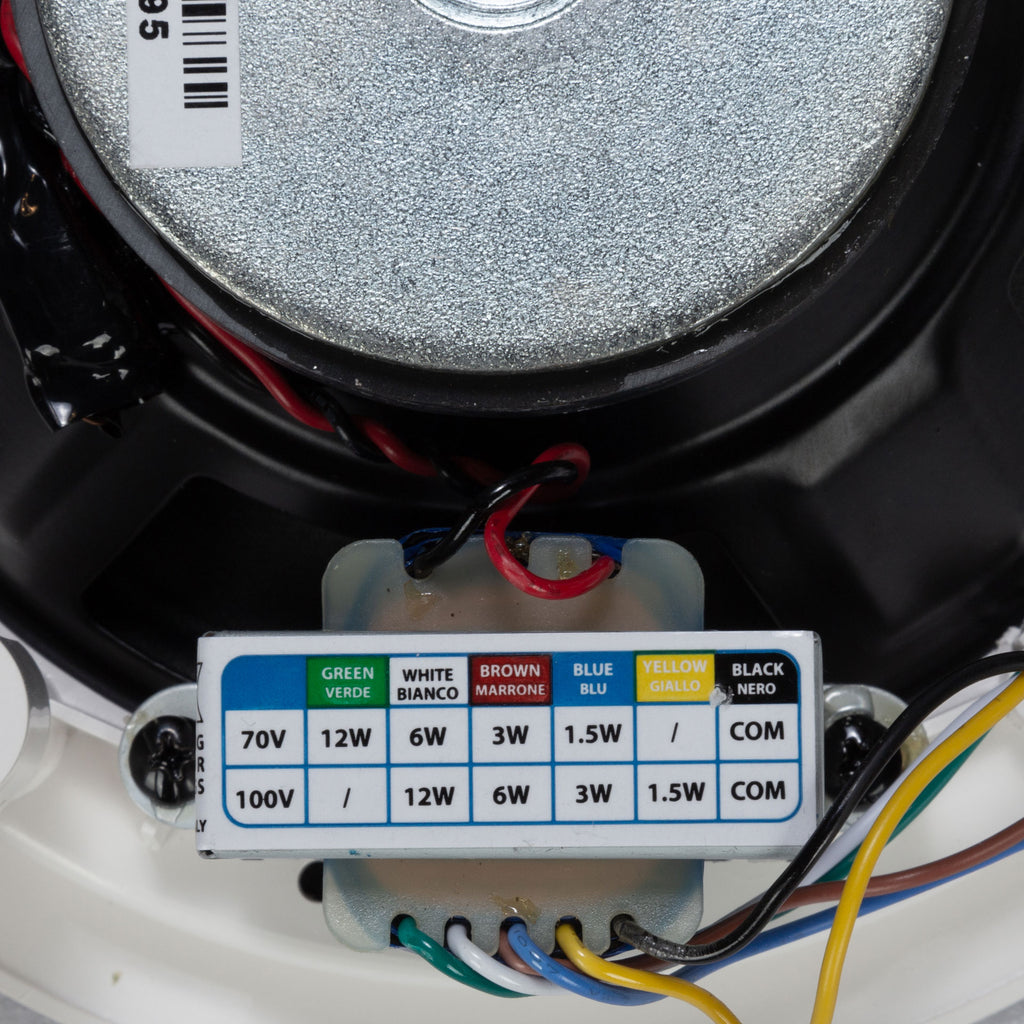

| Power selection 1 |
12 W - 833 ohm |
| Power selection 2 |
6 W - 1667 ohm |
| Power selection 3 |
3 W - 3333 ohm |
| Power selection 4 |
1.5 W - 6667 ohm |
Standard compliance
| IP protection grade |
IP 44 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Aluminium |
| Color |
White - RAL 9003, Black - RAL 9005 |
Size / Weight
| Depth |
73 mm / 2.87 inches |
| Recessed Depth |
66 mm / 2.6 inches |
| Diameter |
204 mm / 8.03 inches |
| Cut out diameter |
182 mm / 7.17 inches |
| Weight |
0.78 kg / 1.72 lbs |
Shipping information
| Package Height |
240 mm / 9.45 inches |
| Package Width |
240 mm / 9.45 inches |
| Package Depth |
110 mm / 4.33 inches |
| Package Weight |
1.56 kg / 3.44 lbs |
