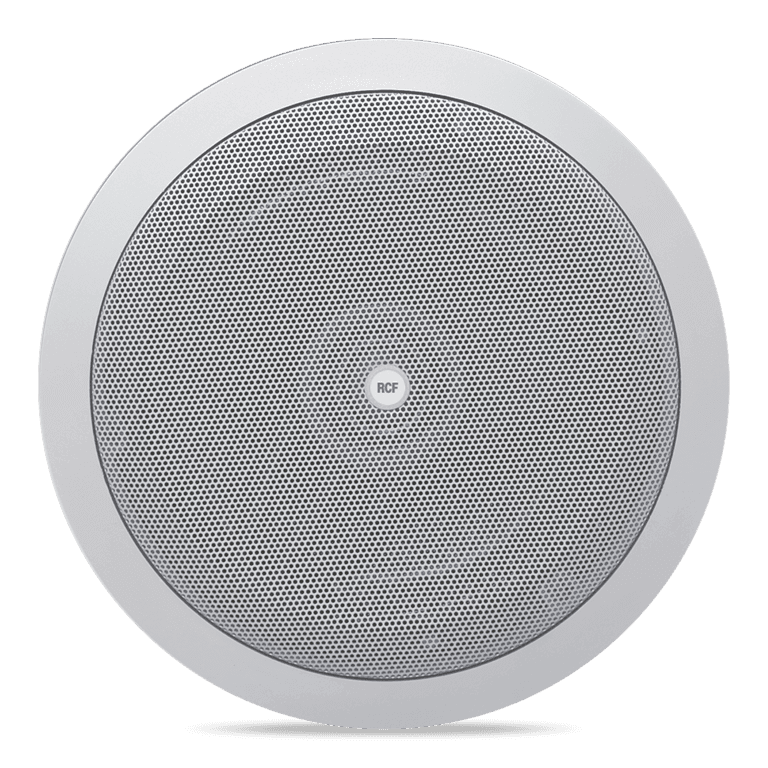

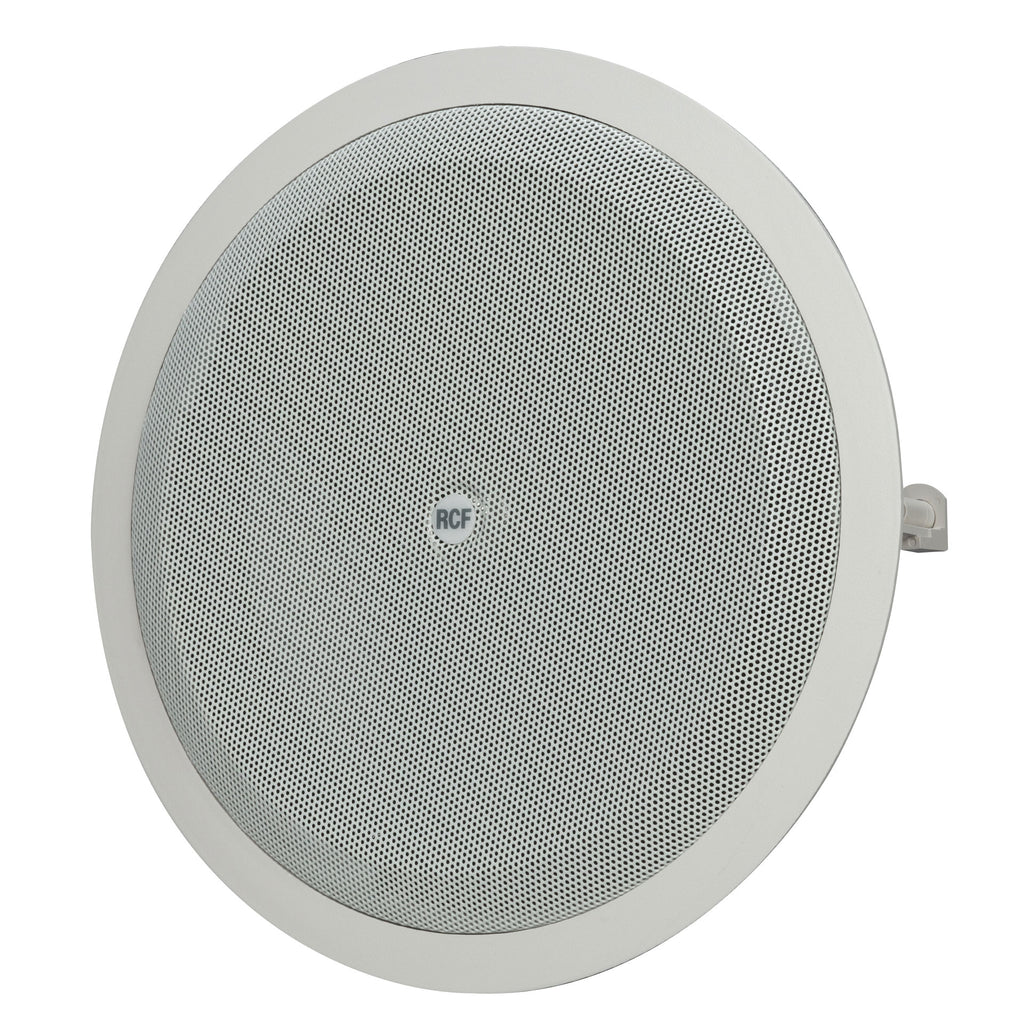

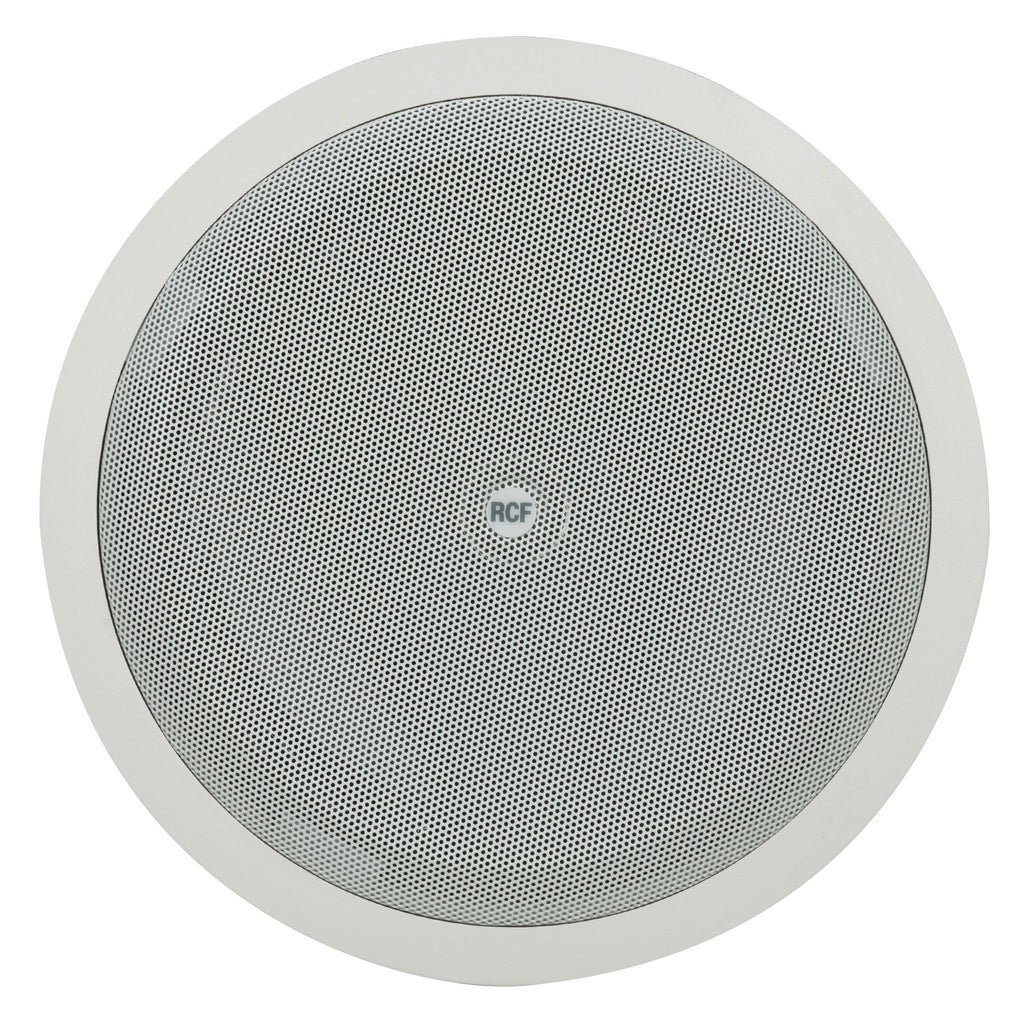

PL 8X Coaxial Ceiling Speaker

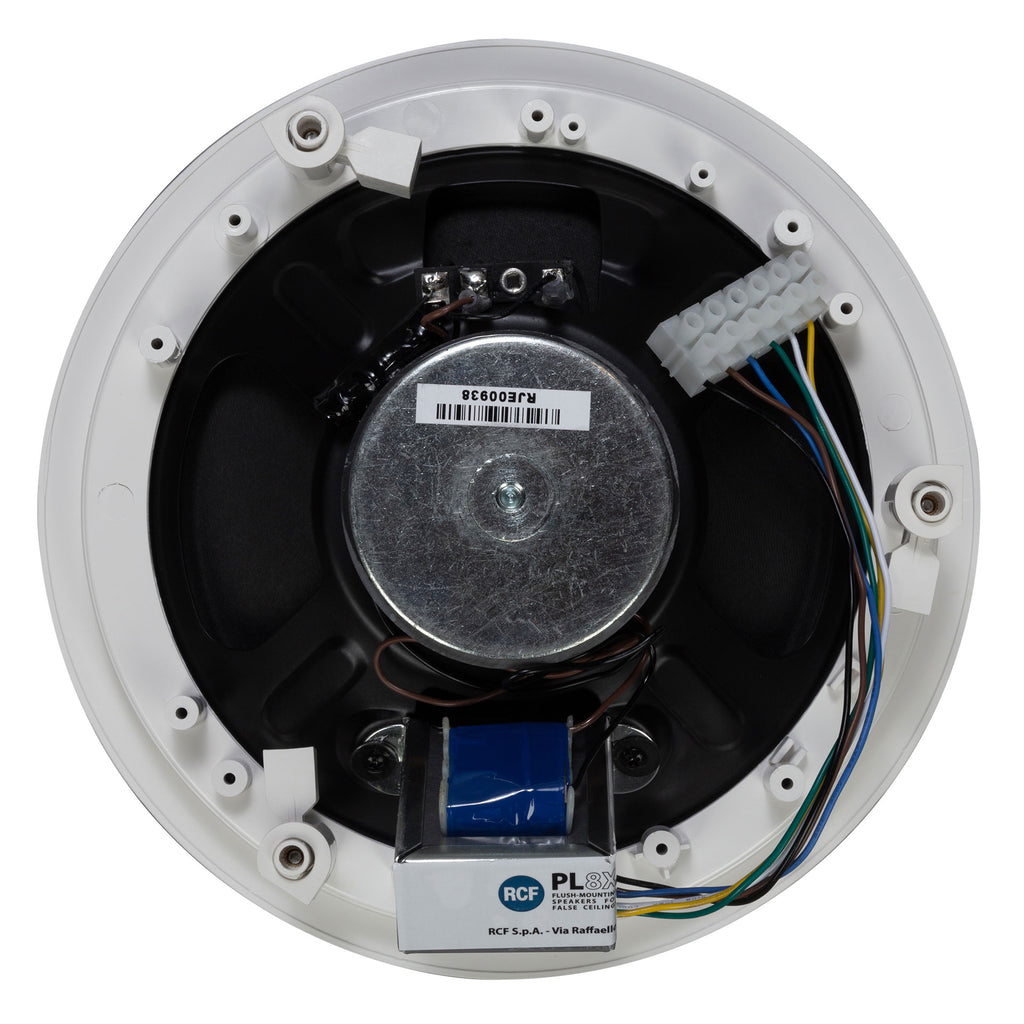

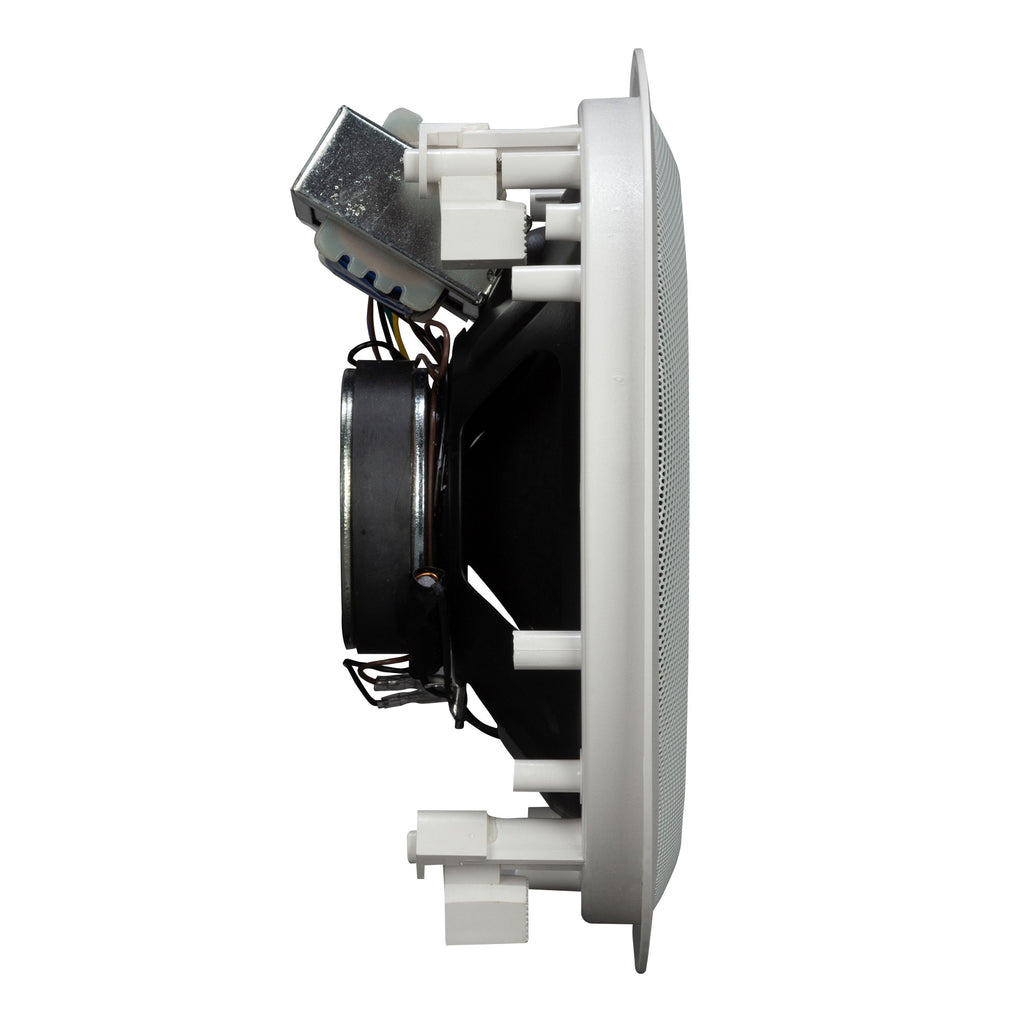

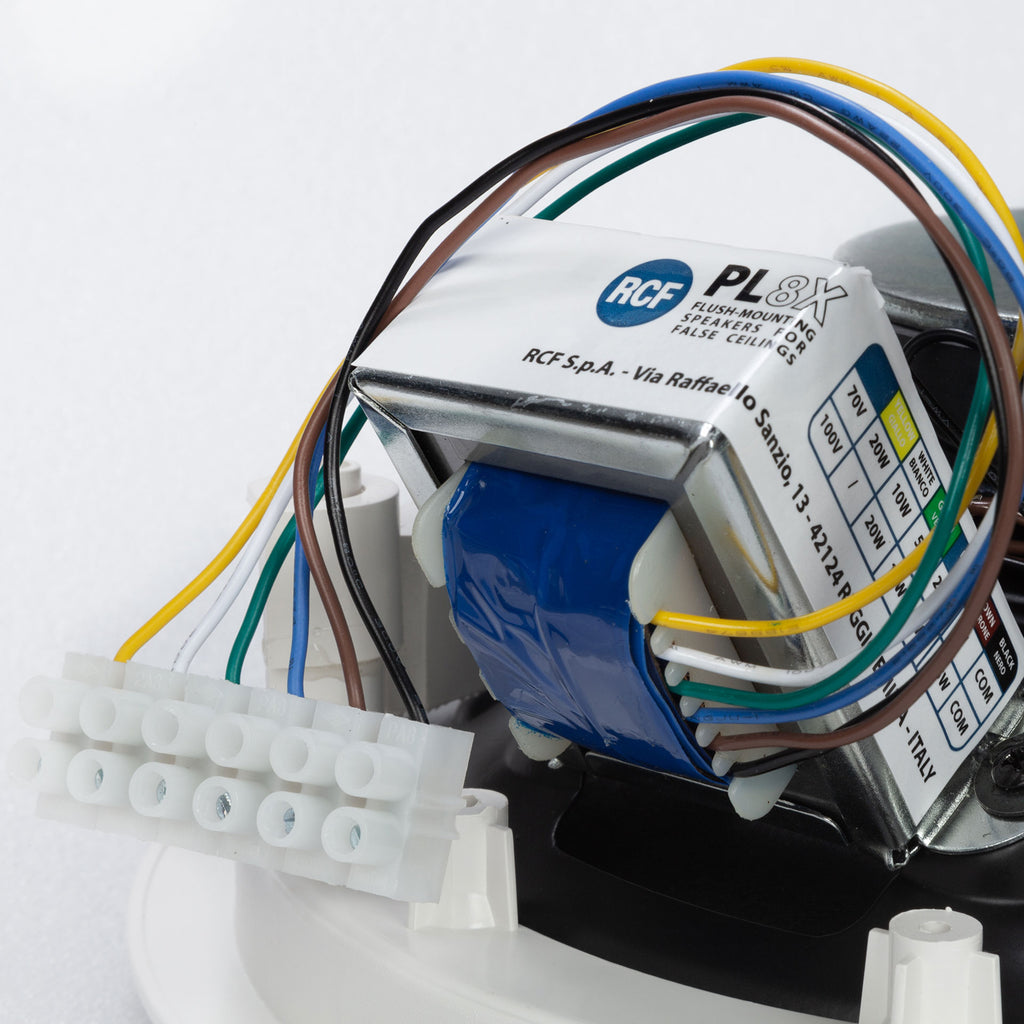

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features

8" woofer with 1" dome tweeter
Power selectable (70 V / 100 V): 20 W - 10 W - 5 W - 2.5 W
93 dB sensitivity

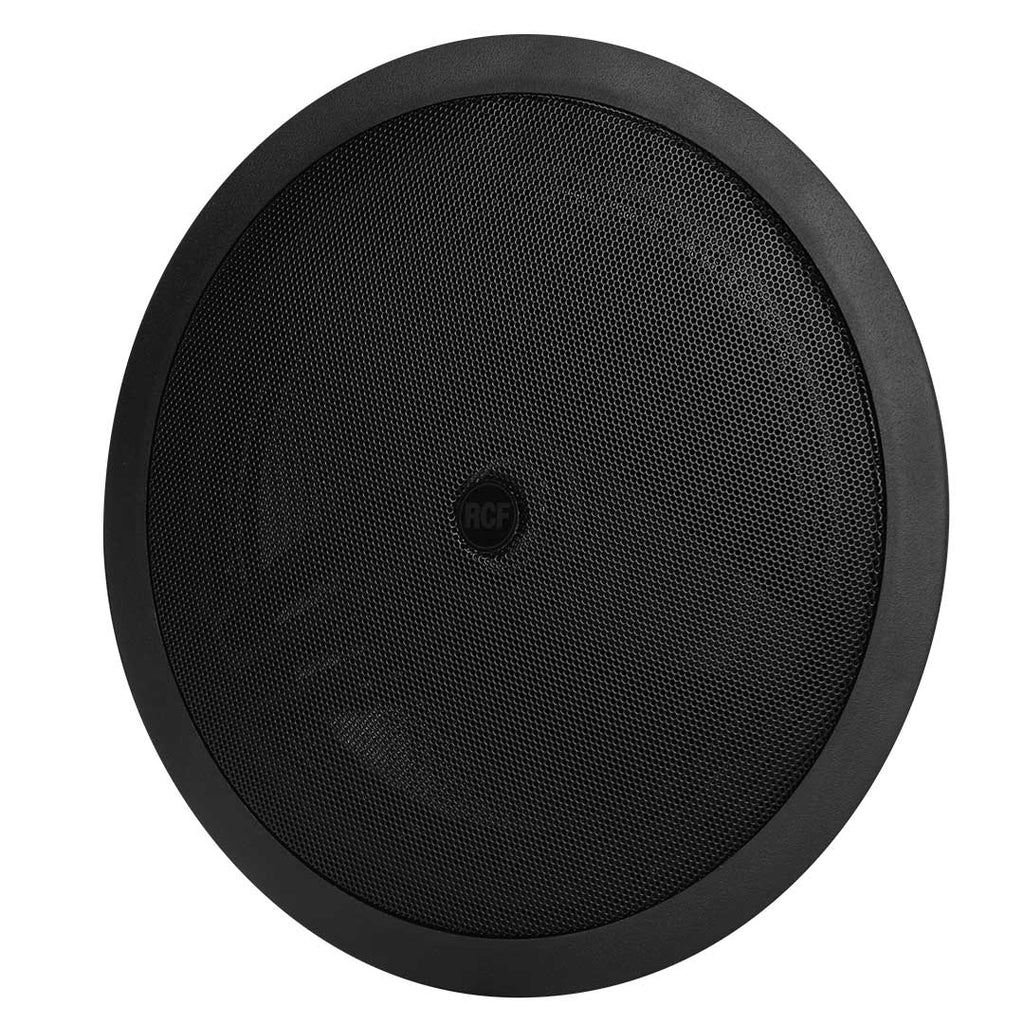

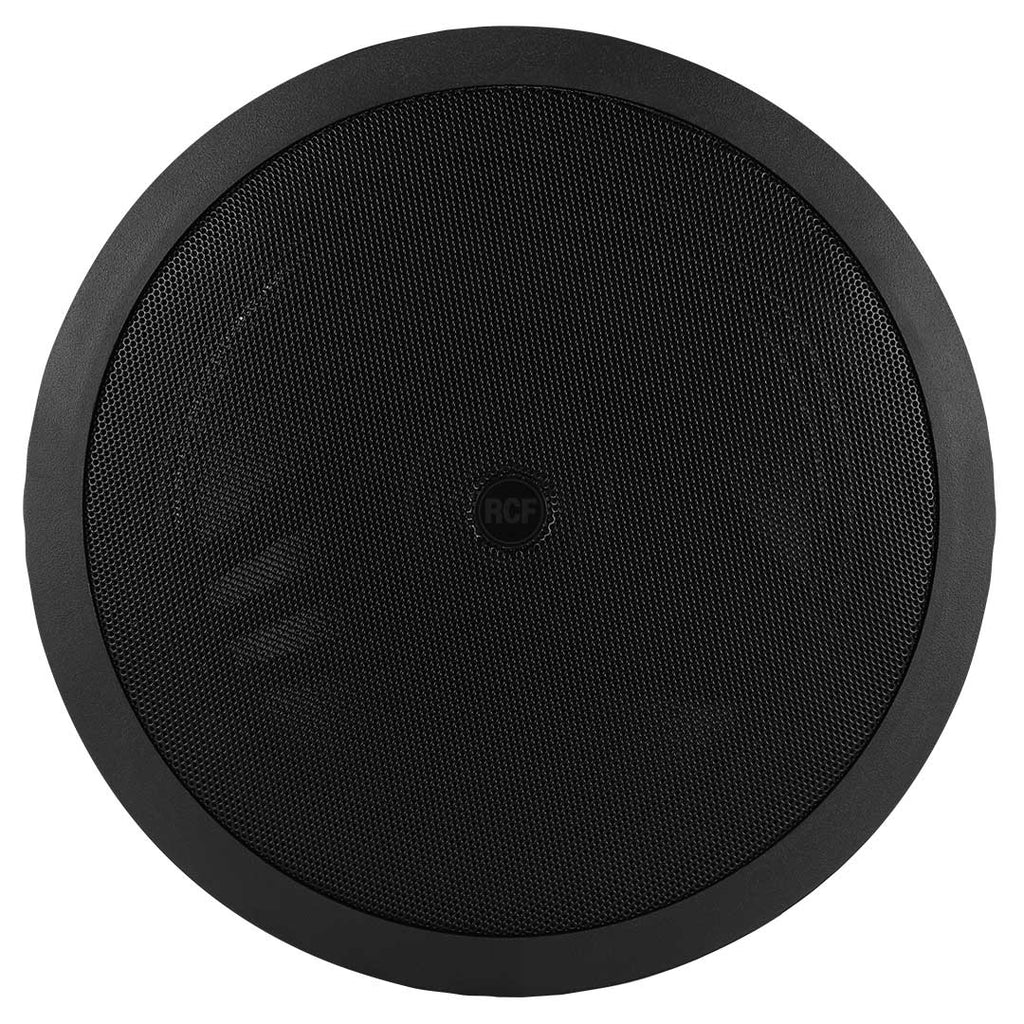

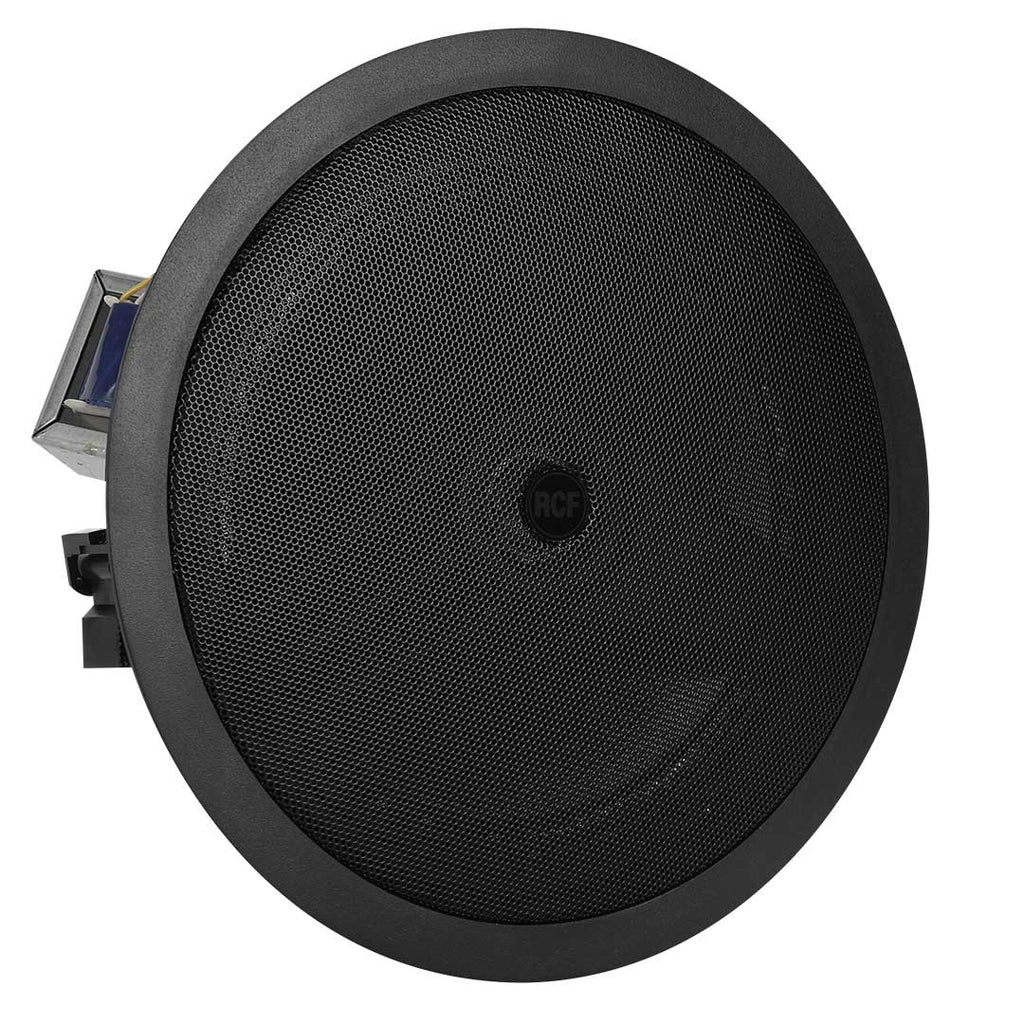

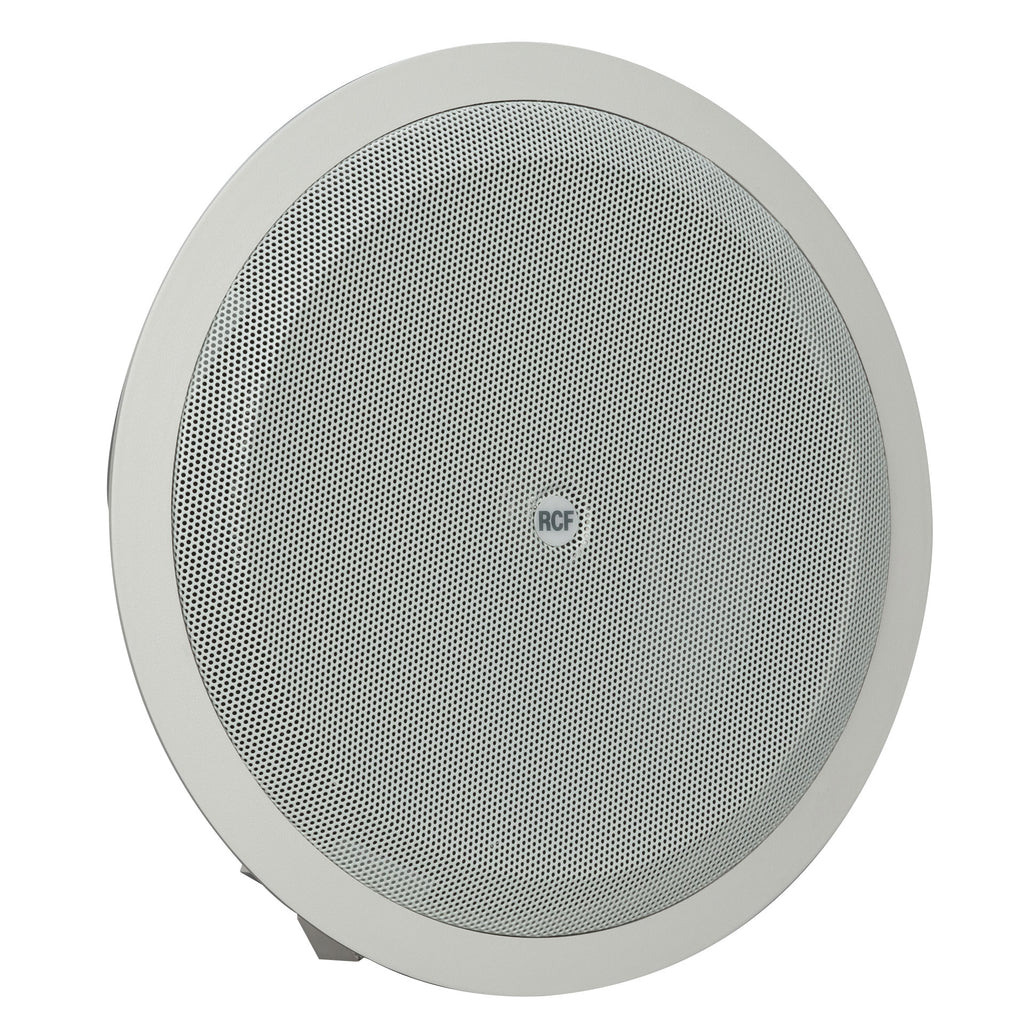

Colour white RAL 9003 and black RAL 9005
Plastic frame UL 94 V0, aluminium grille

Specifications

Acoustical specifications

Frequency Response (-10dB)	60 Hz - 20000 Hz
Max SPL @ 1m	109 dB
Coverage angle	80°
System Sensitivity	93 dB

Power section

Amplification	Full Range
Power Handling	20 W RMS
Peak Power Handling	80 W PEAK
Recommended Amplifiers	DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162

Transducers

Dome Tweeter	1.0''
Woofer	8''

Input/Output section

Input connectors	Screw Terminals
Output connectors	Screw Terminals
Constant Voltage Transformer	70/100 V
Power selection 1	20 W - 500 ohm
Power selection 2	10 W - 1000 ohm
Power selection 3	5 W - 2000 ohm
Power selection 4	2.5 W - 4000 ohm

Standard compliance

IP protection grade	IP 44
Safety agency	CE compliant

Physical specifications

Cabinet/Case Material	Plastic
Hardware	Plastic Material
Grille	Aluminium
Color	White - RAL 9003, Black - RAL 9005

Size / Weight

Depth	88 mm / 3.46 inches
Recessed Depth	80 mm / 3.15 inches
Diameter	247 mm / 9.72 inches
Cut out diameter	224 mm / 8.82 inches
Weight	1.23 kg / 2.71 lbs

Shipping information

Package Height	280 mm / 11.02 inches
Package Width	280 mm / 11.02 inches
Package Depth	130 mm / 5.12 inches
Package Weight	2.09 kg / 4.61 lbs
