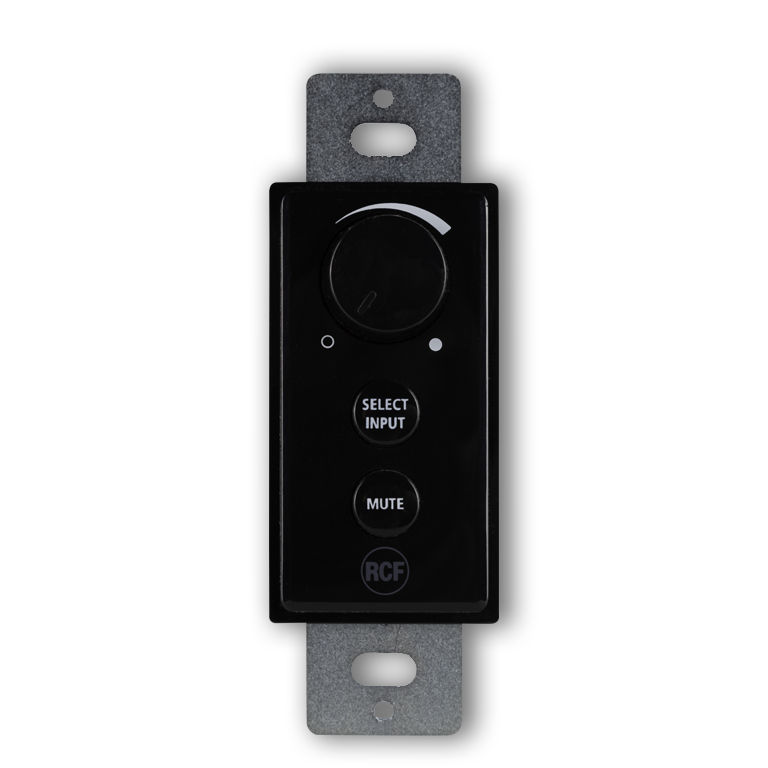

RC 401 US Wall Mount Remote Control
1 Volume & 2 Buttons equipped wall mount control panel for DMA 82 and DMA 162 units. Easy connection by CAT5 shielded cable. The controller allows adjusting the output volume, muting it or selecting the desired input program. Available in black or white colour.
Features
- Works with DMA 82 and DMA 162 units
- Master volume adjustment and mute
- Select input program
- Mute all outputs
Specifications
General specifications
| Functions: |
master volume mute select input |
| Installation: |
compatible with US installation standard |
| Work with: |
DMA 82 and DMA 162 |
| Number of connectable item: |
one for each DMA power output |
| Connectors: |
screw terminals |
| Power supply: |
not required |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Color |
Black - RAL 9005, White - RAL 9003 |
Size / Weight
| Height |
105 mm / 4.13 inches |
| Width |
37 mm / 1.46 inches |
| Depth |
31 mm / 1.22 inches |
| Recessed Depth |
16 mm / 0.63 inches |
| Weight |
0.22 kg / 0.49 lbs |
Shipping information
| Package Height |
88 mm / 3.46 inches |
| Package Width |
219 mm / 8.62 inches |
| Package Depth |
156 mm / 6.14 inches |
| Package Weight |
0.27 kg / 0.6 lbs |
