RC KPS US Wall Mount Remote Control

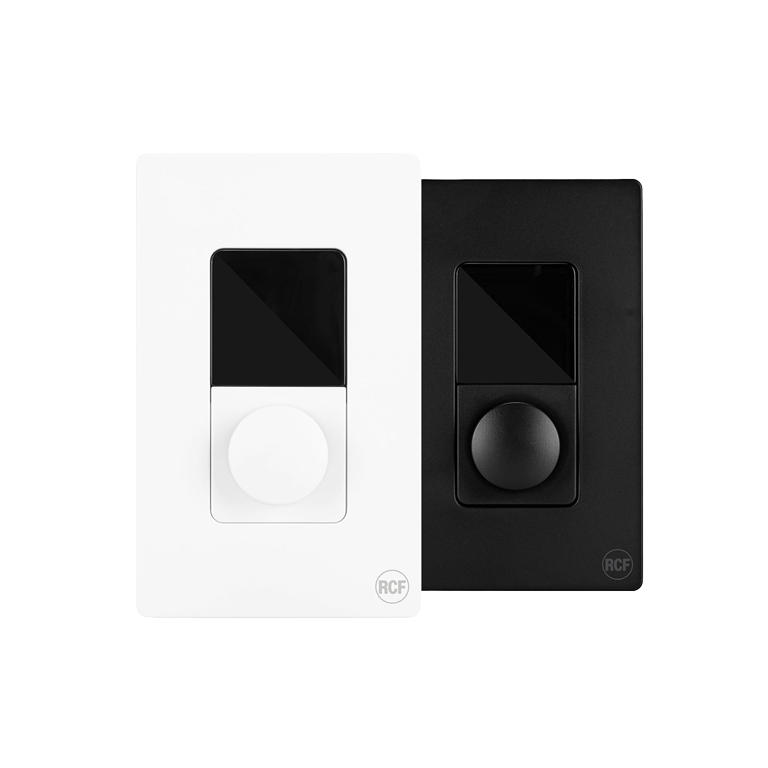

RC KPS is a wall-mounted control unit that allows you to operate KPS series amplifiers by adjusting zone volumes and selecting the corresponding sources. Featuring a discreet and elegant design, it suits all installation environments and is available in both white and black versions. The user interface consists of a practical rotary knob and a 1.1” color display with a resolution of 240x240 pixels. The color scheme can be changed to perfectly match the installation setting. Configuration is very simple and intuitive, and is carried out via the RDSpace software. Up to 8 control units can be connected to the same amplifier, while power is supplied via PoE.
Features
- Multi-zone remote control
- Compatible with all KPS series amplifiers
- Colour display (240x240 px)
- PoE power supply
- Volume control
- Source selection
- Standby management
- Available in white RAL 9003 and black RAL 9005
Specifications
General specifications
| Functions |
Volume control Mute Source selection Stand-by |
| Installation |
Compatible with US installation standard |
| Work with |
KPS series amplifiers |
| Number of connectable item |
Up to 8 controllers for each amplifier |
| Connector |
RJ45 |
| Max cable length (CAT 5e) |
100 m |
| Power supply |
PoE Class I device, 48V |
| Power consumption |
3.84Wmax |
Standard compliance
| IP protection grade |
IP 30 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Color |
Black - RAL 9005, White - RAL 9003 |
Size / Weight
| Height |
115.1 mm / 4.53 inches |
| Width |
70.6 mm / 2.78 inches |
| Depth |
42.8 mm / 1.69 inches |
| Recessed Depth |
23.1 mm / 0.91 inches |
| Weight |
0.12 kg / 0.26 lbs |
Shipping information
| Package Height |
70 mm / 2.76 inches |
| Package Width |
150 mm / 5.91 inches |
| Package Depth |
125 mm / 4.92 inches |
| Package Weight |
0.26 kg / 0.57 lbs |
