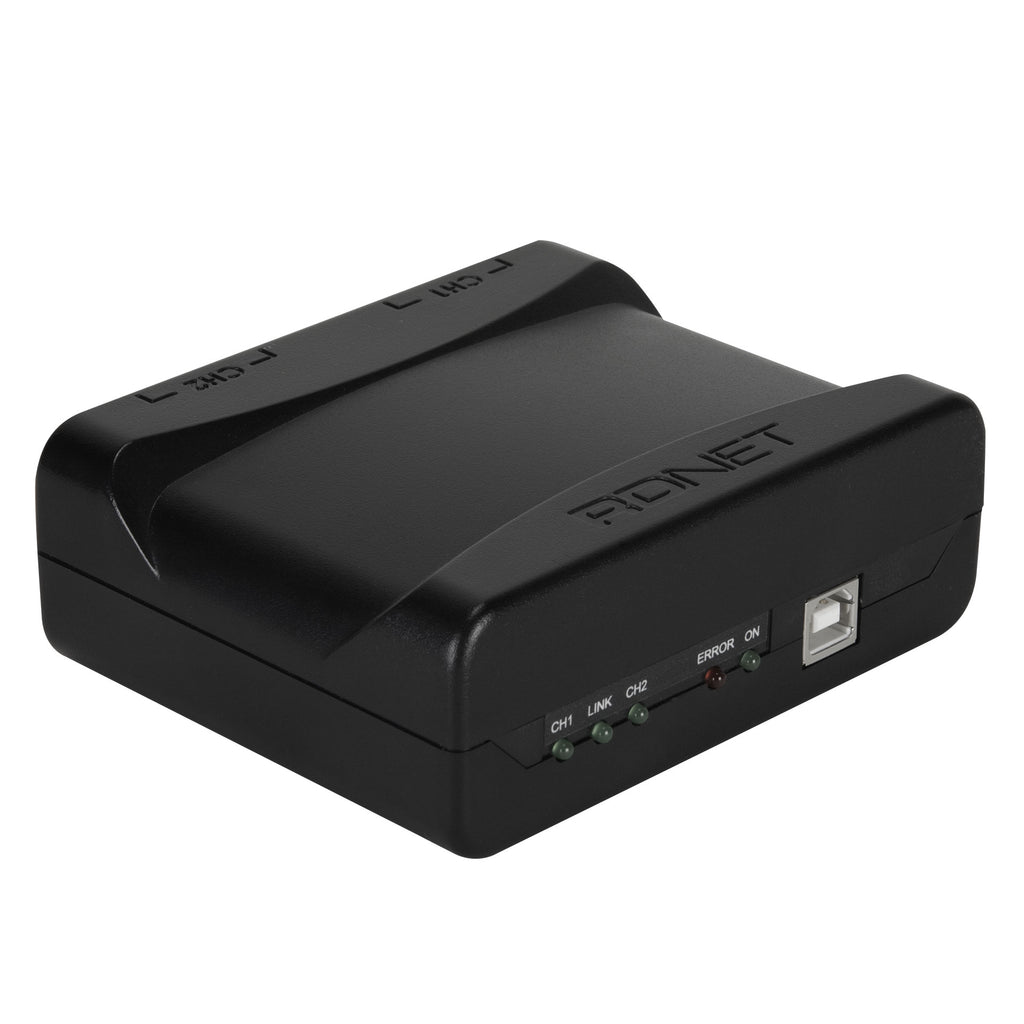

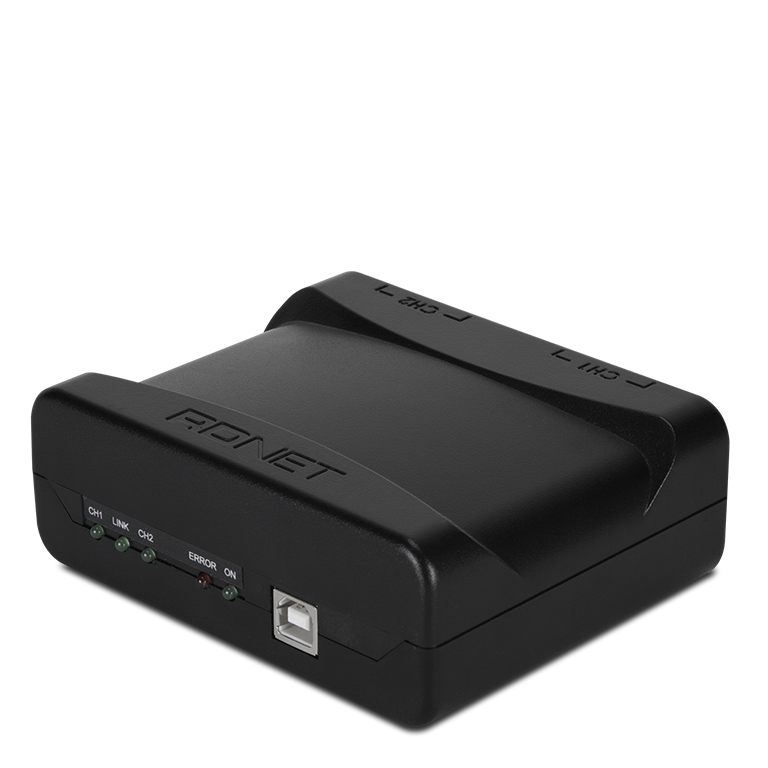

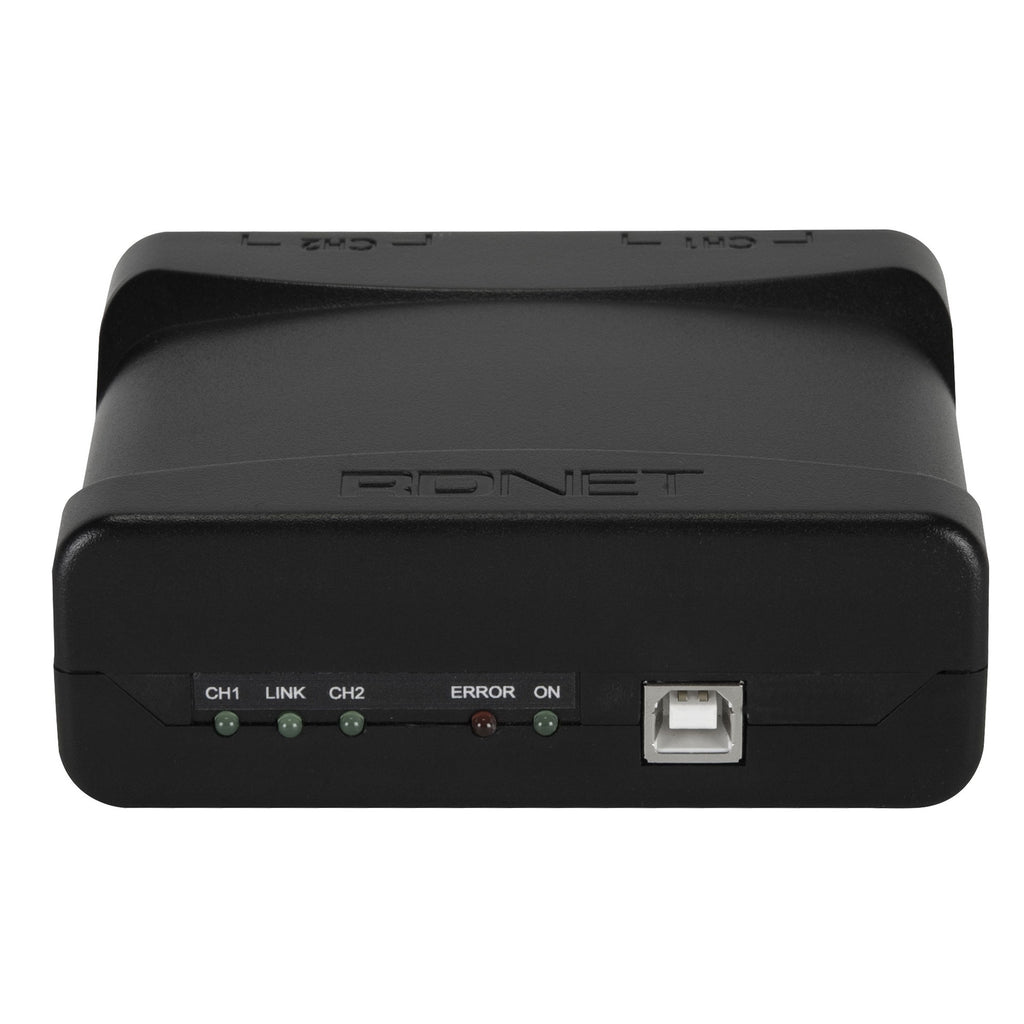

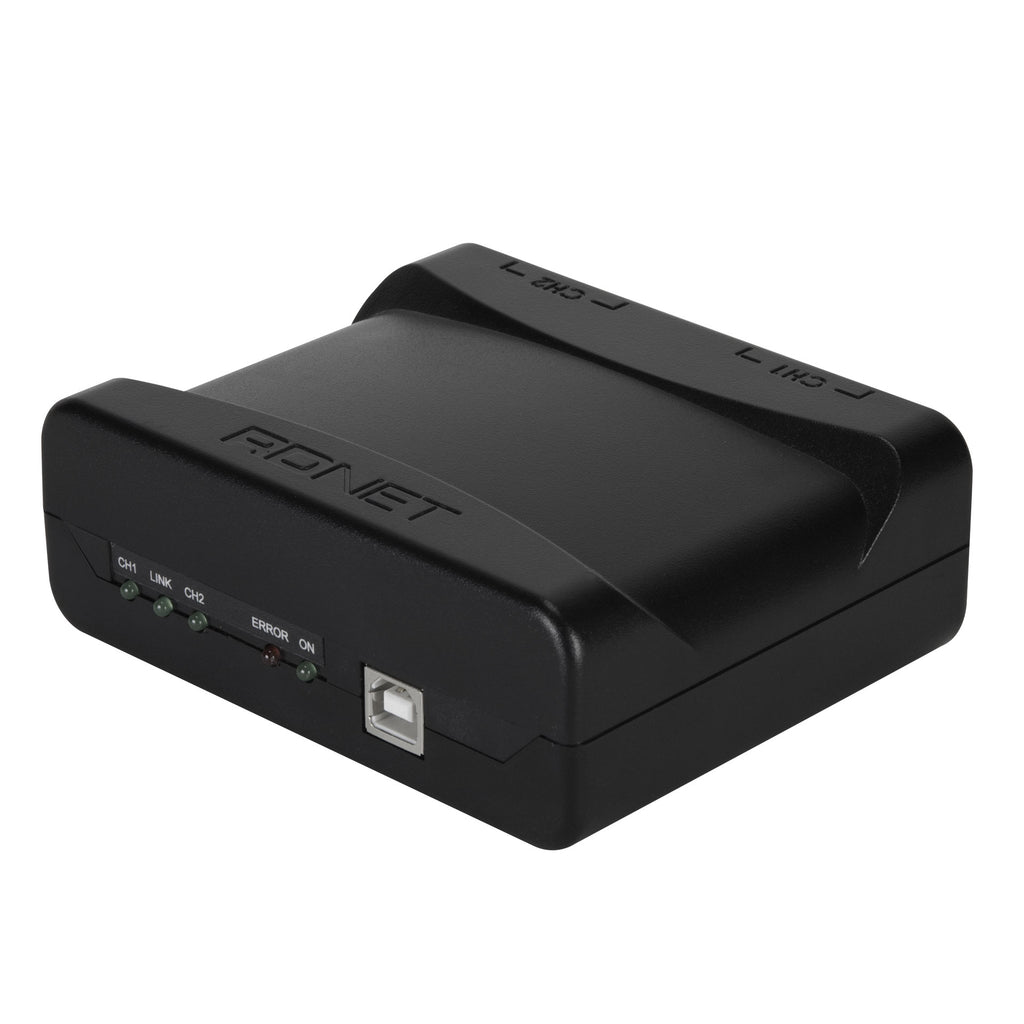

RDNET CONTROL 2 2 Output Master Unit
The RDNet Control 2 is an hardware interface to connect RCF RDNet compatible devices to a Personal Computer (PC) by means of an USB connection. The RDNet system was purposely developed to create a data network for monitoring and command of more systems. The RDNet Control 2 unit can manage up to 2 subnets. Up to 32 devices can be connected to each subnet (2 subnets x 32 = total 64 devices). The addressing of the various devices is handled automatically by RDNet Control 2 interface. Each device is assigned a unique address during the power on procedure of network. For the RDNET network operating, it is necessary to install the appropriate Software on PC, on Microsoft Windows® environment. From PC it is possible to check the operating of each single device connected to the network and edit its parameters output level, mute, equalization, delay, etc. The network and devices configuration can be saved as file in the PC and later reloaded. RDNET is a “real-time” system: Information relating to the functioning of the devices is acquired in real-time, a feature that allows a global view of connected devices.
Features
- Real-time USB device monitoring and control
- Control up to 2 sub-nets of up to 32 slave devices
- All devices are cyclically scanned (“POLLING”) 10 times a second
- Auto detect device placement
- Connected devices are automatically added to the software synoptic
Specifications
General specifications
| Number of subnets: |
2 |
| Connectors: |

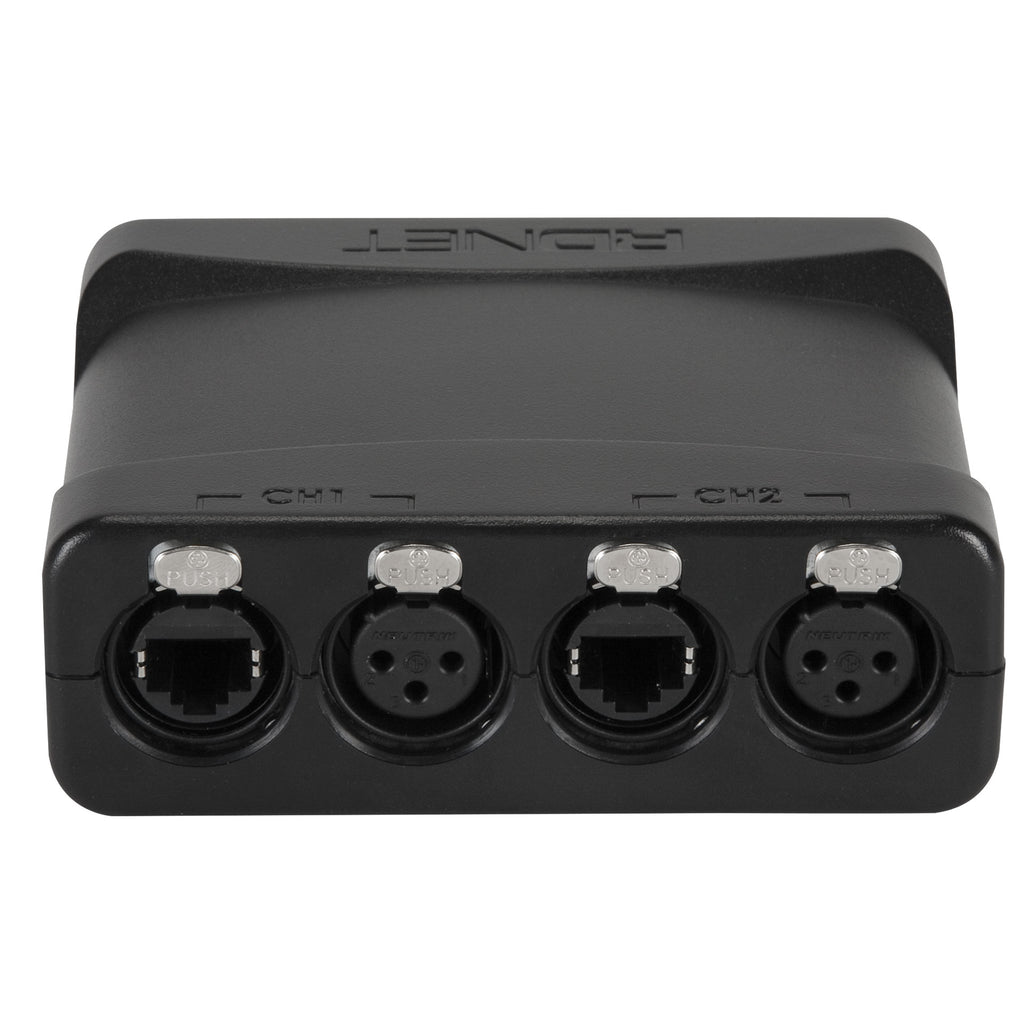

RJ 45, XLR |
| Max number of devices (for each subnet) |
32 |
| Configuration: |
PC software |
| PC connection: |
USB (typeB) |
| Power supply: |
Powered by USB socket |
| RDNet |
Onboard |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
ABS |
| Color |
Black |
Size / Weight
| Height |
41 mm / 1.61 inches |
| Width |
111 mm / 4.37 inches |
| Depth |
90 mm / 3.54 inches |
| Weight |
0.17 kg / 0.37 lbs |
Shipping information
| Package Height |
58 mm / 2.28 inches |
| Package Width |
205 mm / 8.07 inches |
| Package Depth |
134 mm / 5.28 inches |
| Package Weight |
0.25 kg / 0.55 lbs |
