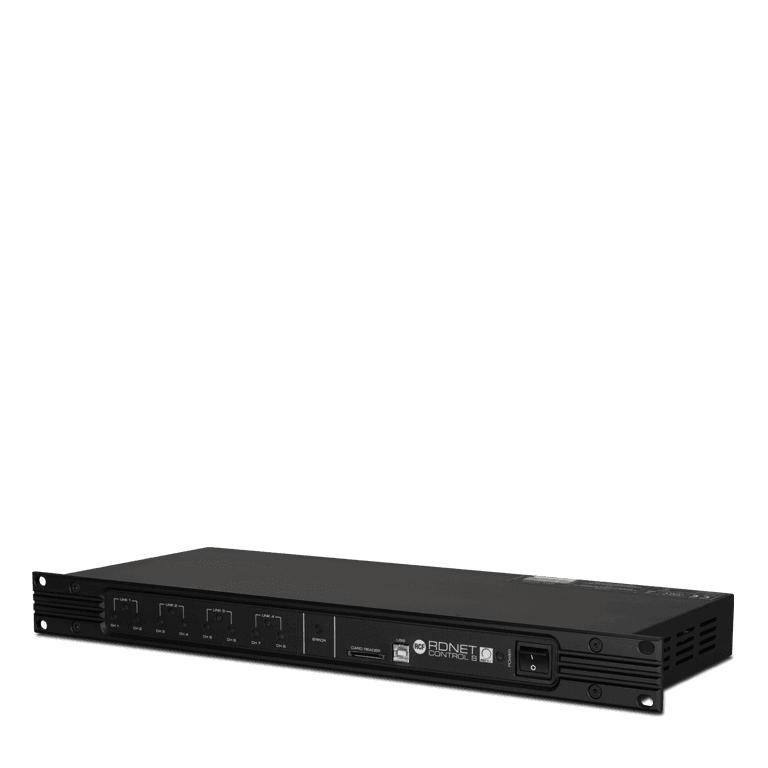

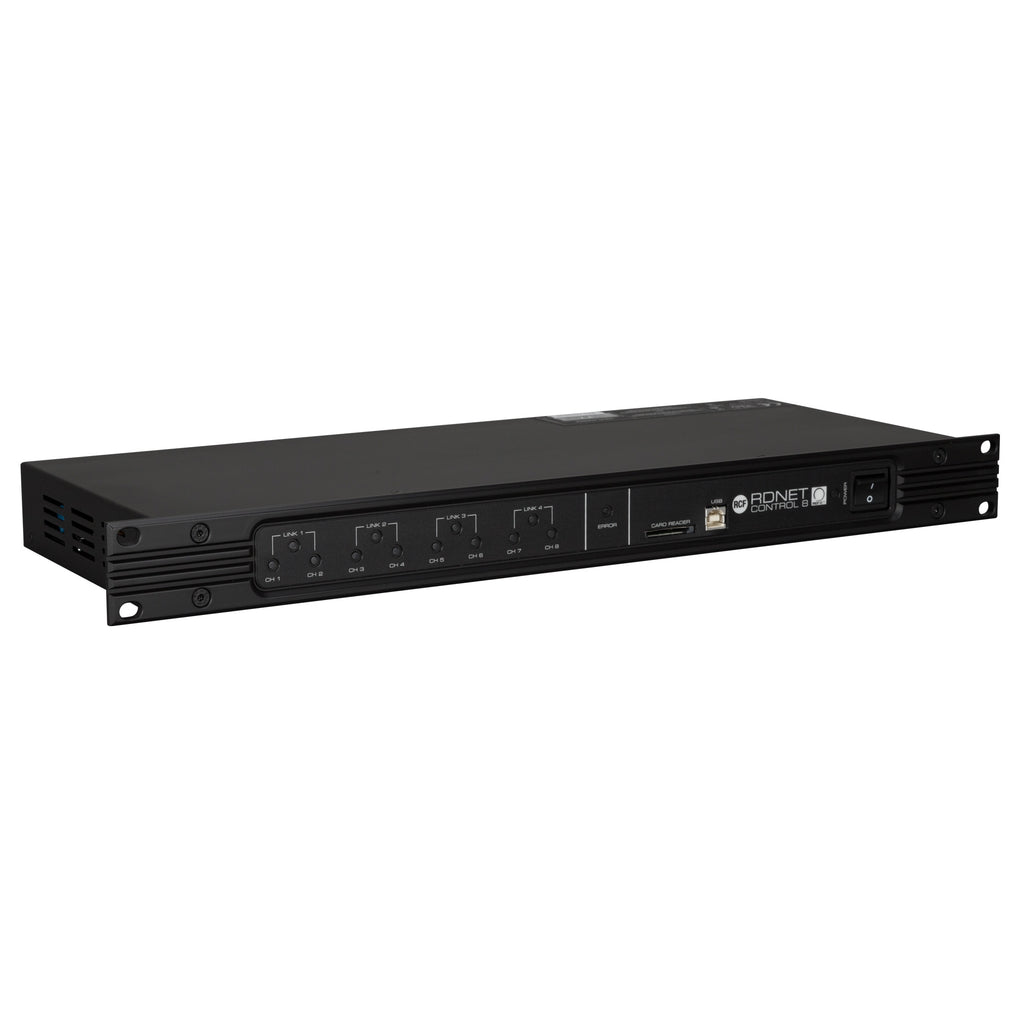

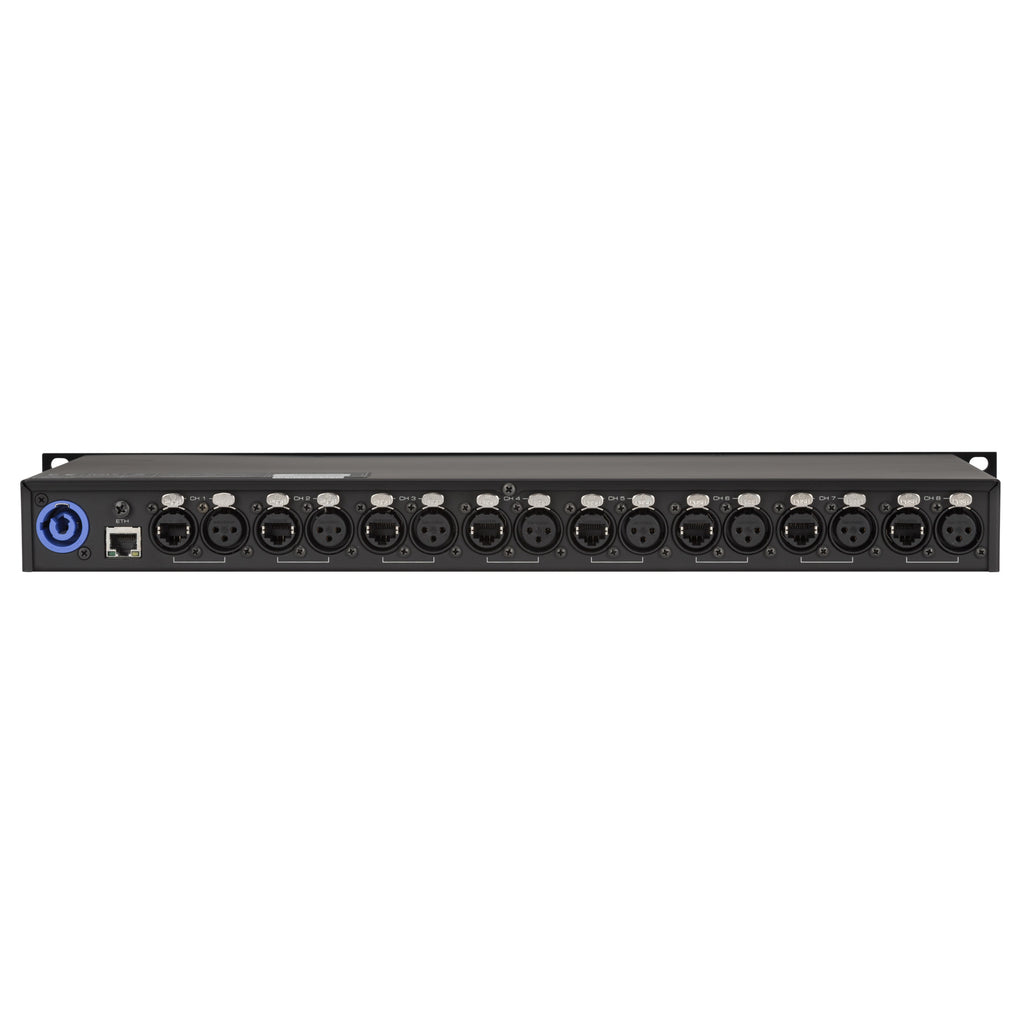

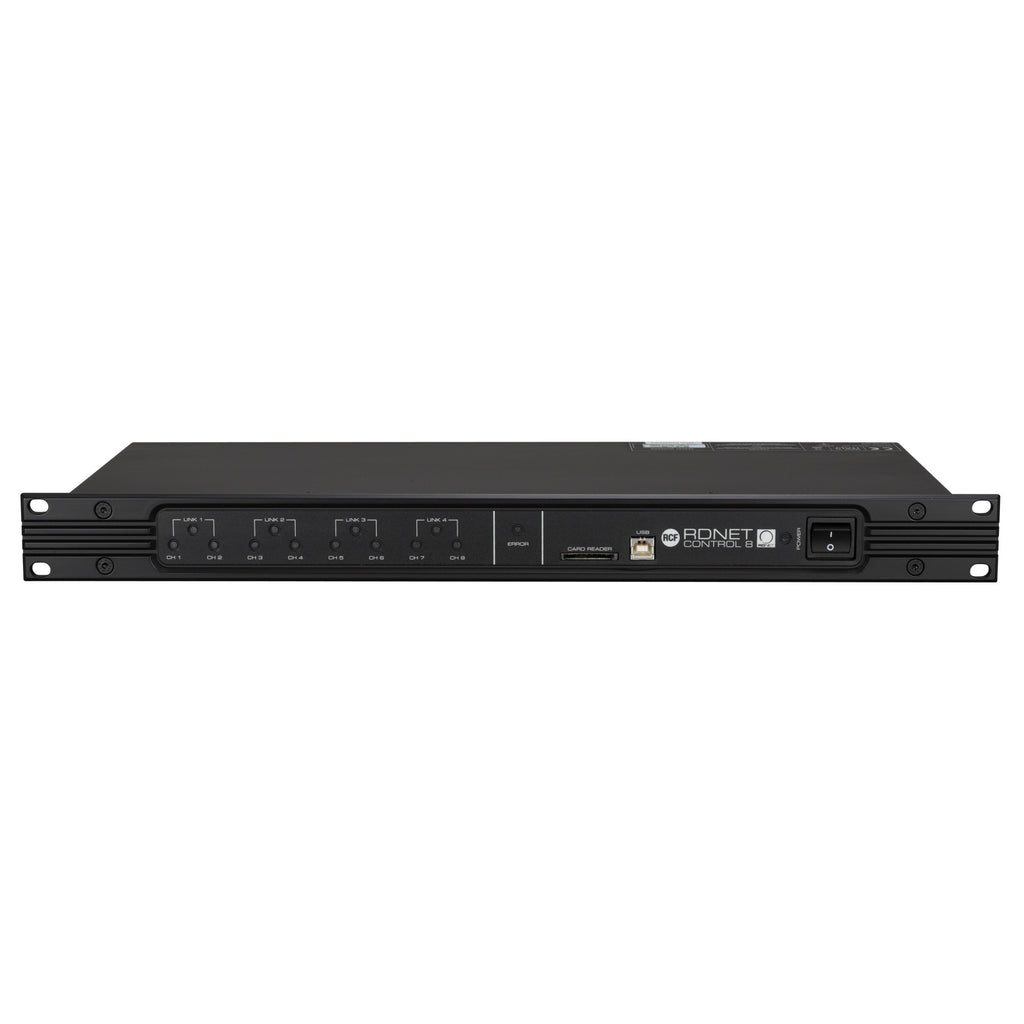

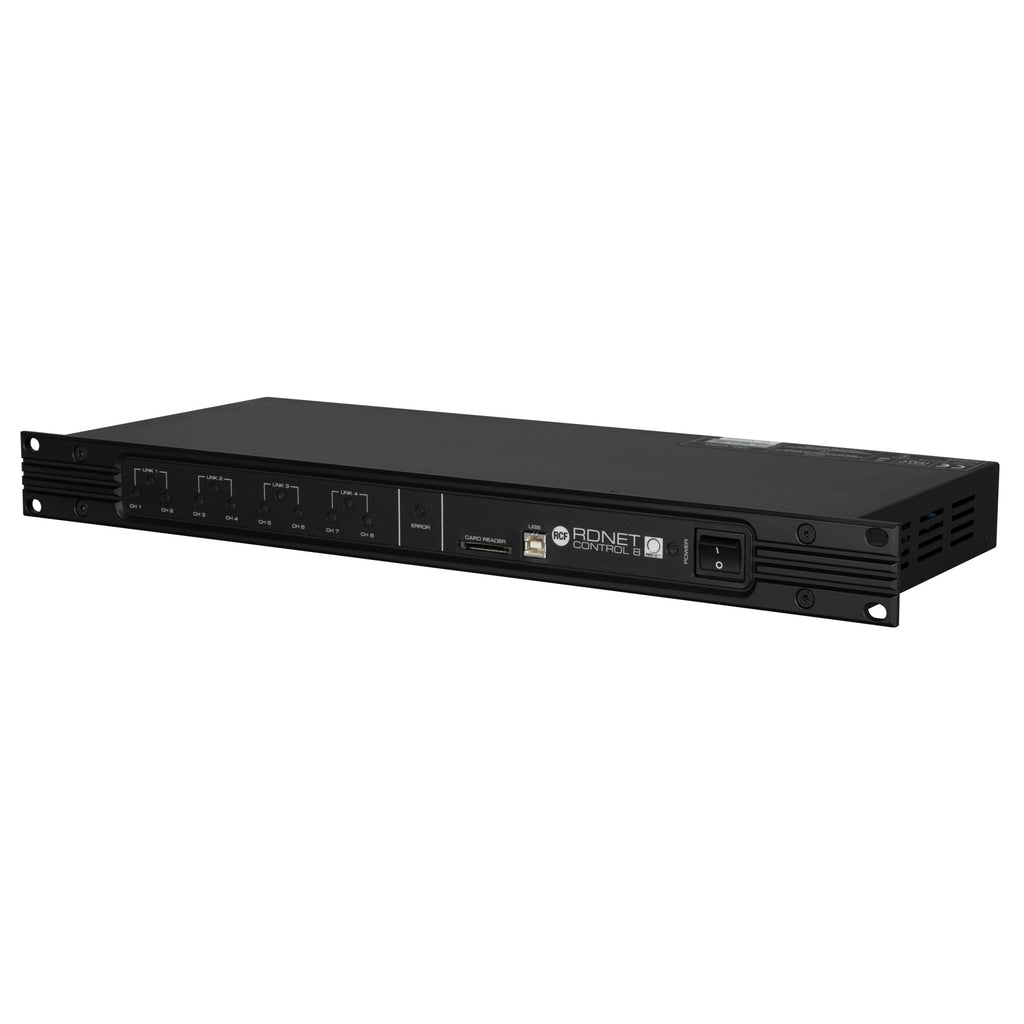

RDNET CONTROL 8 8 Output Master Unit
The RDNet Control 8 is a real-time monitor and control system able to manage up to 256 devices linked in a bus or up to 128 devices in a ring topology. All the data collected from the slaves are delivered to the sound engineer by USB in a local installation or by Ethernet from remote locations. The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol making it possible to address in single cabinets or groups, specific presets or modification parameters in real-time. The key point of RDNet Control 8, in fact, is to ensure minimum refresh time (at least 5 per second) of all the system data performance, for example: RMS signals, compressor activity, temperature, fans speed, warnings, etc. Data transfer can be routed also through the provided xlr connectors enabling the control of the system on traditional multi-cored cables.
Features
- Ethernet (remote control) and USB (direct control) PC connection to RDNet
- Control up to 8 SUB-NETS of up to 32 Slave Devices
- All devices are cyclically scanned (“POLLING”) 10 times a second
- Auto detect device placement
- Controlling slave devices status and functions
- Monitoring and displaying faults and warnings sent from slave devices
- Storing subnet user filters configuration in a removable memory card
Specifications
General specifications
| Number of subnets: |
8 |
| Connectors: |
RJ 45, XLR |
| Max number of devices (for each subnet) |
32 |
| Configuration: |
PC software |
| PC connection: |
USB (type B), Ethernet |
| Data storage: |
SD card (max. 4 GB) |
| Operating voltage: |
90-240 V~ 50/60Hz |
| Power consumption (W): |
15 |
| RDNet |
Onboard |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Metal |
| Color |
Black |
| Rack mounting |
19", 1U |
Size / Weight
| Height |
44 mm / 1.73 inches |
| Width |
482 mm / 18.98 inches |
| Depth |
182 mm / 7.17 inches |
| Weight |
2.71 kg / 5.97 lbs |
Shipping information
| Package Height |
106 mm / 4.17 inches |
| Package Width |
269 mm / 10.59 inches |
| Package Depth |
544 mm / 21.42 inches |
| Package Weight |
3.71 kg / 8.18 lbs |
