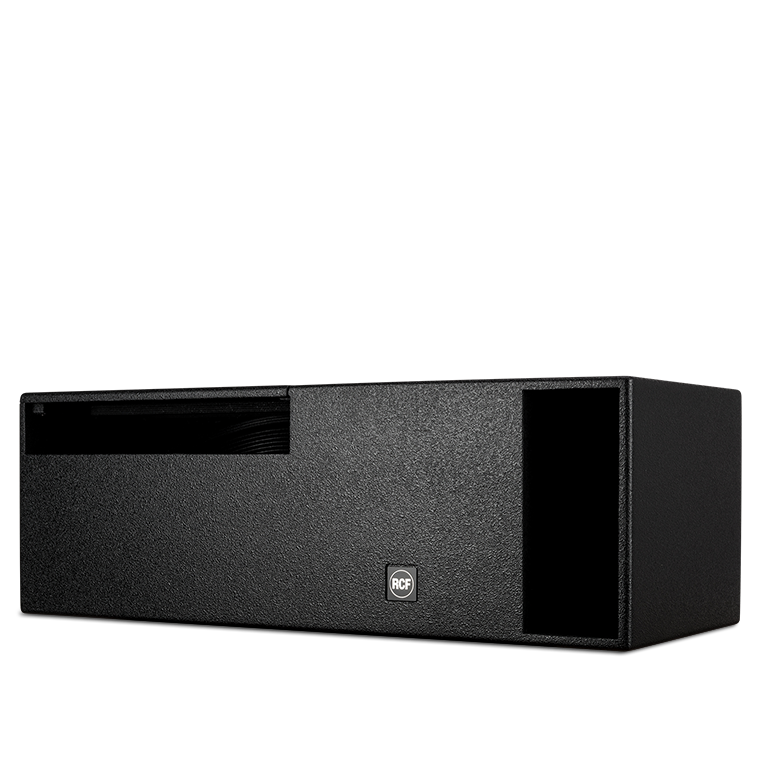

S 8015LP Bandpass Subwoofer

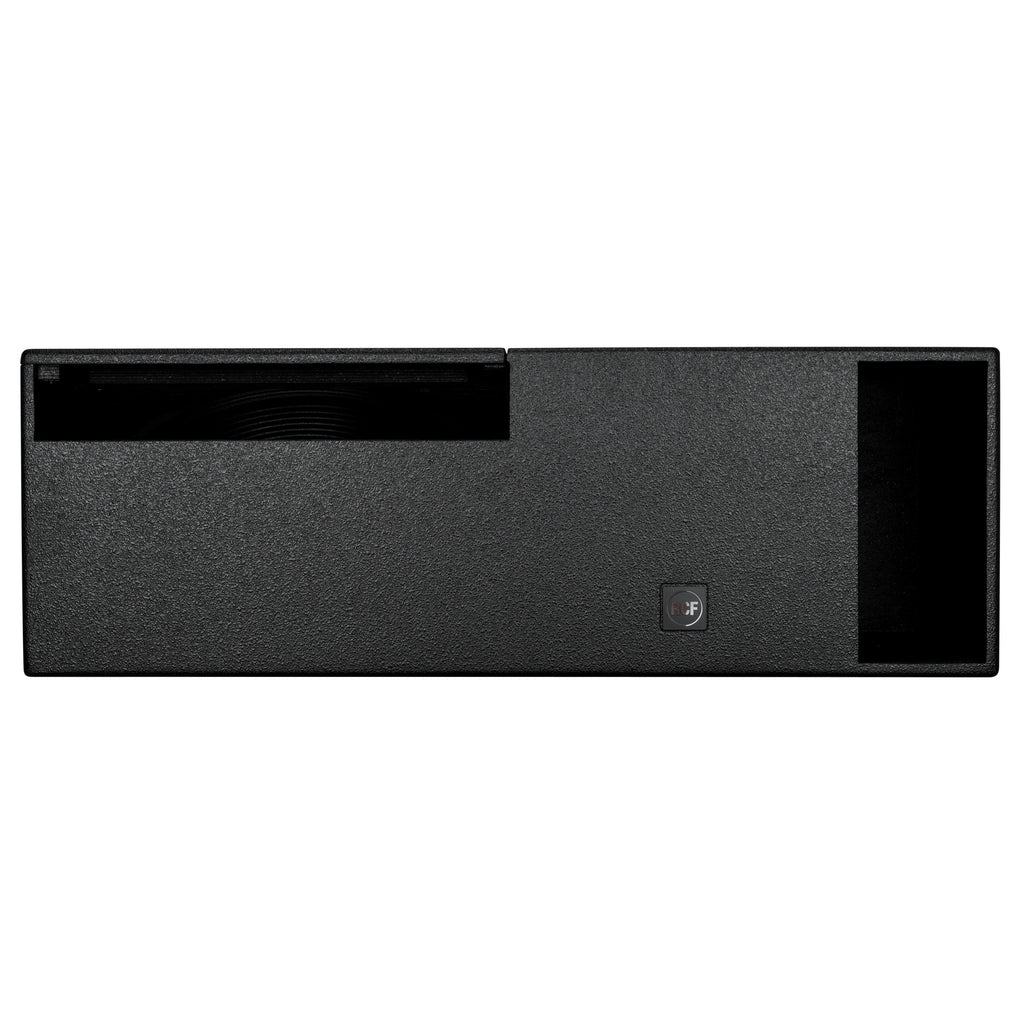

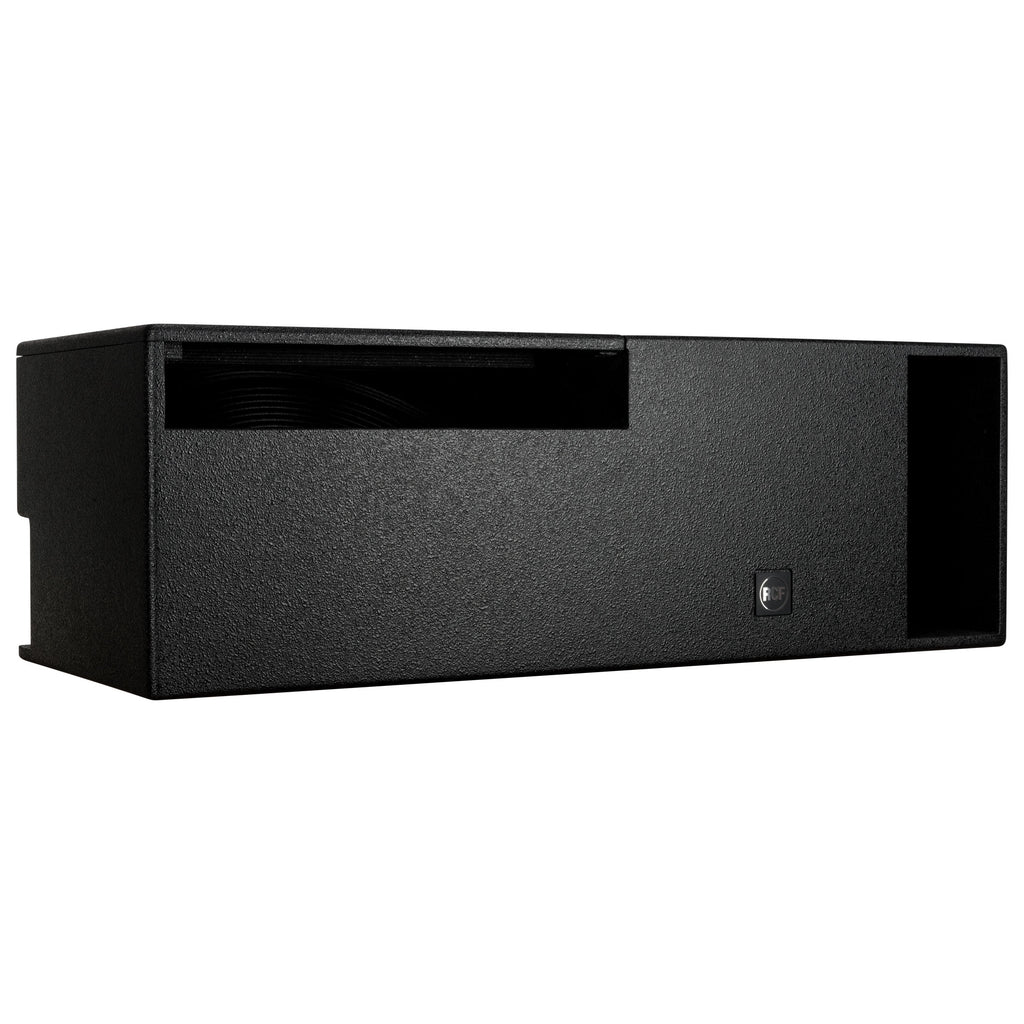

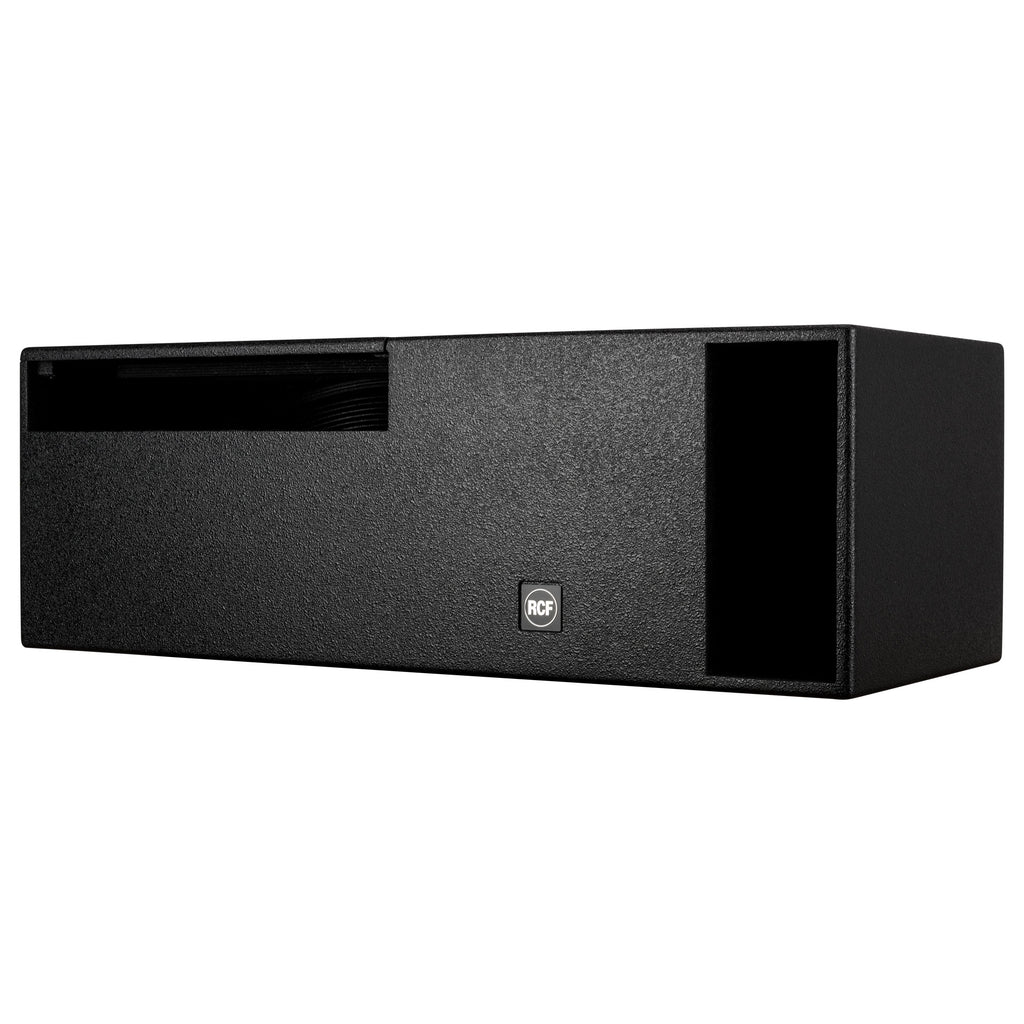

The S8015 LP is an extremely compact, high output, band-pass subwoofer able to deliver tight and fast controlled bass response. The new high power high sensitivity 15" woofer is the result of the latest RCF experience in sub-bass transducers and compact subwoofer design and manufacturing. The band-pass configuration offers a significant acoustic impact resulting in a fast and controlled reproduction of the bass frequency range. It is capable of a power of 1 kW RMS and able to deliver a MAX SPL in excess of 135 dB. The cabinet's shape is unobtrusive rectangular low profile to be used under sofa or under limited height stages; the cabinet is constructed of Baltic Birch plywood and finished in a very resistant, textured black paint. Rubber feet are also installed.
Features
- 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
- Bandpass woofer
- 135 dB Max SPL
- Response down to 43 Hz
- Rectangular box enclosure

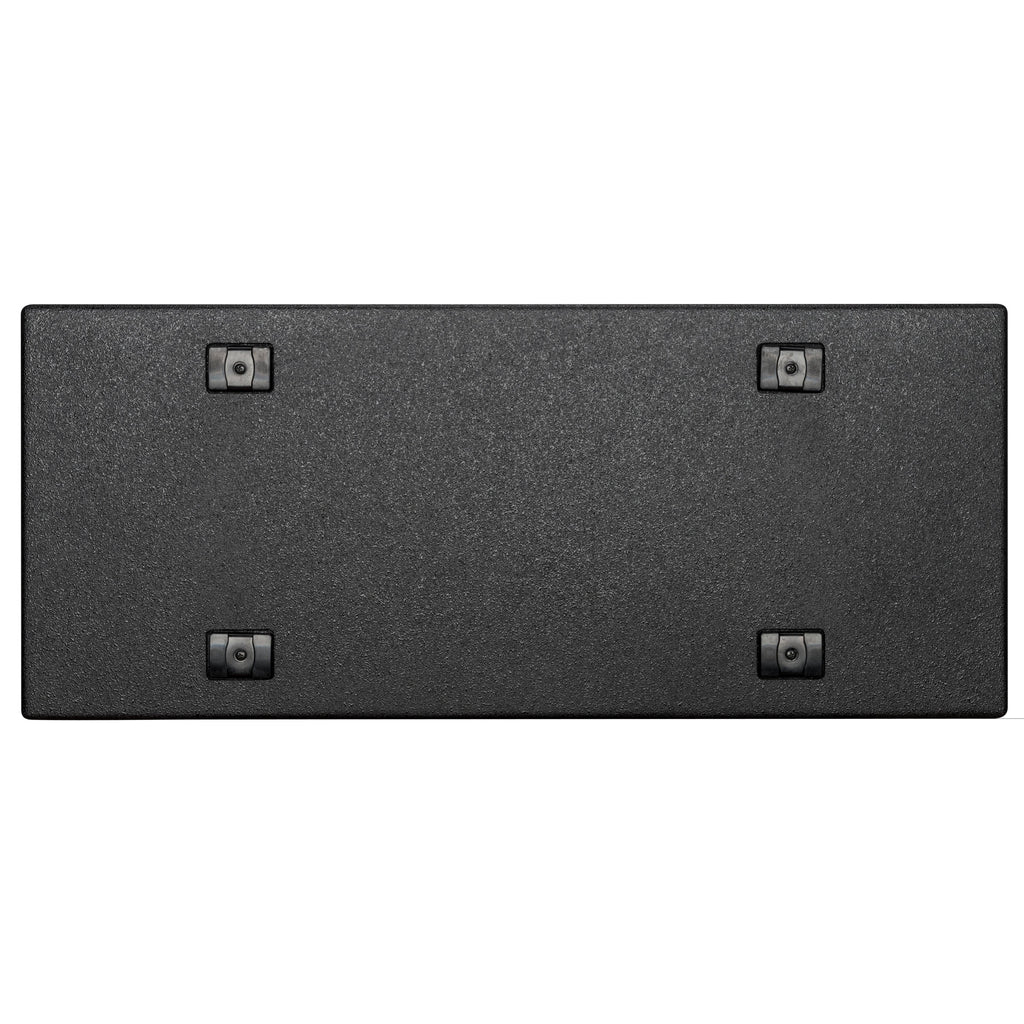

- Baltic Birch cabinet finished in a very resistant, textured black paint with rubber feet
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
43 Hz - 250 Hz |
| Max SPL @ 1m |
135 dB |
| System Sensitivity |
99 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
800 W |
| Peak Power Handling |
3200 W PEAK |
Transducers
Input/Output section

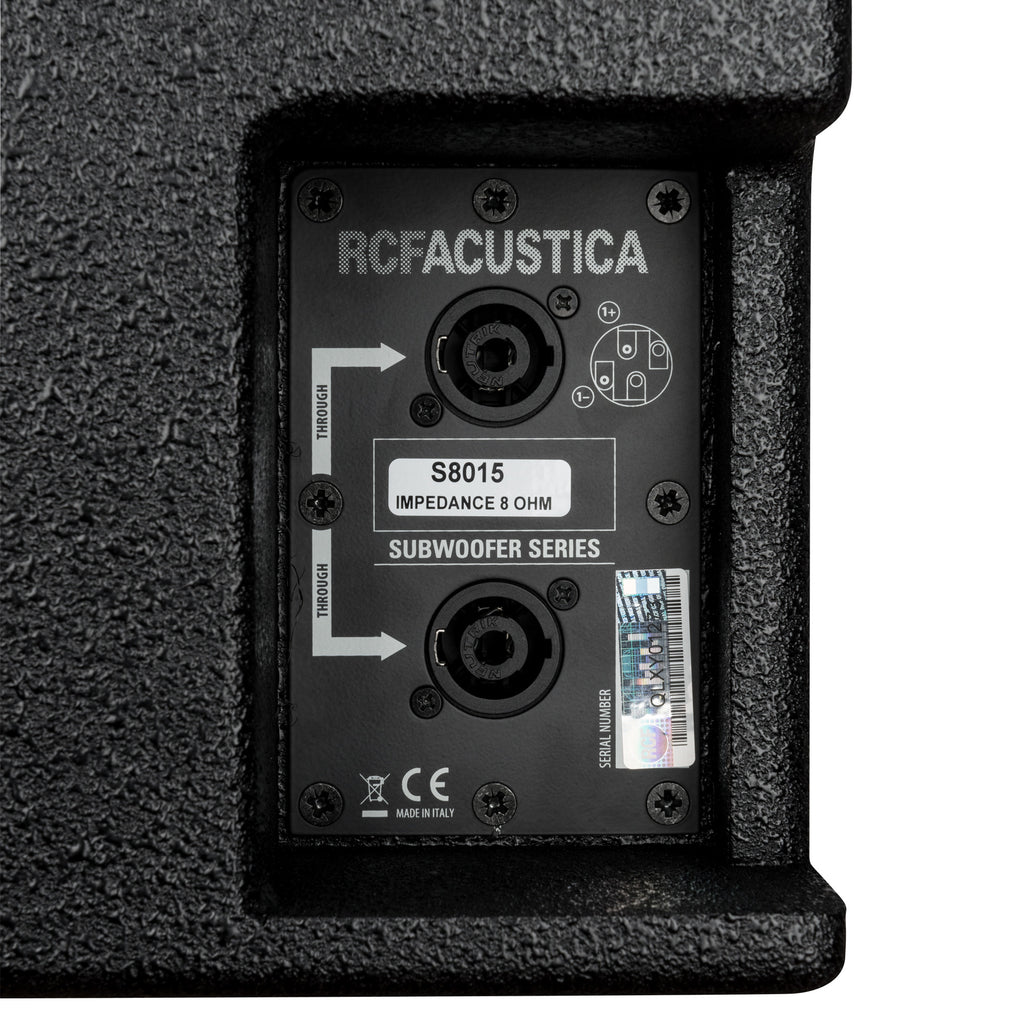

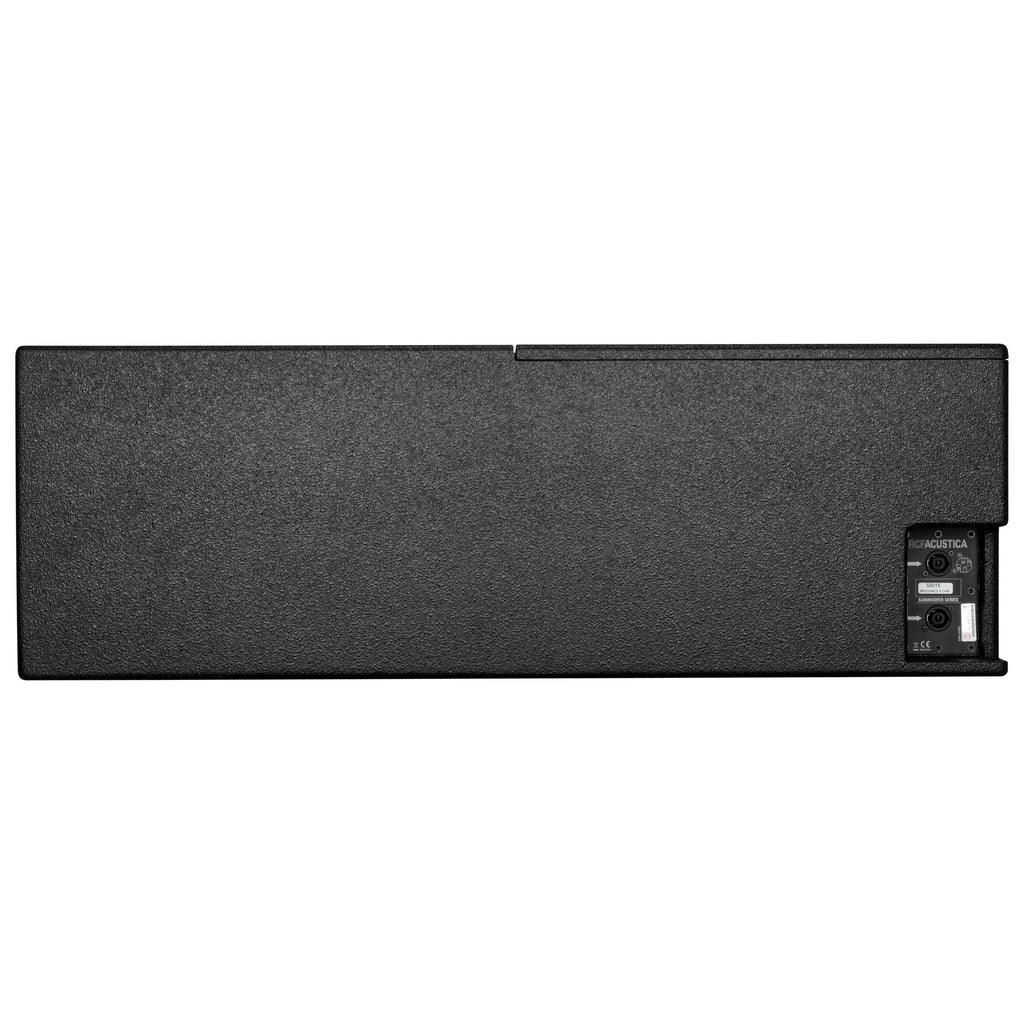

| Input connectors |
Speakon® NL4 |
| Output connectors |
Speakon® NL4 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Baltic birch plywood |
| Color |
Black |
Size / Weight
| Height |
303 mm / 11.93 inches |
| Width |
900 mm / 35.43 inches |
| Depth |
380 mm / 14.96 inches |
| Weight |
25.2 kg / 55.56 lbs |
Shipping information
| Package Height |
420 mm / 16.54 inches |
| Package Width |
980 mm / 38.58 inches |
| Package Depth |
385 mm / 15.16 inches |
| Package Weight |
29 kg / 63.93 lbs |
