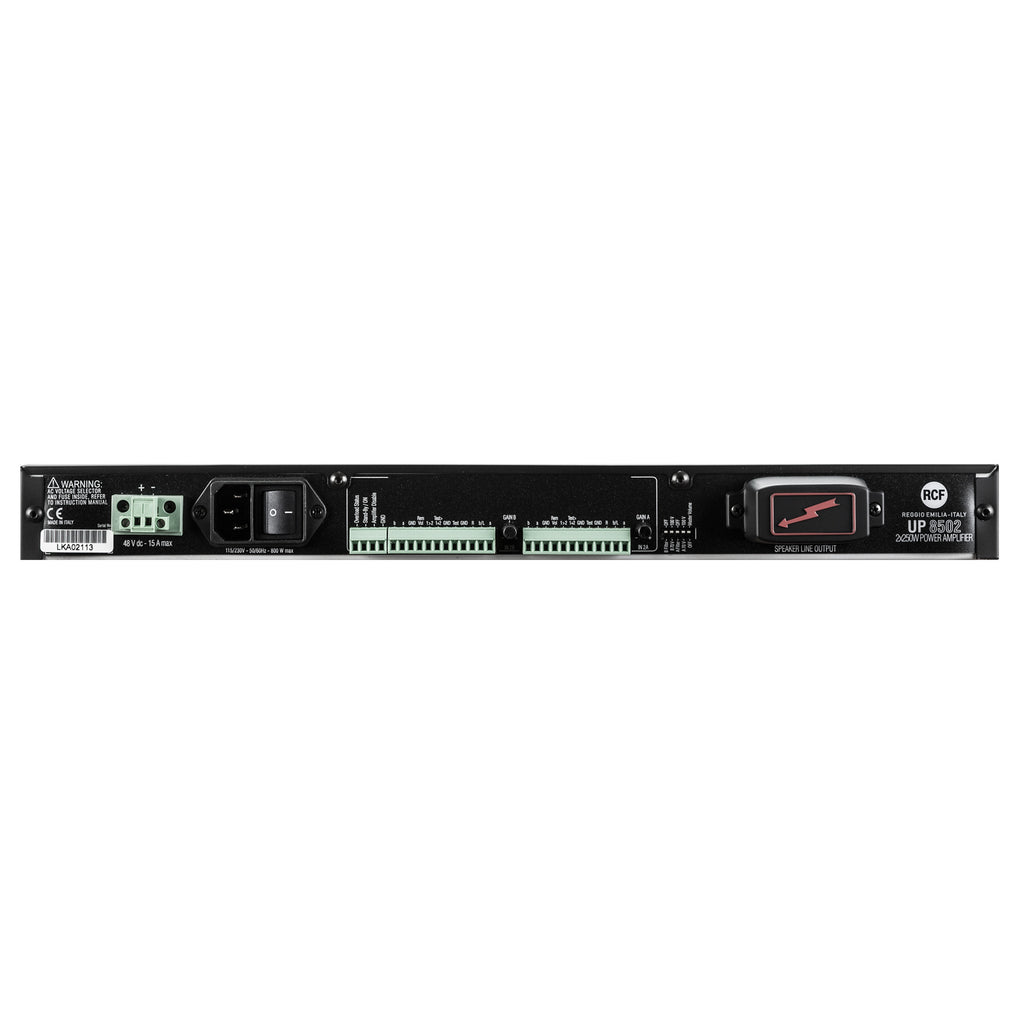

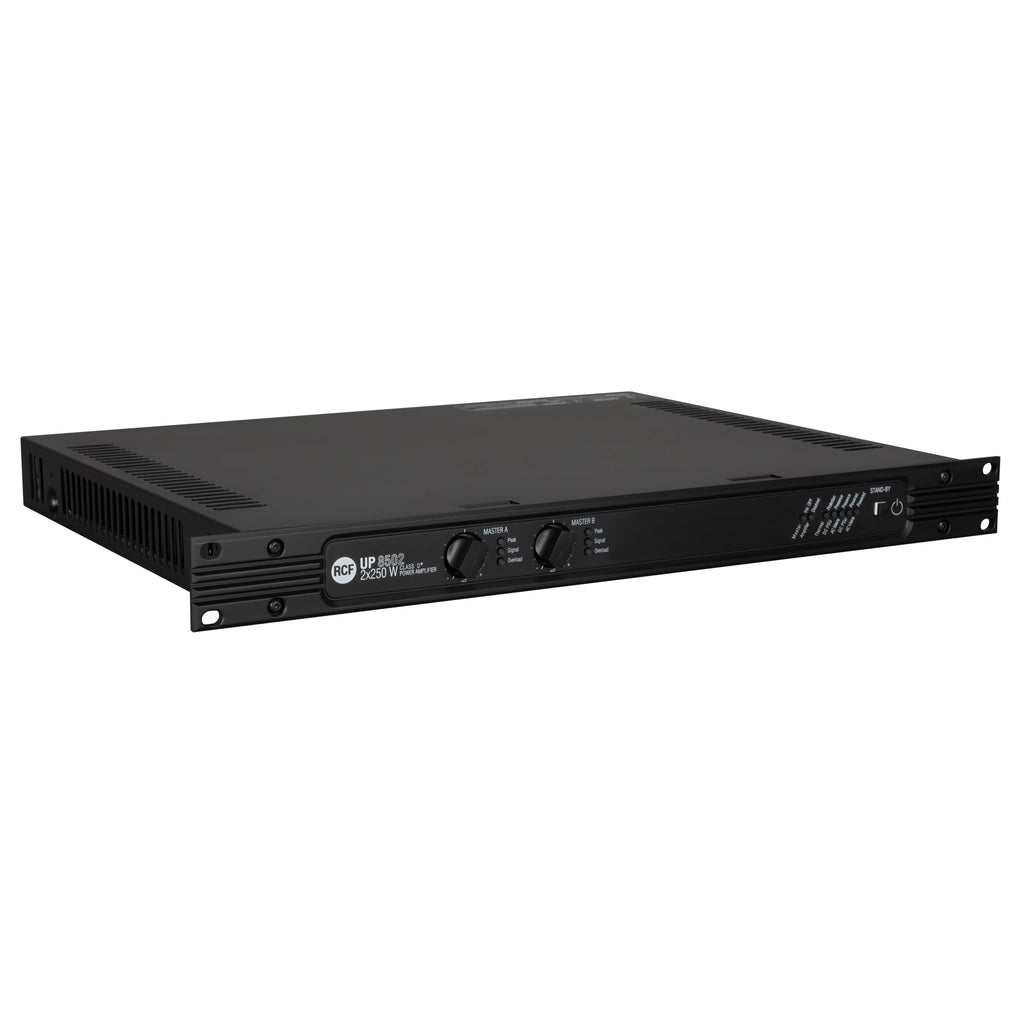

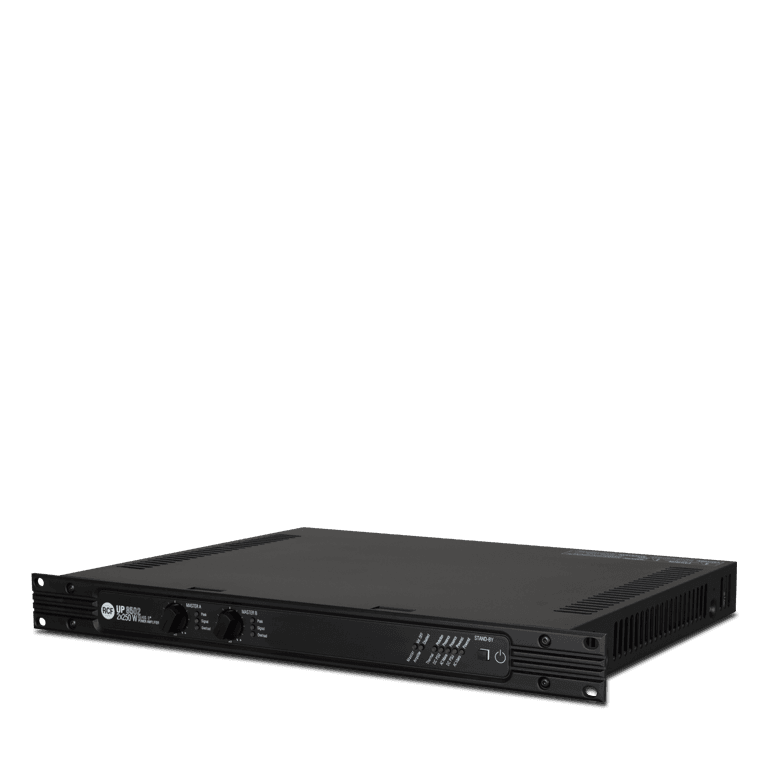

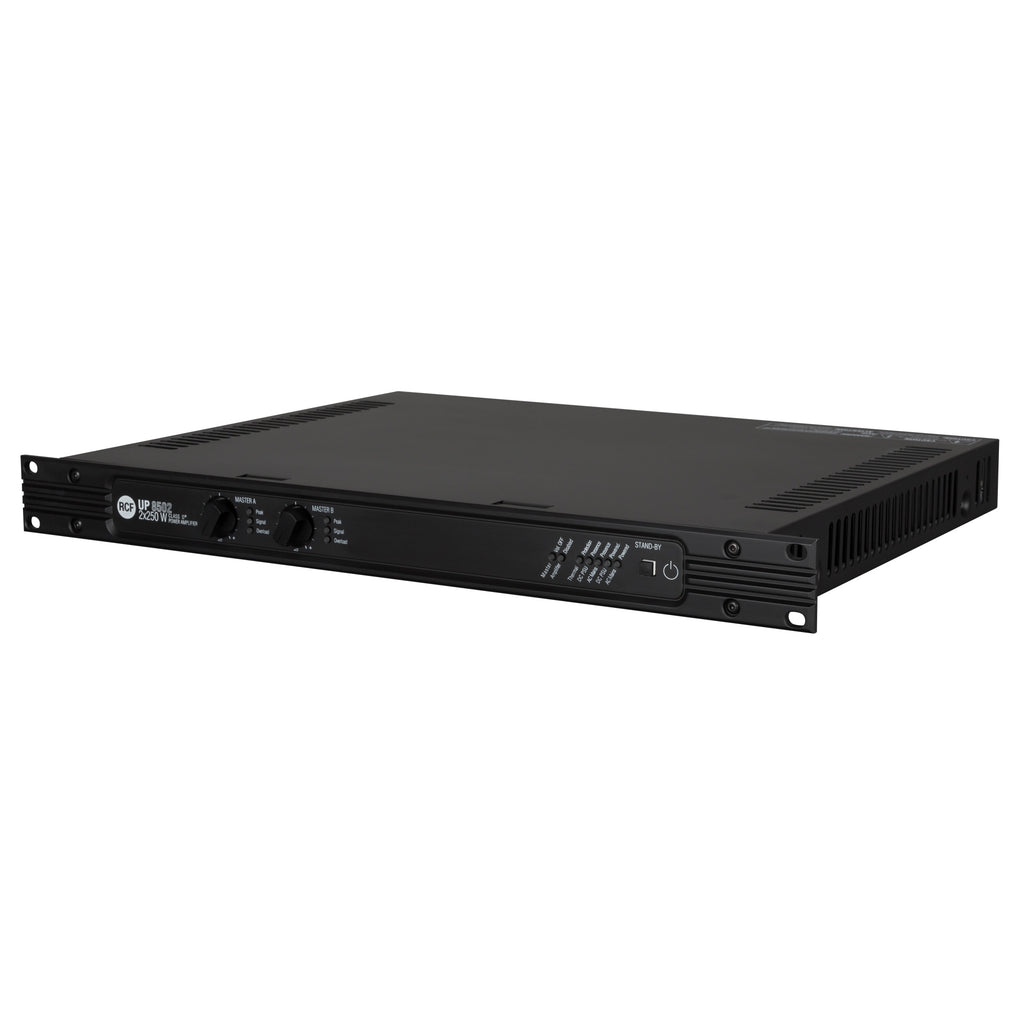

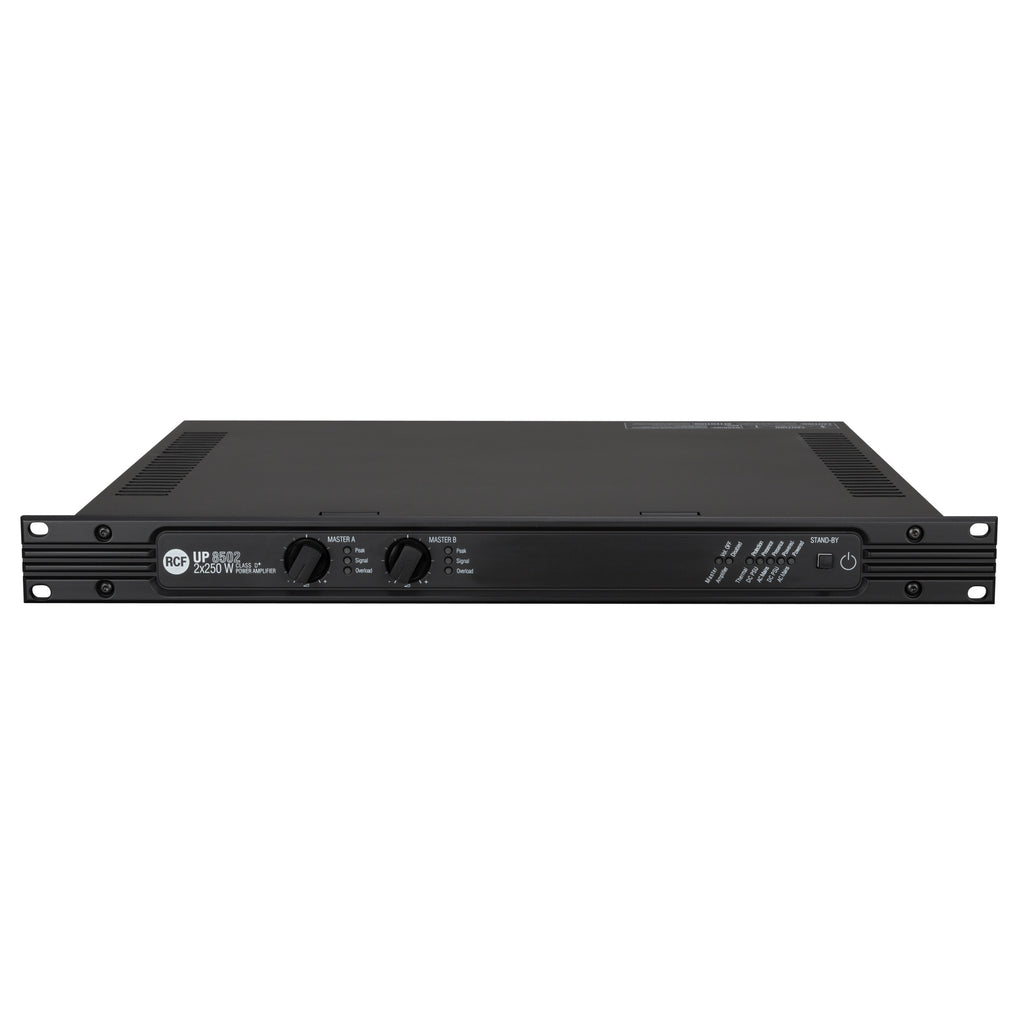

UP 8502 Power Amplifier
The UP 8500 series power amplifiers are designed with an innovative RCF power supply and amplification technology. The full digital technology allows merging extremely high efficiency both with AC and DC power supply, pro audio quality reproduction and compactness. All UP 8500 series power amplifiers are certified according to EN 54-16 standard in combination with DXT 7000 Voice Alarm system.
Features
- 2 x 250 W power amplifier
- 2 inputs per channel
- Dual AC and DC power supply
- Priority circuit
- No output lines tranformers
- Status LEDs on front panel
Specifications
Amplifier specifications
| Amplifier Class |
D |
| Output power @ 100 V |
2 x 250 W @ 100 V |
| Frequency Response (-3dB) |
40 Hz - 16000 Hz |
| Crosstalk |
<70 dB |
| Distortion (THD+N) @ 1 kHz nominal power |
<0.3 % |
Input section
| Total number of inputs |
4 |
| Balanced |
4 |
| Mono |
2 |
| Stereo |
2 |
| Line inputs |
4 |
| General Purpose Inputs (GPI) |
4 |
Output section
| General Purpose Outputs (GPO) |
1 |
Configuration and control
Protections
| Cooling |
Forced |
| Short circuit |
Yes |
| Thermal |
Yes |
| DC |
Yes |
| Fuses |
Yes |
Power requirement
| Operating voltage |
220-240/115 V~ 50/60Hz |
| Voltage selection |
Internal |
| DC power |
Yes |
| DC power value |
48 V |
| Power consumption (MAX) |
800 W |
Standard compliance
| Safety agency |
CE compliant |
| EN54-16 certified |
Yes |
| CPR number |
1438-CPR-1093 |
Physical specifications
| Cabinet/Case Material |
Metal |
| Color |
Black, |
| Rack mounting |
19", 1U |
Size / Weight
| Height |
44 mm / 1.73 inches |
| Width |
482 mm / 18.98 inches |
| Depth |
375 mm / 14.76 inches |
| Weight |
5.2 kg / 11.46 lbs |
Shipping information
| Package Height |
180 mm / 7.09 inches |
| Package Width |
550 mm / 21.65 inches |
| Package Depth |
480 mm / 18.9 inches |
| Package Weight |
7.2 kg / 15.87 lbs |
