X 40 Two-Way Professional Speaker

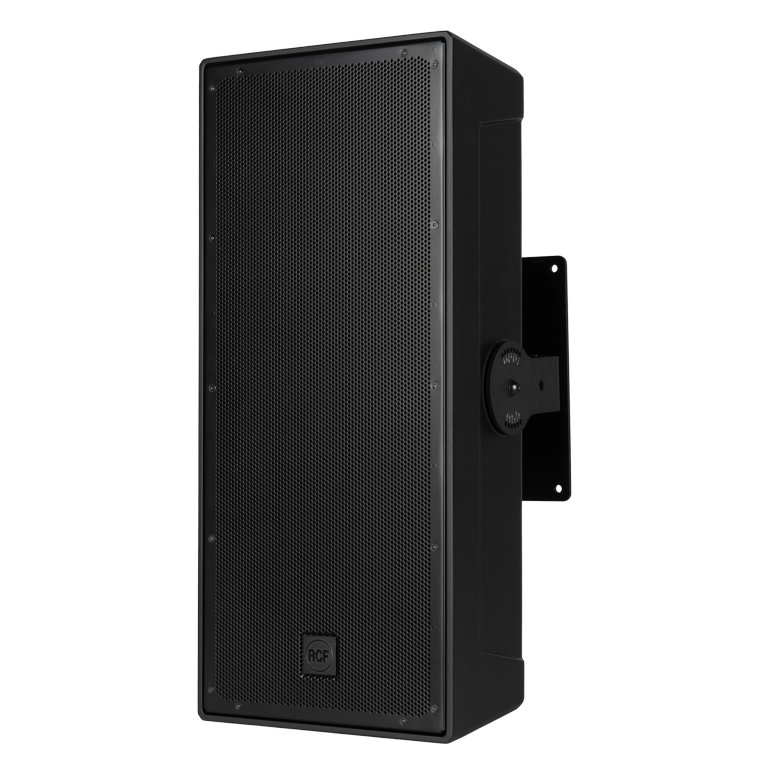

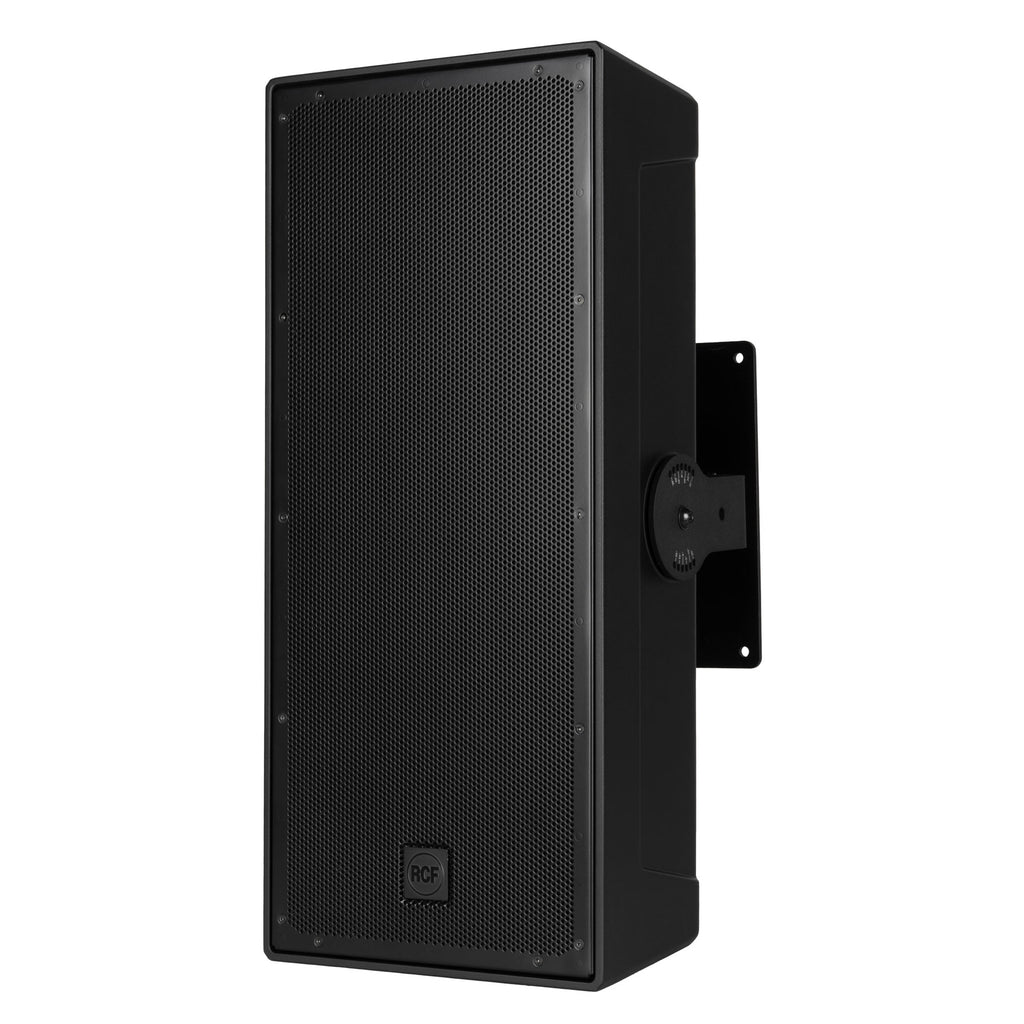

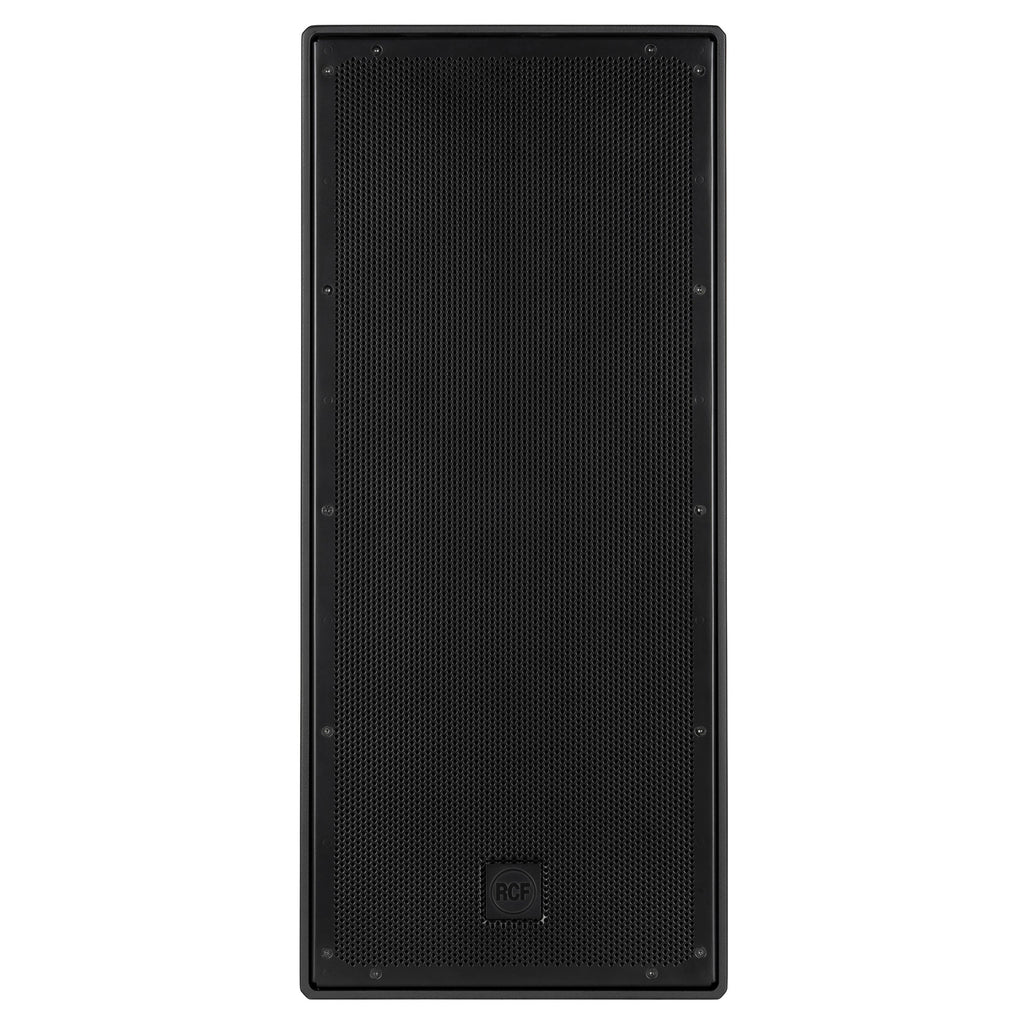

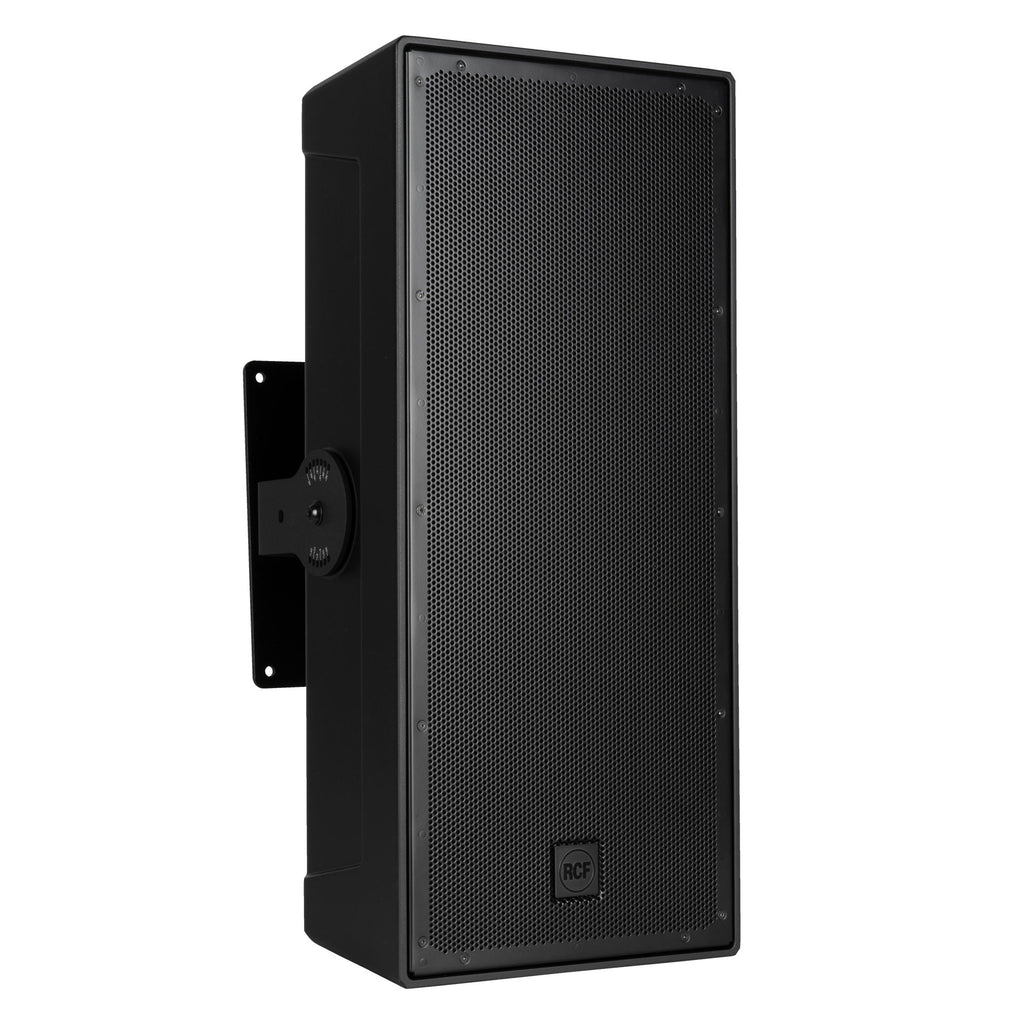

X 40 is a two-way speaker designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 10’ woofers and the 4’’ titanium-dome compression driver on a TRW asymmetric waveguide, it offers a powerful and clear sound with uniform 110° x 60° coverage. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. A bracket for wall mount vertical installation is included, allowing +/- 35° tilt (step 5°), while a ceiling-mount bracket available as an accessory. EN 54-24:2008 technical data available in the user manual.

Features

• 1200 W RMS power handling
• 142 dB max SPL
• 50 ÷ 20000 Hz frequency range
• 110° x 60° asymmetric horn
• 2 x 10" neo woofer, 3.0'' v.c.
• 4.0" v.c. Titanium Neo compression driver
• Polyurethane cabinet / aluminum grille
• IP55 protection grade

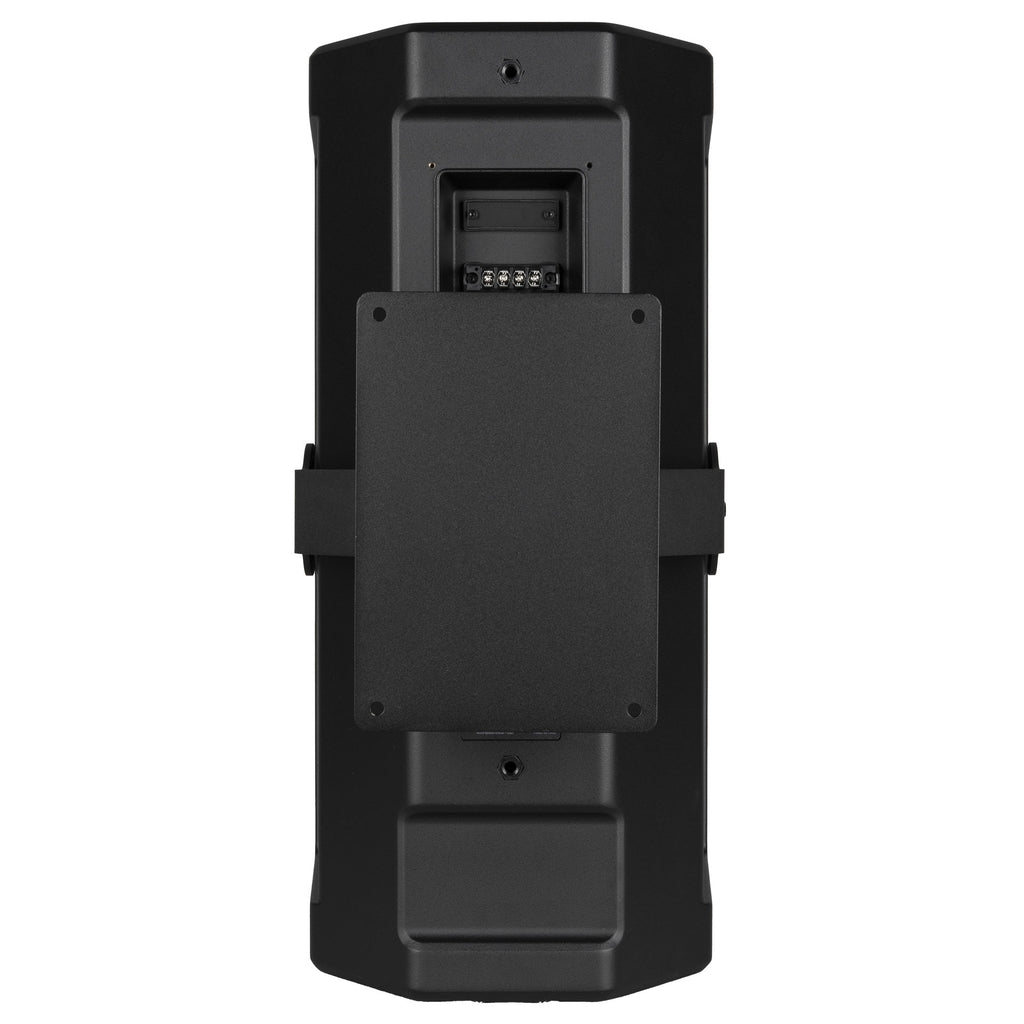

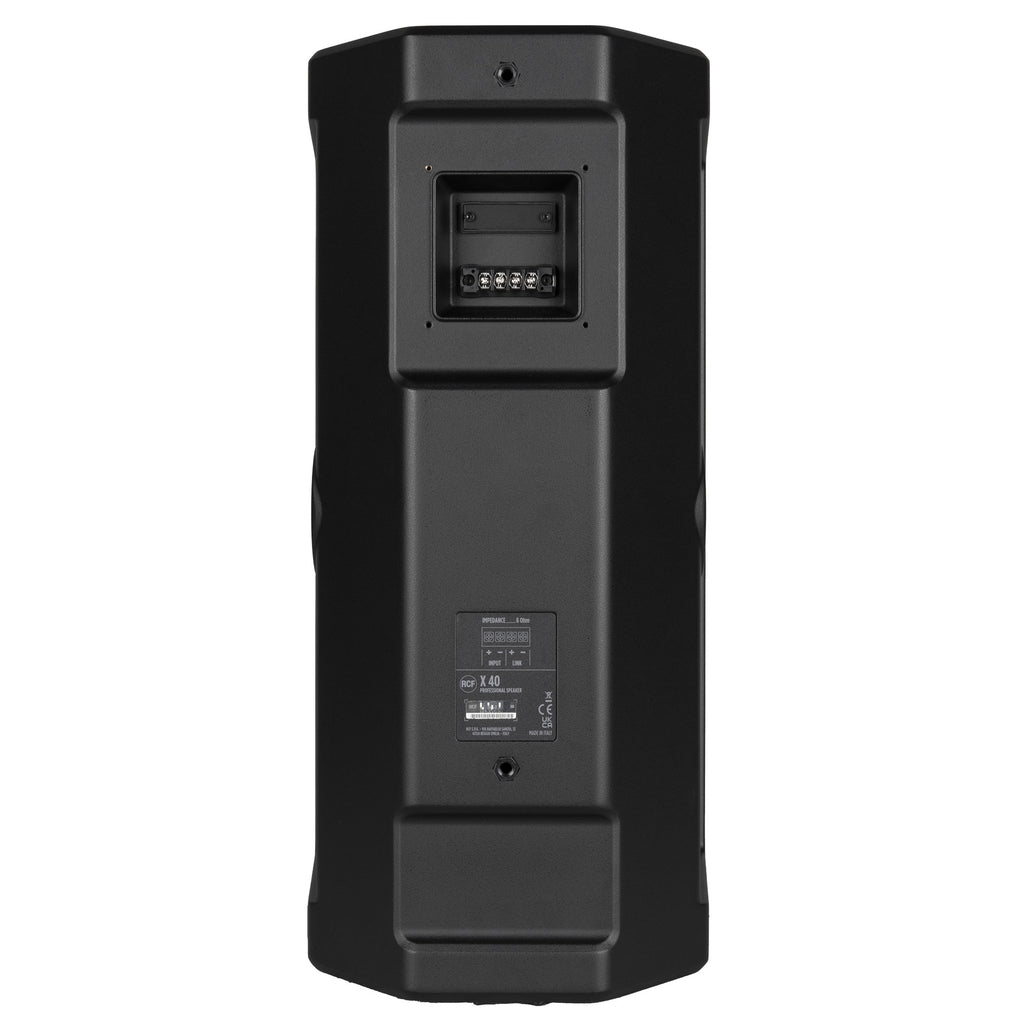

• 4 pole barrier strip terminals

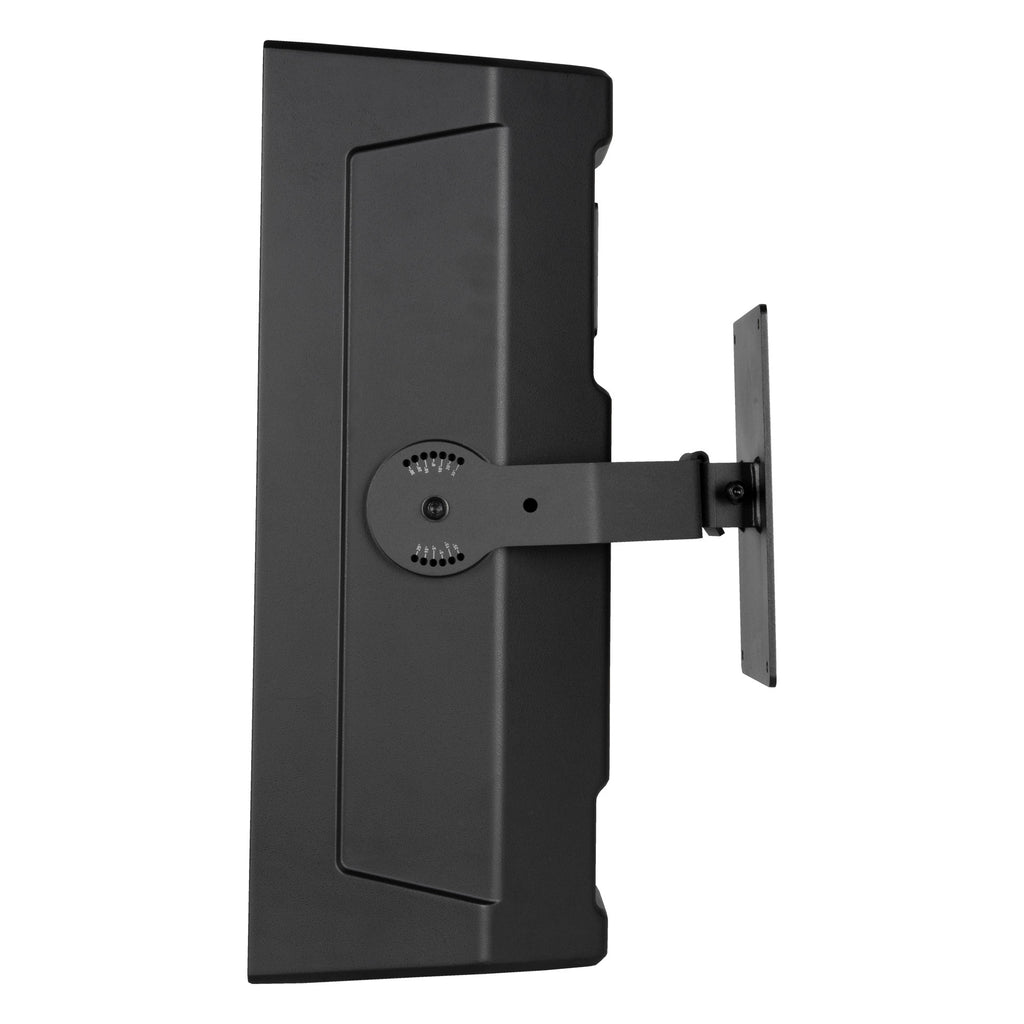

• Wall mount vertical bracket included (+/-35°, step 5°)

All-weather Performance

Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.

Il tuo browser non supporta il video HTML5.

Superior Transducers

Low Frequencies

RCF low-frequency transducers use high-flux neodymium magnets to deliver maximum current stability, reduced distortion, and excellent thermal efficiency. Each woofer undergoes a rigorous endurance signal tests to guarantee reliability under the most demanding conditions.

High Frequencies

The compression driver voice coil features high-performance materials, including neodymium magnets and titanium domes, for outstanding power handling, superior durability, and exceptionally natural sound reproduction across the spectrum.

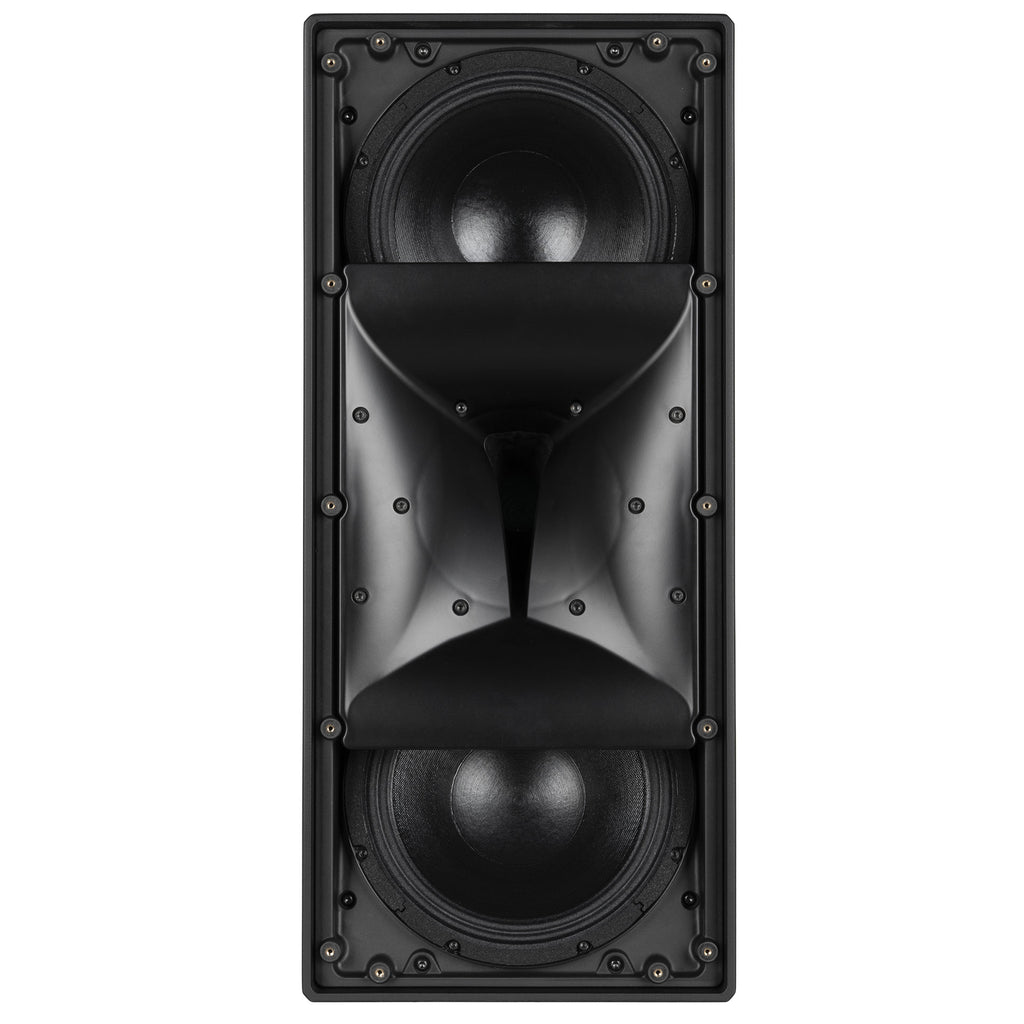

TRW Asymmetric Uniform Coverage Waveguide

X 40’s True Resistive Waveguide (TRW) is engineered as part of a fully integrated system: transducers, enclosure, and vented ports are developed together to control the acoustic load and radiation with higher precision. Acoustically, the waveguide behaves as a pure resistive load, minimizing horn resonances and the high-frequency distortion they typically associated with conventional horns.

When paired with FiRPHASE processing, TRW helps the system behave as a single, coherent source, producing a precise, stable sound image. The 110° × 60° asymmetric pattern is shaped for audience geometries: vertical dispersion is tighter above the horn axis and wider below, keeping energy consistent on the seating plane (e.g. on raked tiers), extending reach to the back rows, and reducing ceiling reflections to support speech intelligibility.

LICC - Low Impedance Compensated Crossover

X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.

• XPS SERIES
• 40-bit Floating-point
• Processing at 96 kHz
• Ready-to-Use
• Configurations and presets for RCF speakers
• 2U Rack Space
• for both touring and installed sound systems
• Flexible 32-bit Routing
• with analog, digital
• and Dante I/O
• Advanced Fault Protections
• for each amplifier channel and power supply

Versatility for Any Application

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Polyurethane: the ultimate in durability

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs - complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

contact us

Specifications

Acoustical specifications

Power section

Transducers

Input/Output section

Standard compliance

Physical specifications

Size / Weight

Shipping information
