S 08-A is a self-powered audio system providing all those features required for a complete environment sonorization. It features a four channel class D amplifier able to power the integrated 8'' woofer, 2 satellites lines for both mono and stereo applications, and an additional passive S 08 subwoofer. Line and mic inputs can be mixed in an optimized way balancing each single level. Bluetooth connectivity allows audio streaming from any mobile device, and comes alongside traditional RCA, combo XLR and 3.5mm jack connectors. S 08-A offers 8 different equalizations, optimized for music and voice reproduction. Specific HI-PASS filter values allow to combine the system with a wide range of RCF speaker models, ensuring high application flexibility.

Features

• 4 x 250 W Class-D power amplifier

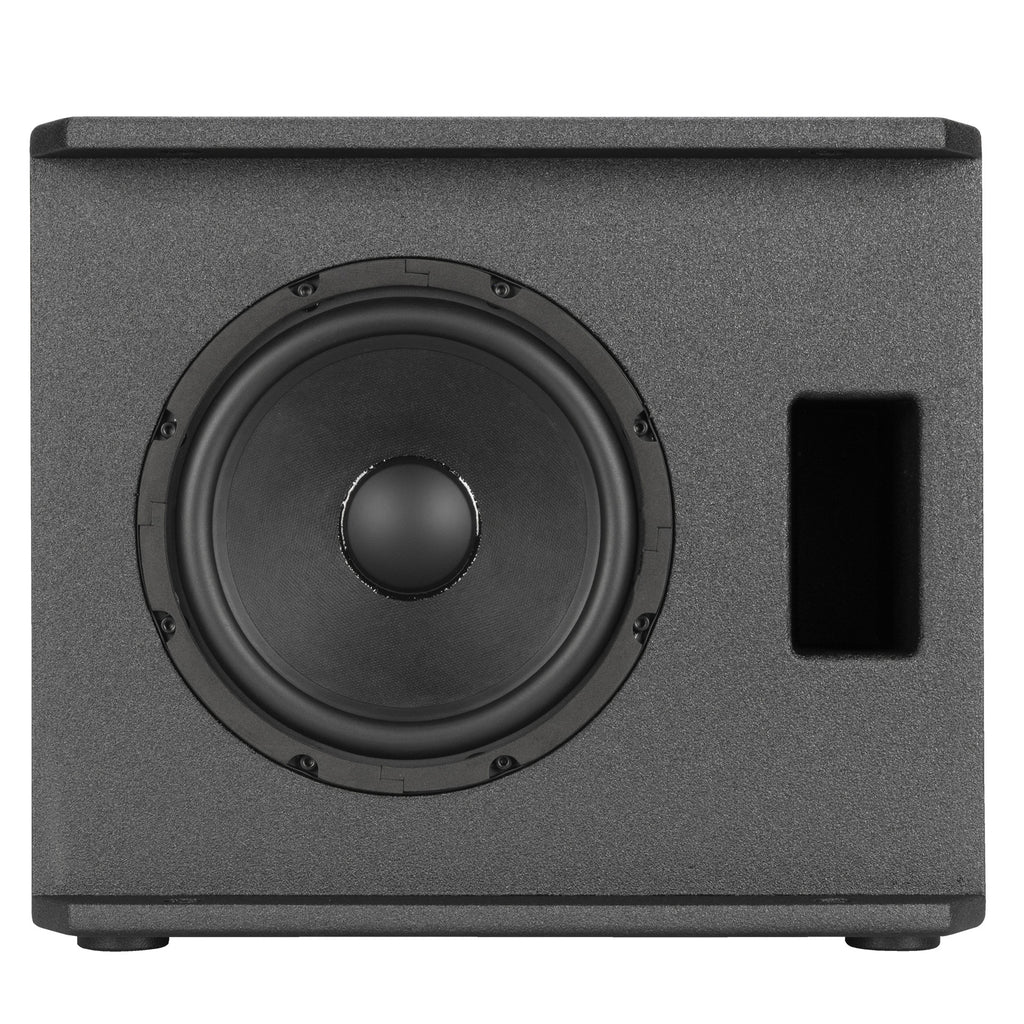

• Integrated 8'' subwoofer (1.5'' v.c.)
• On-board processing (8 different equalizations)
• Bluetooth audio streaming
• 3 line inputs and 2 mic inputs
• High quality plywood cabinet

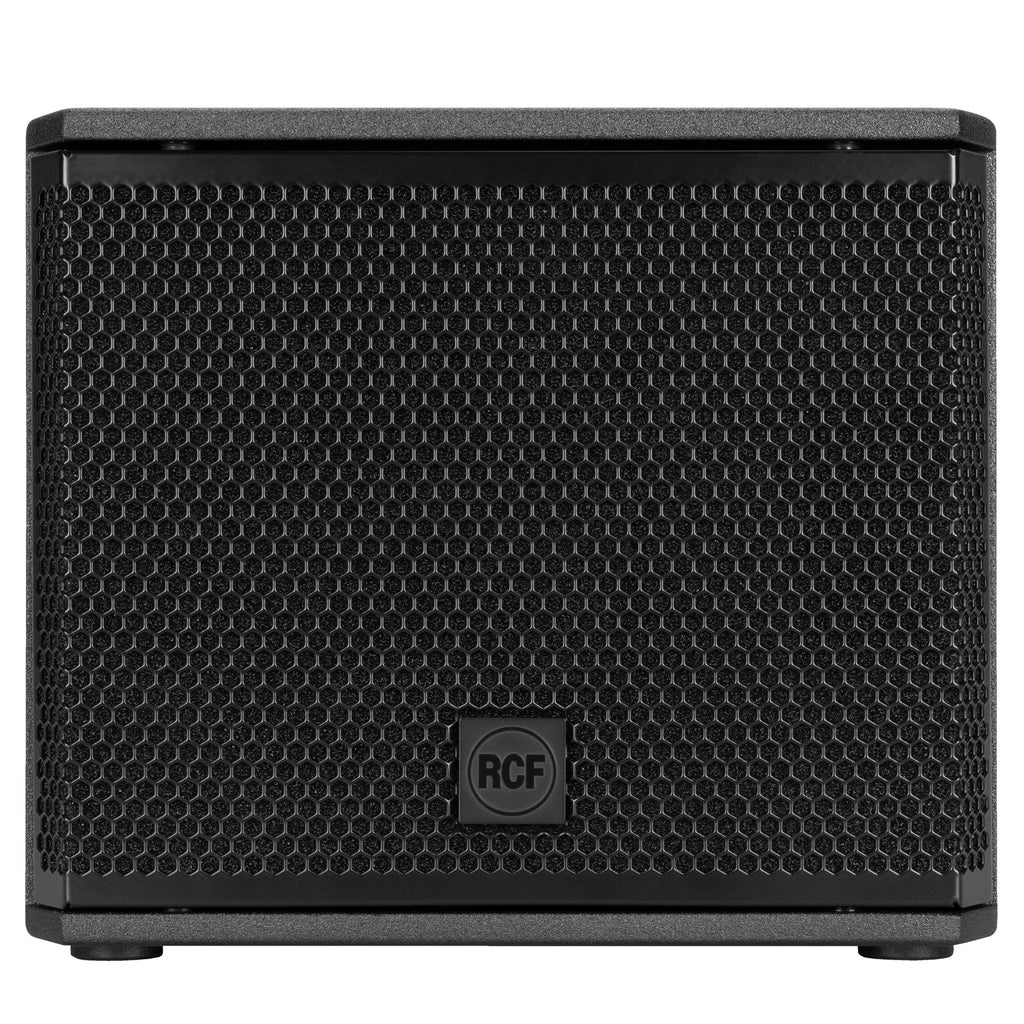

• Steel front grille with clothing
• 6 pole EUROBLOCK connector

Powerful lows

RCF subwoofers are the first choice of many sound engineers, due to their very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, and impressive size/weight to SPL output ratio. Your audience will enjoy an engaging immersive musical experience.

State of the art transducers

From 8" to 19" cone size, S Series low-frequency transducers are the result of the latest refinements in cone-transducer production, resulting in a fast and controlled reproduction of the bass frequency range.

Integrated Bluetooth

Bluetooth connectivity allows audio streaming from any mobile device, and comes alongside traditional RCA, combo XLR and 3.5mm jack connectors.

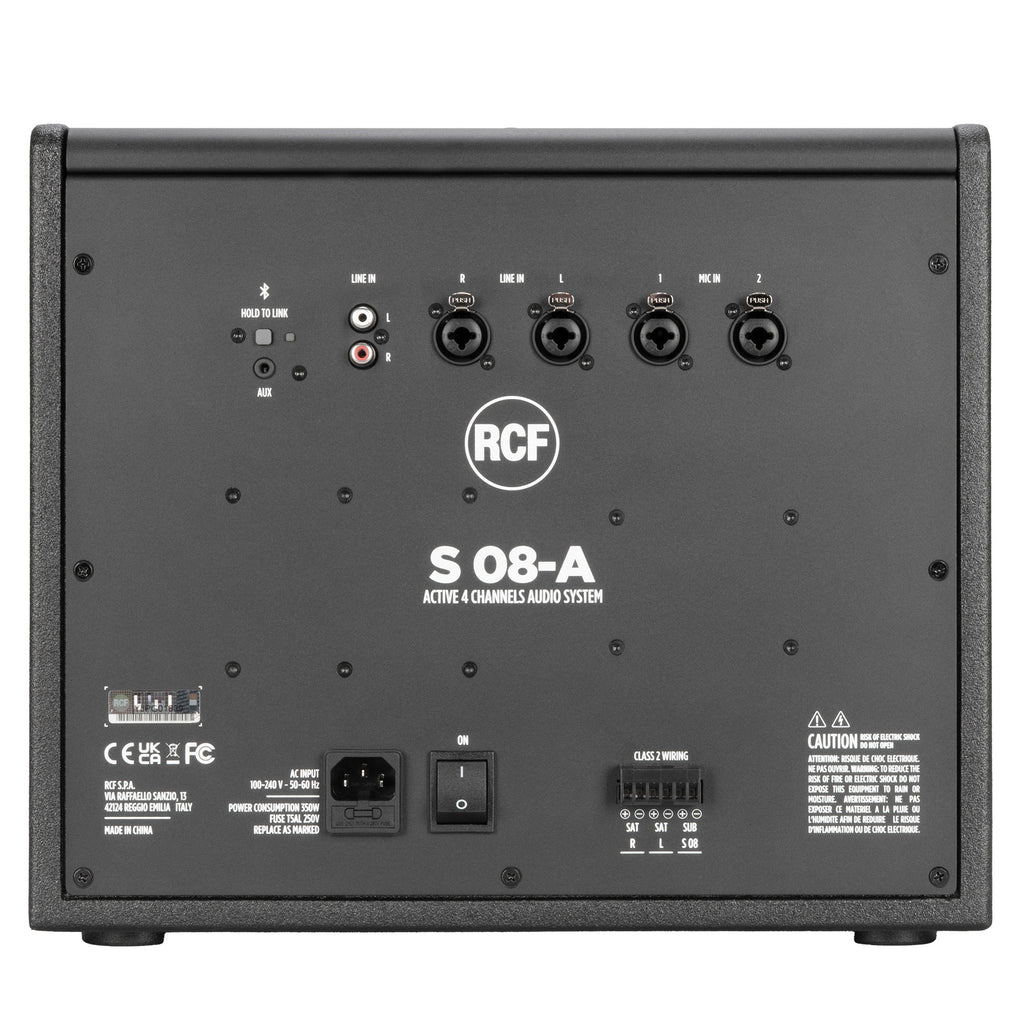

Complete 4-Channel Input Section

The 4-channel input section is designed for practical installation use, combining RCA, combo XLR, and 3.5 mm jack connectors with Bluetooth audio streaming. Sources can be mixed and balanced independently. A sturdy metal cover protects the mixer controls and helps prevent unauthorized adjustment of system settings

Powerful 4-Channel Amplification

The integrated 4 × 250 W Class D amplifier powers the built-in 8" woofer and allows the connection of an additional passive S 08 subwoofer, plus two satellite loudspeakers of choice, such as models from the RCF Compact M Series. This creates a compact, scalable system for mono or stereo applications requiring solid output and extended low-frequency support.

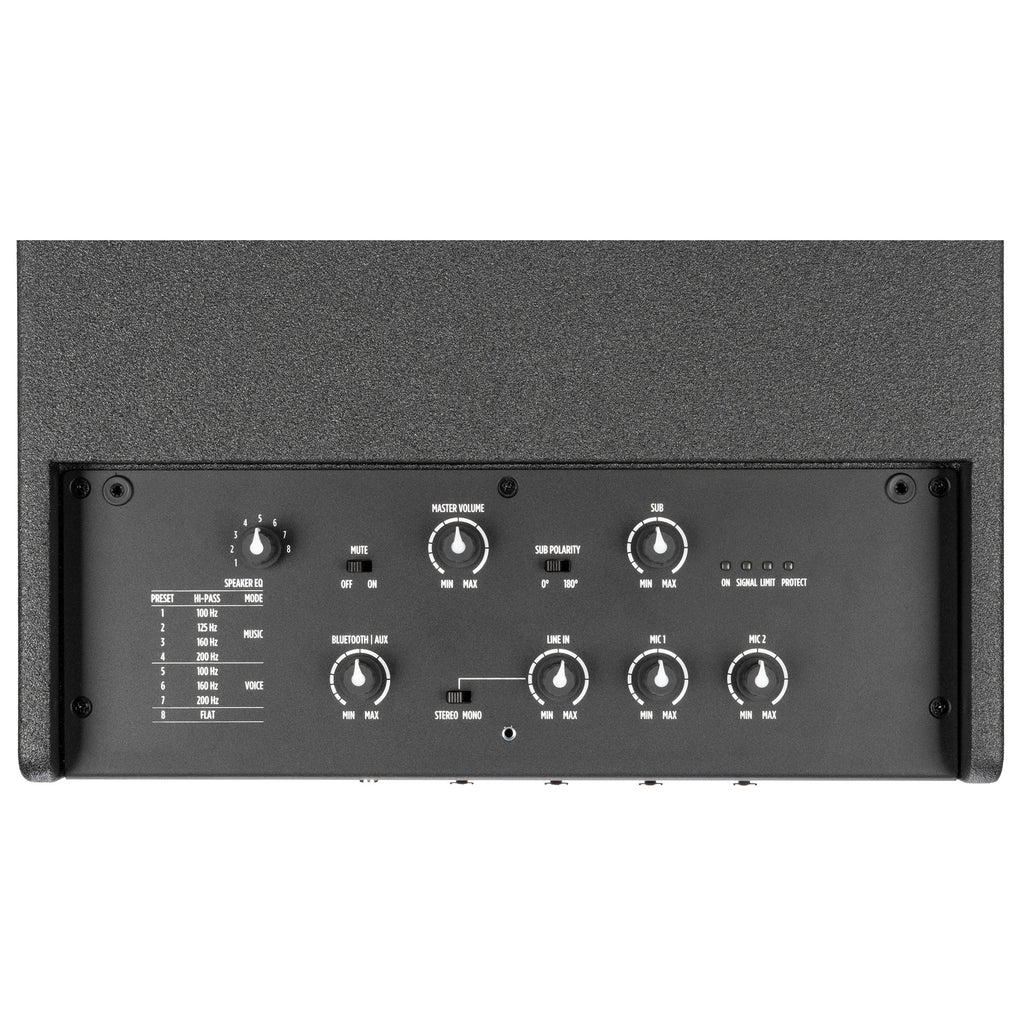

Speaker EQ and System Flexibility

Eight onboard EQ presets optimize the system for music and voice reproduction. Dedicated high-pass filter settings allow direct matching with a wide range of RCF loudspeakers, making it easier to configure the system around different satellite models, room sizes, and installation requirements.

Configuration Example

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.

Improve the audio atmosphere

Music helps engagement and will improve the hospitality of your activity, especially if the perceived sound quality is higher. This is the aim of RCF SUB S Series - optimal performance in both background music and high-powered foreground audio.

Specifications
