Description

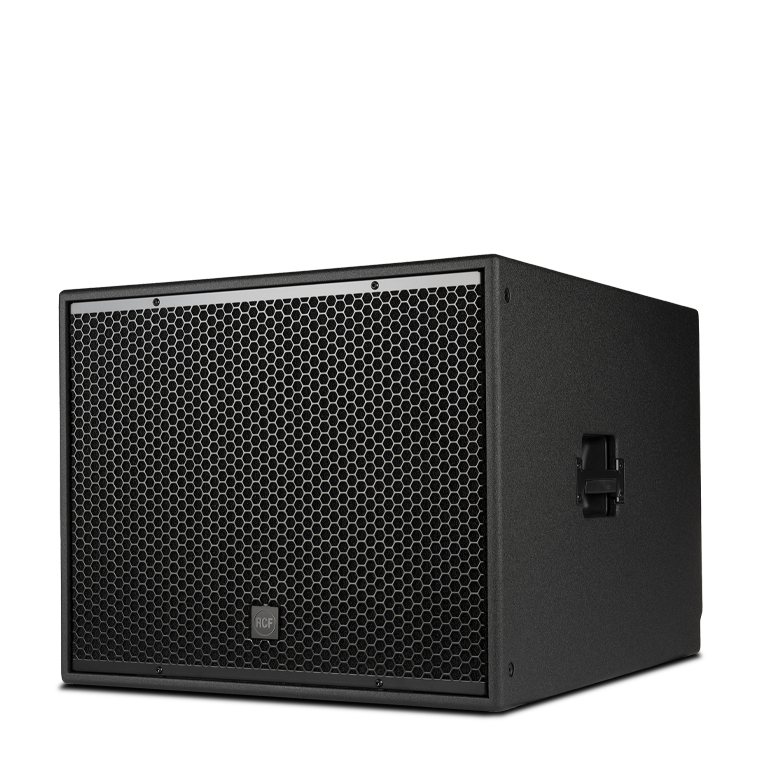

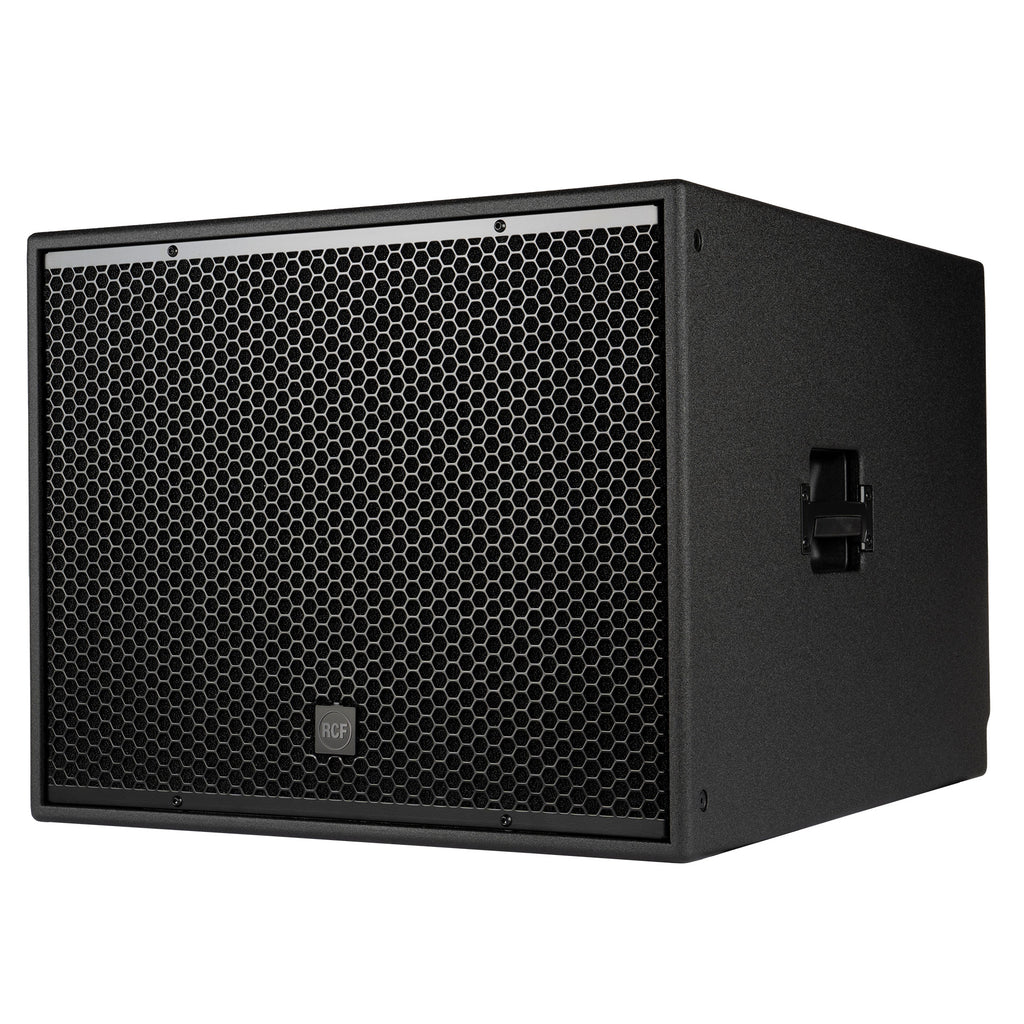

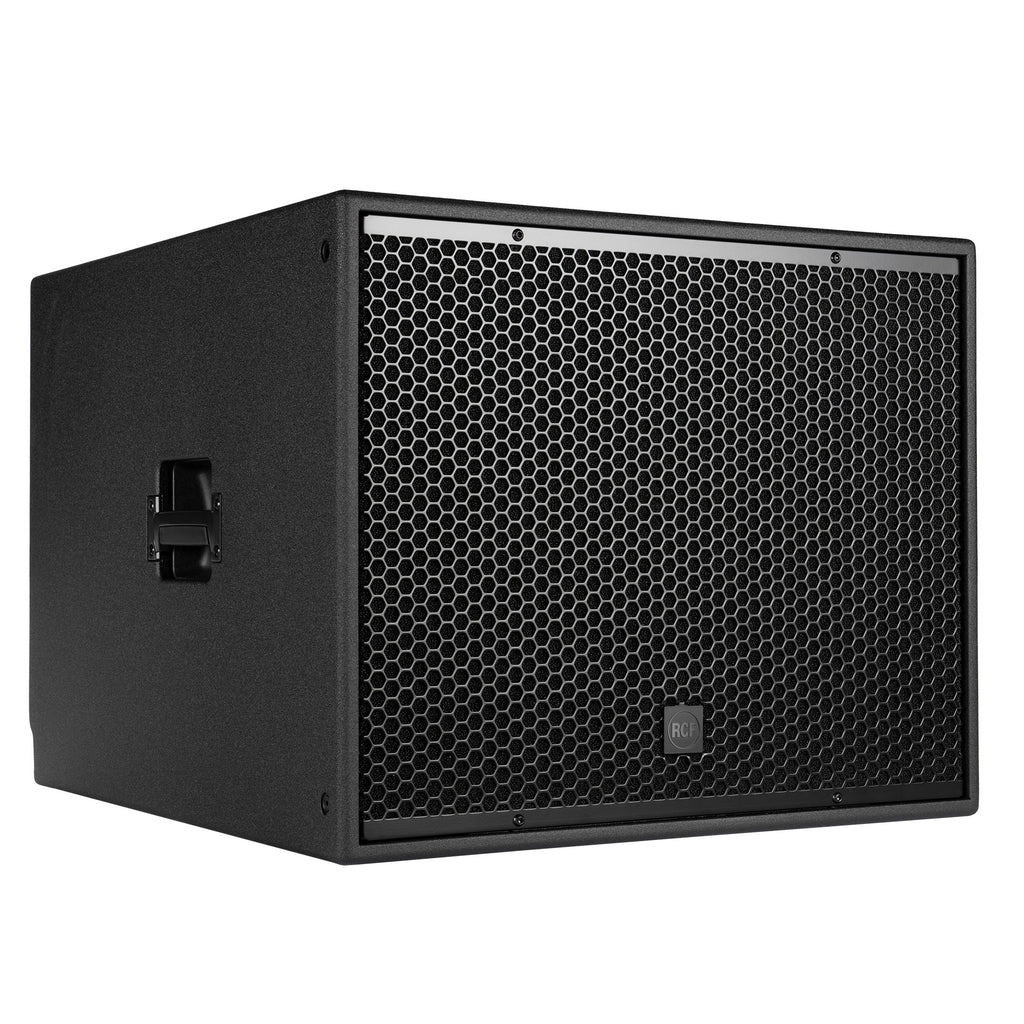

S 19 WP is a high-power 19" cone subwoofer suitable for high-powered outdoor applications. The bass-reflex design ensures an efficient acoustic response down to 30 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. An M20 pole mount adapter is provided on top of the cabinet, with handles on both sides. The enclosure can be ground-stacked and cardioid-arrayable for improved rear rejection. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric discreetly embedded within the grille assembly and IP67 Amphenol Ecomate power connectors.
Features
- Up to 1500 W power handling
- 139 dB max SPL
- 30 ÷ 200 Hz frequency range
- 19" HyperVented Neodymium Woofer with 4'' v.c.
- High-quality polyurea-coated multi-ply cabinet
- Steel grille with water-repellent protection
- Integrated M20 threaded pole mount on top

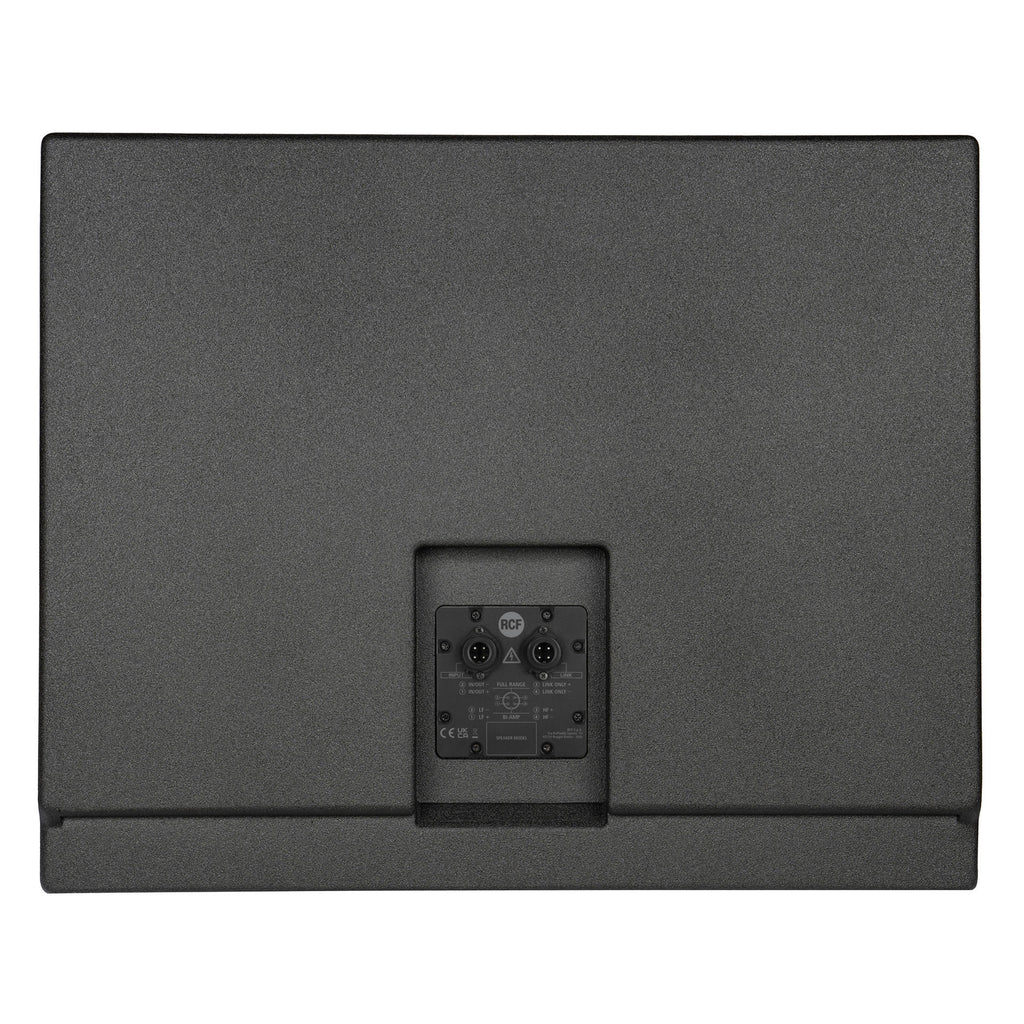

- 2 x Amphenol eco|mate IP 67 connectors
Recommended Power Amp
XPS SERIES
40-bit Floating-point Processing at 96 kHz
Ready-to-Use Configurations and presets for RCF speakers
2U Rack Space
Flexible 32-bit Routing with analog, digital and Dante I/O
Advanced Fault Protections for each amplifier channel and power supply
Advanced Transducer Technology
Weatherproof. Impact-Resistant. Built to Last.
Modular Suspension Kit
The modular Subwoofer Suspension Kit is engineered for extreme flexibility and safety in flown subwoofer configurations. Designed with high-strength steel components and compatible with various subwoofer models, the system supports secure suspension of up to 9 units while also enabling adaptability for cardioid configurations. For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.
Please note that the kit for model S 19 WP is available exclusively for the Flyable version (please check package label).
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 30 Hz - 200 Hz |
| Max SPL @ 1m | 139 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 1500 W |
| Peak Power Handling | 6000 W PEAK |
| Recommended Amplifiers | XPS 16K, XPS 16KD |
| Transducers | |
| Woofer | 1 x 19'' neo, 4.0'' v.c |
| Input/Output section | |
| Input connectors | Amphenol eco/mat IP 67 |
| Output connectors | Amphenol eco/mat IP 67 |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |

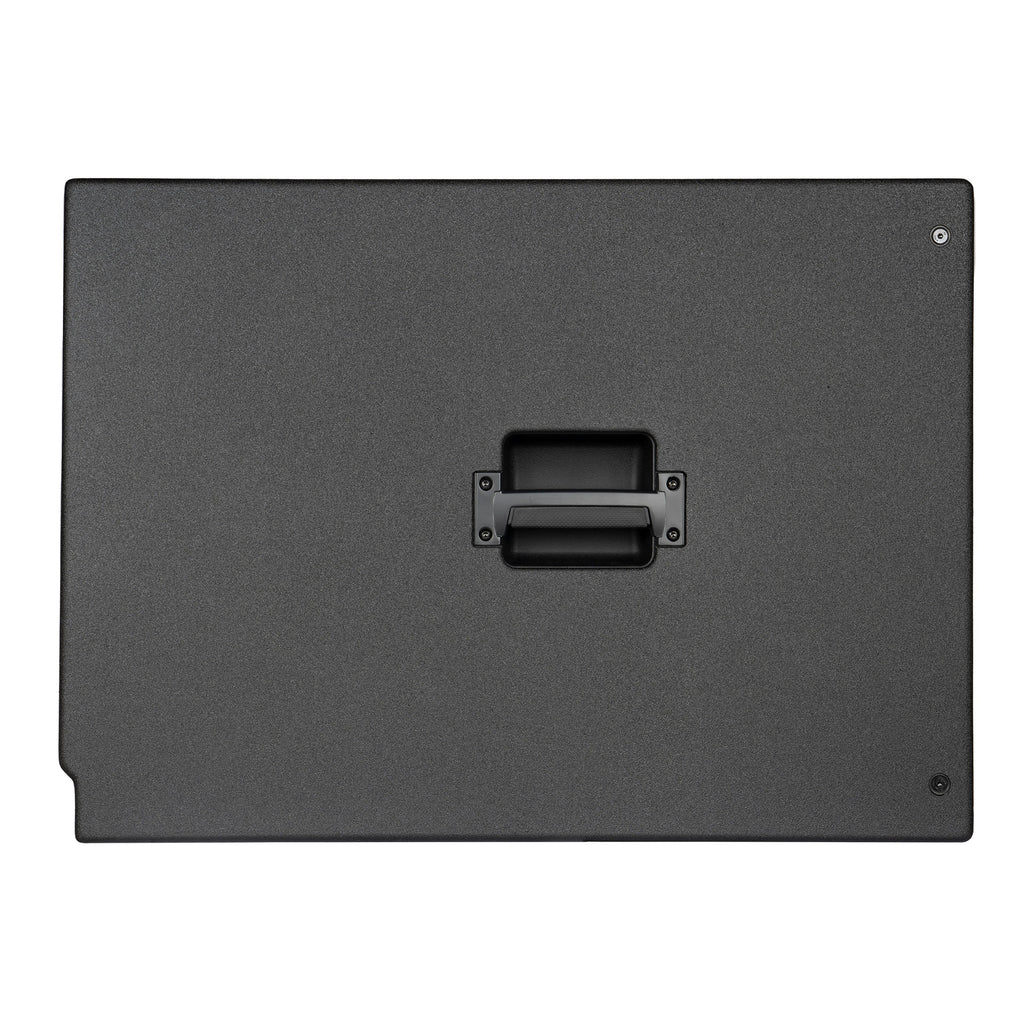

| Handles | 2 side |
| Pole mount/Cap | M20 thread |

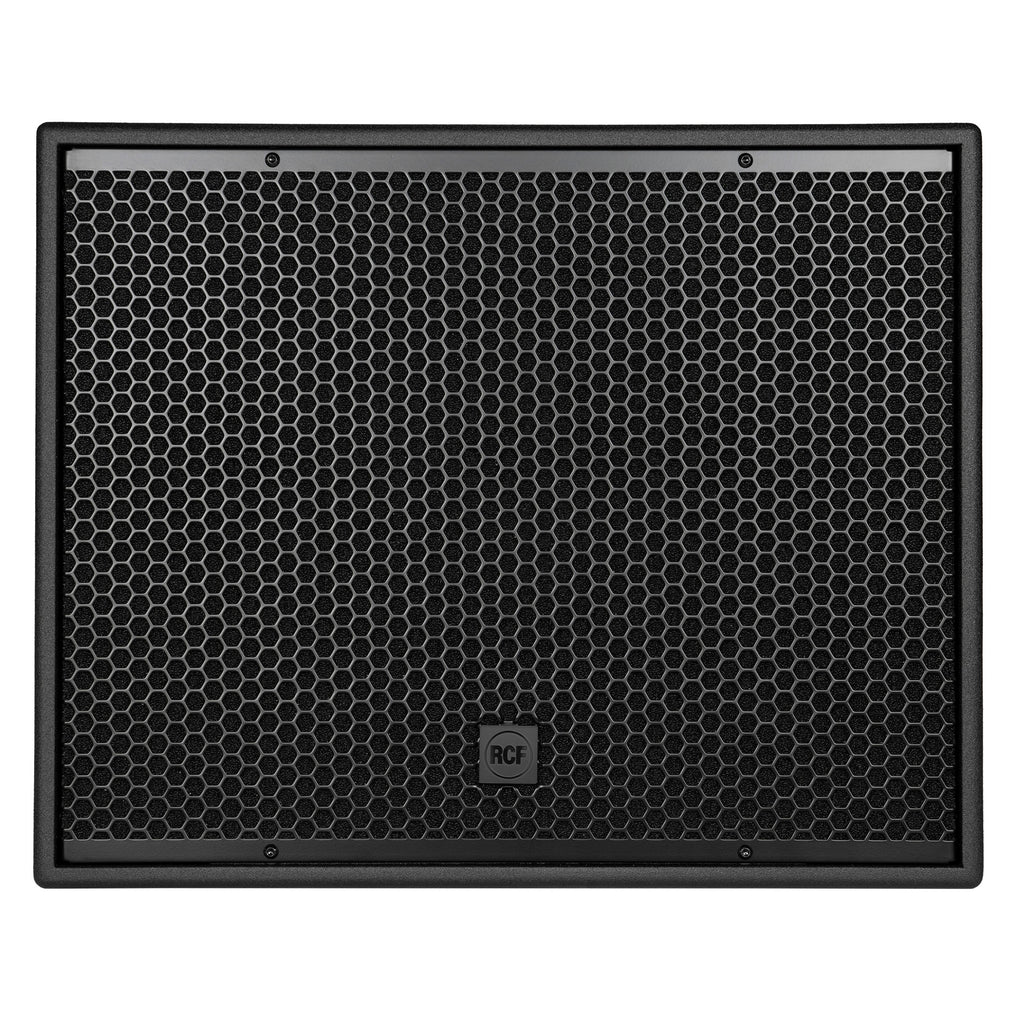

| Grille | Steel grille with water-repellent protection |
| Size / Weight | |
| Height | 534 mm / 21.02 inches |
| Width | 650 mm / 25.59 inches |
| Depth | 730 mm / 28.74 inches |
| Weight | 44 kg / 97 lbs |
| Shipping information | |
| Package Height | 565 mm / 22.24 inches |
| Package Width | 680 mm / 26.77 inches |
| Package Depth | 760 mm / 29.92 inches |
| Package Weight | 48 kg / 105.82 lbs |
