Description

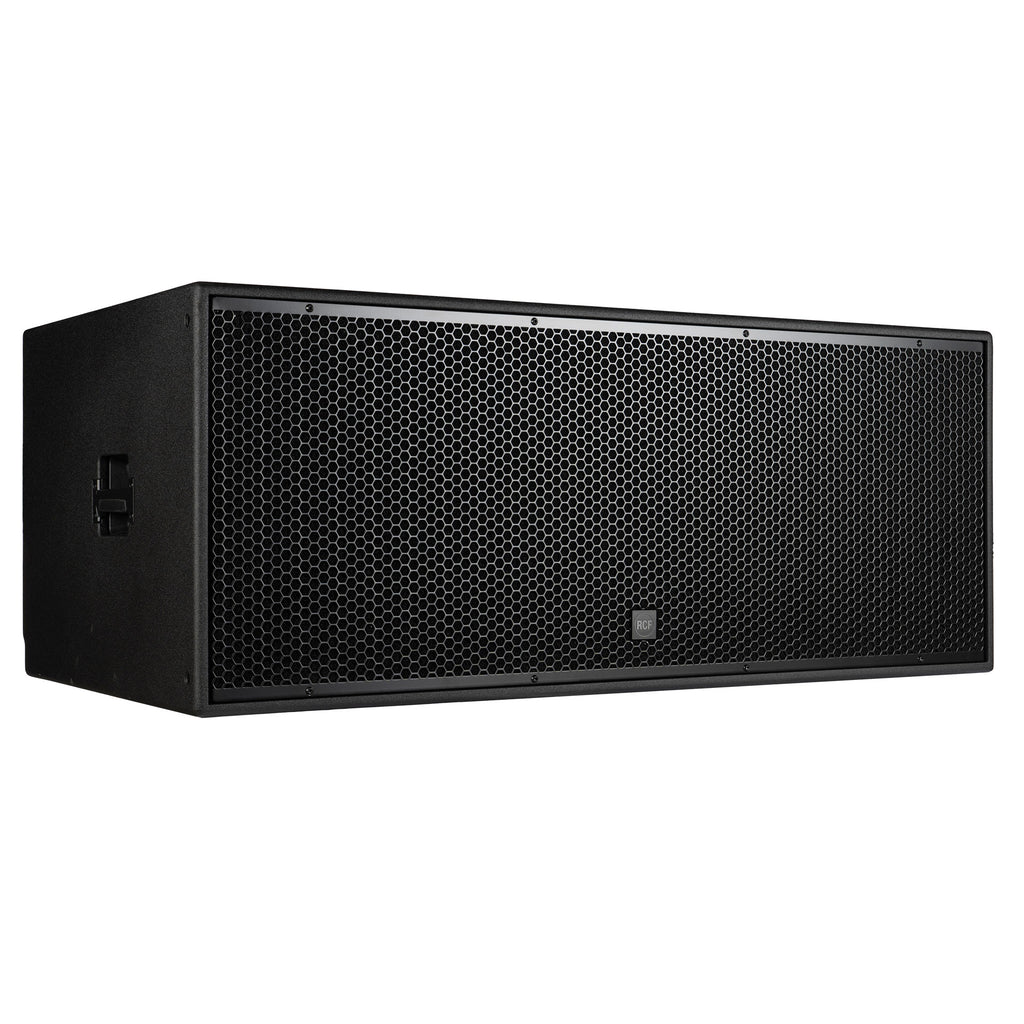

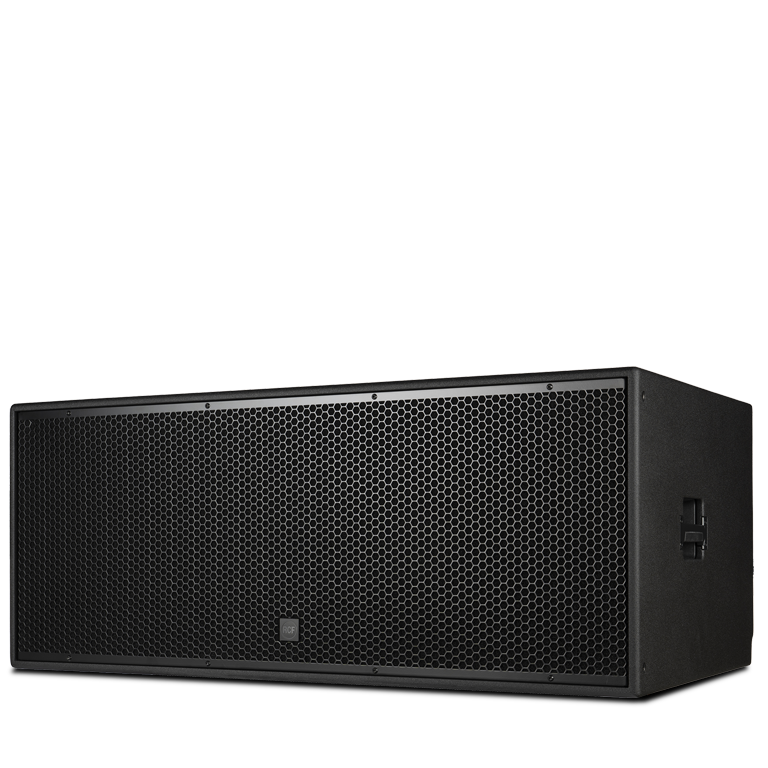

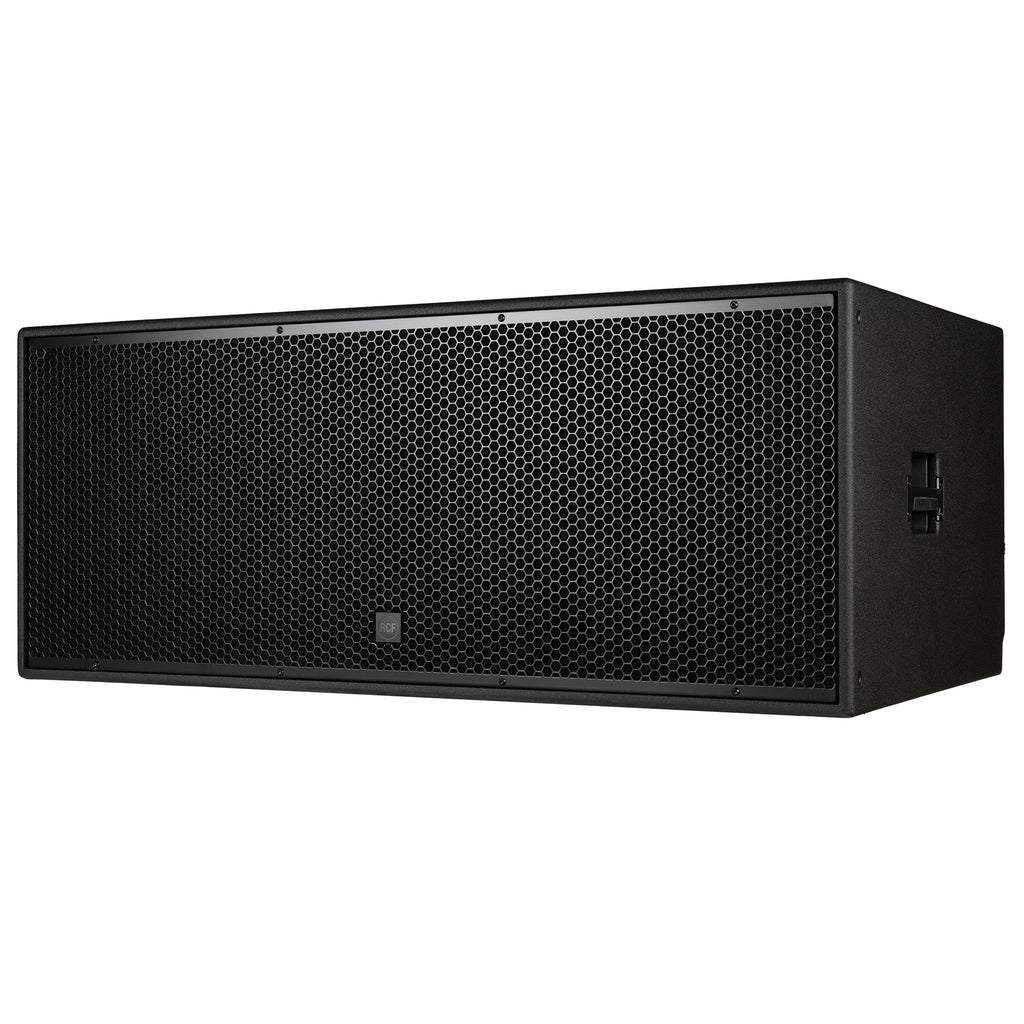

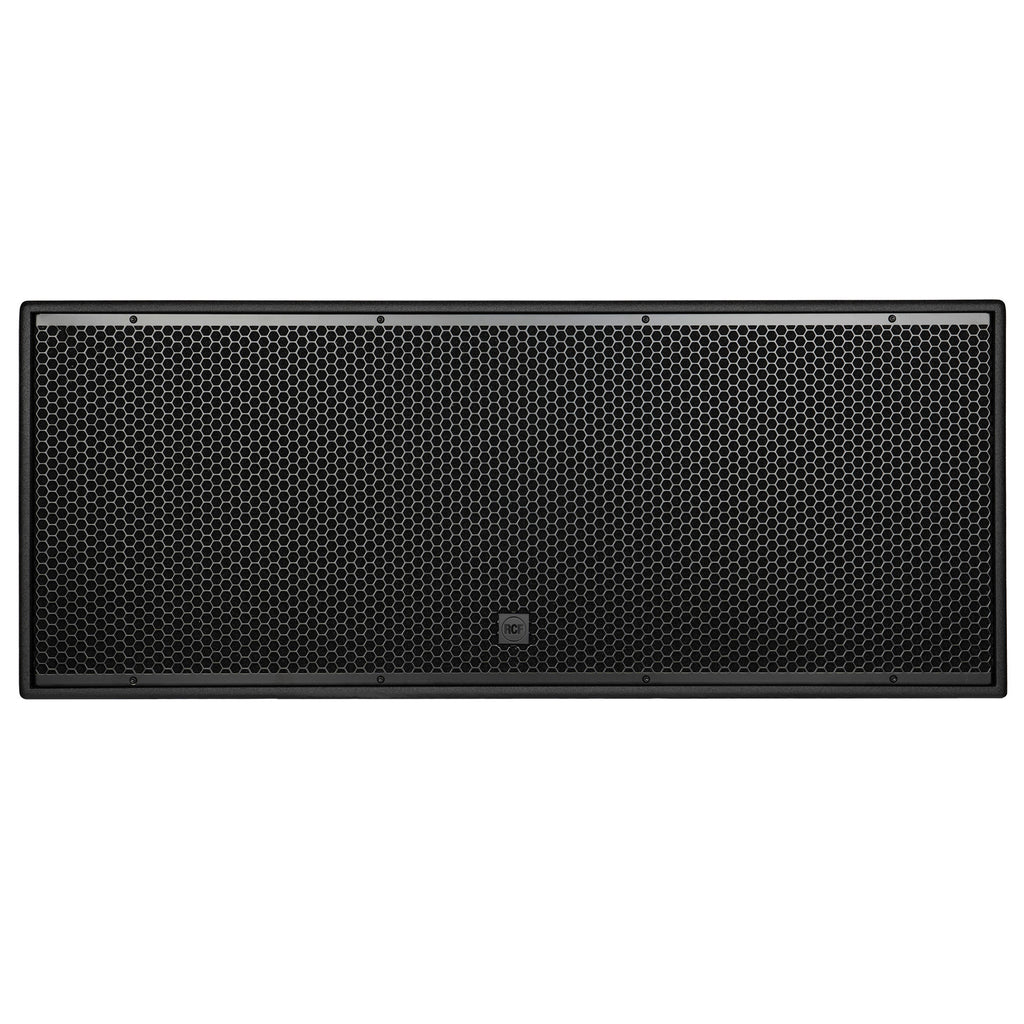

S 29 WP is a high-power dual 19" cone subwoofer suitable for high-powered outdoor applications. The bass-reflex design ensures an efficient acoustic response down to 25 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. An M20 pole mount adapter is provided on top of the cabinet, with handles on both sides. The enclosure can be ground-stacked and cardioid-arrayable for improved rear rejection. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric discreetly embedded within the grille assembly and IP67 Amphenol Ecomate power connectors.
Features
- Up to 3000 W power handling
- 143 dB max SPL
- 25 ÷ 200 Hz frequency range

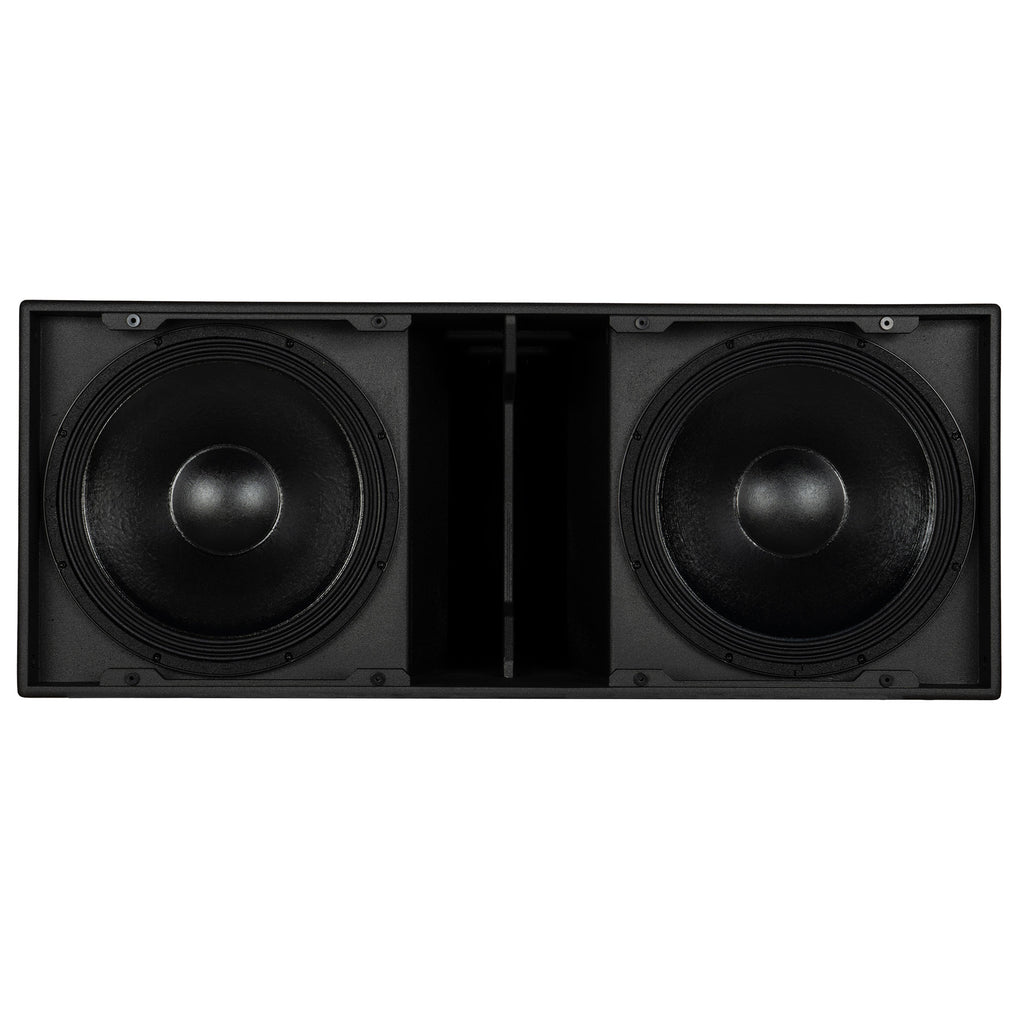

- 2 x 19" HyperVented Neodymium Woofer with 4'' v.c.
- High-quality polyurea-coated multi-ply cabinet
- Steel grille with water-repellent protection
- Integrated M20 threaded pole mount on top

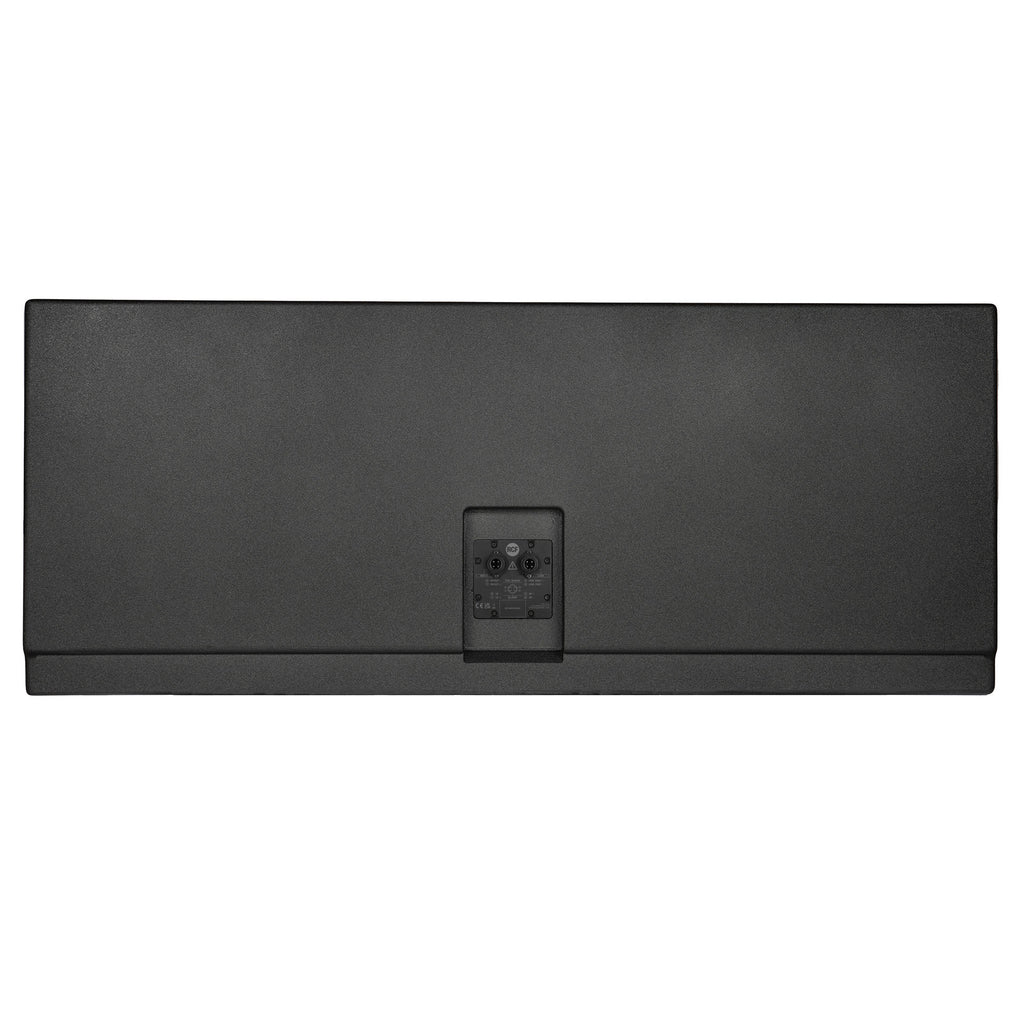

- 2 x Amphenol eco|mate IP 67 connectors
Recommended Power Amp
XPS SERIES
40-bit Floating-point Processing at 96 kHz
Ready-to-Use Configurations and presets for RCF speakers
2U Rack Space
Flexible 32-bit Routing with analog, digital and Dante I/O
Advanced Fault Protections for each amplifier channel and power supply
Advanced Transducer Technology
Weatherproof. Impact-Resistant. Built to Last.
Modular Suspension Kit
The modular Subwoofer Suspension Kit is engineered for extreme flexibility and safety in flown subwoofer configurations. Designed with high-strength steel components and compatible with various subwoofer models, the system supports secure suspension of up to 9 units while also enabling adaptability for cardioid configurations. For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.
Please note that the kit for model S 29 WP is available exclusively for the Flyable version (please check package label).
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 25 Hz - 200 Hz |
| Max SPL @ 1m | 143 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 4 ohm |
| Power Handling | 3000 W |
| Peak Power Handling | 12000 W PEAK |
| Recommended Amplifiers | XPS 16K, XPS 16KD |
| Transducers | |
| Woofer | 2 x 19'' neo, 4.0'' v.c |
| Input/Output section | |
| Input connectors | Amphenol eco/mat IP 67 |
| Output connectors | Amphenol eco/mat IP 67 |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |

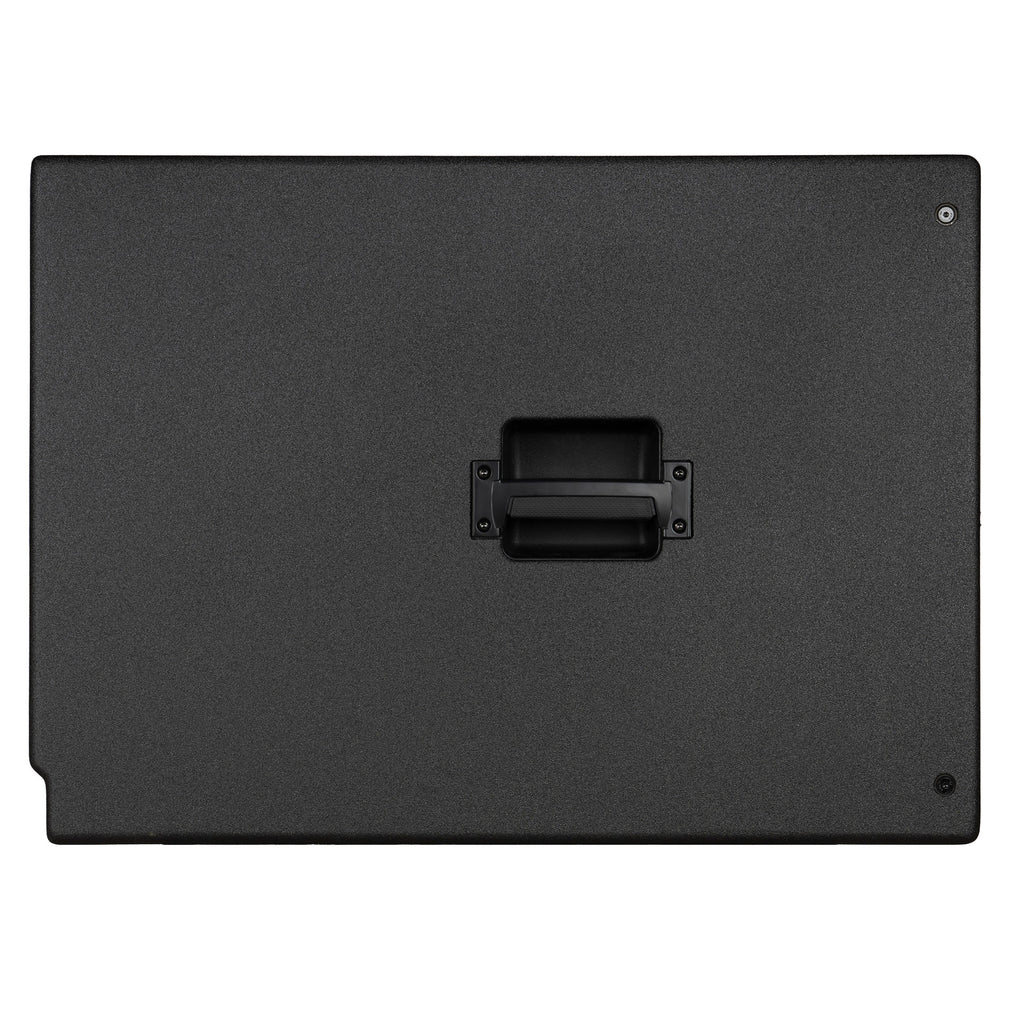

| Handles | 2 side |
| Pole mount/Cap | M20 thread |
| Grille | Steel grille with water-repellent protection |
| Size / Weight | |
| Height | 534 mm / 21.02 inches |
| Width | 1300 mm / 51.18 inches |
| Depth | 730 mm / 28.74 inches |
| Weight | 85 kg / 187.39 lbs |
| Shipping information | |
| Package Height | 620 mm / 24.41 inches |
| Package Width | 1360 mm / 53.54 inches |
| Package Depth | 800 mm / 31.5 inches |
| Package Weight | 90 kg / 198.42 lbs |
