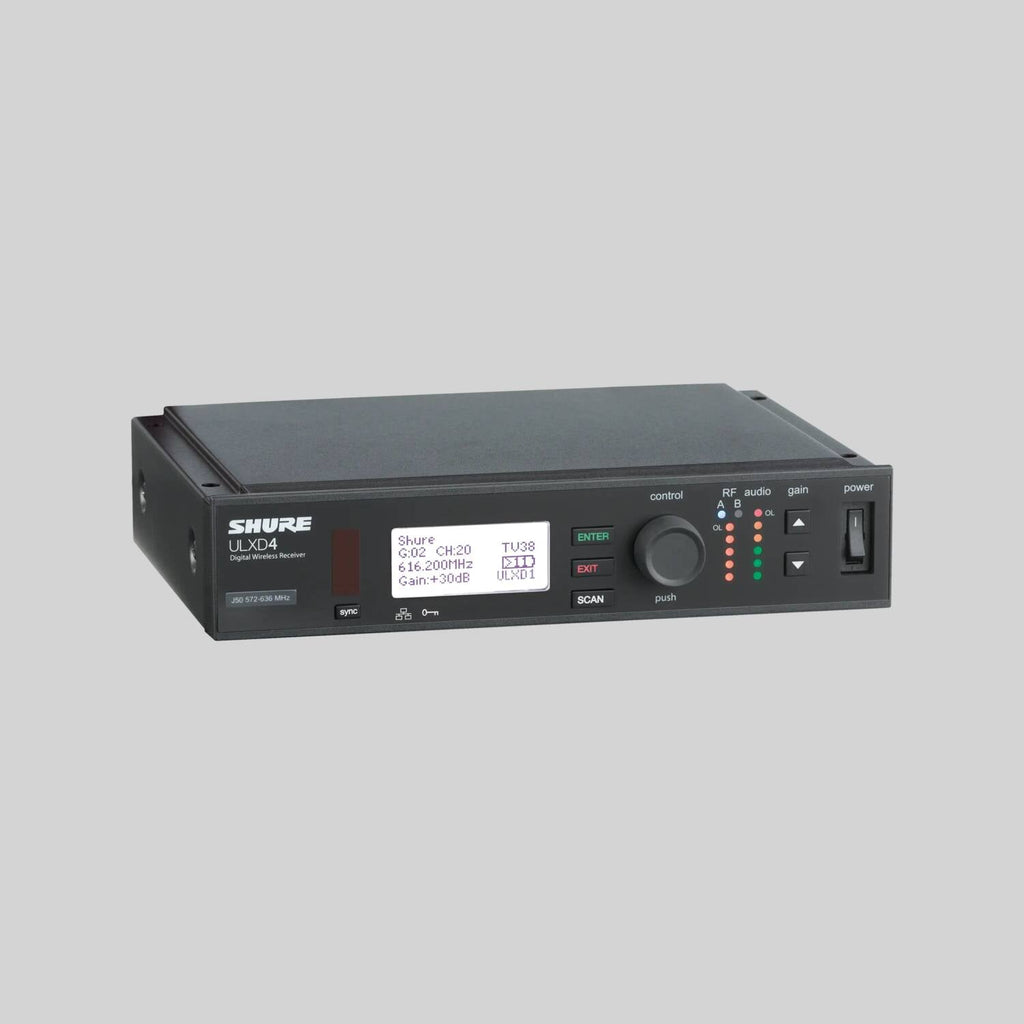

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

• Predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
• Interference detection and alerts provided on both the receiver and Wireless Workbench® 6
• Front panel gain adjustment buttons provide up to 60 dB additional gain
• AES 256-bit encryption-enabled for applications where secure transmission is needed
• Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration, and AMX/Crestron control
• Support for frequency coordination with the Axient® Spectrum Manager
• Rugged metal chassis
• Intuitive front panel LCD menu and controls with lockout feature
• Upgraded LCD with adjustable contrast and brightness
• Audio and RF LED meters with peak indicator
• Remoteable ½ wave antennas
• Furnished rack hardware

Specifications

• Transmission: Digital in VHF, UHF, 900MHz ISM, 1.2 GHz, 1.5 GHz, 1.8 GHz
• Type Of Power Supply: External
• Encryption: yes, AES-256

Dimensions and Weight

• Width: 7.756 in (197.0 mm)
• Height: 1.654 in (42.0 mm)
• Depth: 6.732 in (171.0 mm)
• Weight: 2.013 lb (913 g)
